CH/PVS-14 Standard Night Vision Monocular - Photonis White Phosphor
**Accepting orders to ship on or prior to Jan 10. For more information on lead times, click HERE. **

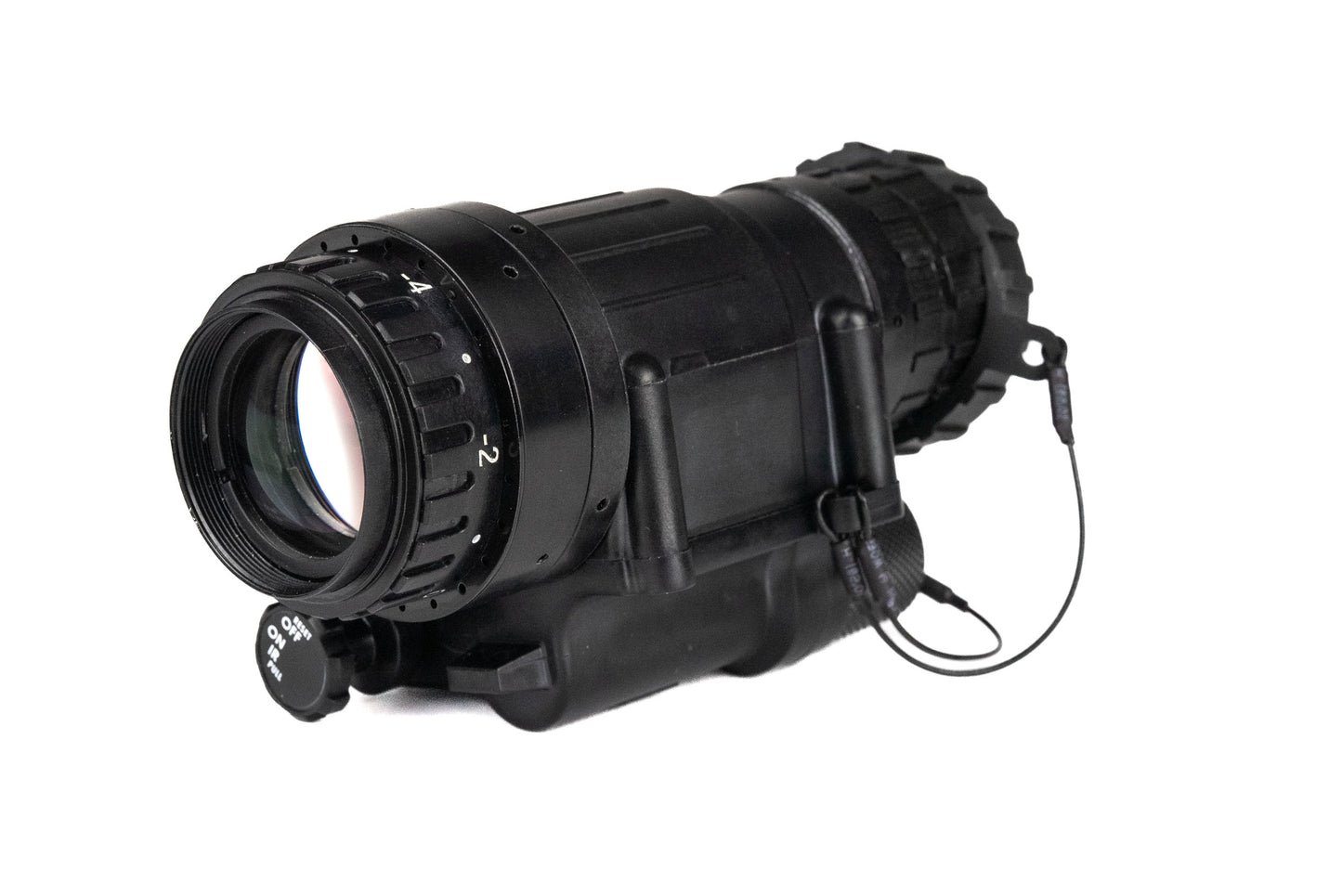

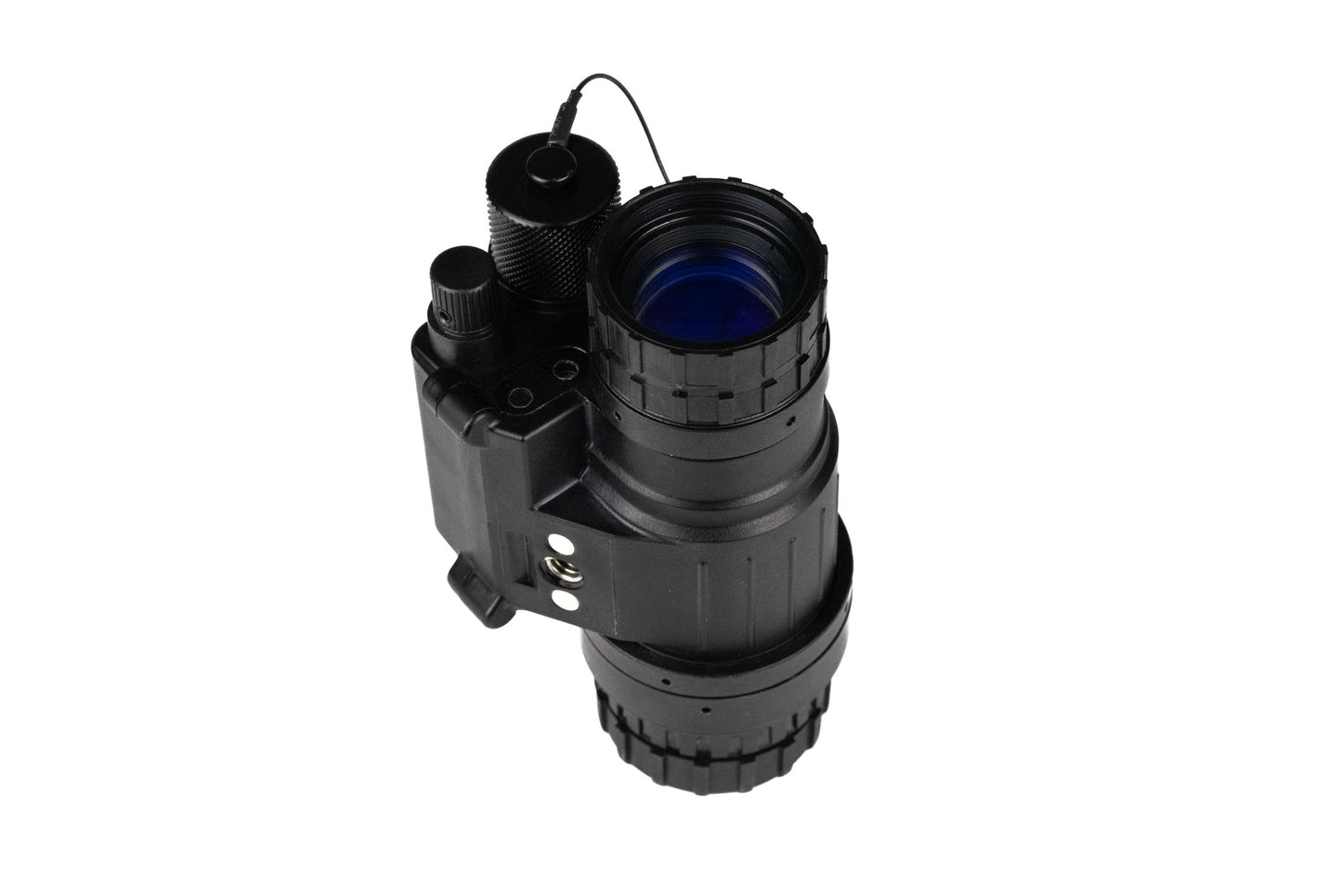

Cold Harbour Supply assembled PVS-14 monocular with Photonis Echo White Phosphor MX-11769 variable-gain image intensifier tube on-board. Each monocular is meticulously cleaned, assembled, purged, and tested in-house with precision tools using our digital purging rig, downdraft table, and clean room. Each device will also be tested using our in-house Hoffman night vision test set and a full test report will accompany each unit.
To see the differences between our monocular offerings, check out the video below:
The CH/PVS-14 Standard uses milspec lenses made by Optronics Engineering in Israel. These lenses do not feature anti-reflective coatings, and will show more off-axis flaring than coated lenses such as those found on our Plus and Pro monoculars. There is also some pincushion distortion that is more evident when navigating urban environments where straight edges are more prevalent. We recommend this system for users looking a low-cost monocular solution primarily using this in rural environments.
The PVS-14 is the standard night vision optic serving all NATO forces globally. Its versatility and durability make it the de-facto choice for Law Enforcement, security and hobbyists. PVS14s can be head-mounted, put on a weapon's Picatinny rail via adapters, or simply as a convenient hand-held device. The PVS-14 is also drop-tested to MIL-STD-810G standards (26 drops at 4 feet onto concrete)
As a monocular, the PVS-14 gives operators the ability to see in dark situations that would be impossible with the naked eye. The other non-PVS14-assisted eye is free to retain its natural night-adapted vision, increasing situation awareness.
- Photonis ECHO Image intensifier tube inside (FOM 1600-2000) (Typical Resolution is 67-69 and SNR's around 25-30)
- Housing and ocular lens made by Optronics Engineering
- Objective lens made by ADI Trident
- Ultra compact and lightweight
- Manual Gain Control
- Auto-gating as standard
- Precise front lens focus adjustment
- Internal 'low battery' and 'IR Illuminator on' indicators
- Functions with AA battery
- Built in, hazard free, IR Illuminator (5mW)
- PASGT and ACH/MICH helmet mountable allowing for 'hands-free' operation
- 12 month full warranty included

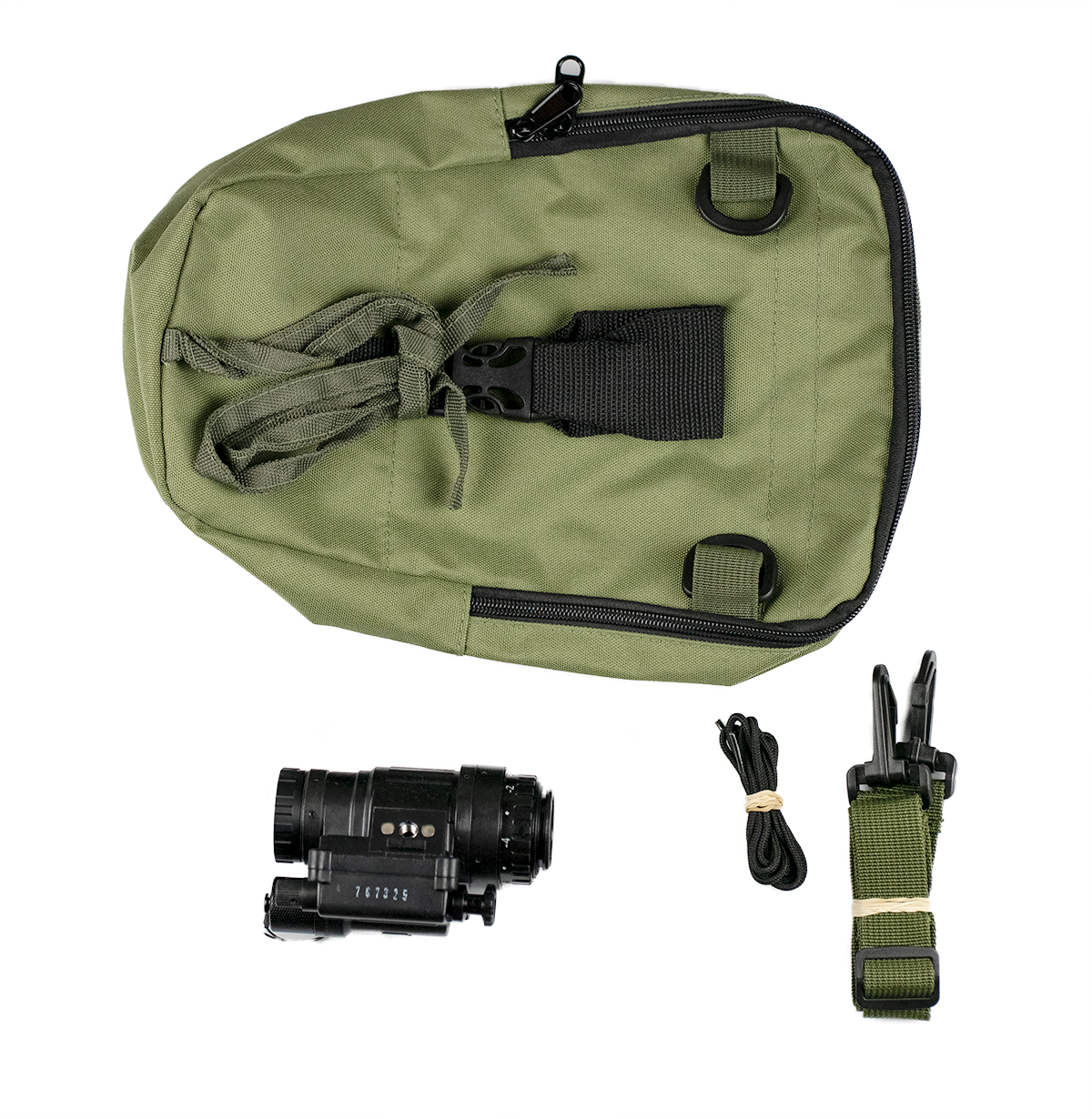

- CH PVS-14 night vision monocular
- Tube spec sheet
ECHO tubes may have some blemishes in the image represented by small spots less than 0.3mm. From our experience, there is usually only one or two blems visible and when used in a dynamic capacity, does not adversely affect the user experience as they simply blend into the background image.
For more information on blemishes and what you can expect, click HERE.
We now also offer a hand-select option for discerning customers with specific performance threshold requirements or characteristic needs. For more details on this premium service, please click HERE.
