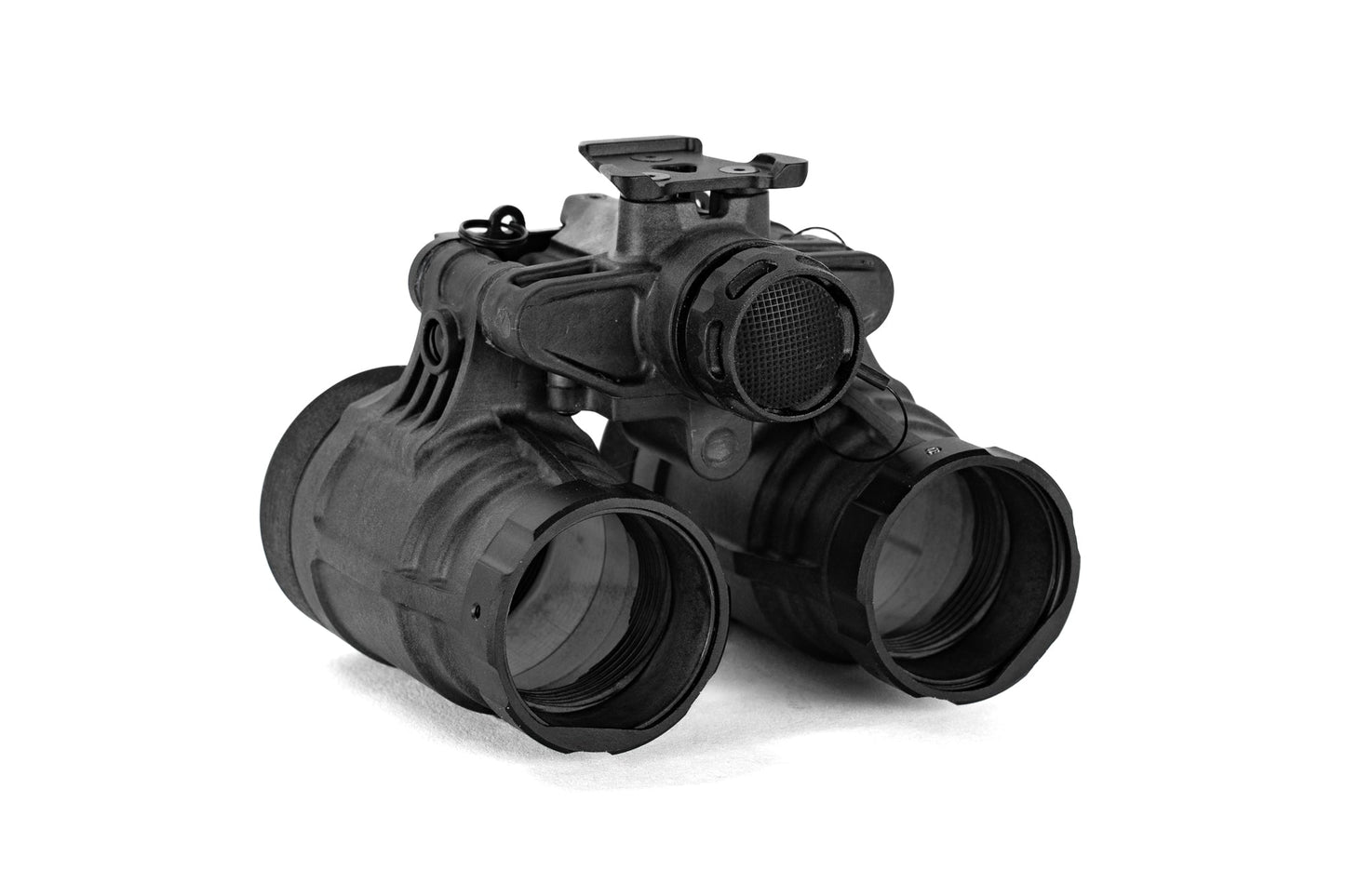

Nocturn Industries Katana Housing
Nocturn Industries Katana Housing

Nocturn Industries Katana Housing

Regular price $2,450.00 CAD
Unit price  per

The Nocturn Industries Katana night vision binocular housing is the lightest binocular on the market to-date at a functional weight of 17.76 oz. (504g) complete with standard US Milspec PVS-14 optics and battery installed.

Key Features:

  • Individual pod auto-off when swiveled
  • Simple tactile and audible push-button on/off
  • Tool-less Inter-Pupillary Distance adjustment
  • Exceeds MIL-STD-810G and NATO 1.5m drop test standards
  • Dust-proof and water-proof to 1.5m
  • Built-in dovetail mount
  • Assembled in the USA
  • LIFETIME WARRANTY on the housing

The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

The Katana is simple with a minimalist design. An onboard battery with no remote power keeps things simple and wires off the helmet. For extended run-times a LEMO-port option is available to be special-ordered. Tactile and audible push button on/off in the cap (similar to flashlight buttons) reduces weight and reduces the footprint of the bridge. Individual pods power on/off when articulated to the side for single or dual eye use and to eliminate backsplash when stowed or rotated out.

An original new “Friction Lock Inter-Pupillary Adjustment” feature allows users to intuitively set IPD distance by using force-to-overcome to quickly and easily set IPD.

 Specs:

  • Material: Polymer
  • Colour: Matte Black Cerakote
  • Weight (Battery + Standard PVS-14 lenses and Image intensifiers): 17.76oz/1.11lbs/503.5g
  • On board power: CR123a
  • Out board Power: Optional LEMO port
  • *DISCLAIMER: Do not use onboard power and remote power simultaneously. Main power controlled by battery pack when remote power is utilized.
  • IR Illuminator: No
  • Pod power off when rotated to side: Yes (Individually)
  • Ingress rating: IP68 (dust-proof and water-proof to 1.5m)
  • Mount style: Dovetail
