Cold Harbour Supply

Infiray Affo Series

Infiray Affo Series

Regular price $1,059.00 CAD
Regular price Sale price $1,059.00 CAD
Sale Sold out

**Special order item; 2 week lead time**

Main Features:

  • Compact, rugged, weather-resistant design that's small and easy to use and hold
  • Easy and intuitive controls
  • Multiple colour modes (white hot, black hot, red hot, rainbow)
  • Ultra-long battery life (up to 9.5h)
  • Built-in stadiametric range-finding
  • Picture-in-picture zooming
  • Built-in wifi/app control and 8GB of onboard memory for recording
  • USB-C charging and off-board power supported
  • On-board LED task-light for admin tasks

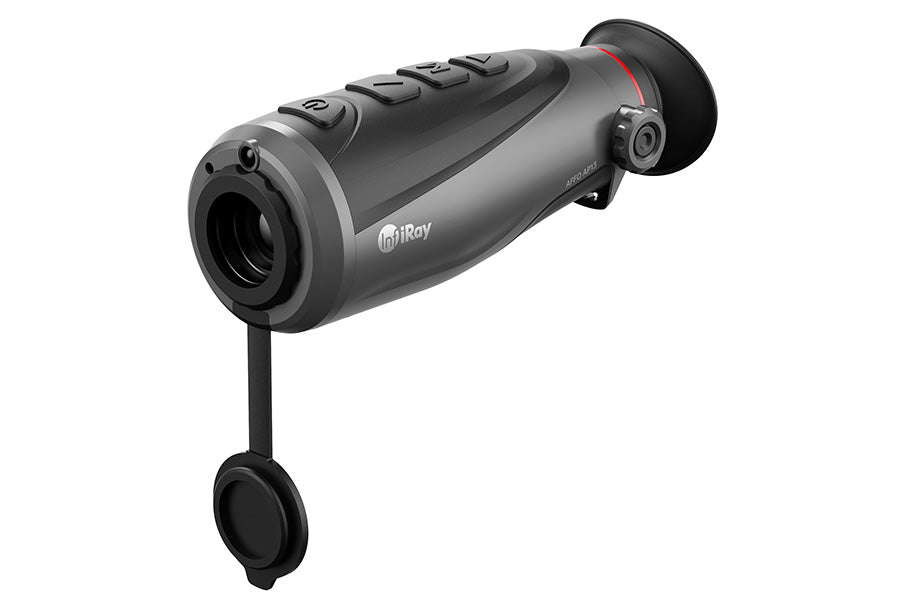

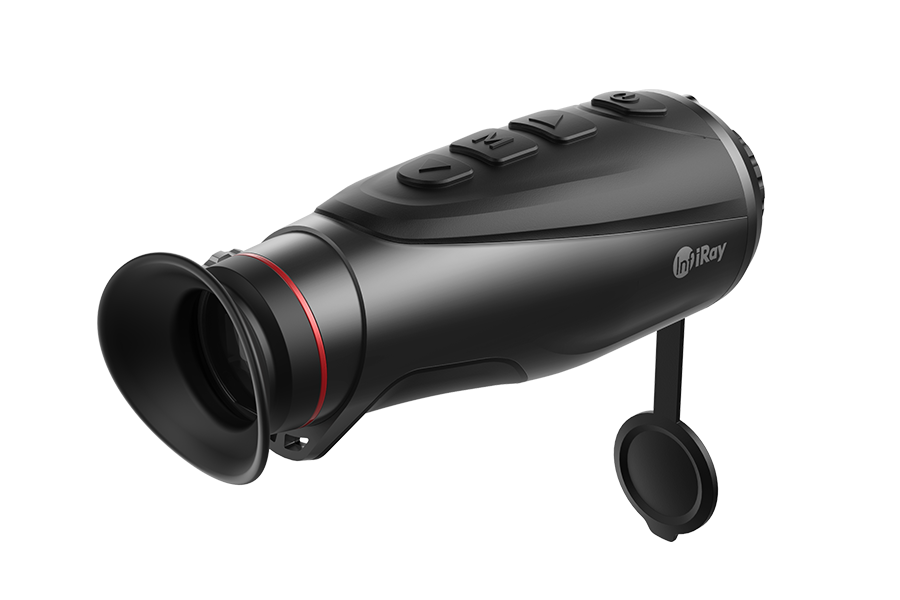

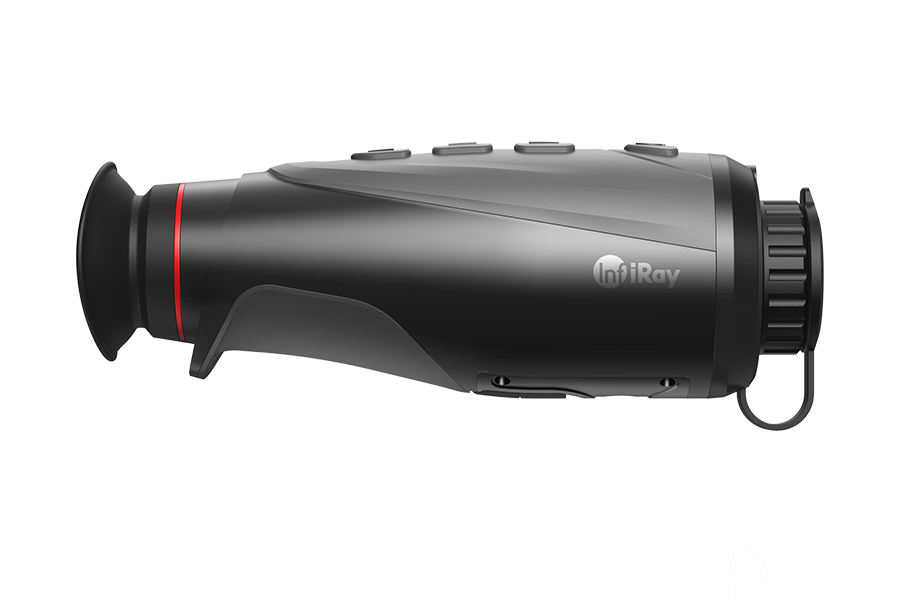

The InfiRay Outdoor AFFO series is an affordable and compact thermal imager designed for easy one-handed operation. This highly versatile imager is rugged yet lightweight and weatherproof, making it ideal for many applications such as law enforcement, hunting, search and rescue, and security. Powered by a high-performance 12µm sensor, the AFFO series uses next-generation Reality+ image processing to provide a crisp, clear viewing experience that outperforms comparable economy imagers. The user-friendly interface has a built-in stadiametric rangefinder, picture-in-picture function, hotspot tracking, internal recording, and a 9+ hour run-time (7.5 on some models). Capture vivid, realistic photos and videos in any weather or lighting conditions, taking your thermal imaging experience to the next level.


 Model AP13 AL19 AL25
Core Resolution 256x192 384x288 384x288
Pixel Size (um) 12 12 12
Frame Rate (Hz) 25 50 50
Objective Lens Size (mm) 13 19 25
Detection Range (m) 670 980 1300
Base Magnification 2x 2x 2.5x
Digital Zoom 1-2x 1-2-4x 1-2-4x
Field of View 13.5x8.4 13.8x8.7 10.5x6.6
Adjustable Diopter -7 to +2 -7 to +2 -7 to +2
Internal Display 640x400 640x400 640x400
Battery Life (hours) 9.5 7.5 7.5
IP Rating IP67 IP67 IP67
On-Board Memory (GB) 8 8 8
Wifi & App support? Yes Yes Yes
Operating Temperature (C) -20 to + 50 -20 to + 50 -20 to + 50
Weight 340 350 350
Dimensions (mm) 160x60x60 169x60x60 169x60x60
External Power Supply USB-C USB-C USB-C


Brochure link HERE

Manual link HERE
