**Special Order Item; Lead time 2-3 weeks**

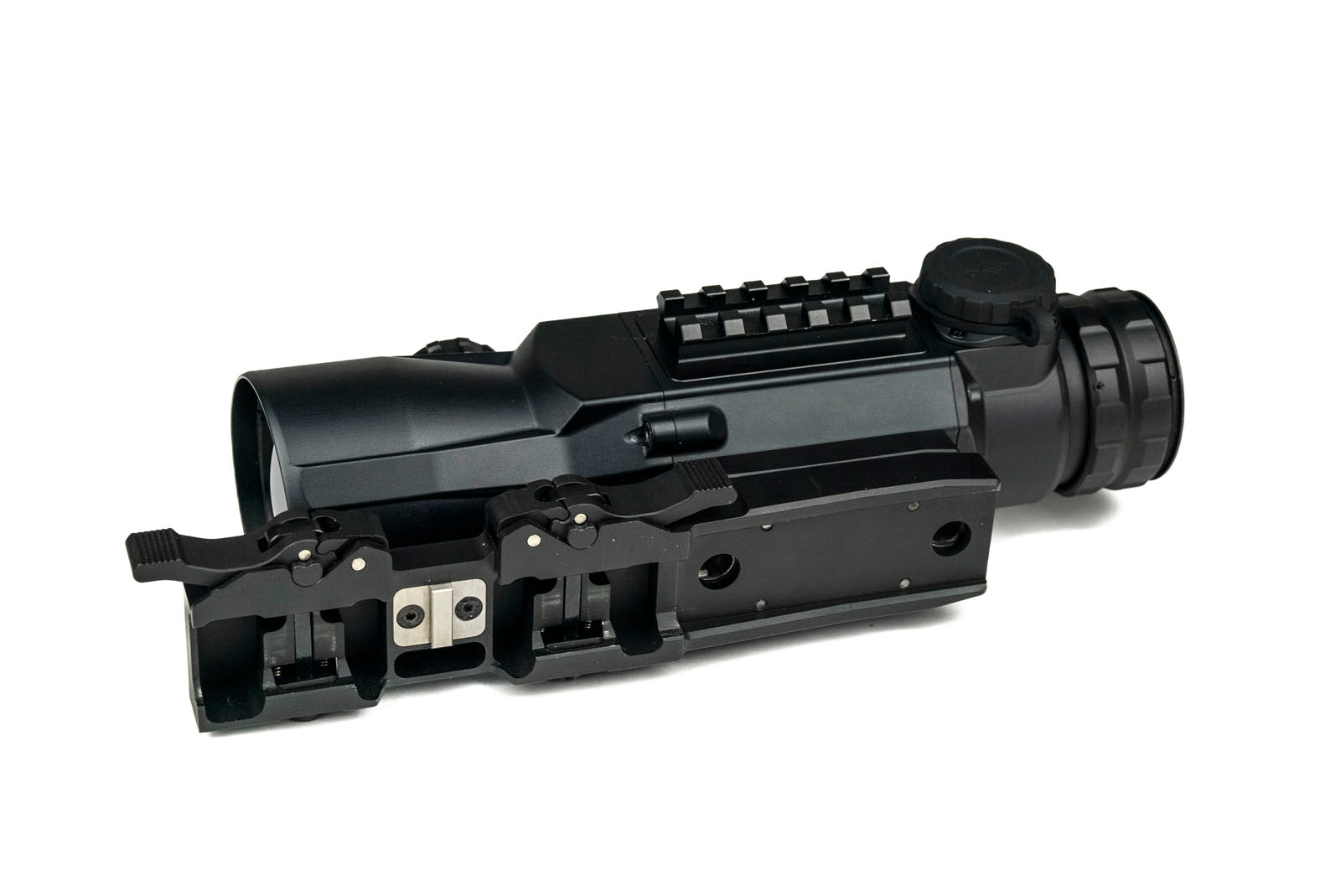

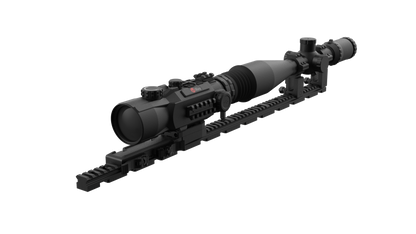

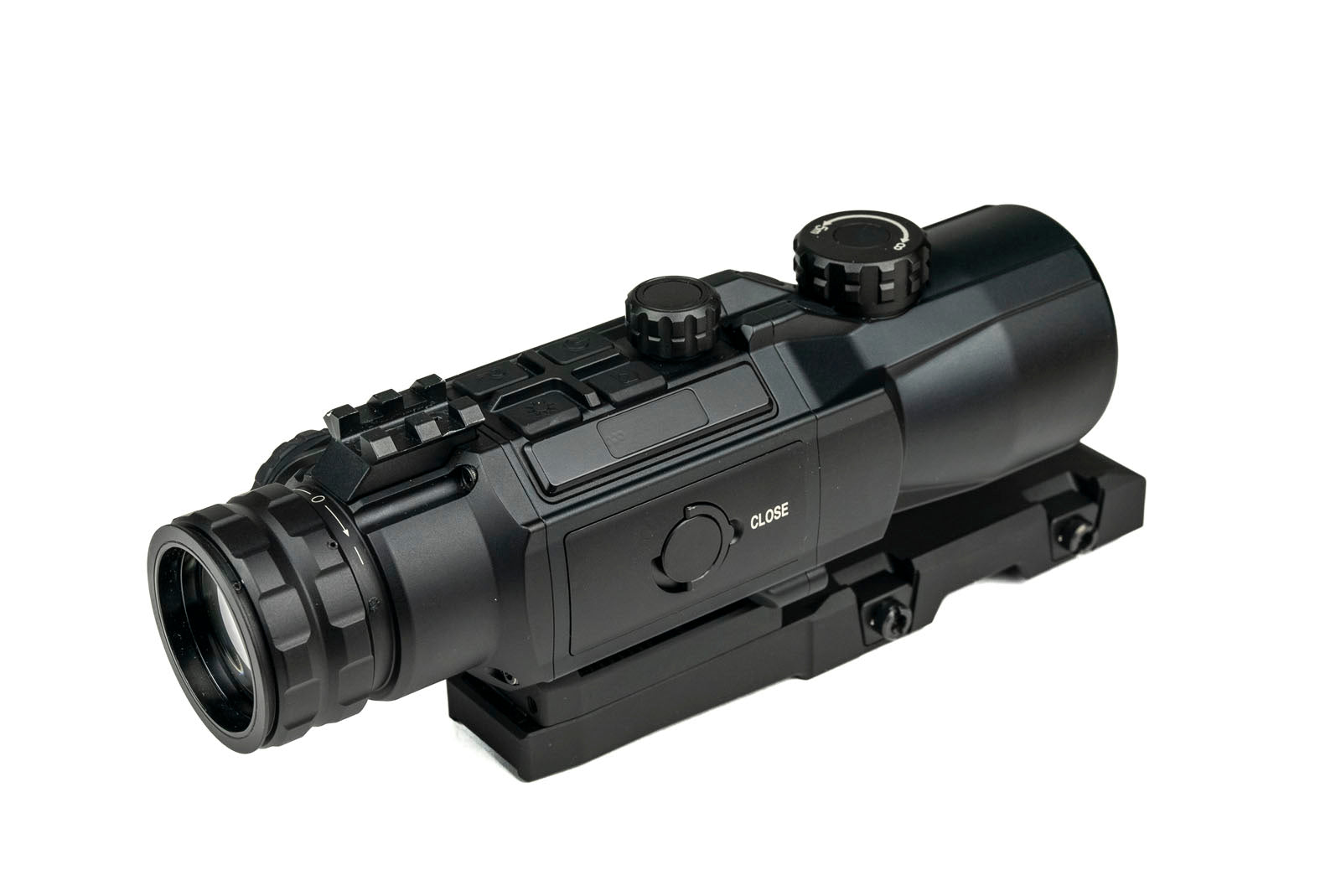

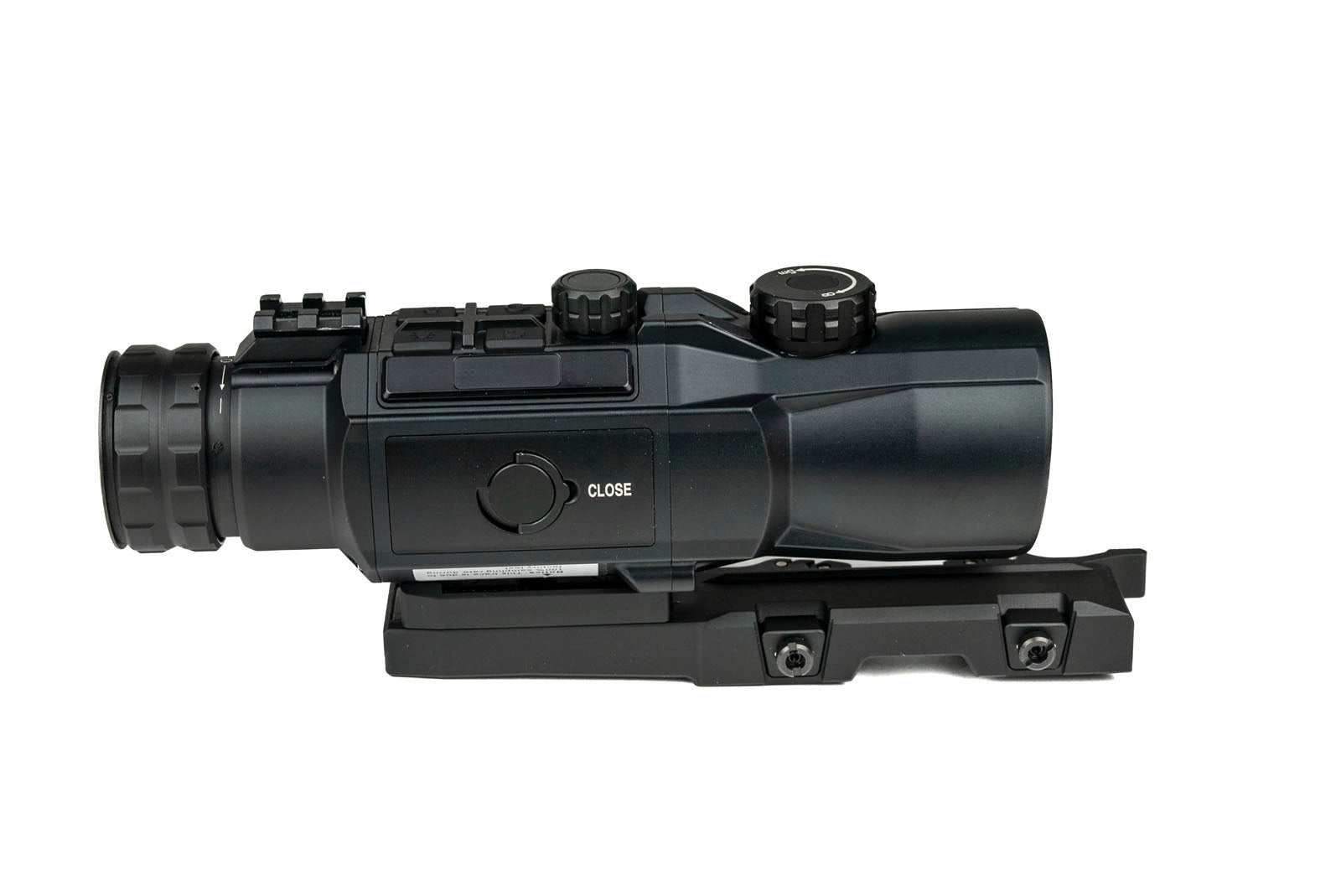

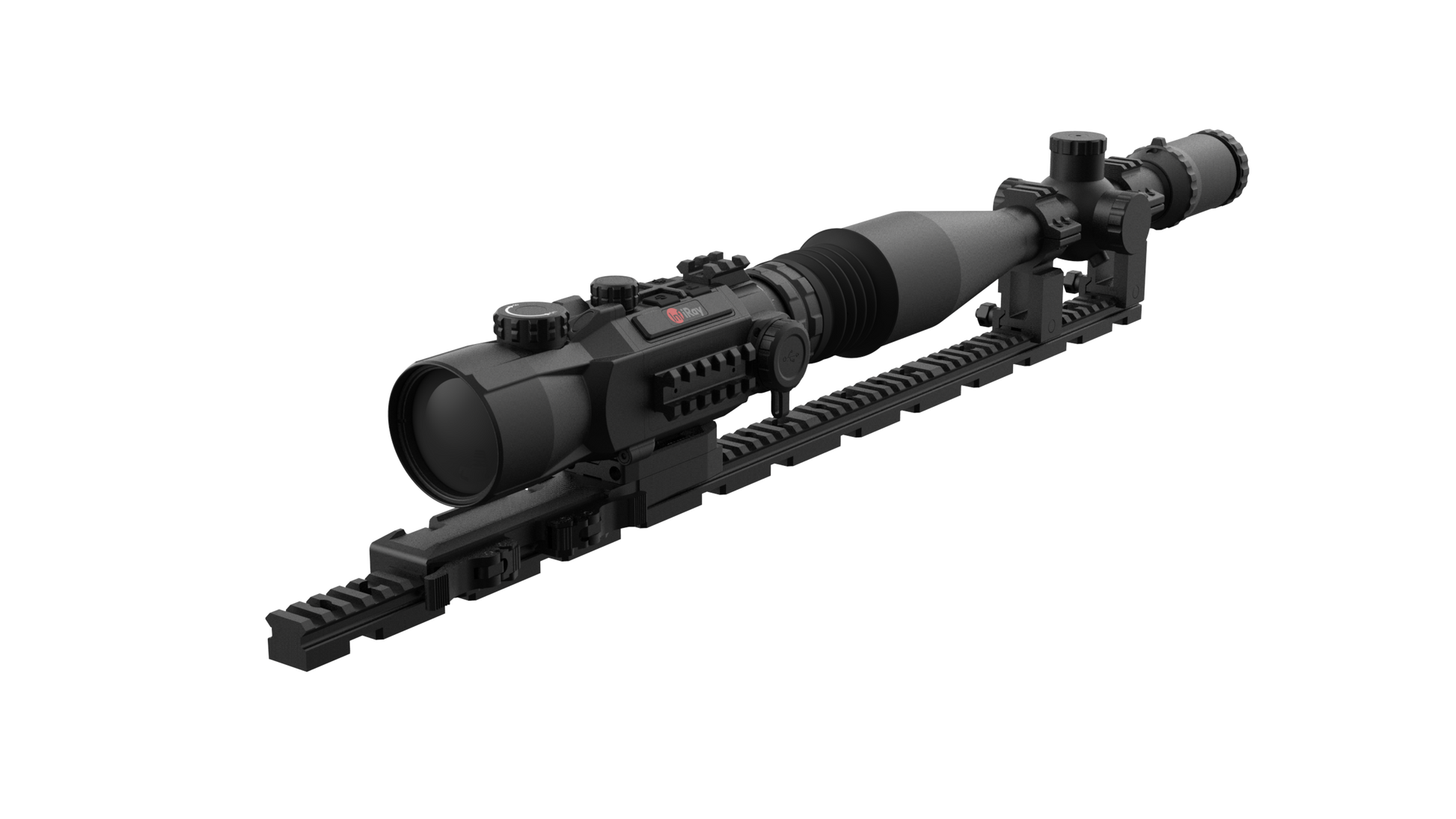

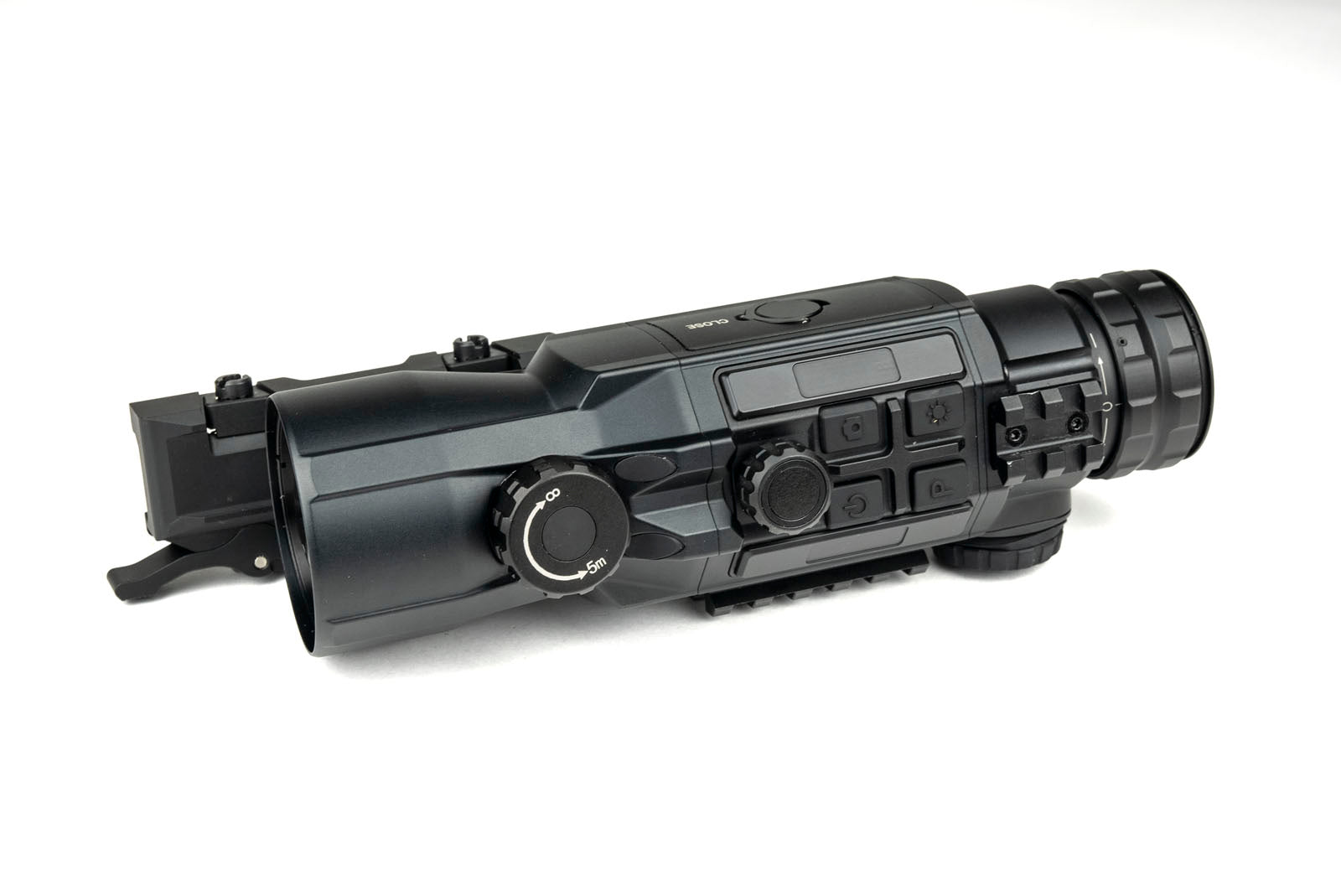

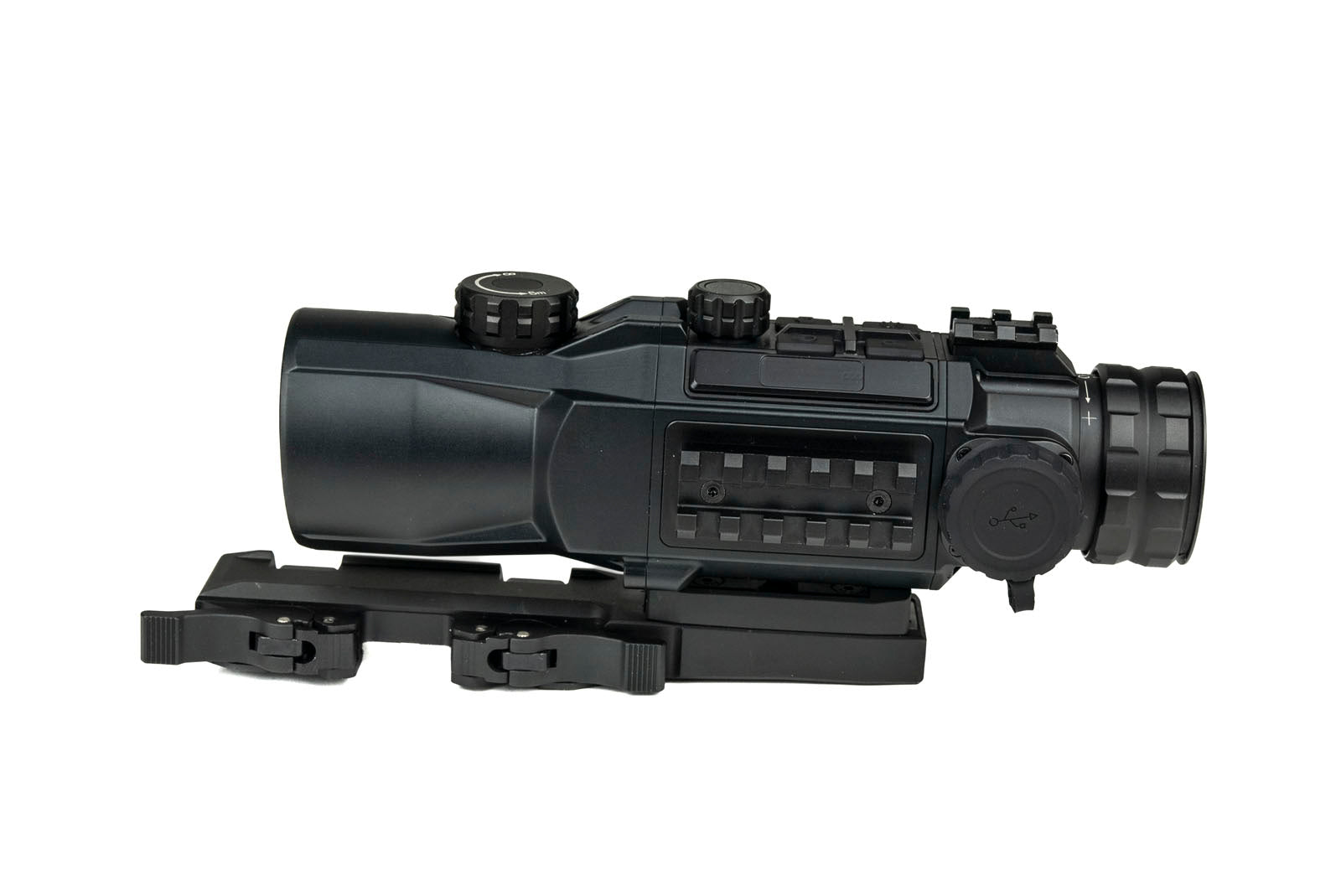

The Infiray HYH50W is a groundbreaking dual-role device featuring an industry first 2K (2560x1920) AMOLED screen and native 2.6x magnification. Leveraging the success of the Rico series of thermal scopes, the HYH50W retains the same industry-leading 12um 640x480 thermal core and provides over 2km of detection. As a dedicated thermal scope, the HYH50W can reach an effective 20x magnification. The HYH50W can instantly add thermal capabilities on a platform that already has a zeroed day optic setup - simply mount the HYH50W in front of the day optic and use the on-board guided menu to line up your reticle.
The HYH50W includes two batteries that provides a total of 12 hours of operation, and can take offboard power via USB-C if desired. The HYH50W comes with an included scope mount and can also accept an optional laser rangefinder that provides accurate ranging data directly on-screen.
Lastly, the HYH50W features on-board photo and video recording with 64GB of on-board battery, and WiFi to connect to your mobile device.
Manual Download HERE
Quick Start Guide HERE
Specs:
| Resolution |
640x480/12um
|
| Frame Rate |
40Hz |
| NETD |
<= 40mK |
| Objective Lens (mm) |
50mm F/1.0 |
| Field of View |
8.8 x 6.6 |
| Recognition Range (Human) |
1180m |
| Recognition Range (Vehicle) |
2130m |
Digital Zoom
|
1x/2x/4x/8x |
| Recommended Day Optic zoom range |
1-9x |
| Exit Pupil Distance |
25-60mm |
| Colour Palettes |
White-hot, Black-hot, Red-hot, Iron-Red, Rainbow, Outline |
| Exit Pupil Diameter |
23mm |
| Diopter Adjustment |
-4 to +2 |
| Screen |
1.03" 2560x1920 AMOLED |
| Battery |
3.7V 4400mah |
| Max Operating Time @ 22C |
>6h |
| External Power Supply |
5v via USB-C |
| Laser Range Finder |
Maximum 1km range (deer); 2m (vehicle) |
| Weight (with battery) |
890g |
| Dimensions |
220x76x74mm |
