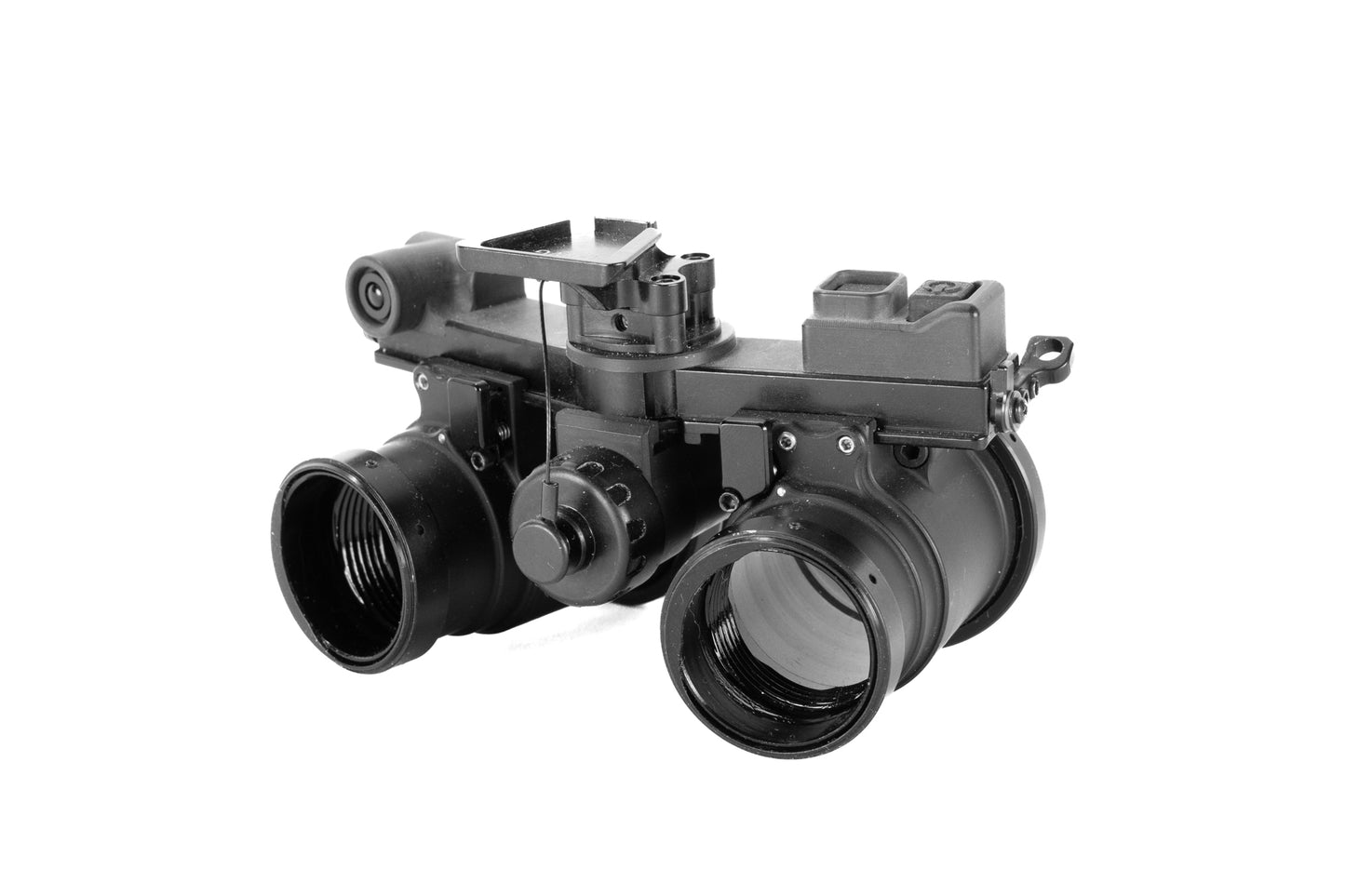

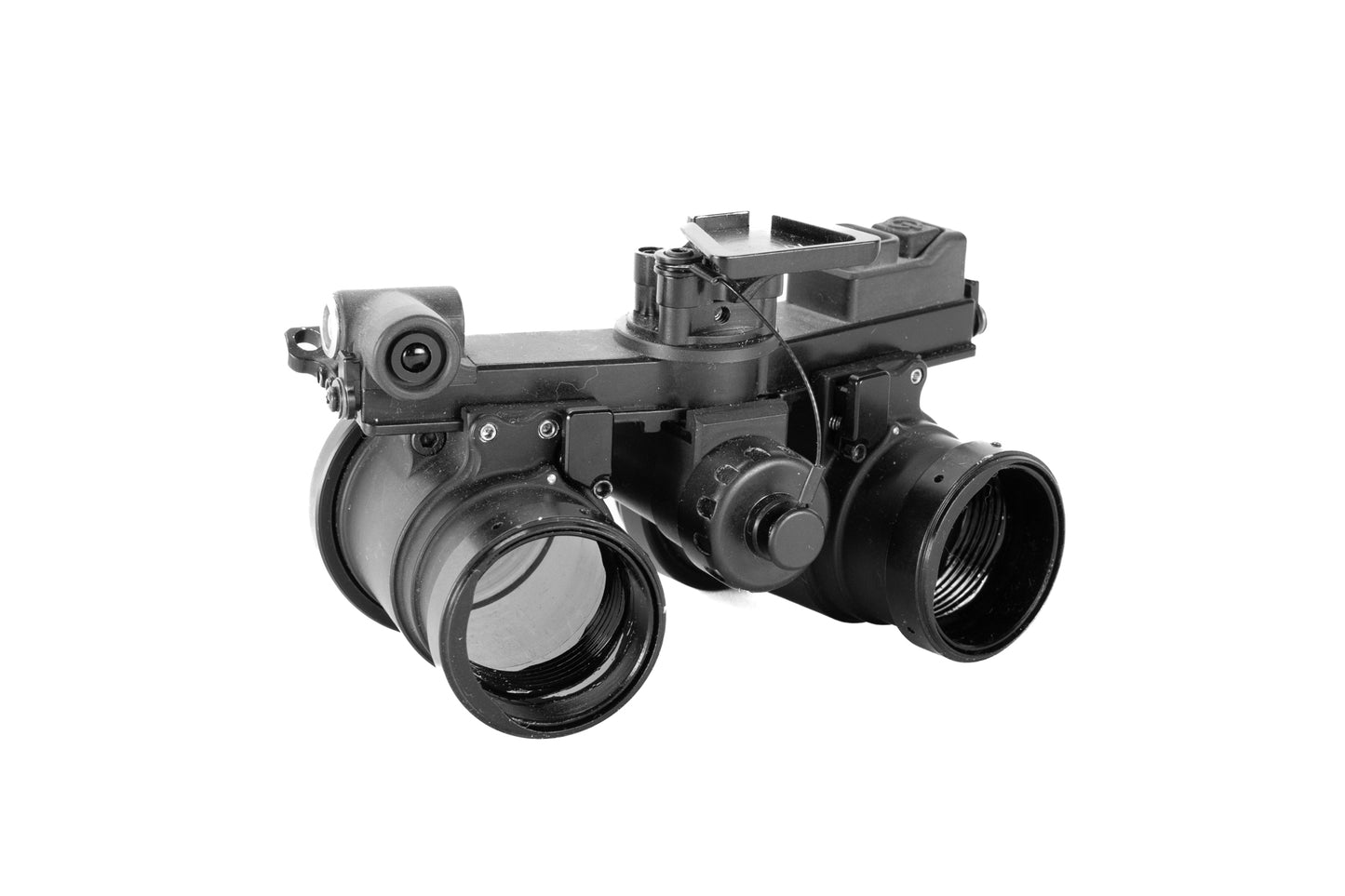

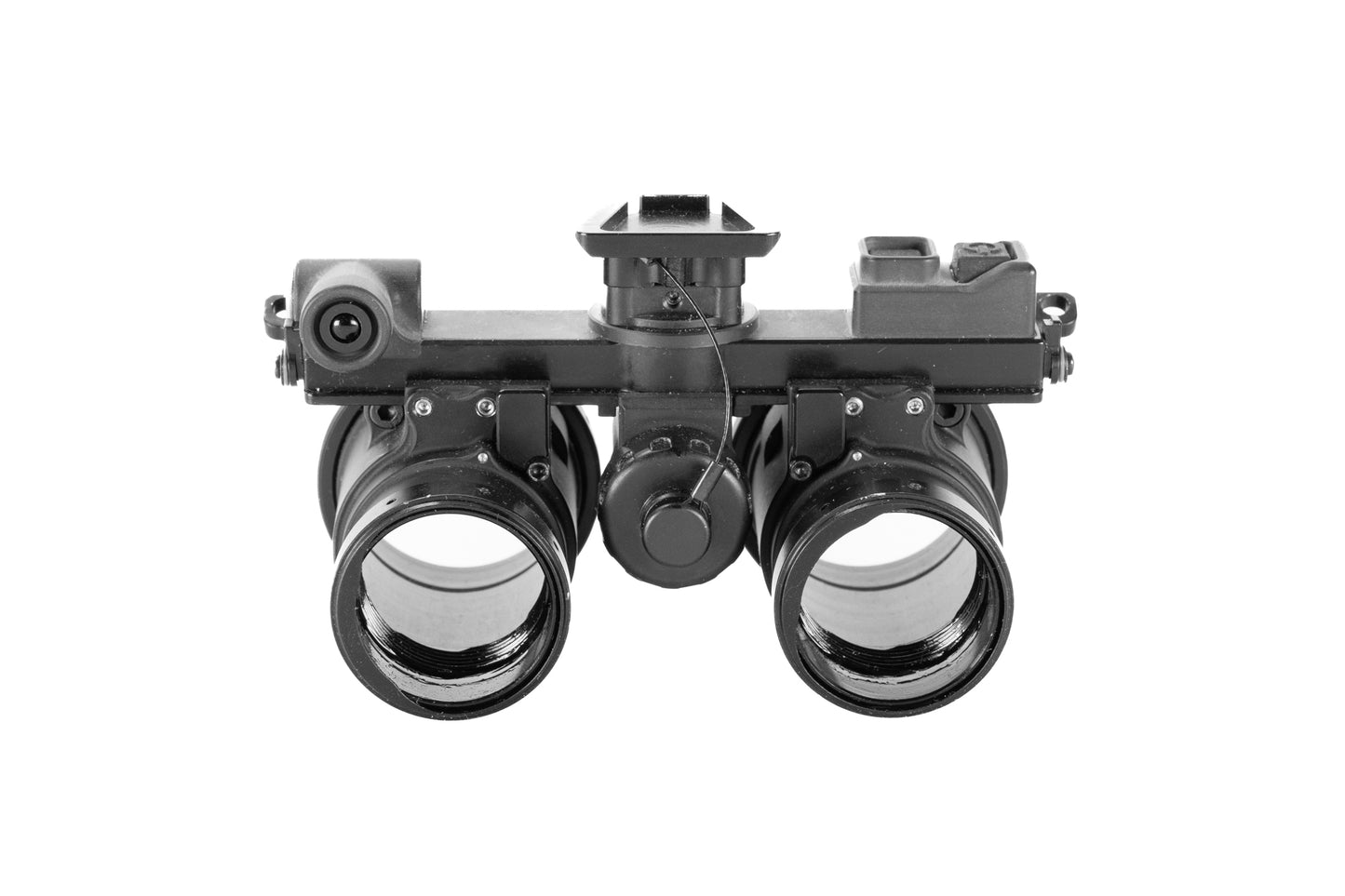

AB Night Vision RPNVG Binocular NVG Housing

AB Night Vision RPNVG Binocular NVG Housing

Regular price $4,034.95 CAD
Regular price Sale price $4,034.95 CAD
Sale Sold out

** This is for the housing only no lenses are included **

The RPNVG (Ruggedized Panoramic Night Vision Goggle) is the first and only dedicated goggle able to pan each optical pod outwards to create a significantly wider functional Field of View (FOV) compared to traditional binoculars. Building upon the Panobridge concept, the benefits of additional FOV are multi-faceted: seeing more in the user's periphery increases situational awareness, and alleviating the need for the user to constantly turn their heads alleviates unnecessary neck strain.

While most NVG’s are built with molded polymer housings, the RPNVG features a 7075 aluminum chassis for unsurpassed rigidity and structural strength.  All articulation points have been beefed up to increase impact resistance, giving users one tough goggle.  The RPNVG uses a CR123A battery and the power and IR illuminators have been revised to push-button. Additional run times can be made available by using an off-board battery pack plugged into the RPNVG's integral LEMO battery port.

The RPNVG eliminates exposed wires – something commonly found in ANVIS-style night vision goggles.  As the optic pods traverse during interpupilary adjustment, they ride across an electrical contact strip.  This provides much increased weather/element resistance and reduces a traditional failure point.  IP adjustment is accomplished with by turning dual knobs on either side of the bridge; the same as any traditional ANVIS goggle.

Specifications
Material 7075 Aluminum alloy
Tube Type 18mm MX-10160 tubes
Weight

621g with standard optics and a battery

Power Supply CR123 onboard OR external battery pack via LEMO port
Runtime 16+ hours
Field of View 40 to 65º
Interpupillary Adjustment Range 57-98mm
Diopter Adjustable +2 to -6
Submersion and Dust Rating Up to 20 metres
Mount Style Built in dovetail mount
Onboard IR Illuminator Yes
