CHUB-XL for JerryC and PVS-31A and GPNVG-18

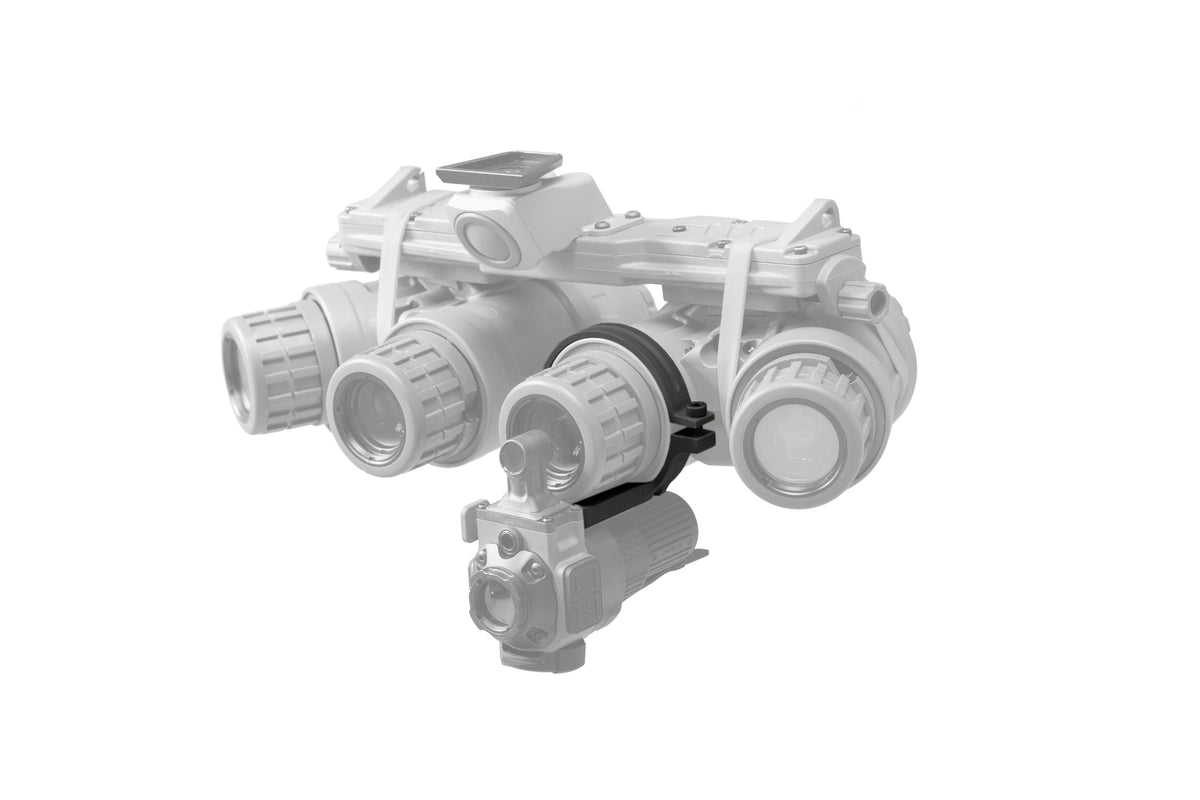

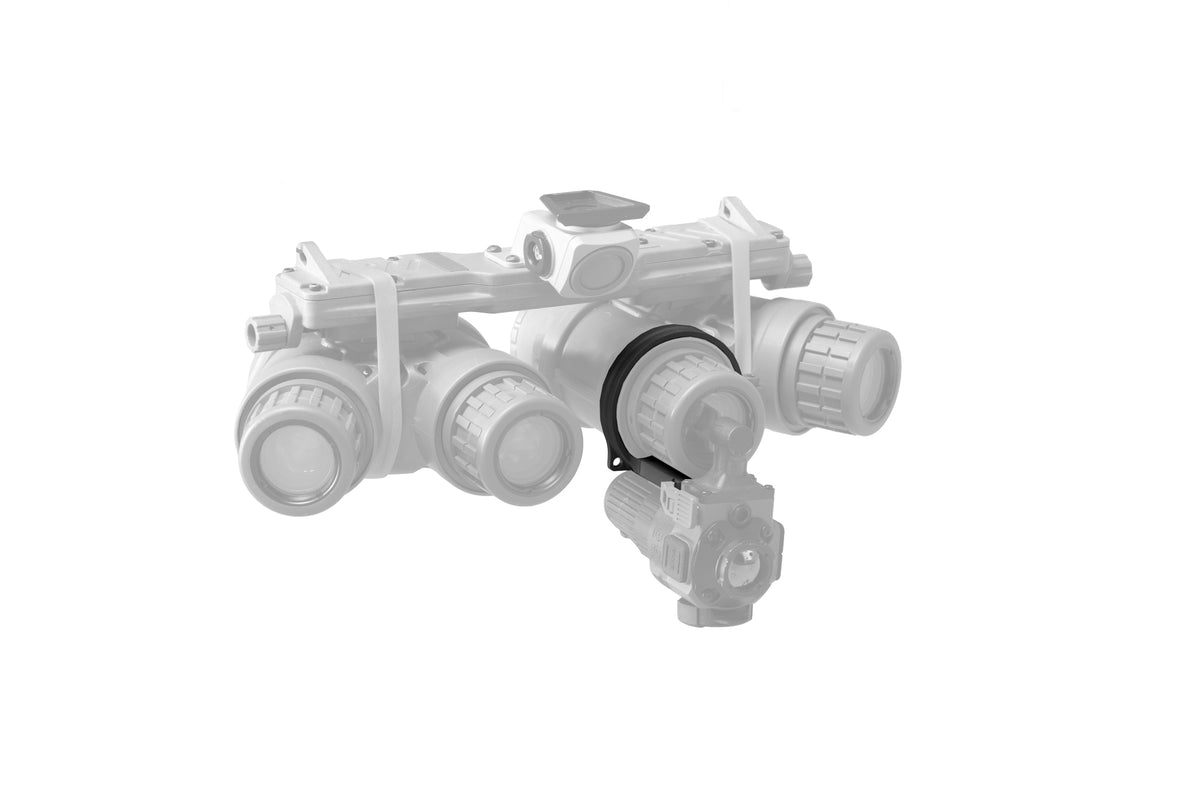

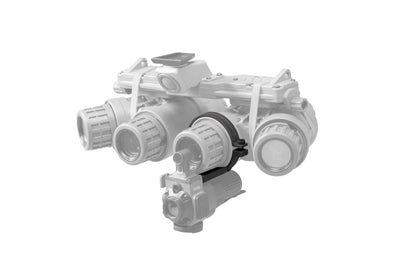

Following on the success of the CHUB, the CHUB-XL (Cold Harbour Upgraded Bracket eXtra Large) was developed to allow mounting of the JerryC Pro (and other derivatives) to the L3 PVS-31A and GPNVG-18 and similar devices.

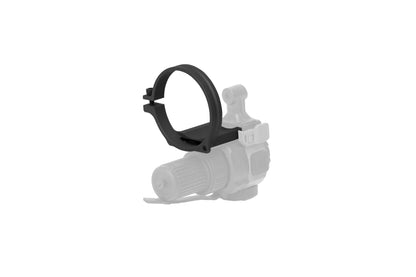

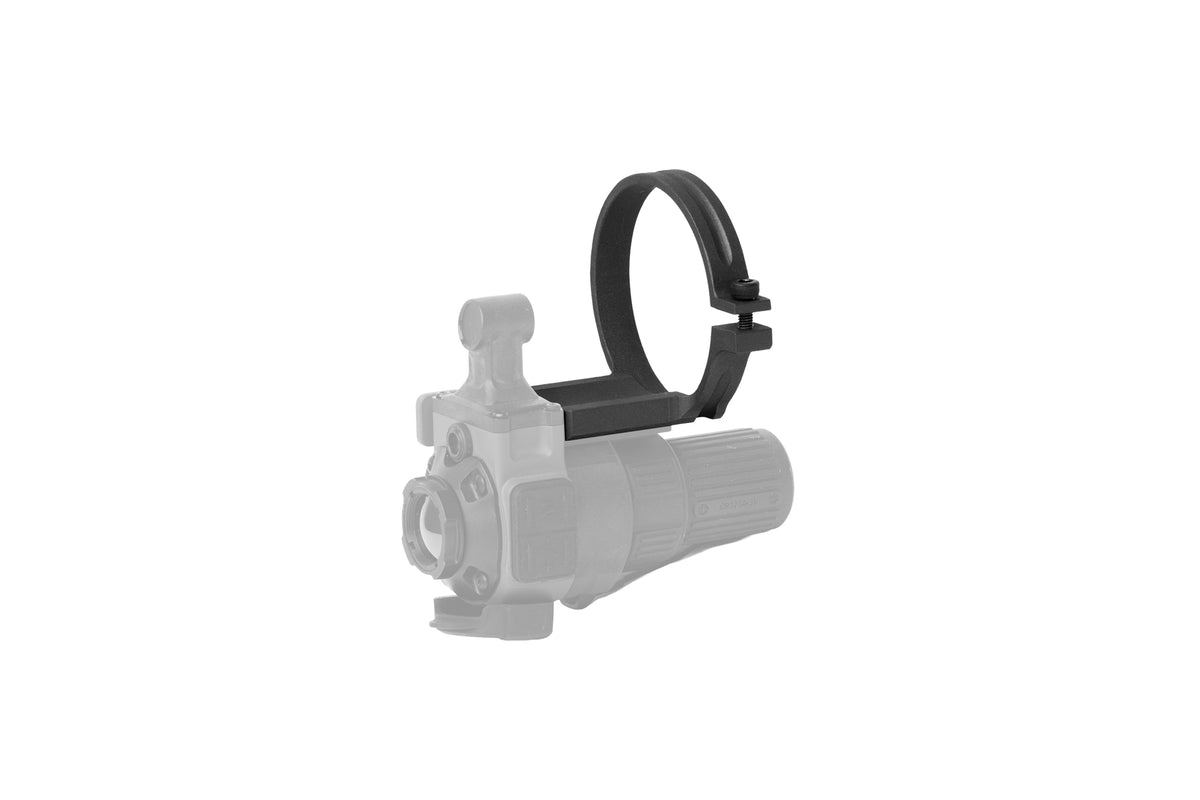

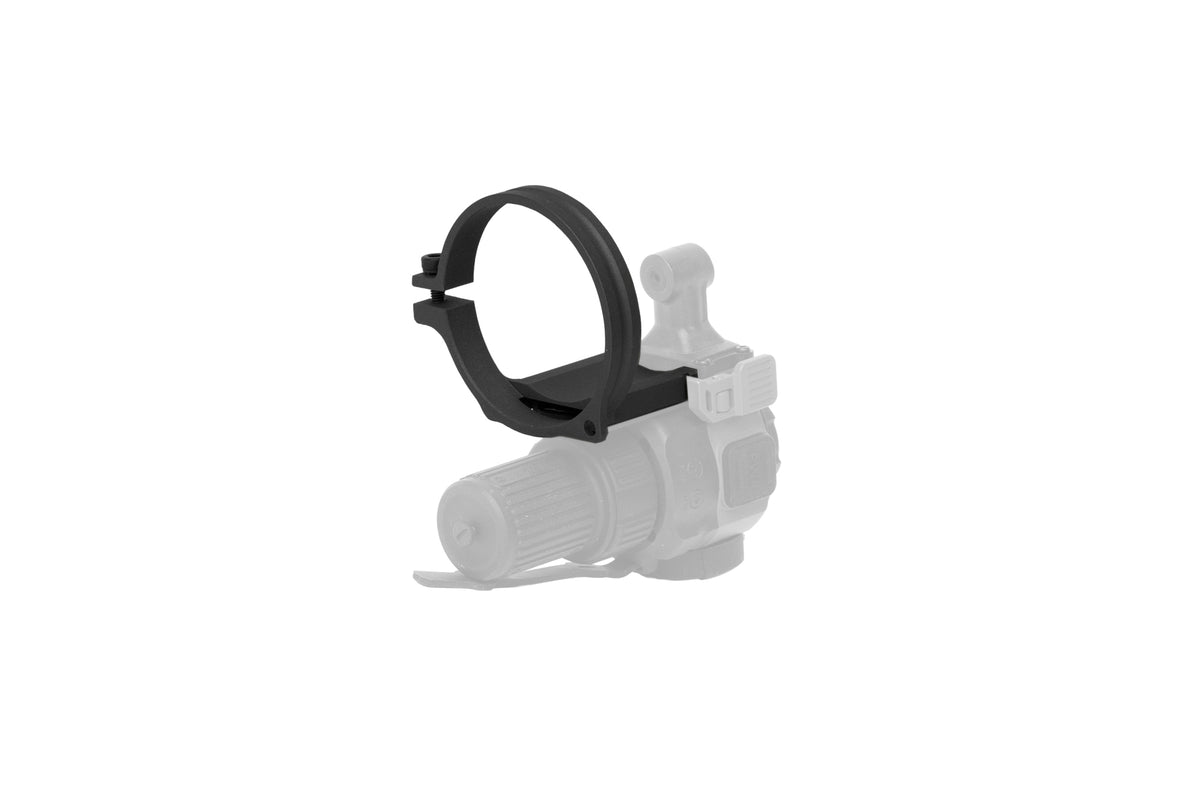

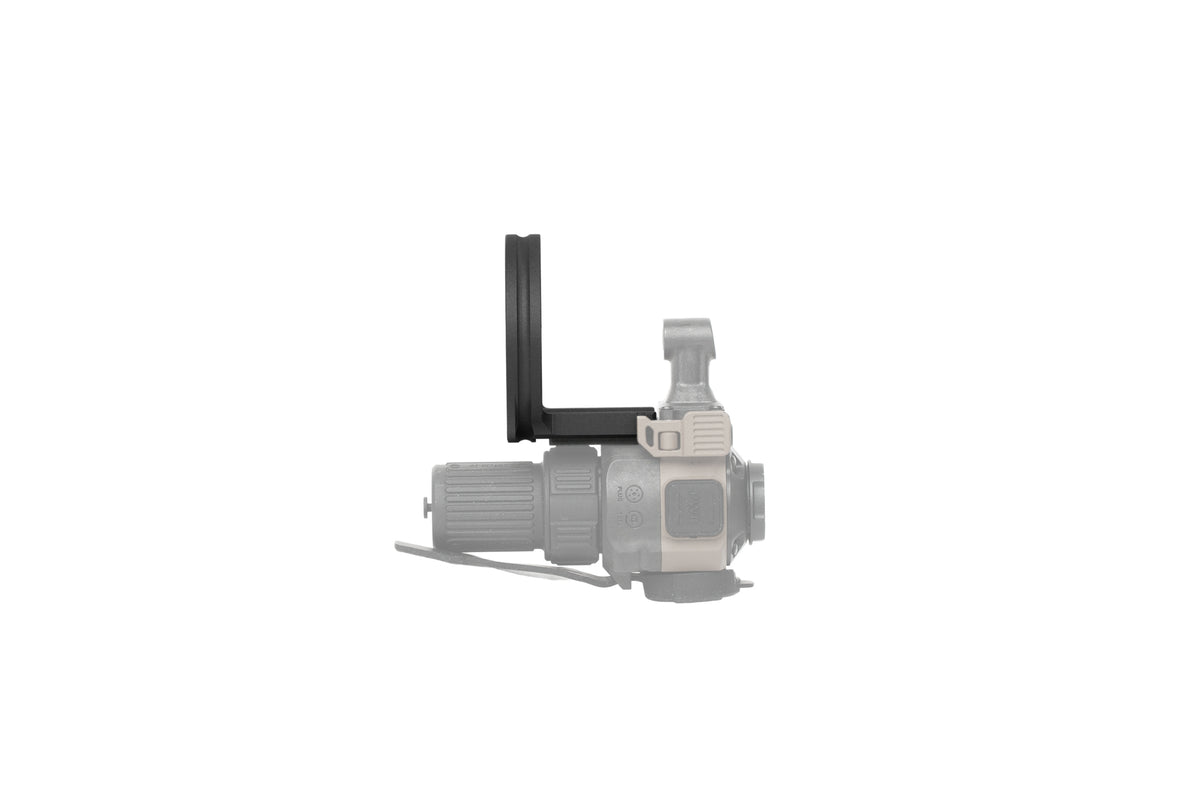

The Cold Harbour Upgraded Bracket (CHUB-XL) is an enhanced mounting solution for the JerryC and RENV-C series of Clip-On Thermal Imagers (COTI). The JerryC factory bracket is known to inadvertently release, stretch out, and/or break over time.

The CHUB-XL features several improvements over the factory bracket:

• Simple and SECURE one-bolt install onto host night vision device - Bracket QD latch removed to eliminate snagging/unintended bracket release
• Increased durability - cut from 6061T6 bar stock aluminum and anodized with enhanced bracket thickness, will not deform or stretch over time
• Tightened rail tolerances to eliminate thermal image shift under heavy movement
• Securely accommodates both legacy JerryC C5 and C2 as well as JerryC Pro COTIs (see below for full compatibility list)
• Adds a lanyard attachment point for retention - accepts any small keyring (not included)
• Increased clamp diameter range - fits a wider range of host night vision devices


The CHUB-XL is designed for the most common COTI mounting angles and locations to allow full function and improved ergonomics when passive aiming.

The CHUB-XL can accommodate the following devices:

• L3 PVS-31A
• Argus PVS-31A
• L3 GPNVG-18
• Argus APNVG
• Any other PVS-31A or GPNVG-18 derivative with a clamp diameter of ~43.05mm

The CHUB-XL will work with the following COTI devices:

• JerryC Pro

• JerryC C5, CE5, C2, CE2
• Falconclaw FTO
• IEA Miloptics F-COD and F-COD Pro

We cannot guarantee that the CHUB will work with all models of RENV-C as rail dimensions differed batch-to-batch. Some minor hand-filing may be necessary to work with the RENV-C

100% Designed & Made in Canada
