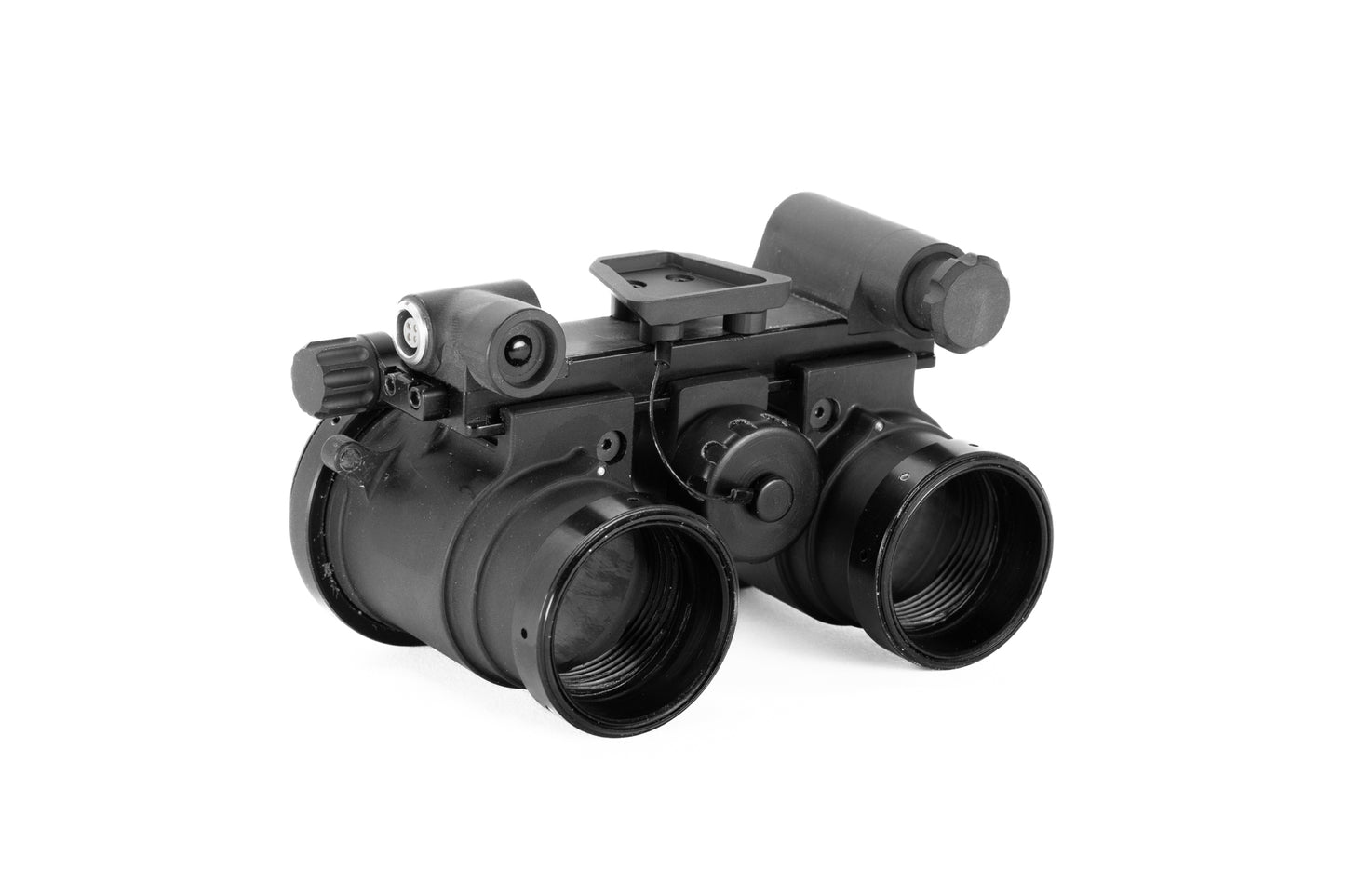

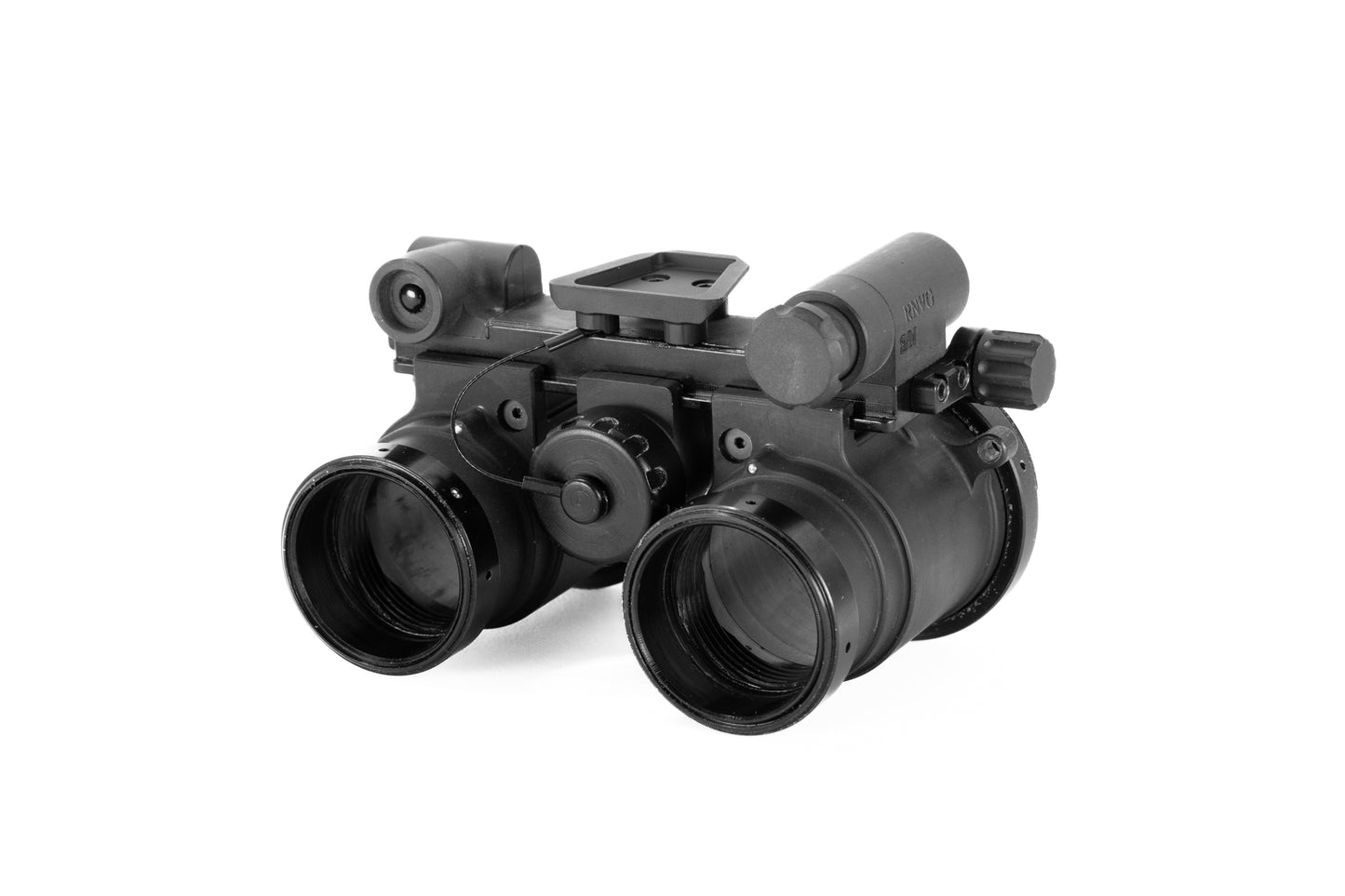

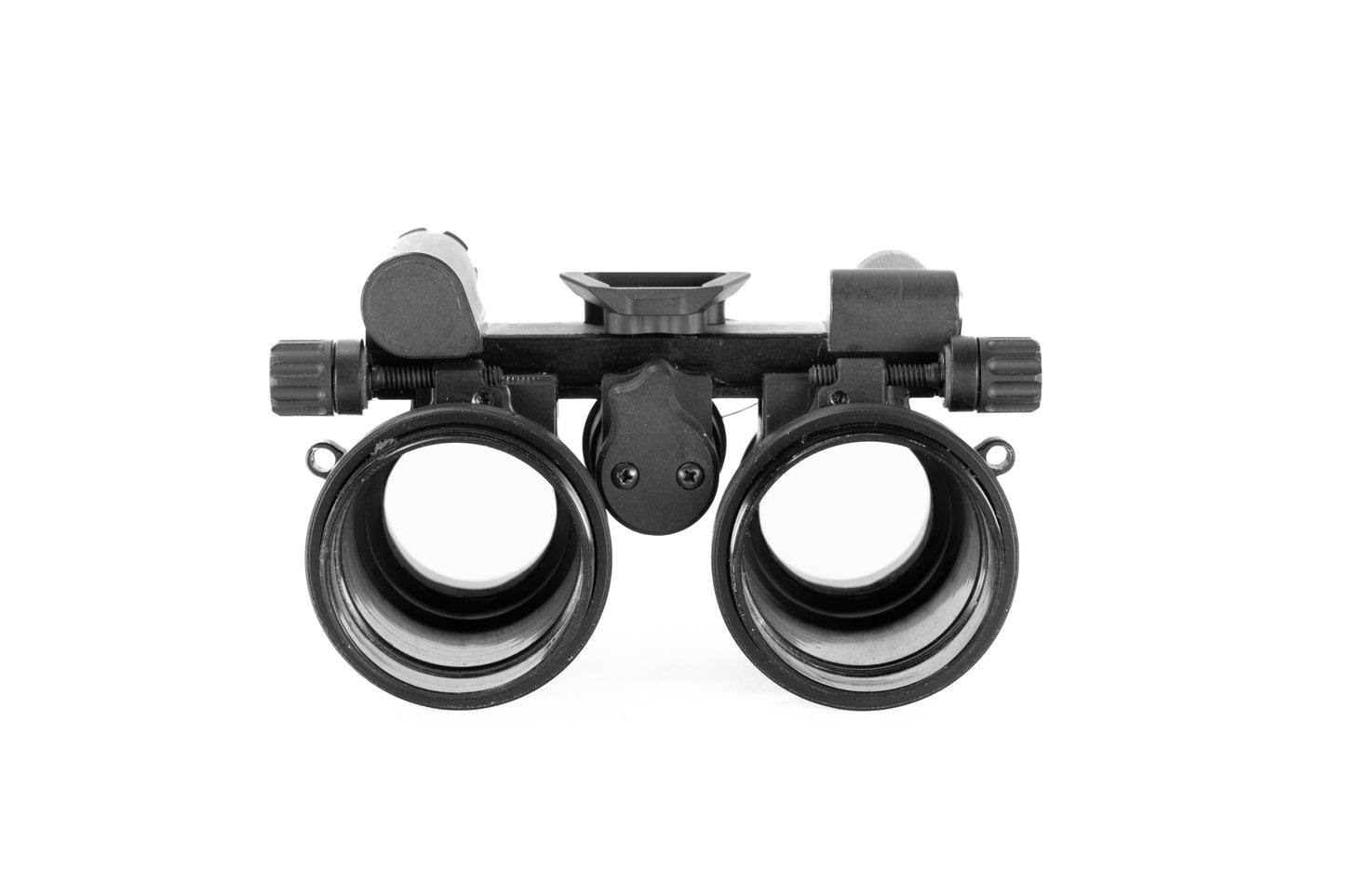

AB Night Vision RNVG Housing

AB Night Vision RNVG Housing

Regular price $2,878.50 CAD
Regular price Sale price $2,878.50 CAD
Sale Sold out

**Listing is for housing ONLY. No lenses are included**

The RNVG is designed as the most rugged night vision goggle available.  While most NVG’s are built with molded polymer housings, the RNVG features a 7075 aluminum chassis for unsurpassed rigidity and structural strength.  All articulation points have been beefed up to increase impact resistance, giving users one tough goggle.  Designed and machined at AB NightVision, the Ruggedized Night Vision Goggle is ready to face the toughest customers and harshest environments!

Traditionally, the weakest point in a night vision goggle is the joint between the optic pods and the bridge.  Both the optic pods and bridge in the RNVG are machined from solid billet 7075 (a material that is 36% stronger than most common steel), to give end users the strongest NVG on the market.  Careful design and advanced machining keep the weight down to 20 oz. with a battery installed.

The RNVG eliminates exposed wires – something commonly found in ANVIS-style night vision goggles.  As the optic pods traverse during interpupilary adjustment, they ride across an electrical contact strip.  This provides much increased weather/element resistance and reduces a traditional failure point.  IP adjustment is accomplished with by turning dual knobs on either side of the bridge; the same as any traditional ANVIS goggle.

The RNVG utilizes a single CR123 battery, and comes with an auxiliary power connector for use with ANVIS-style auxiliary battery packs with a LEMO port.

Controls are simple.  If you are familiar with a PVS-14, you will be right at home with the RNVG.  A standard PVS-14 power knob is located on the front of the bridge.  It features on/off controls, and active IR illuminator mode.  Just like a PVS-14, simply pull the knob out and twist it all the way to turn on the built-in infrared illuminator.  The RNVG features a dovetail mount interface.

Get your mounting hardware HERE.



Specifications
Material 7075 Aluminum alloy
Tube Type 18mm MX-10160 tubes
Weight

569g with standard optics and a battery

Power Supply CR123 onboard OR external battery pack via LEMO port
Runtime 16+ hours
Interpupillary Adjustment Range 51-73mm
Submersion and Dust Rating Up to 20 metres
Mount Style Built in dovetail mount
Onboard IR Illuminator Yes

INCLUDED

  • AB Night Vision RNVG housing
