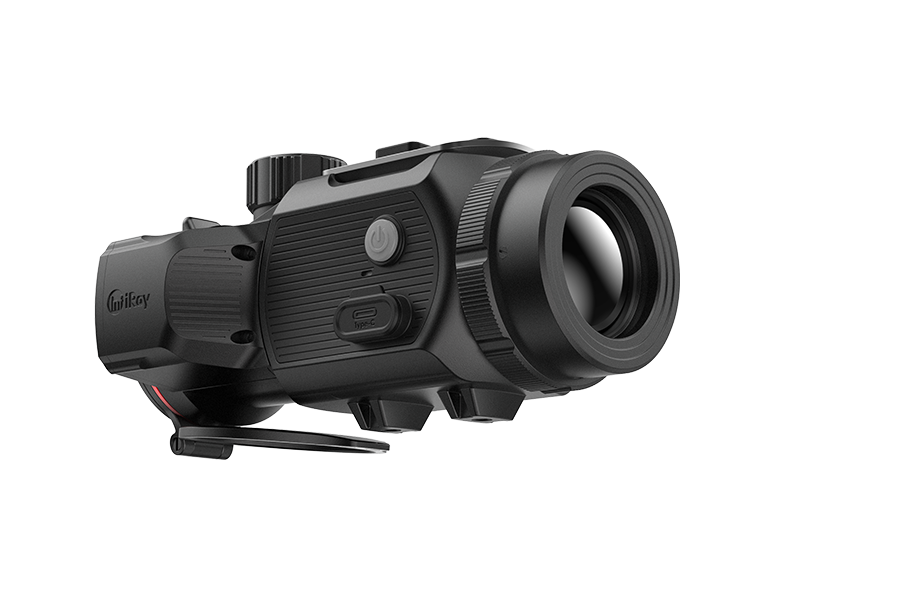

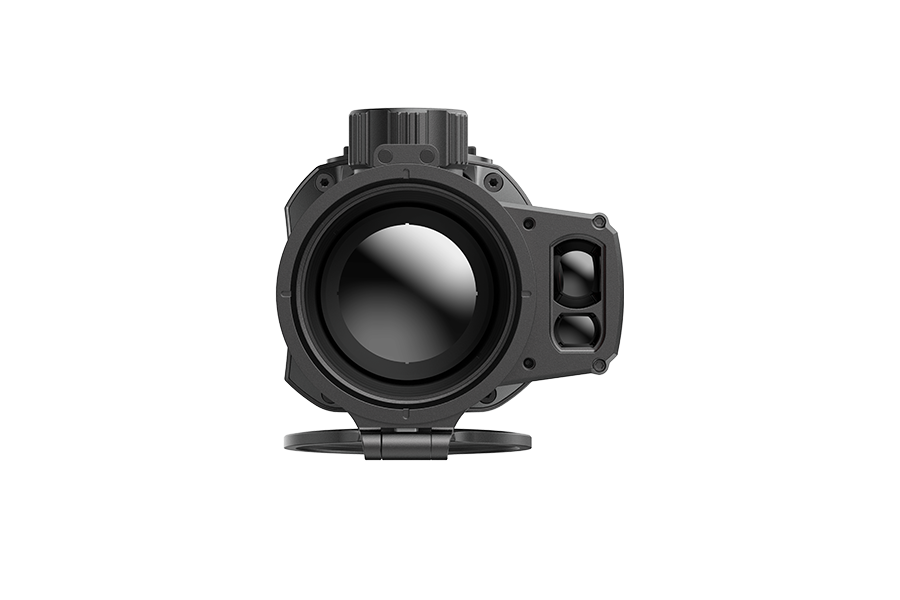

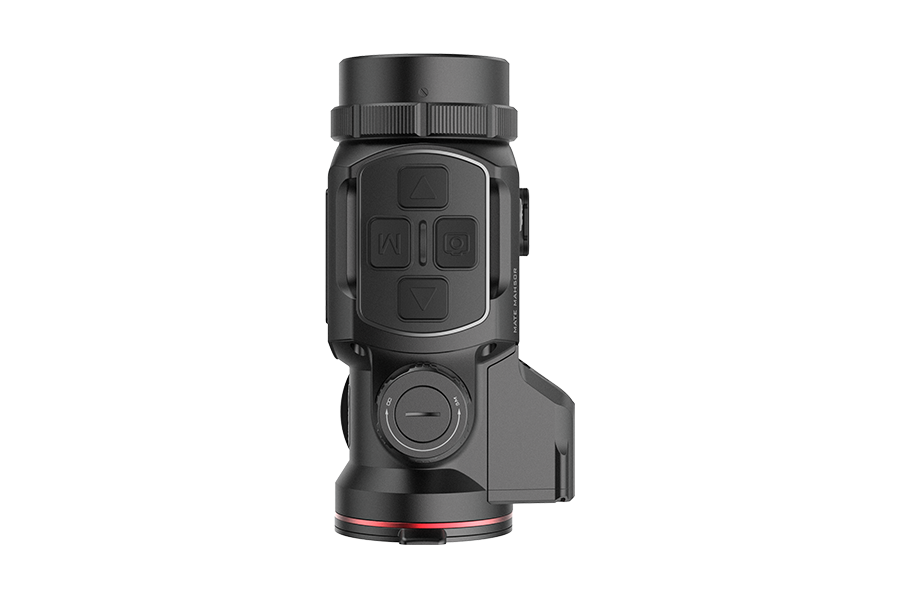

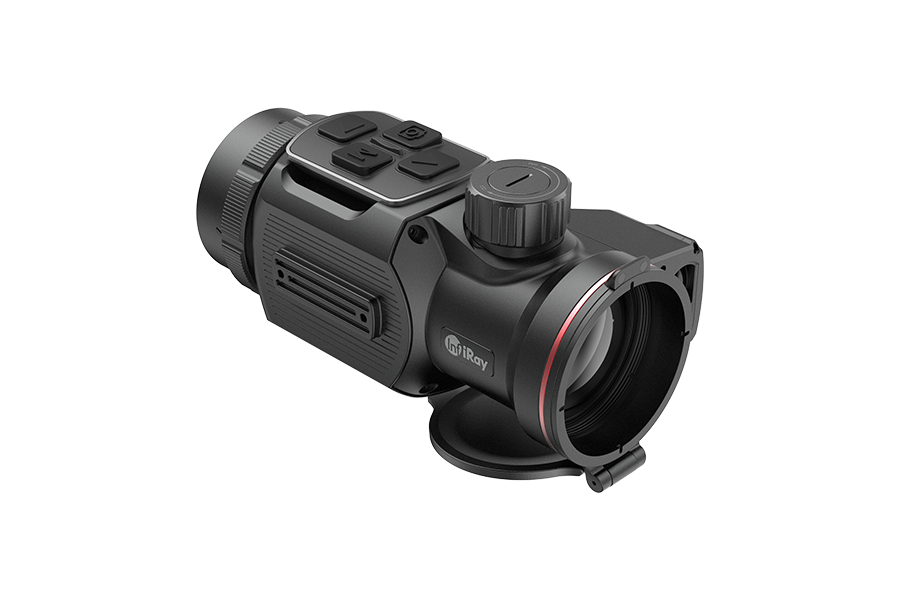

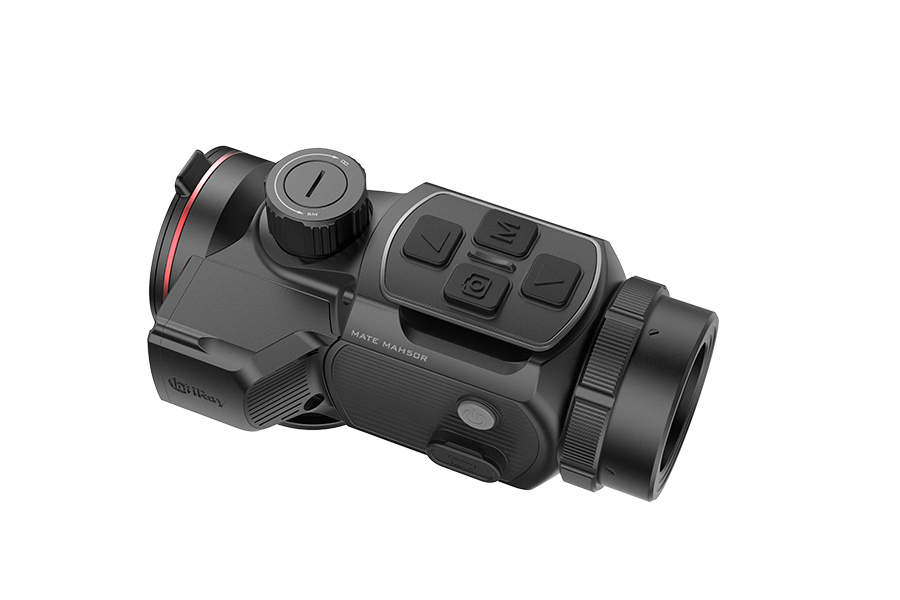

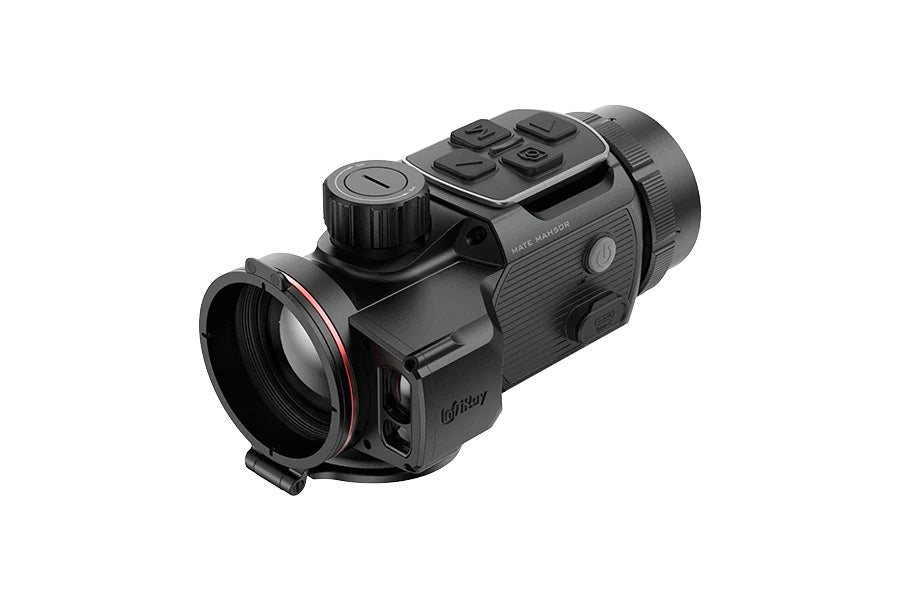

Infiray MAH50R
Infiray MAH50R
Special Order Item; 2 week lead time
The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existing day scope. With a BRAND NEW 640x512 resolution, NETD≤18mK sensor, and a built-in LRF with built-in ballistic capabilities, the MAH50R elevates the thermal clip-on experience to new heights.
Featuring the same magnesium alloy housing, distortion-free display, and removable control pad as the MAH50, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail (optional add-on). Additional accessories, including a monocular extension, provide improved flexibility on your next hunt or trip to the range.
Navigating Accuracy with Ballistic Calculation
Supports strategic and precise ballistic calculations, ensuring each shot is accurately delivered. Hunters can more accurately predict the trajectory of bullets or arrows, thereby increasing the likelihood of hitting the target. It also helps in understanding the potential endpoint of the projectile, reducing the risk of accidental injuries and other safety hazards.
Magnetic Battery Packs
The device comes with additional magnetic battery packs for ease of carrying and installation, extending hunting time without the worry of battery depletion.
Detector Specifications |
|
Type |
Vox |
Resolution, pixel |
640x512 |
Pixel Size, μm |
12 |
NETD, mk |
≤18 |
Frame Rate, Hz |
50 |
Optical Specifications |
|
Objective Lens, mm |
50mm/F1.1 |
Field of View (H×V), ° |
8.8 × 7.0 |
Linear Field of View (HxV), m at 100m |
15.4 x 12.3 |
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2 |
Attachment: 1 Monocular: 1x/2X/4X |
Detection range, m (Target size: 1.7m×0.5m, P(n)=99%) |
2600 |
Display Specifications |
|
Type |
AMOLED |
Resolution, pixels |
1024×768 |
Battery Power Supply |
|
Battery |
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2 |
Max. operating time (22℃),h |
4+5 |
External power supply |
5V (Type C) |
Physical Specifications |
|
Wi-Fi/APP |
Support (InfiRay outdoor) |
Photo/video recorder |
Support |
MIC |
Support |
Memory capacity |
32GB |
IP rating |
IP67 |
Operating temperature, ℃ |
-20 ~ +50 |
Weight, g |
500g |
Dimension, mm |
147*75*73 |
Connections and Compatibilities |
|
Max. recoil power on rifled weapon (Eo), Joules |
6000 |
Recommended magnification of the day sight, x |
G1/G2: 1×-5× G3/G4: 6×-10× |
Click value@100m, cm |
1.6 |
Functions |
|
Laser rangefinder |
Support, 1200m |
Ballistic calculation |
Support |
