InfiRay RL25 / PFalcon 384+ Thermal Imager

InfiRay RL25 / PFalcon 384+ Thermal Imager

Regular price $4,685.39 CAD
Regular price $4,947.99 CAD Sale price $4,685.39 CAD
Sale Sold out

**Special-Order item; ETA 2-3 weeks**

** This item cannot be shipped to the United States; For USA sales please contact info@irayusa.com **

**A copy of the instructions for how to update the firmware to the latest IrayUSA RL25 firmware, along with an install link and instructions to enable the reticle will be included with every PFalcon384+**

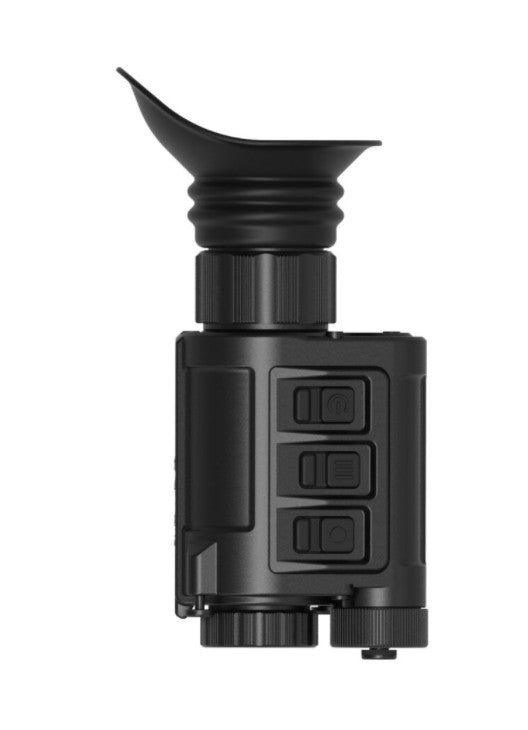

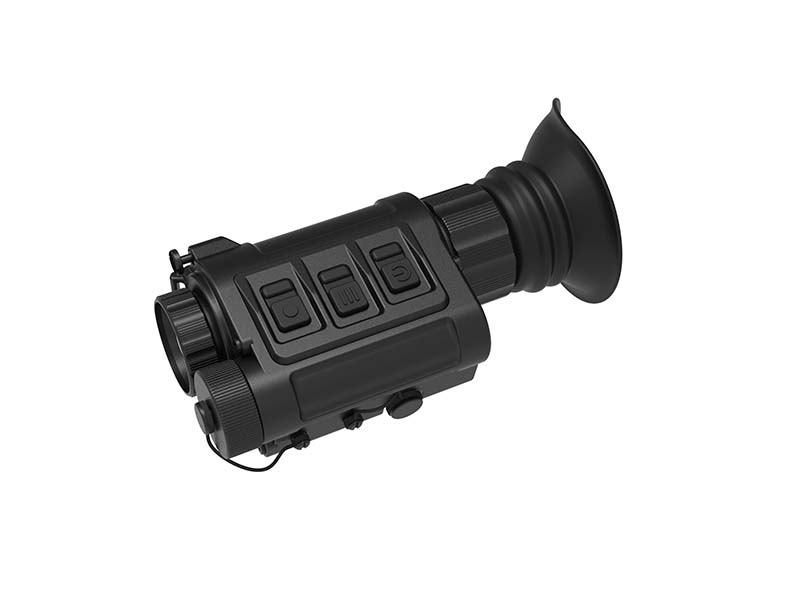

The Infiray PFalcon384+ / IRAY RL25 is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, weapon mount, and clip-on. Functionally identical to the IRAYUSA's Rico RL25 Micro with the exception of the mounting hardware, and weighing less than a pound, the RL25 will fit in the palm of your hand and offers features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384x288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

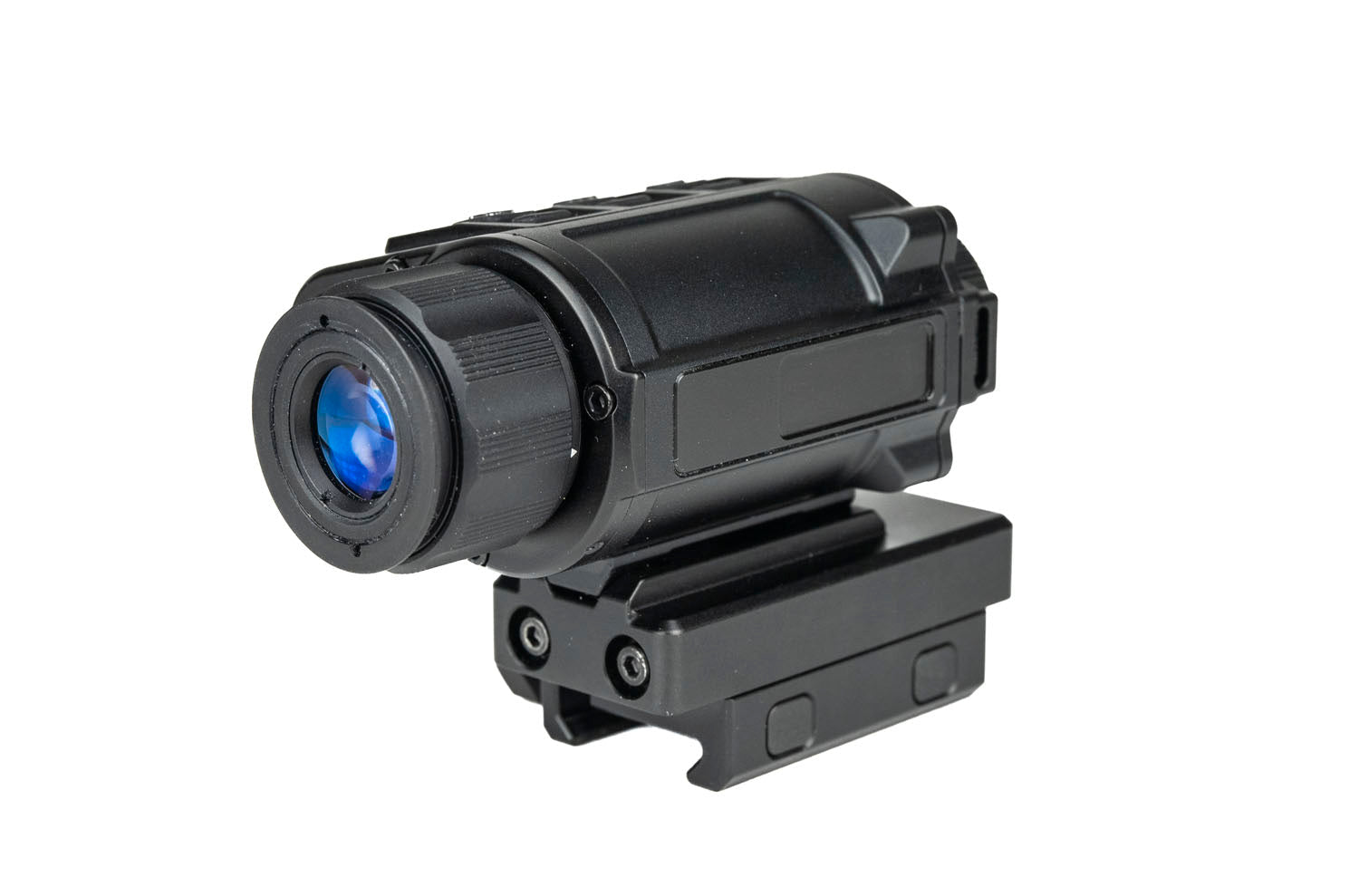

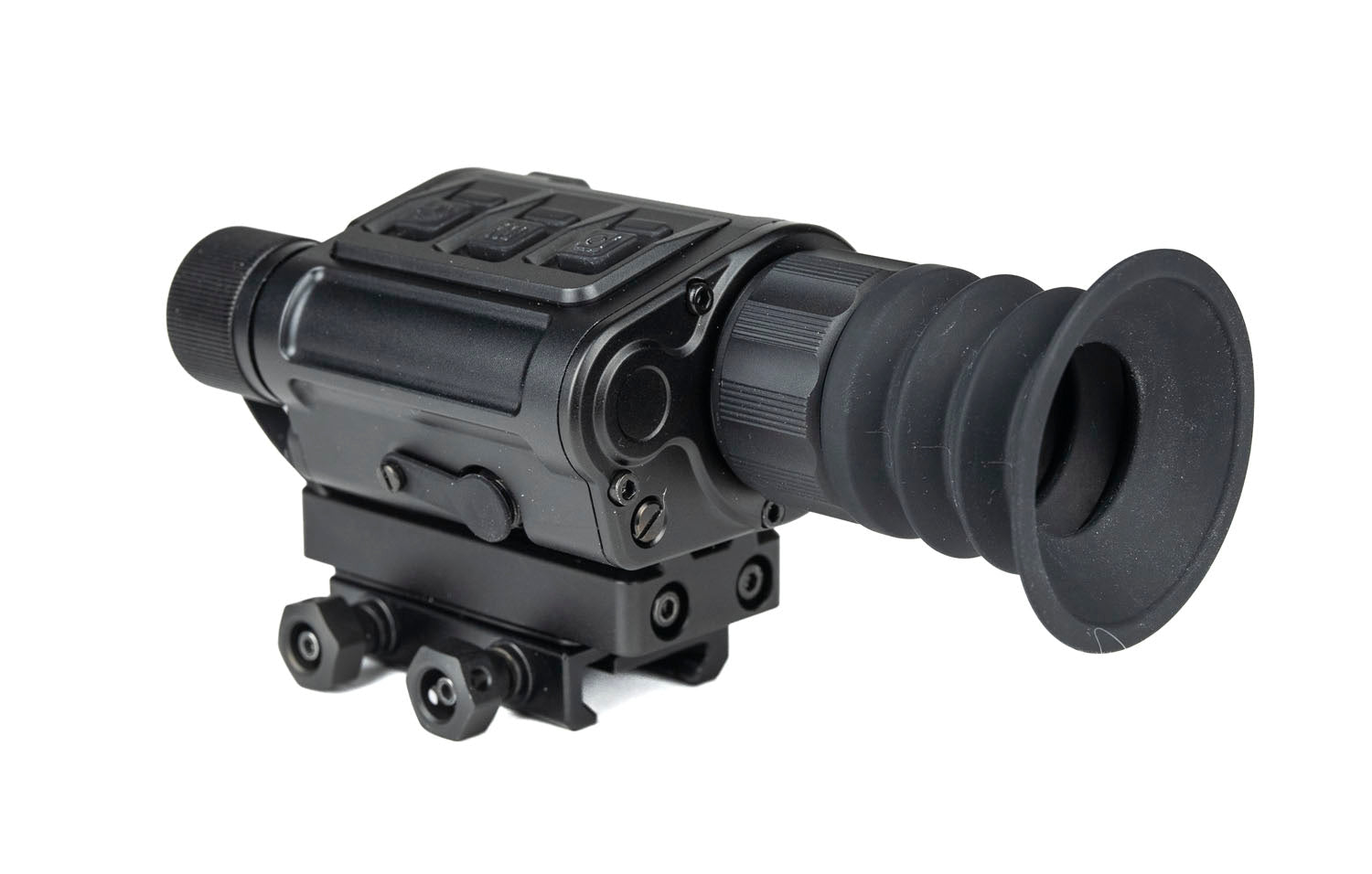

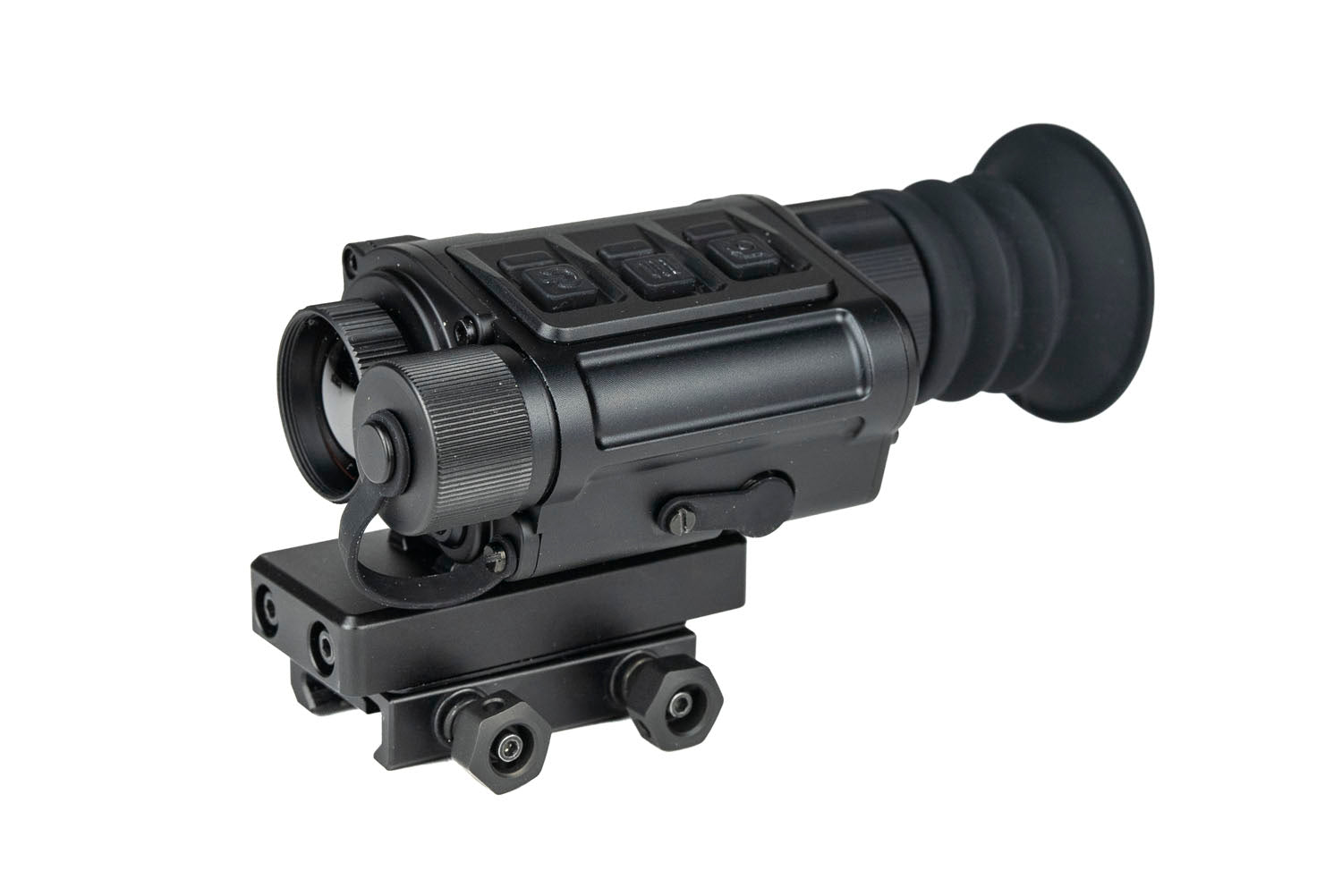

The PFalcon384+/RL25 will come with a 1.93" height weapon mount to co-witness with popular scopes in clip-on mode (or to use in standalone mode), as well as a proprietary helmet mounting bracket that interfaces directly with standard helmet shrouds with no additional parts necessary.

InfiRay Outdoor’s cutting edge manufacturing techniques and the highest-quality components on the market combine to produce an optic that is a step ahead of the competition in size, weight, and performance. The RL25 has the features night hunters want and is more capable than optics twice the price and twice the size.

  • Supports 4 modes of use: handheld, helmet, clip-on and direct aim;
  • High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions;
The PFN384+ is equipped with two lengths of battery cover, which can be adapted to batteries with two lengths of 65mm and 70mm.





Detector 384 x 288 12um
Lens F/1.0
Human Recognition 600m
Vehicle Recognition 1070m
NETD <= 40mK
Frame Rate  50Hz
FOV 10.5 x 7.9 degrees
Diopter -4 to +4
Optical Zoom 2x
Electronic Zoom 1-4x (effectively 2-8x)
Battery Life >=3h
Battery Type  18650
Display 1024x768 AMOLED
Storage 64GB
Weight 355g
Dimensions 105x65x48mm
IP Rating IP67
Operating Temperature -40C to 55C
Wifi Yes

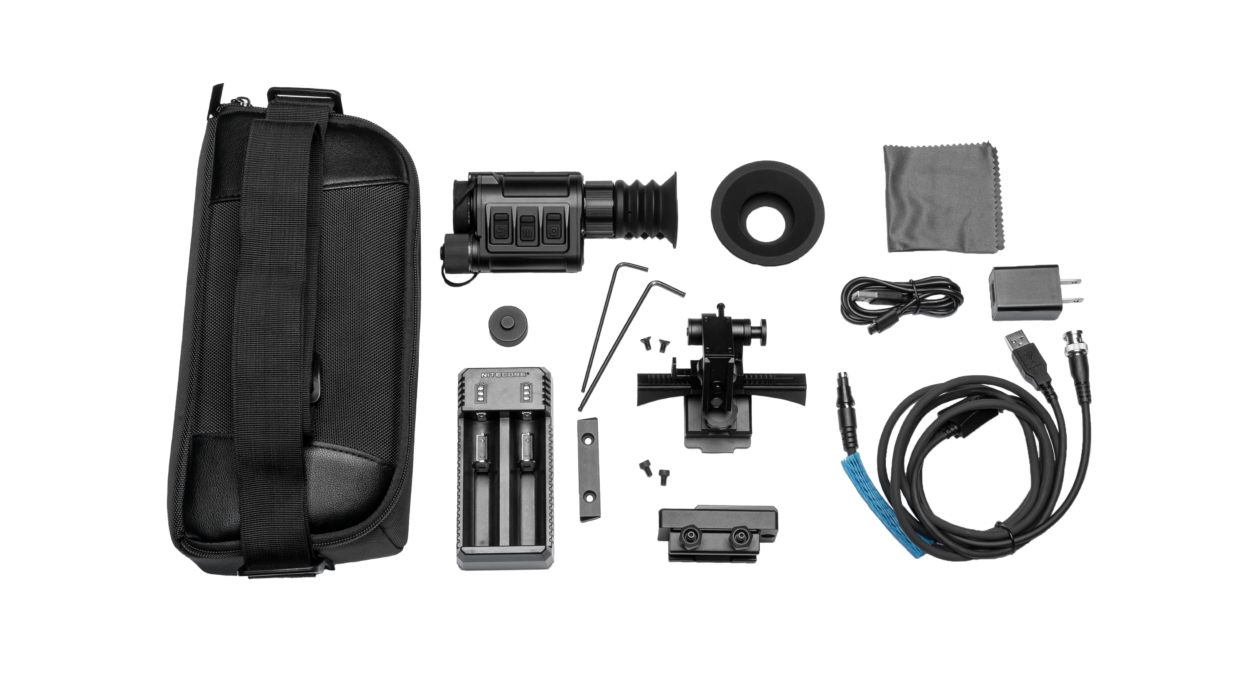

Included:
• Soft carry-on bag
• Eye-cup (2 – one for weapon mount, other for helmet mount & as clip-on)
• Helmet mount (attaches directly to helmet shroud)
• Charging and data transfer cables
• USB Power adapter (USA)
• Battery charger
• Battery cap for 18650 & 18700
• Weapon mount (Picatinny) - 1.93" height
• Microfiber cloth
• Tool kit
• Screws (blunt tip for helmet mount / triangle tip for weapon mount)

PFalcon640+ Manual download HERE
IrayUSA RH25 Manual Download HERE
