PFalcon640+ Thermal Imager
PFalcon640+ Thermal Imager

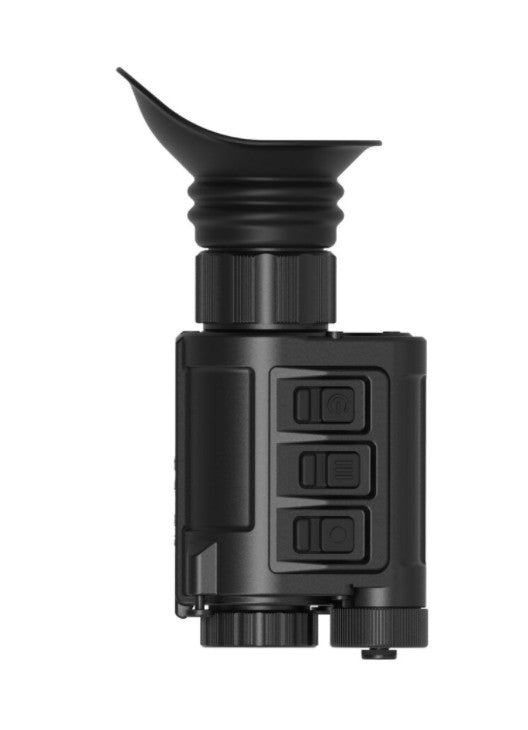

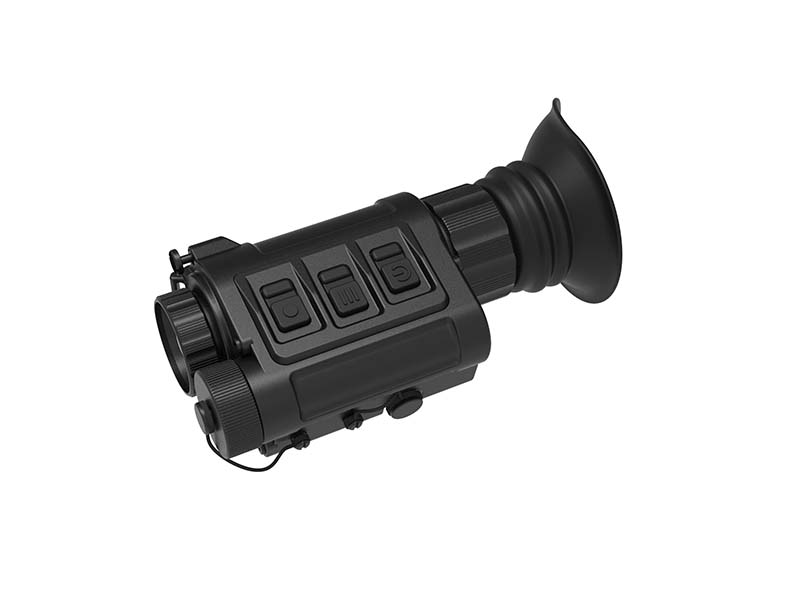

The PFalcon640+ is the international version of IRAYUSA's popular Rico Micro RH25 and is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, weapon mount, and clip-on. Identical to Rico Micro RH25 (except for the housing colour and boot screen), and weighing less than a pound, the PFalcon640+ will fit in the palm of your hand and offers features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The PFalcon640+ / RH25 also features the latest high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

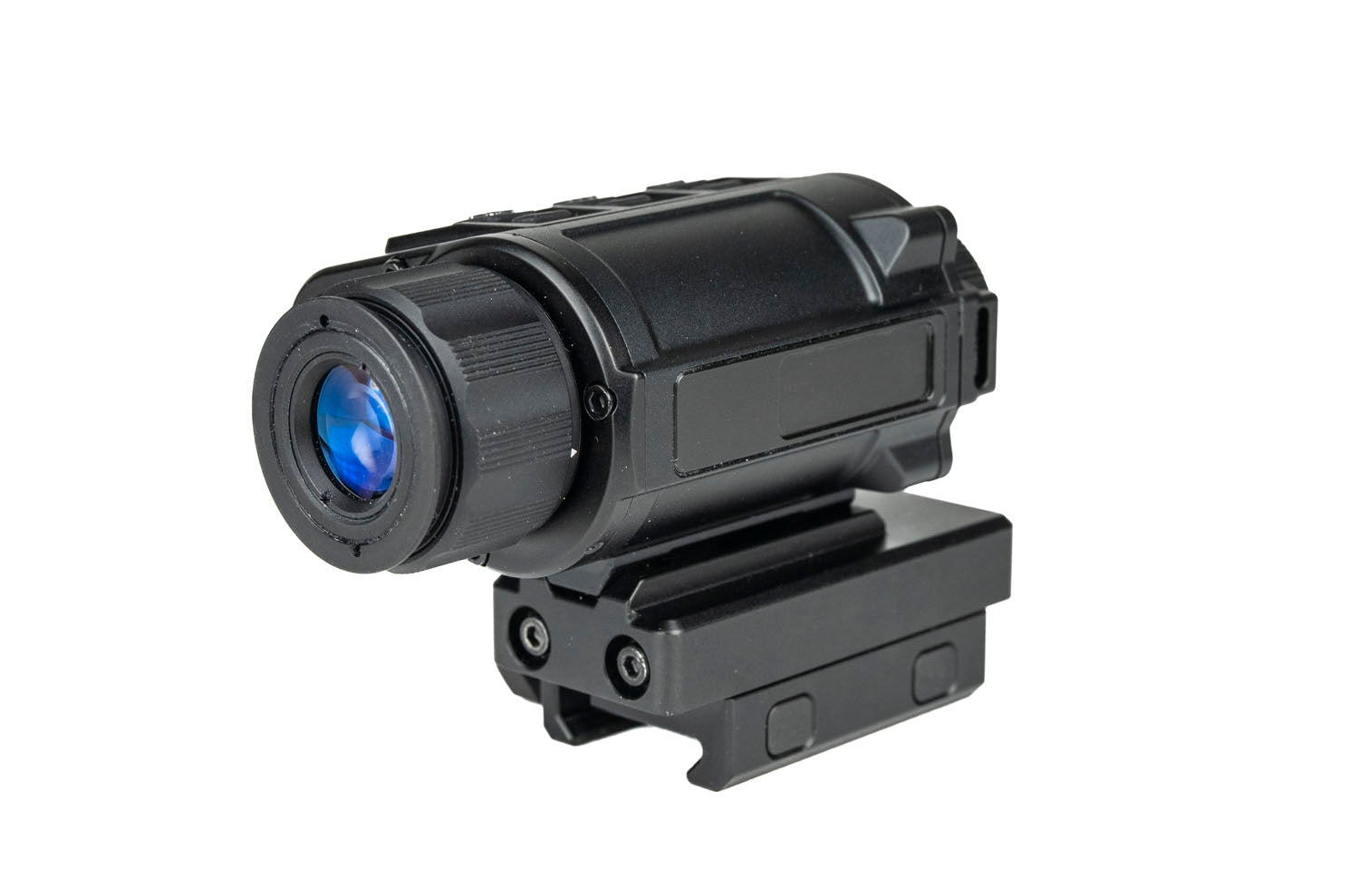

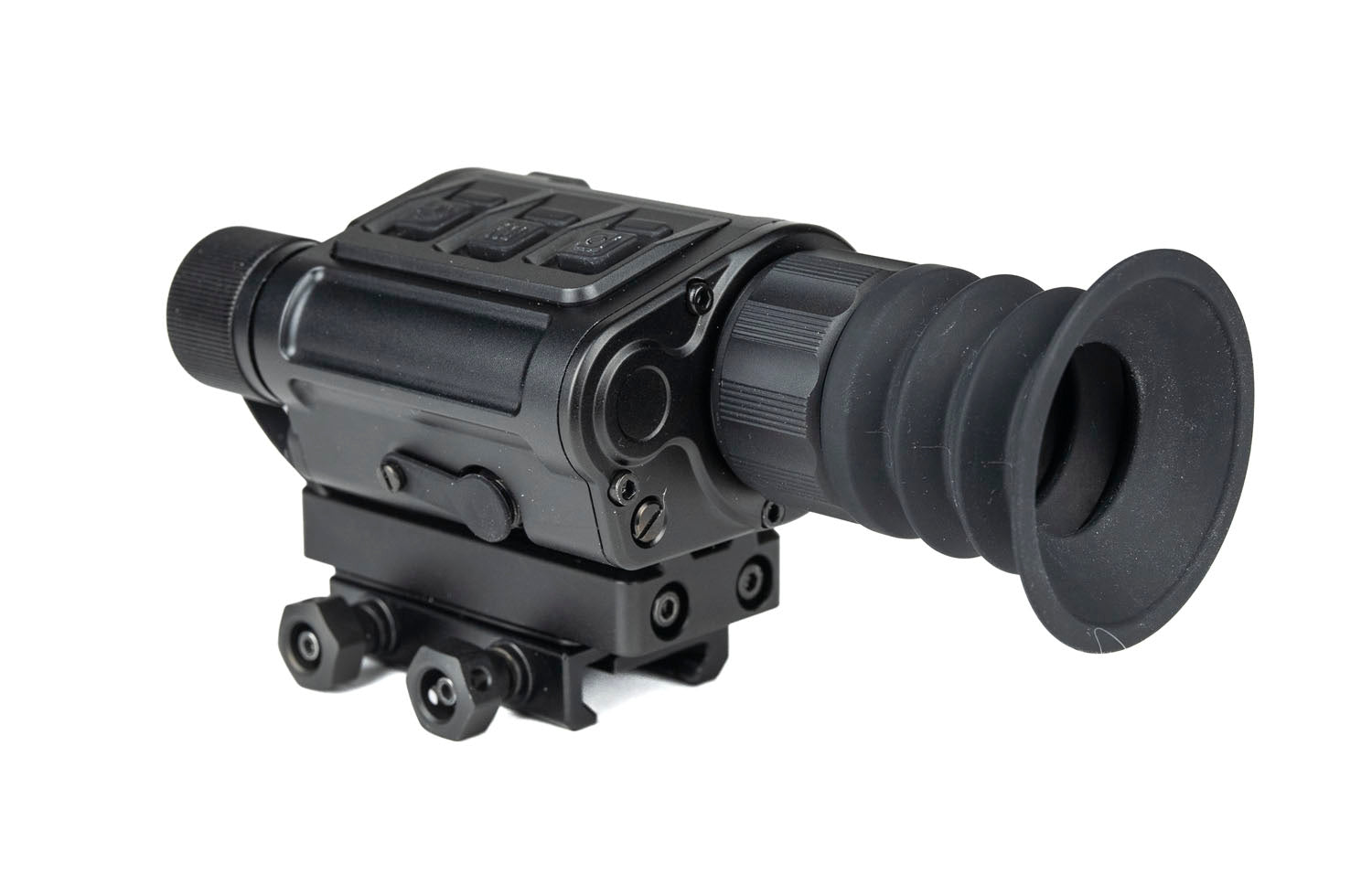

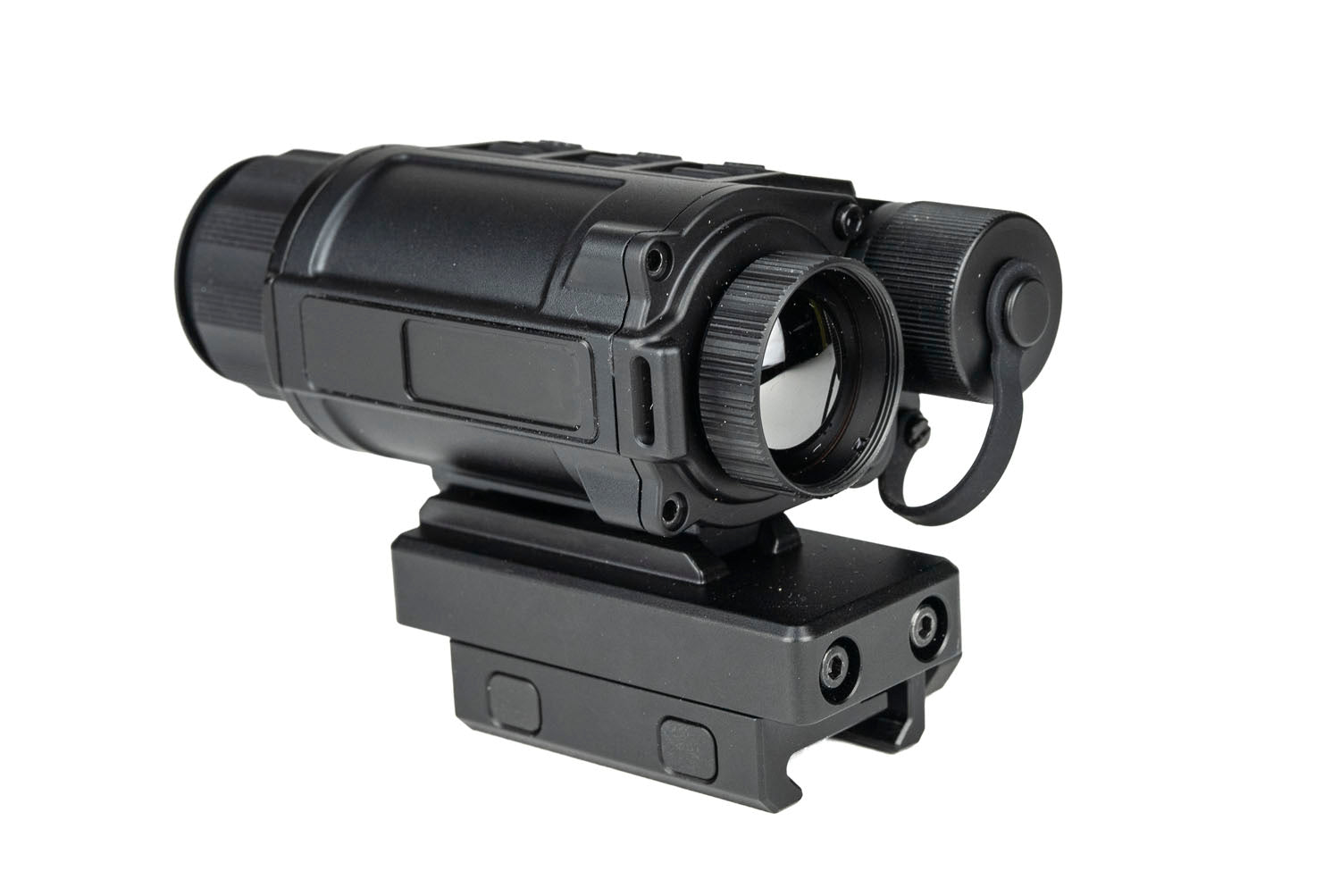

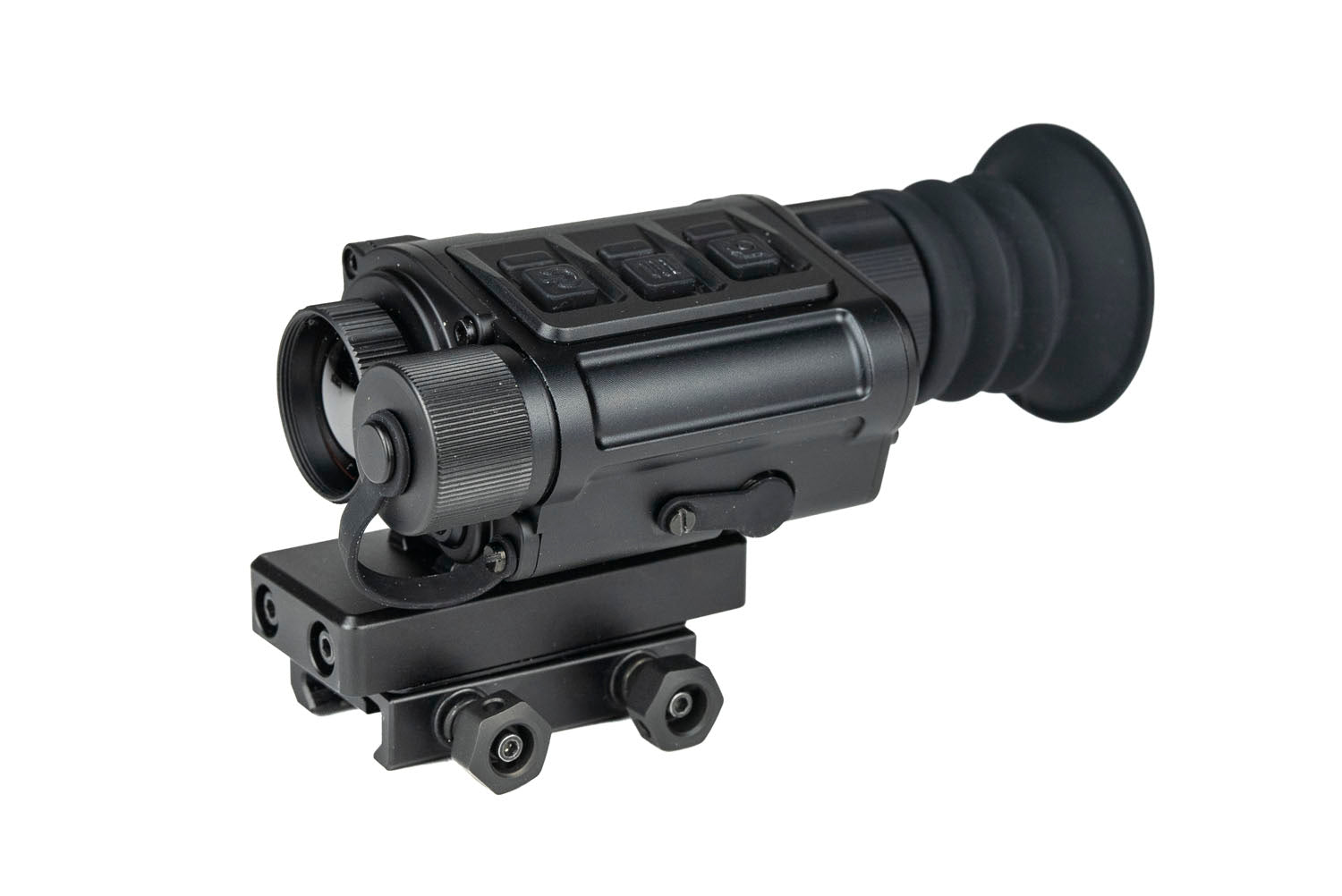

The PFalcon640+ / RH25 will come with a 1.93" height weapon mount to co-witness with popular scopes in clip-on mode (or to use in standalone mode), as well as a proprietary helmet mounting bracket that interfaces directly with standard helmet shrouds with no additional parts necessary.
Cutting edge manufacturing techniques and the highest-quality components on the market combine to produce an optic that is a step ahead of the competition in size, weight, and performance. The PFalcon640+ / RH25 has the features night hunters want and is more capable than optics twice the price and twice the size.
- Supports 4 modes of use: handheld, helmet, clip-on and direct aim;
- High performance 12μm VOx detectors: provide clear images at night and in harsh weather conditions
SPECIFICATIONS | |
Detector | 640 x 512 12um |
Lens | F/2.5 |
Human Recognition | 600m |
Vehicle Recognition | 1070m |
NETD | <= 40mK |
Frame Rate | 50Hz |
FOV | 17.2 x 13.7 |
Diopter | -4 to +4 |
Optical Zoom | 1x |
Electronic Zoom | 1-4x |
Battery Life | >=3h |
Battery Type | 18650 |
Display | 1024x768 AMOLED |
Storage | 64GB |
Weight | 355g |
Dimensions | 105x65x48mm |
IP Rating | IP67 |
Operating Temperature | -40C to 55C |
Wifi | Yes |

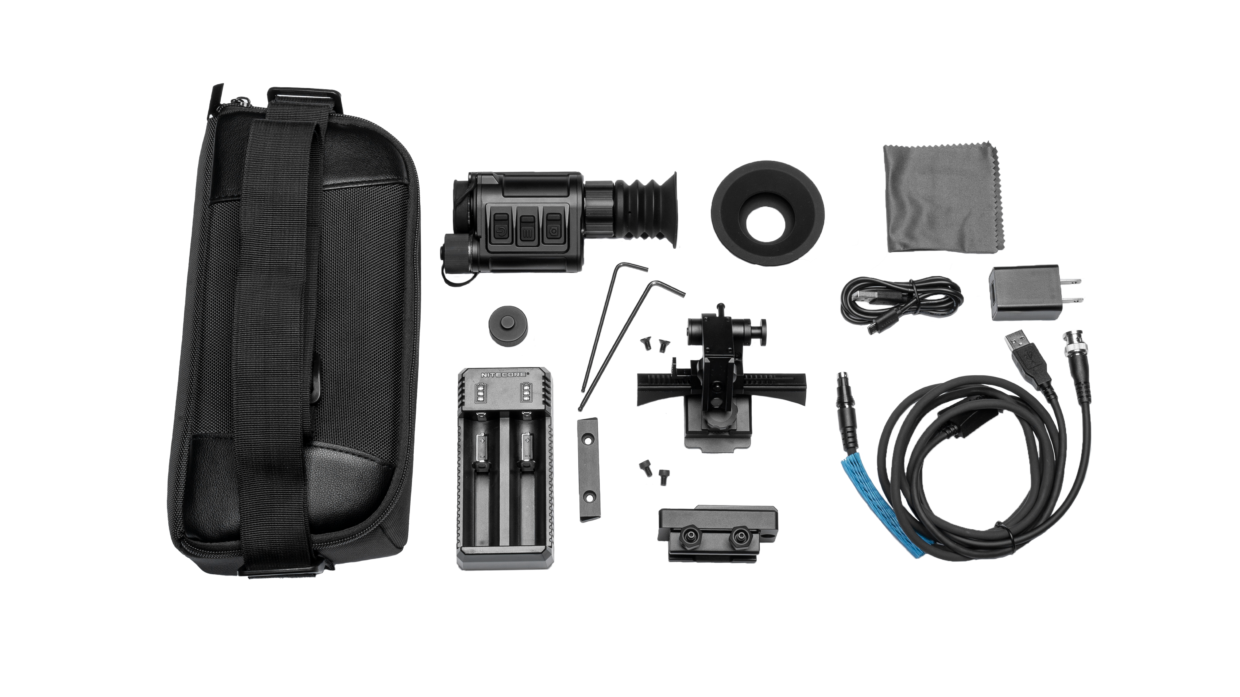

Included:
• Soft carry-on bag
• Eye-cup (2 – one for weapon mount, other for helmet mount & as clip-on)
• Helmet mount (attaches directly to helmet shroud)
• Charging and data transfer cables
• USB Power adapter (USA)
• Battery charger
• Battery cap for 18650 & 18700
• Weapon mount (Picatinny) - 1.93" height
• Microfiber cloth
• Tool kit
• Screws (blunt tip for helmet mount / triangle tip for weapon mount)
Support and Manuals
• Pfalcon640+ Manual HERE
• IrayUSA RH25 Manual HERE
• How to Enable the Reticle HERE
Latest Firmware Update and Instructions HERE (this will resolve the "jello"/laggy image in helmet mode).
WARRANTY INFO: Standard 3-year warranty
