Nocturn Industries Katana-R Aluminum Night Vision Binocular Housing

Nocturn Industries Katana-R Aluminum Night Vision Binocular Housing

Regular price $2,725.99 CAD
Regular price Sale price $2,725.99 CAD
Sale Sold out

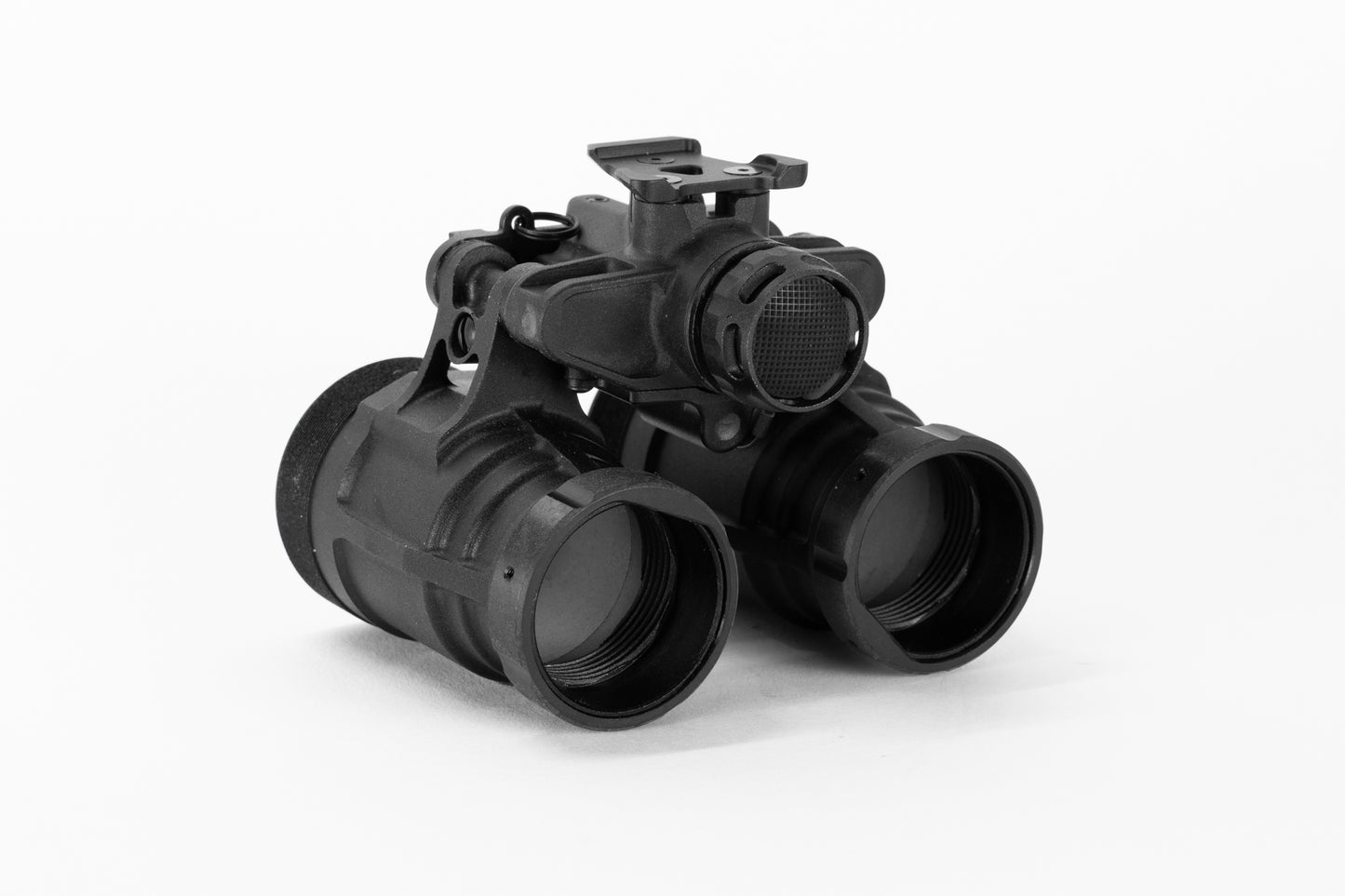

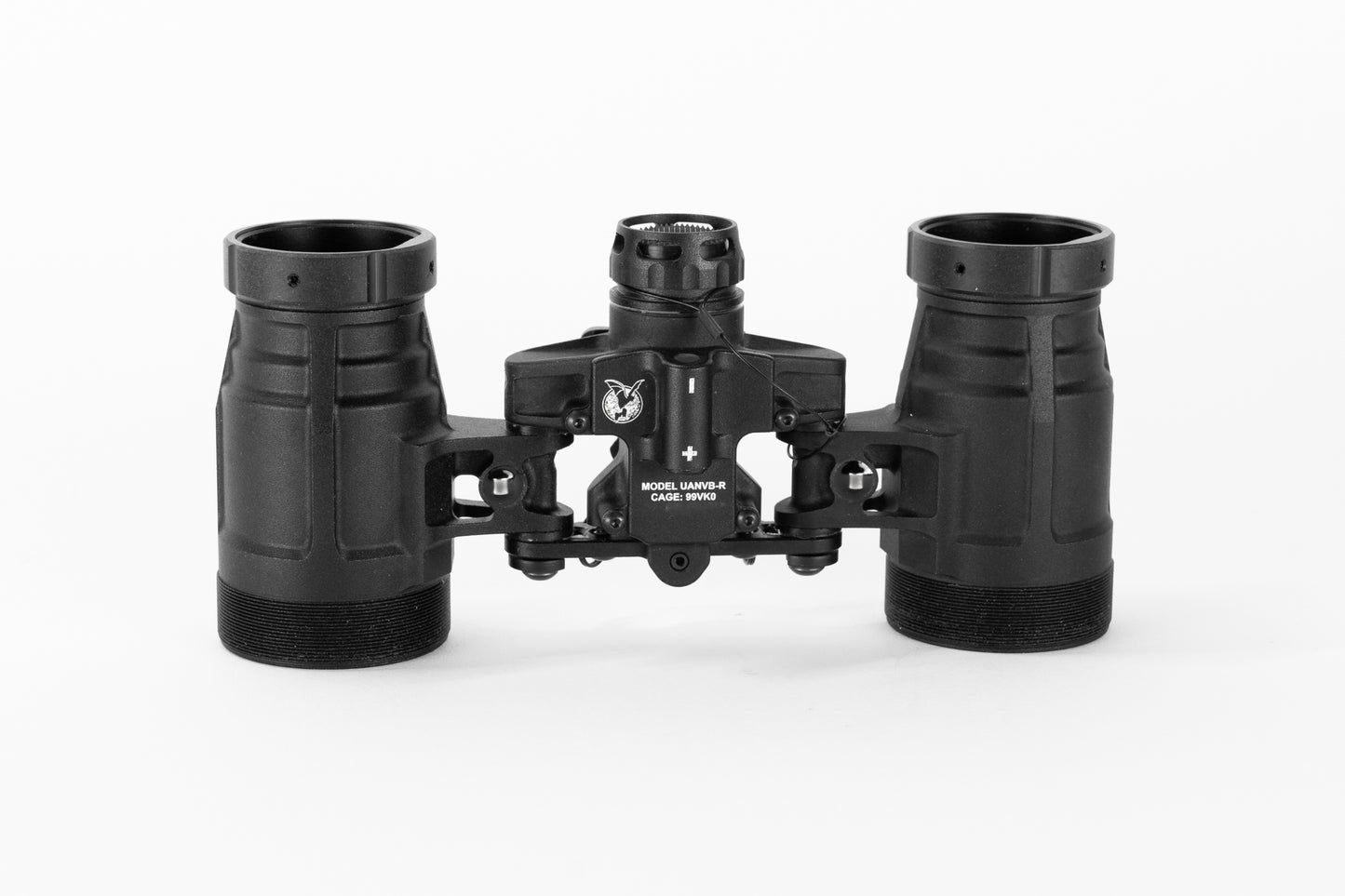

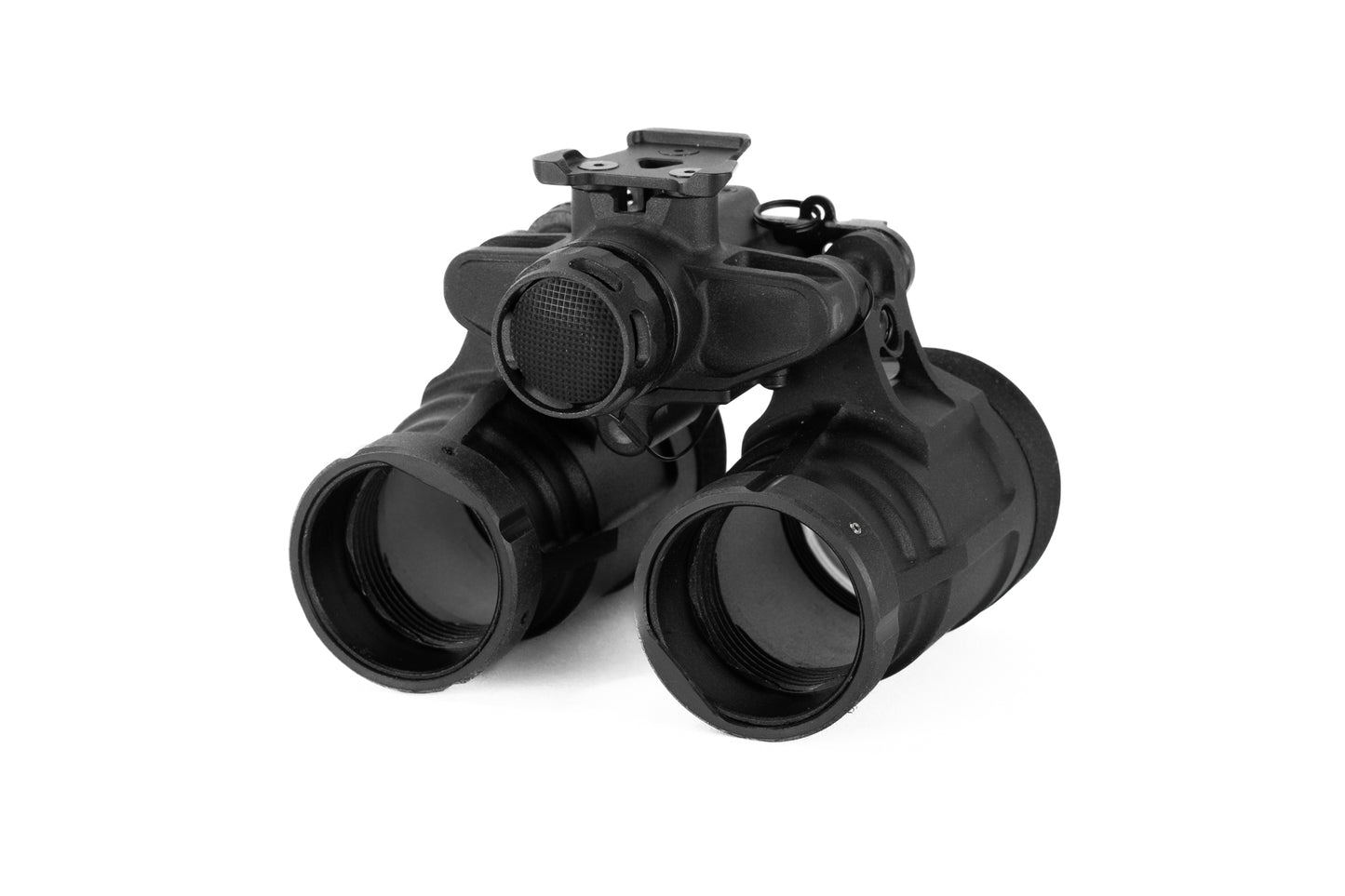

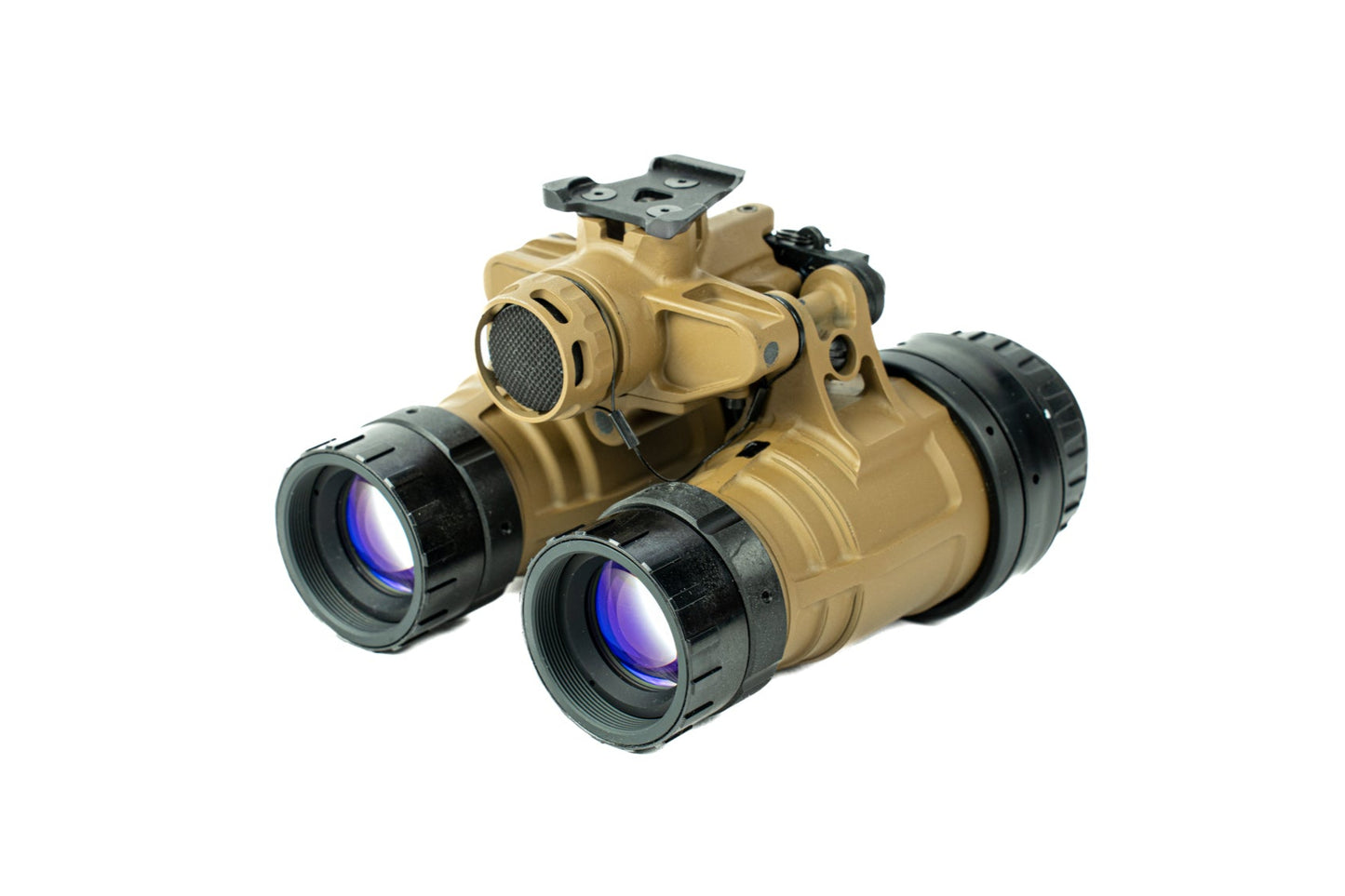

The Nocturn Industries Katana-R is the next evolution of the popular Katana binocular night vision system. The Katana Ruggedized is a full-metal housing precision machined out of 7075T6 aluminum and features the same reliability and simplicity of the polymer Katana.

The Katana-R features individual pod shut-off, IPD stops, user-adjustable pod tension, and new for the Katana line - a low battery indicator. The device is powered by an onboard CR123A battery for a 25+ hour continuous run time and also equipped with  a 2-pin 00B LEMO port for use with offboard battery packs (such as our USBP) for additional runtimes.

Operation is simple - the power button is integral to the battery cap and users can click to turn on/off the device. Simple. Rugged. Reliable.

Key Features:

  • Individual pod auto-off when swiveled
  • Simple tactile and audible push-button on/off
  • Tool-less Inter-Pupillary Distance adjustment
  • Exceeds MIL-STD-810G and NATO 1.5m drop test standards
  • Dust-proof and water-proof to 1.5m
  • Built-in dovetail mount
  • Assembled in the USA
  • LIFETIME WARRANTY on the housing

The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.



Specifications
Material 7075 Aluminum alloy with Mil-standard Type III class II hard anodize, H series Cerakote
Tube Type MX-10160 Manual Gain Capable
Weight

 530g with standard milsepc optics and a battery

Power Supply CR123 onboard power, optional 00 LEMO Pack
Runtime 25 hours
Lenses PVS-14 Pattern Optics
Individual Pod Power Off Yes when rotated to side
Submersion and Dust Rating Exceeds IP68 (dust and waterproof up to 1.5m)
Impact Rating MIL-STD-810H
Mount Style Built in dovetail mount
Onboard IR Illuminator No



Nocturn Industries Warranty: Lifetime repair of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
