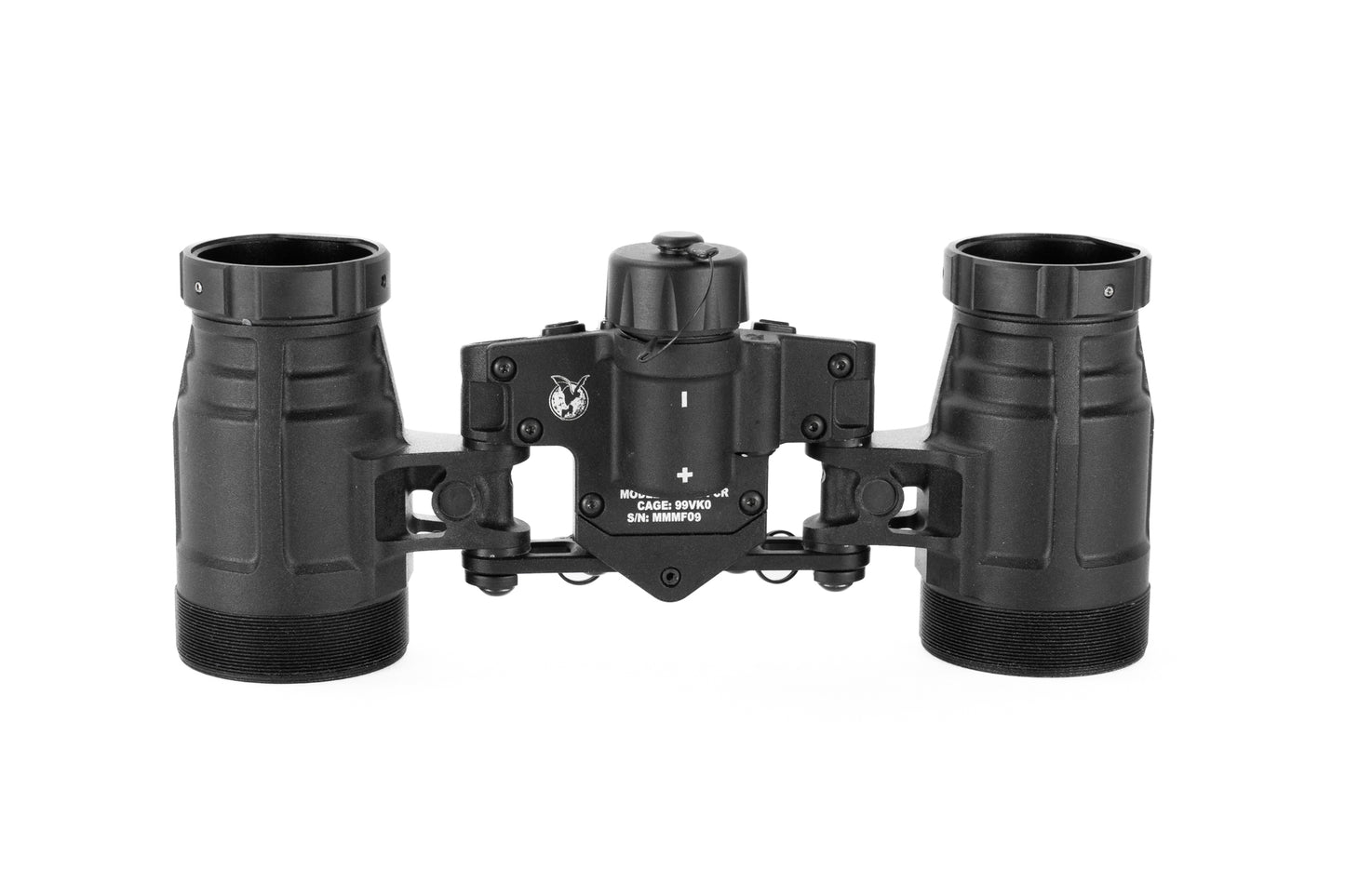

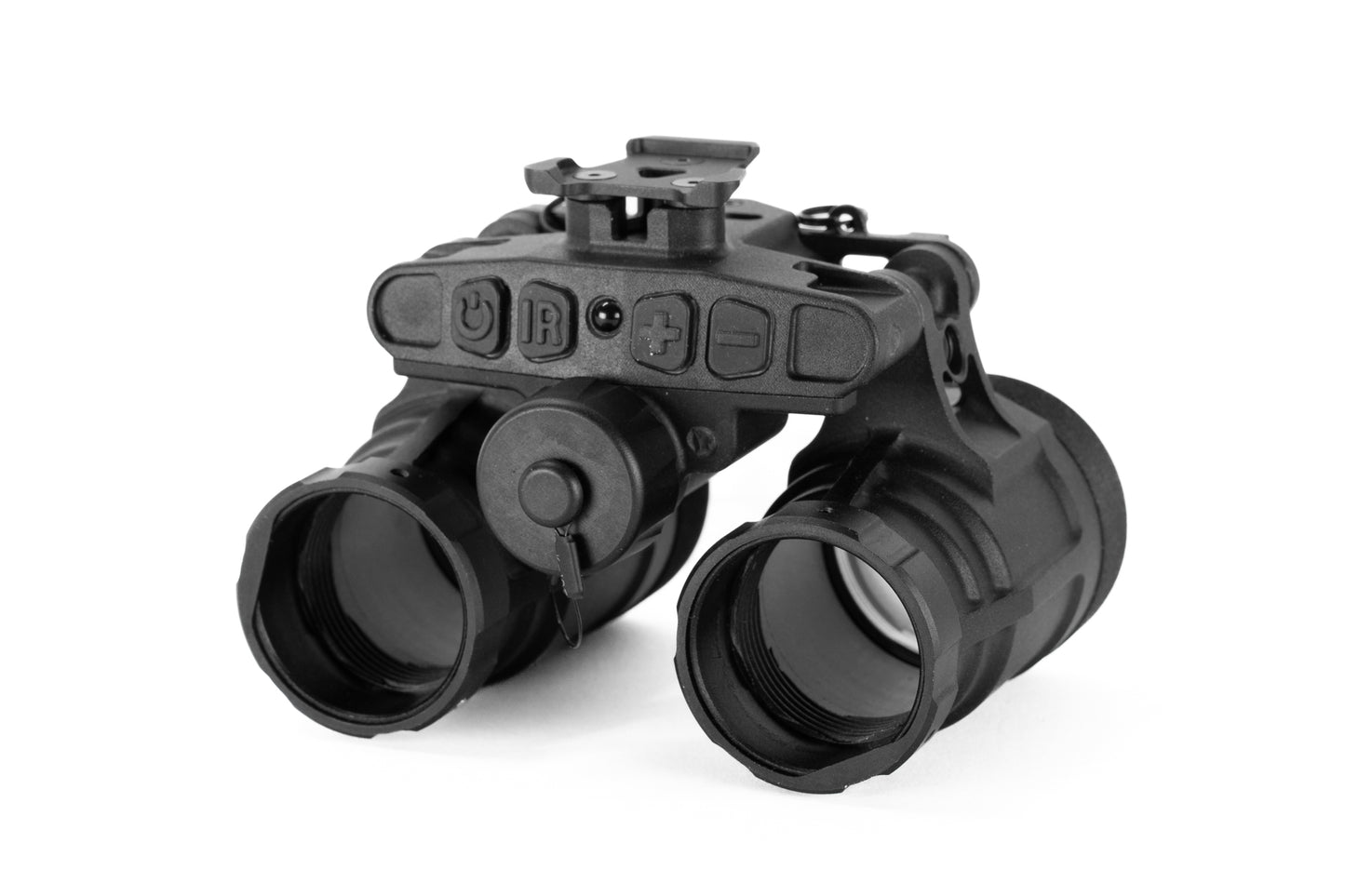

Nocturn Industries Manticore-R Binocular NVG Housing
Nocturn Industries Manticore-R Binocular NVG Housing
** Housing ONLY. Lenses are shown in the product photos but are not included; Add lenses and intensifiers to complete your build. For Ready to Ship devices, please click HERE **
The Manticore-R from Nocturn Industries is a rugged, articulating binocular housing made of high-strength 7075-T6 aluminum with a on-board digital controls that control power, gain, and an on-board IR illuminator. This binocular device features individual pod shutoff when each pod is rolled up, IPD stops, user-adjustable pod tension, IR-illuminator & indicator, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours and does not require offboard battery packs. State-of-the-art modelling allows an extremely strong housing with a low weight - only 561g fully-loaded with Milspec PVS-14 optics. This device is one of the strongest, most full-featured, and lightest in its class.
Key Features:
- Individual pod auto-off when swiveled
- Push-button on/off, IR illuminator and gain (brightness) control
- Tool-less Inter-Pupillary Distance adjustment
- Exceeds MIL-STD-810G and NATO 1.5m drop test standards
- Dust-proof and water-proof to 1.5m
- Built-in dovetail mount
- Housing assembled in the USA
- LIFETIME WARRANTY on the housing
The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
Specifications | |
Material | 7075 Aluminum alloy with Mil-standard Type III class II hard anodize, H series Cerakote |
Tube Type | 3 contact pad style 18mm MX-11769 or 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain |
Weight |
561g with standard milsepc optics and a battery |
Power Supply | CR123 onboard power, included 00 LEMO port |
Runtime | 25 hours |
Individual Pod Power Off | Yes when rotate to side |
Submersion and Dust Rating | Exceeds IP68 (dust and waterproof up to 1.5m) |
Impact Rating | MIL-STD-810H |
Mount Style | Built in dovetail mount |
Onboard IR Illuminator | Yes |
