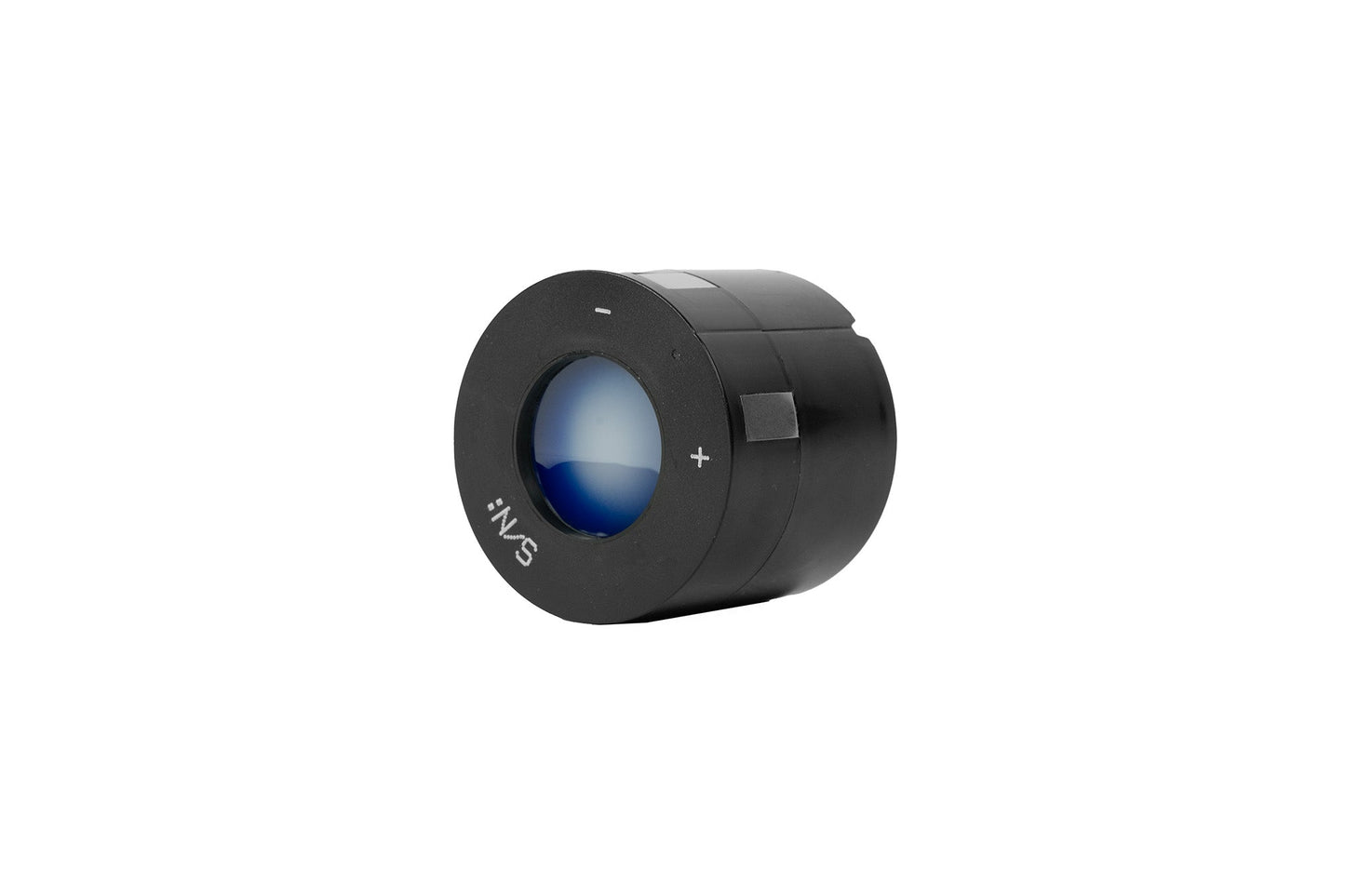

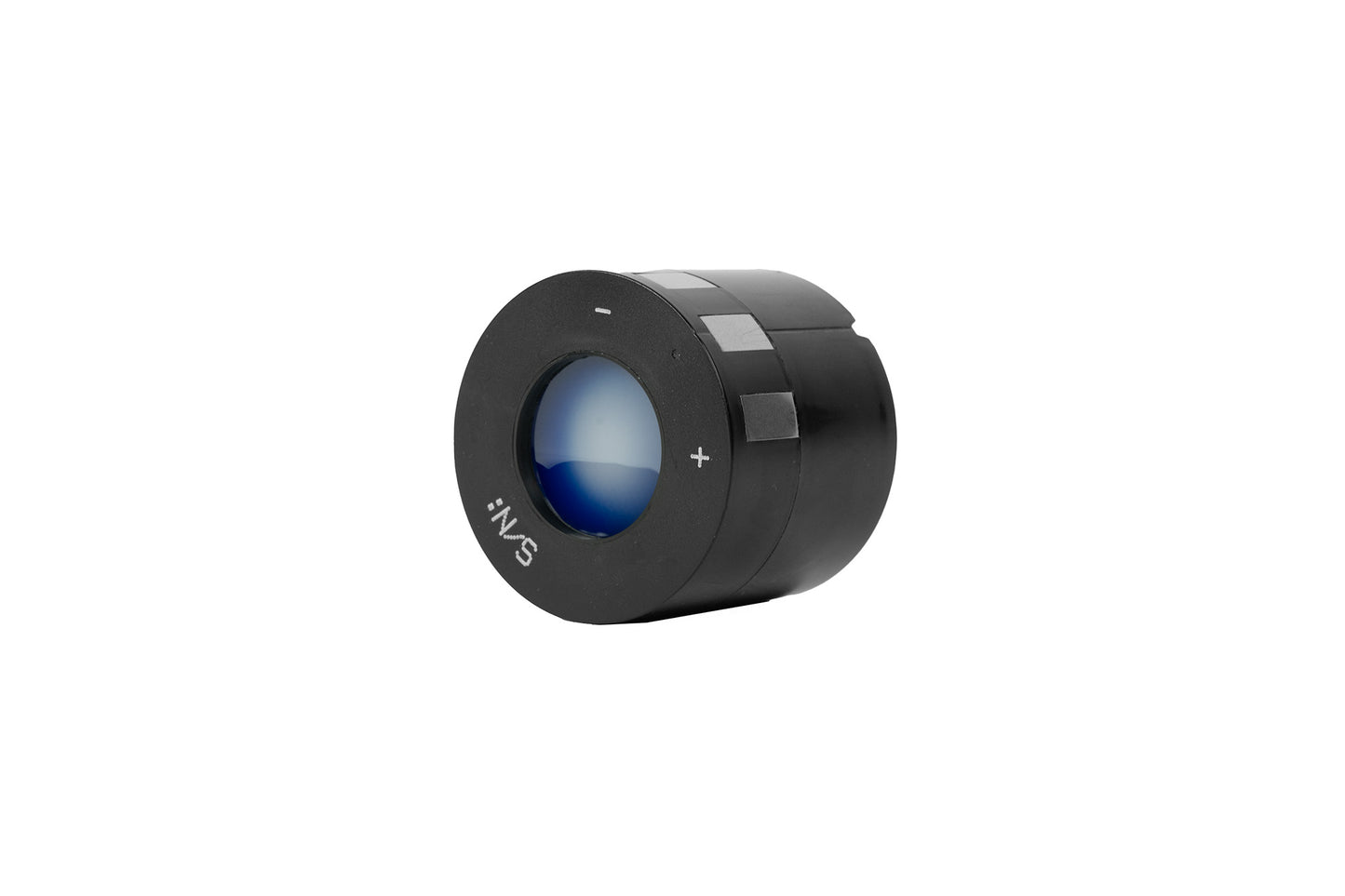

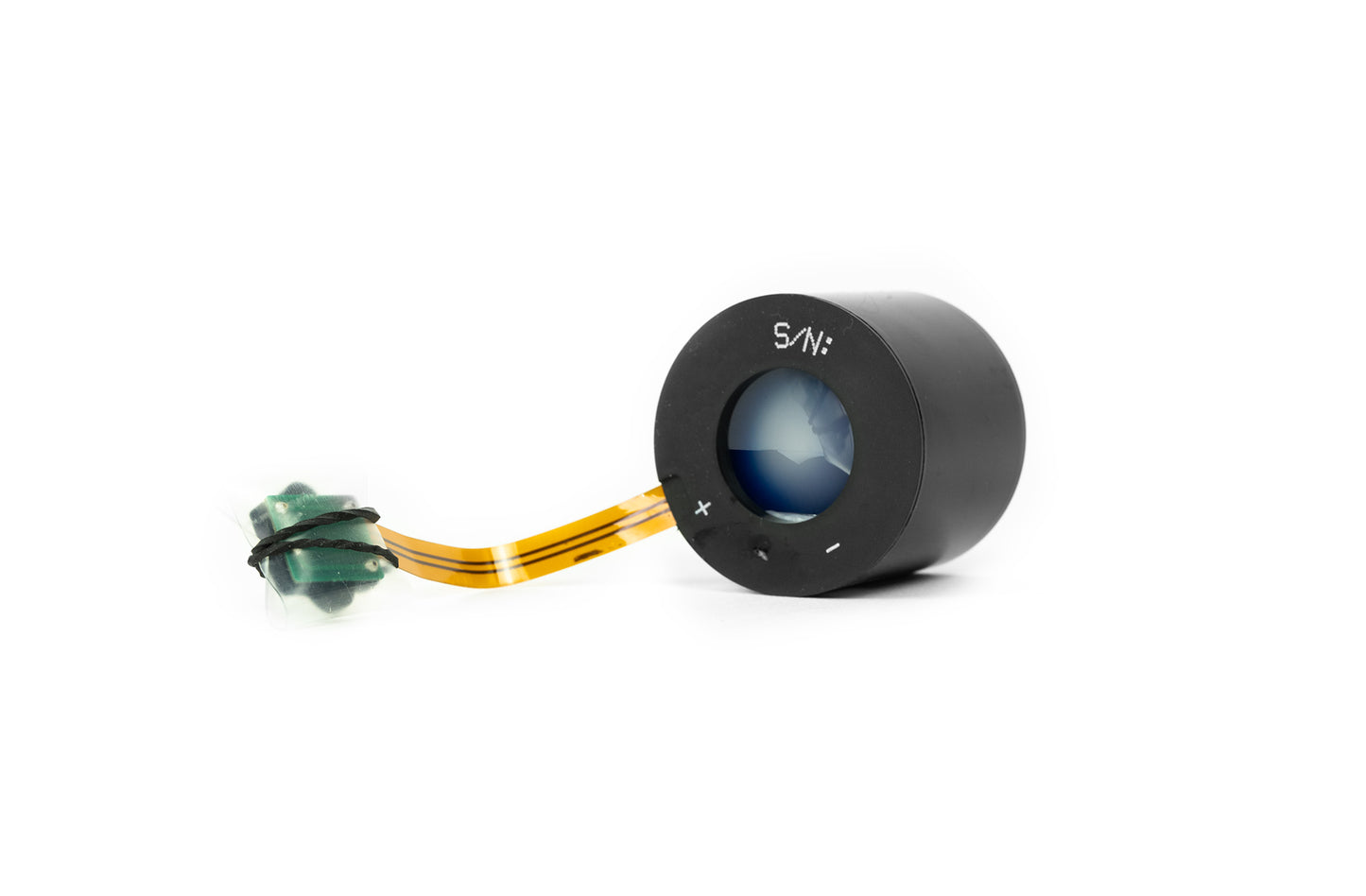

Photonis Image Intensifier

1x Photonis Image Intensifier. 18mm format.

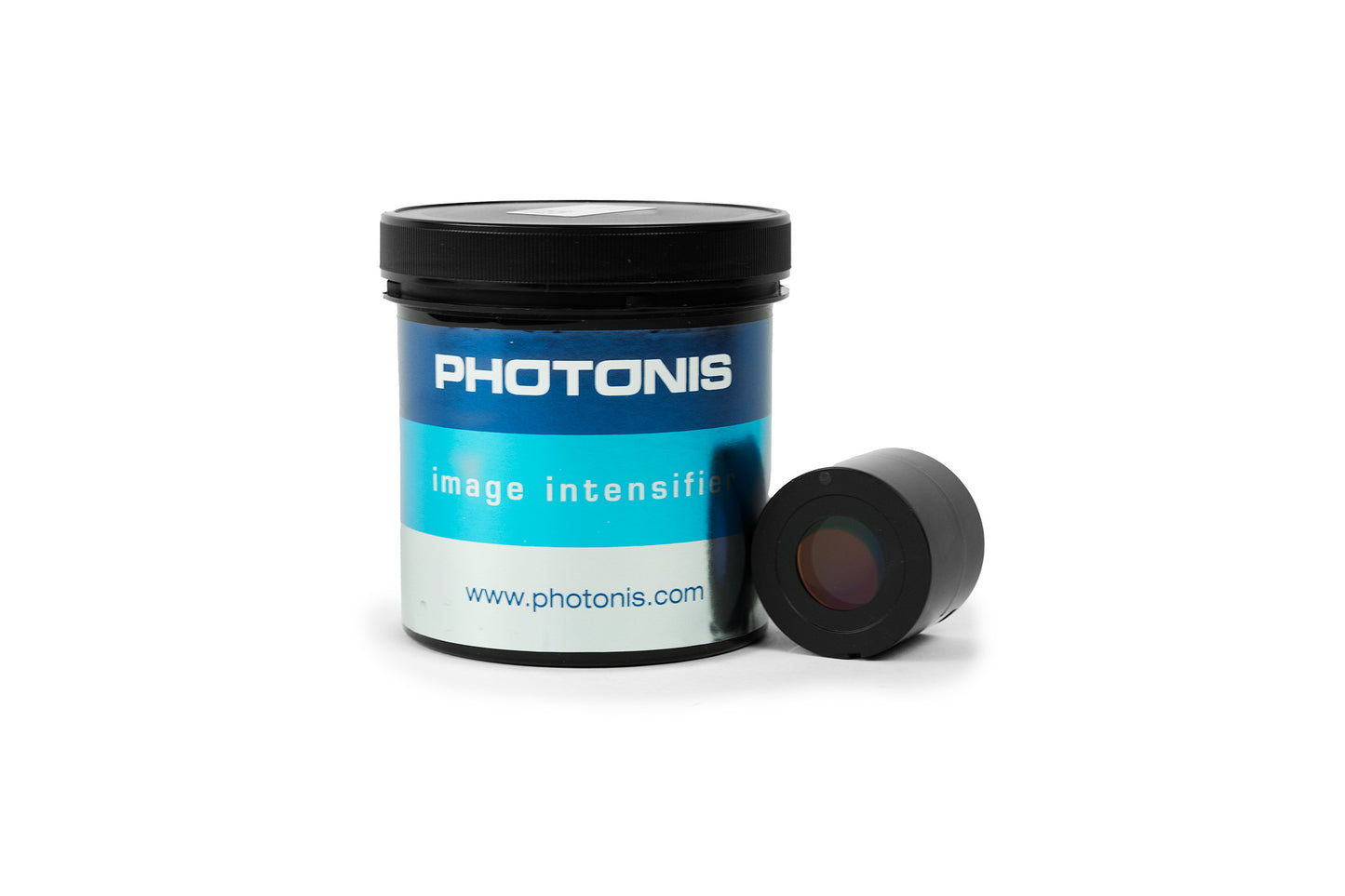

Brand new, sealed direct from Photonis. Comes with individually serialized spec sheet guaranteeing performance.

Photonis image intensifiers are the perfect tube for your night vision device build. With a high Figure of Merit (FOM) and fast auto-gating, Photonis tubes provide high performance in all light conditions that rivals and in some cases, exceeds US Gen 3 thin-film technology, especially 4G High Gain.

A full Photonis spec sheet with the performance specifications of each individual exact tube is included.

Gating: Auto-Gated
Luminance Gain (converted to US equivalent): 29000+ fL/fc
Resolution: 66-78lp/mm
SNR: 24-30 (Echo typical); 30+ (Echo+); 25-32 (4G High Gain Typical)
FOM: 1600-2000 (Echo); 2000-2200 (Echo+), 2200+ (Echo++); 1800-2200+ (4G High Gain)
EBI (converted to US Equivalent): 0.5-2.5
Operational Time: 5,000+ hours
Halo: Max 0.95

NOTE: Echo tubes will typically have some factory dark spots. Our experience is small dots in the image are typical. For additional information on factory dark spots, click HERE.

Tubes will be selected at random. If you require tubes of an exact specification, hand-select tubes are available for an additional fee. Please contact us with your exact needs.

Professional installation is highly recommended. Please contact us for build options or visit our Night Vision Devices section. Custom builds also available.

To complete your build, please see our Night Vision Parts
