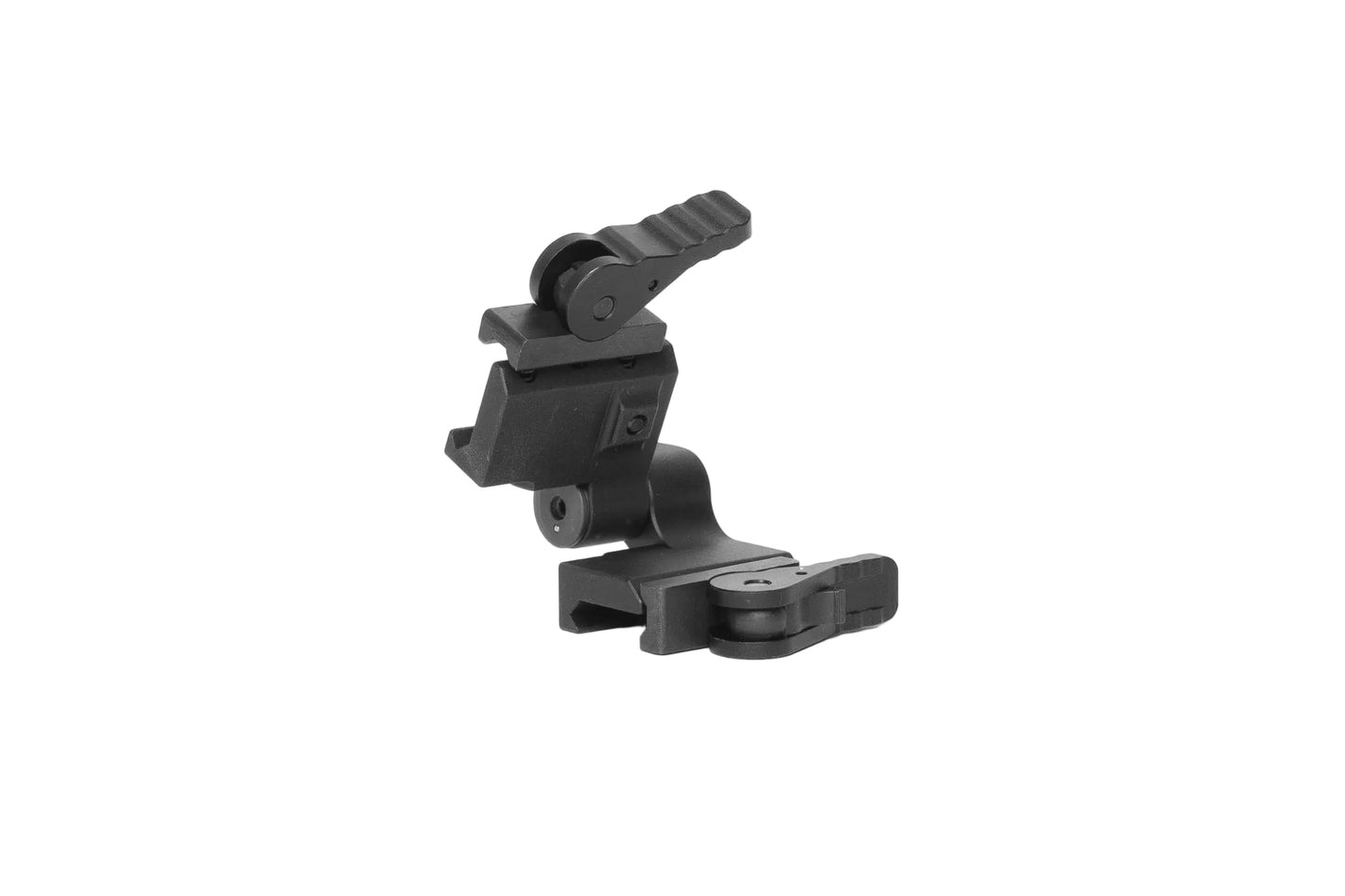

Cold Harbour Universal Picatinny Flip-to-Side (UP-FTS) V3

**NEW for Version 3 is the integration of the rotation stop into the main body vs a steel pin; and application of VC3 threadlocker to allow for adjustable tension while eliminating possibility of loosening over time. Users can still disassemble the FTS and apply more permanent threadlocker if desired.

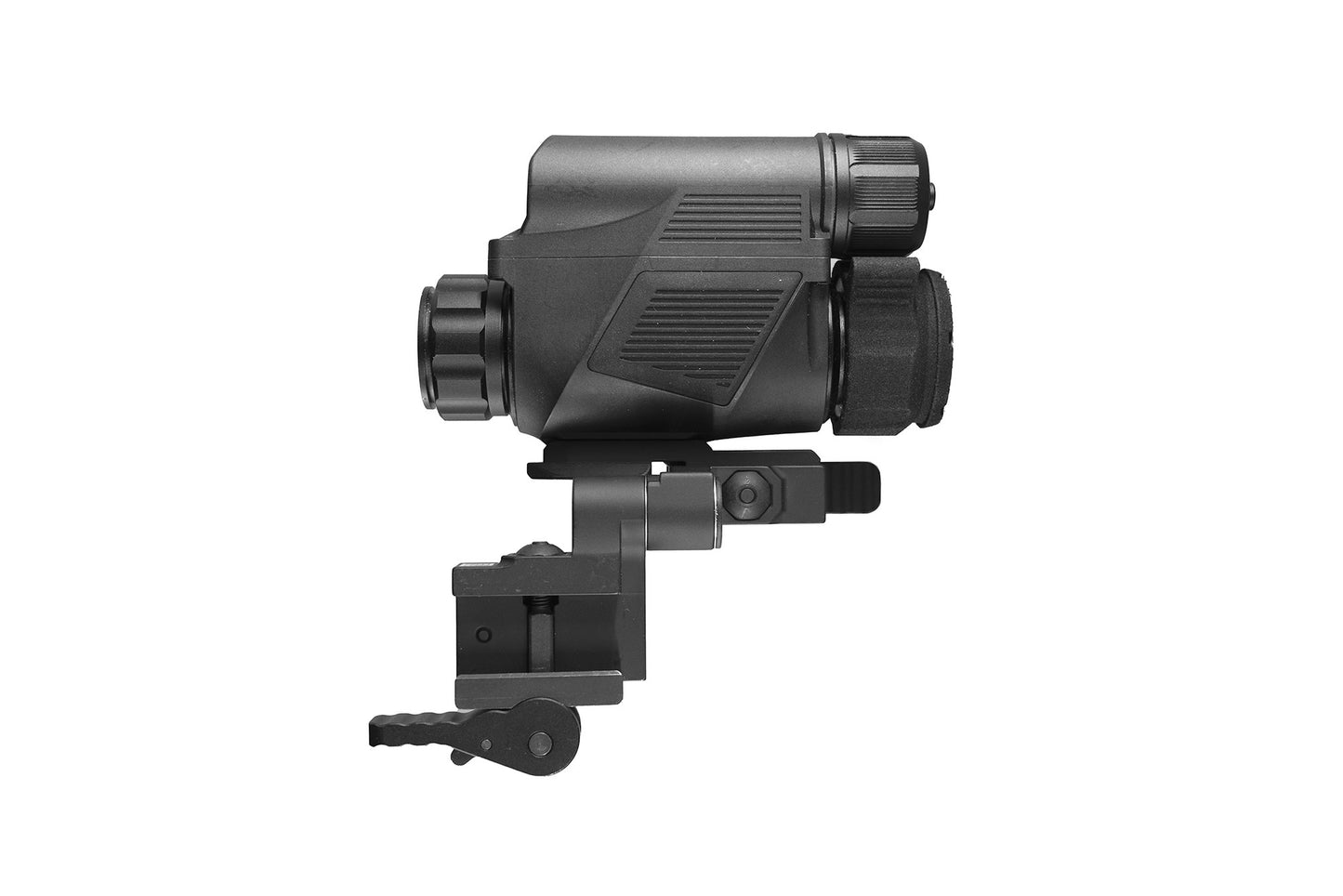

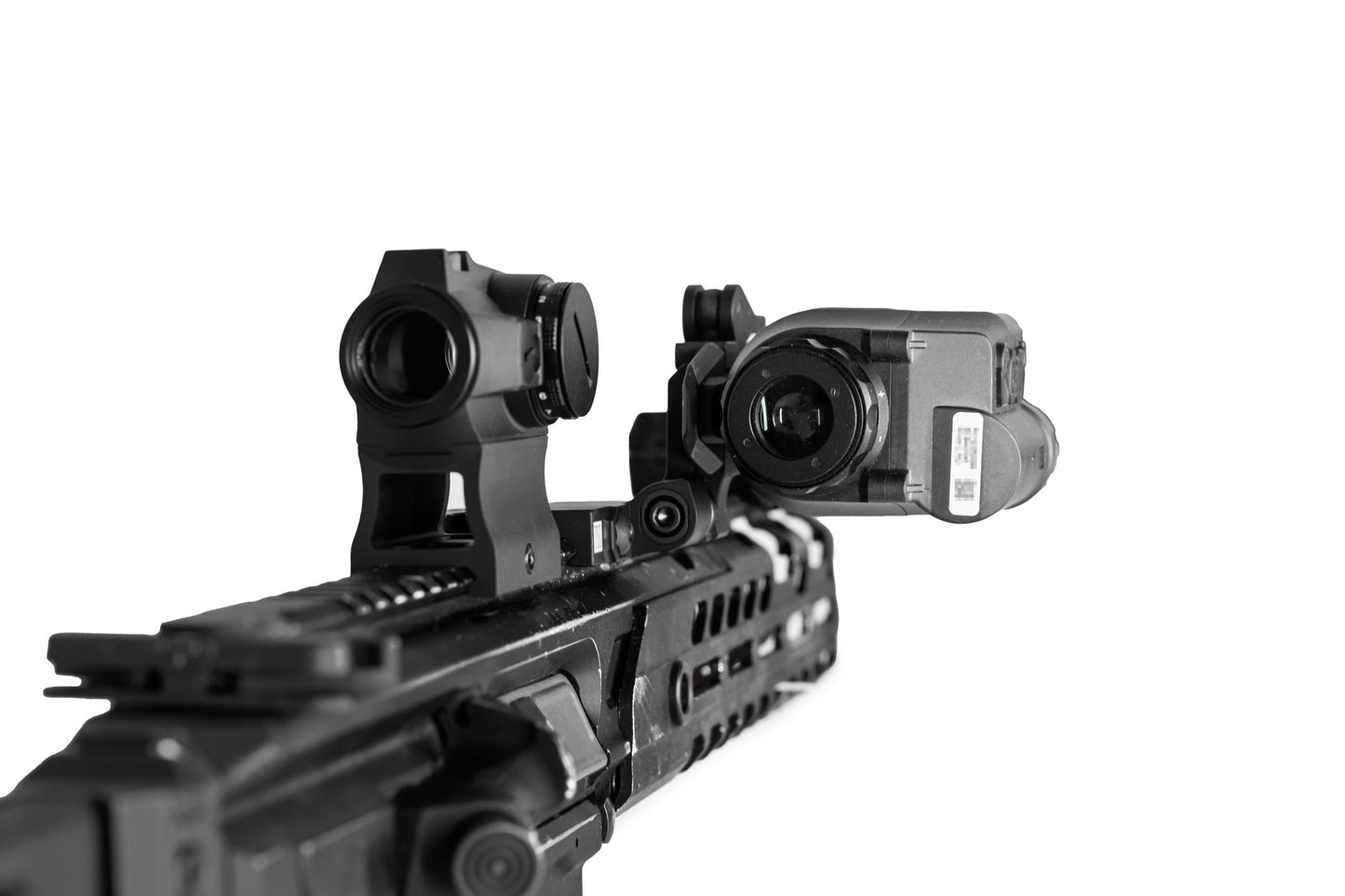

The Cold Harbour Universal Picatinny Flip-to-Side (UP-FTS) is a 1.54" optic mount designed to allow users to quickly flip a supplementary thermal optic to the side, while also allowing the user to dismount the thermal completely and get it on a compatible helmet-mounted bridge. With the UP-FTS, users can simply install their thermal optics on their rifle and flip the thermal into and out of view as desired, instantly adding thermal capabilities to their day optics.

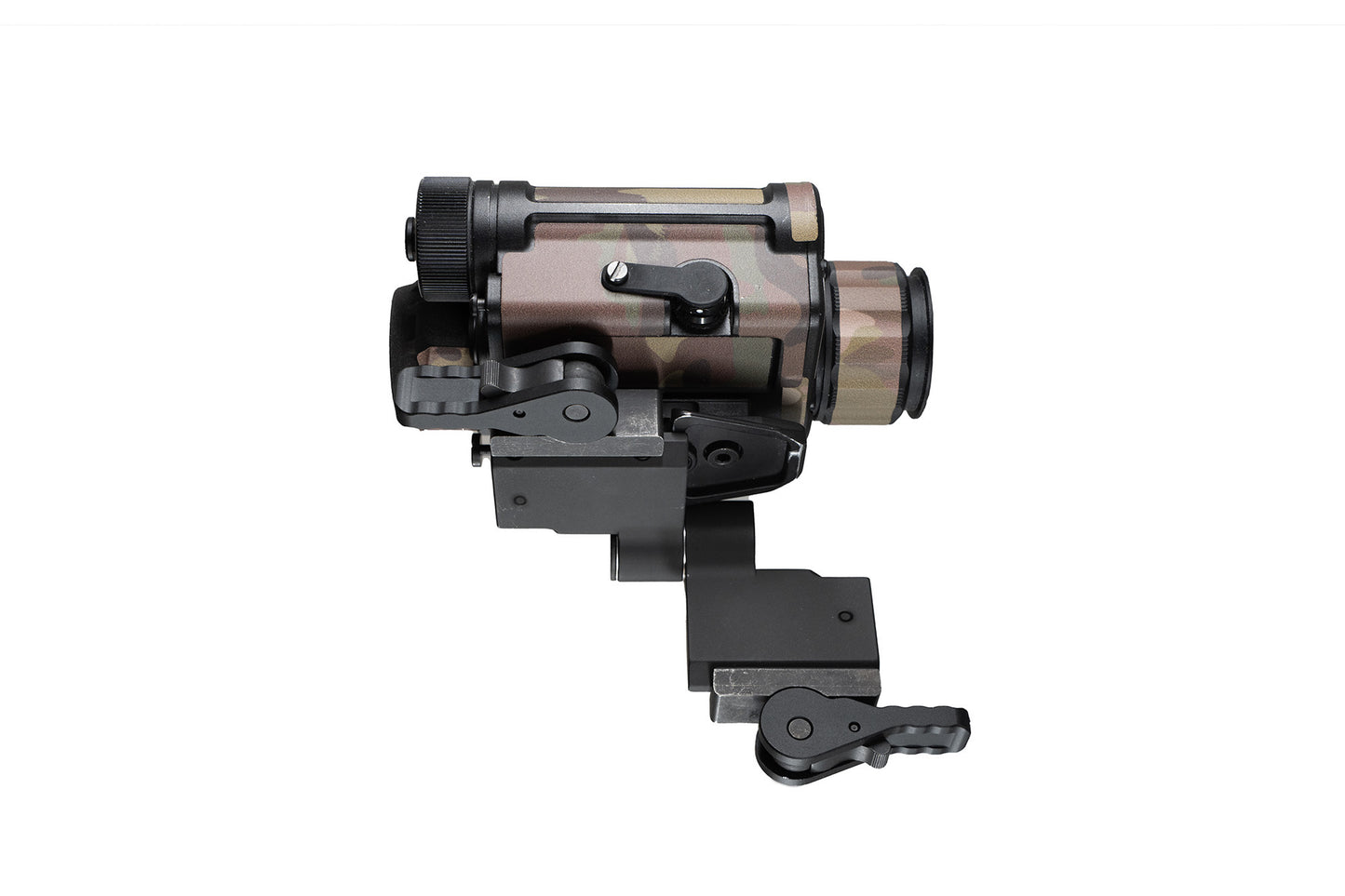

The UP-FTS, when used with our Picatinny Dovetail Adapter Plate (PDAP) for Jerry-YM or Pfalcon640/RH25. allows for the thermal to be quickly dismounted and installed into a helmet-mounted night vision/thermal bridge, such as the Panobridge M1. A common use-case is using helmet-mounted night vision/thermal to scan for targets and threats, and then quickly dismounting off the helmet, mounting on the rifle for precise targeting and engagement

Because the UP-FTS is symmetrical, it can be mounted to swing the clip-on optic to the left or the right, depending on user preference.

An adjustable Picatinny interface offers the following improvements over dovetail latches:

• Over 500% increase in mating surface area for improved distribution of recoil force
• Picatinny clamps will not wear out over time unlike the Wilcox flip-down locking bar or dovetails
• Adjustable tension to account for variance in tolerances to ensure perfect lockup and true and repeatable return-to-zero

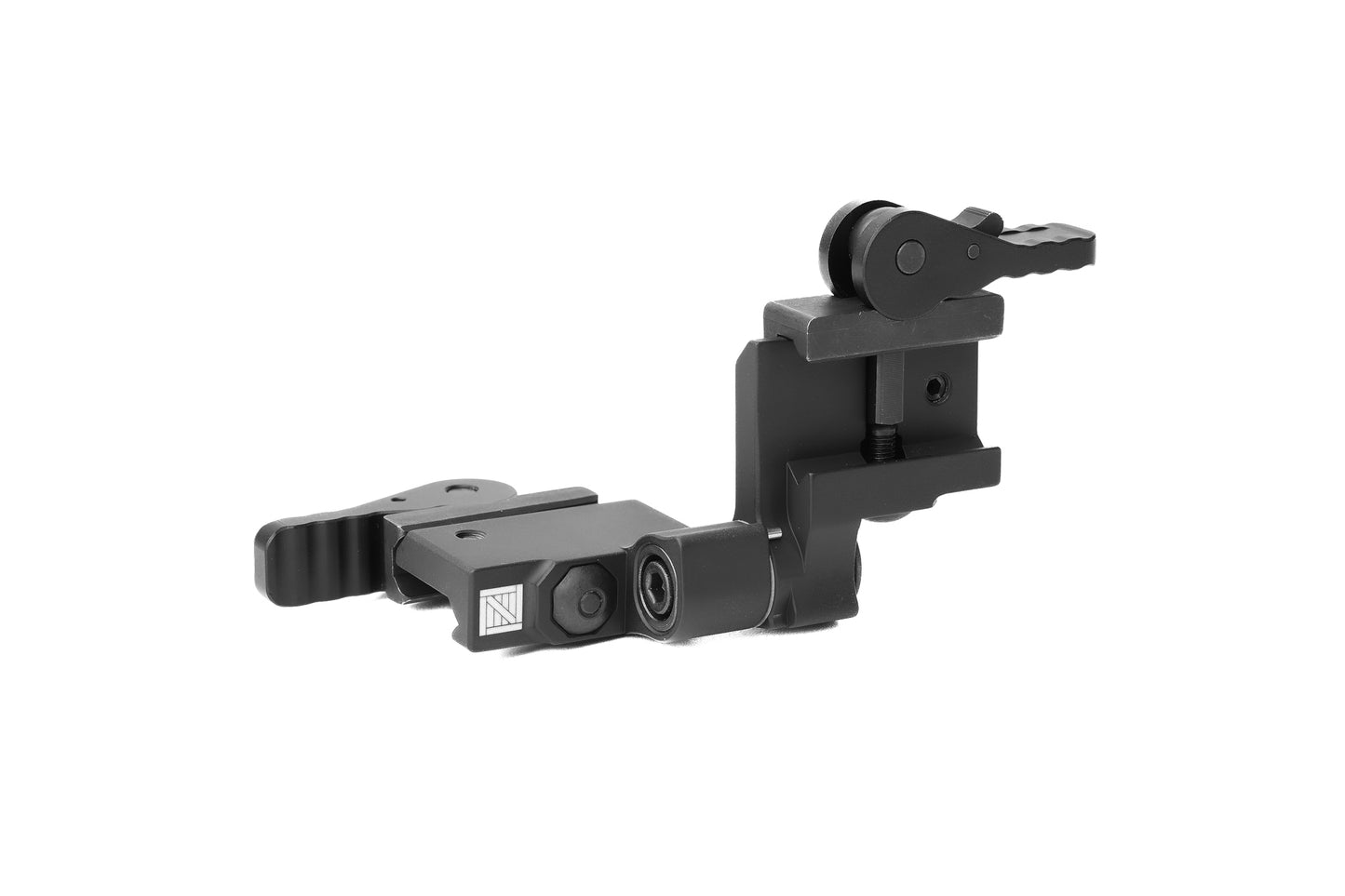

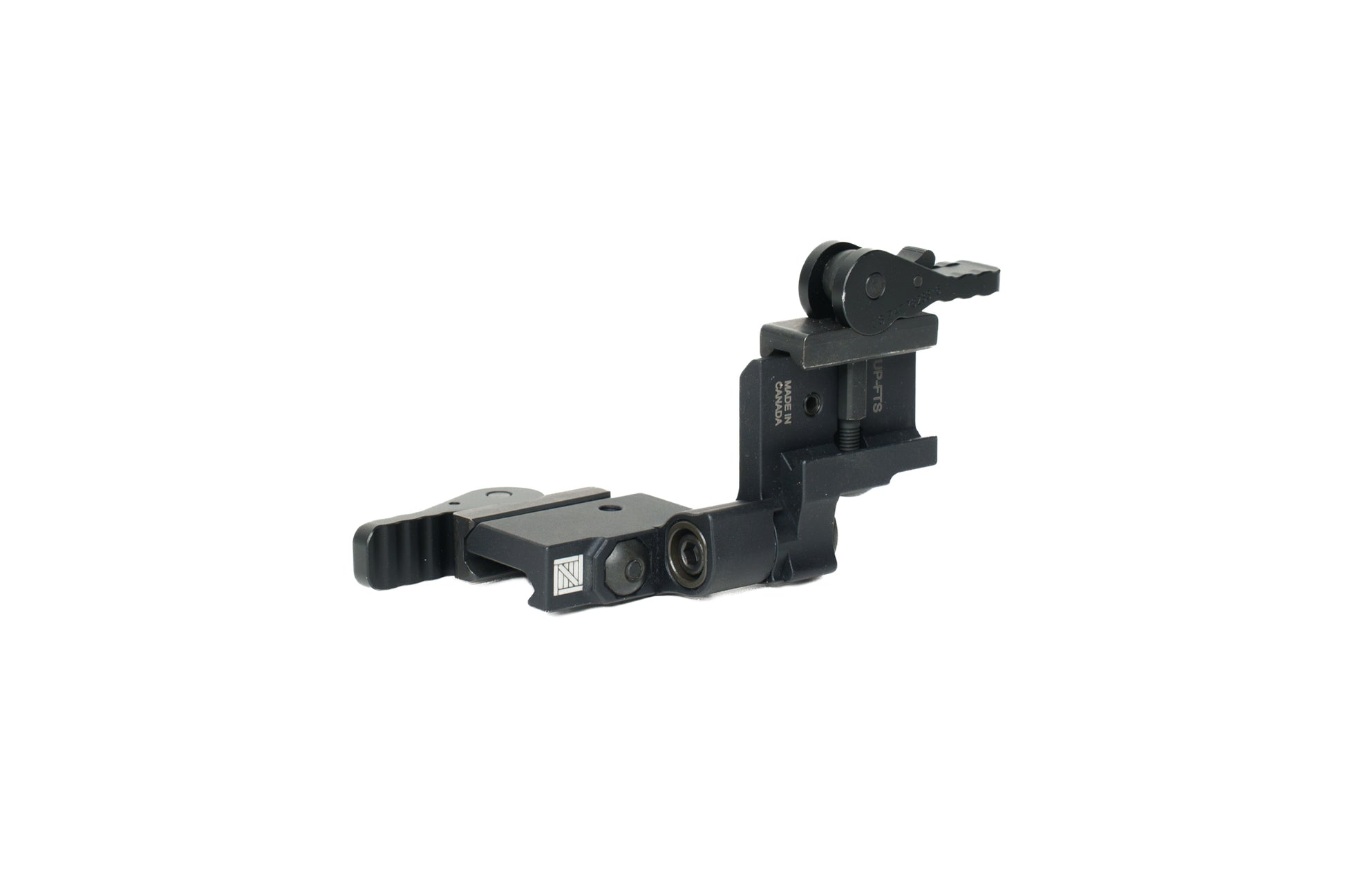

The FTS mechanism is tension-adjustable and loaded by a cone washer on the main spindle to ensure that the FTS will not lose tension over time or under recoil. The FTS mechanism is stopped at the 90-degree angle by an integral stop.

Note:

V2 Updates include built in anti-cant screw system to adjust the rotation of the UP-FTS for optimal level, typically introduced due to tolerance stacking between the upper receiver, front rail, risers, adapter plates and optic mounts. thermal,  Users may use a bit of threadlocker (not included) to lock the screw in place.

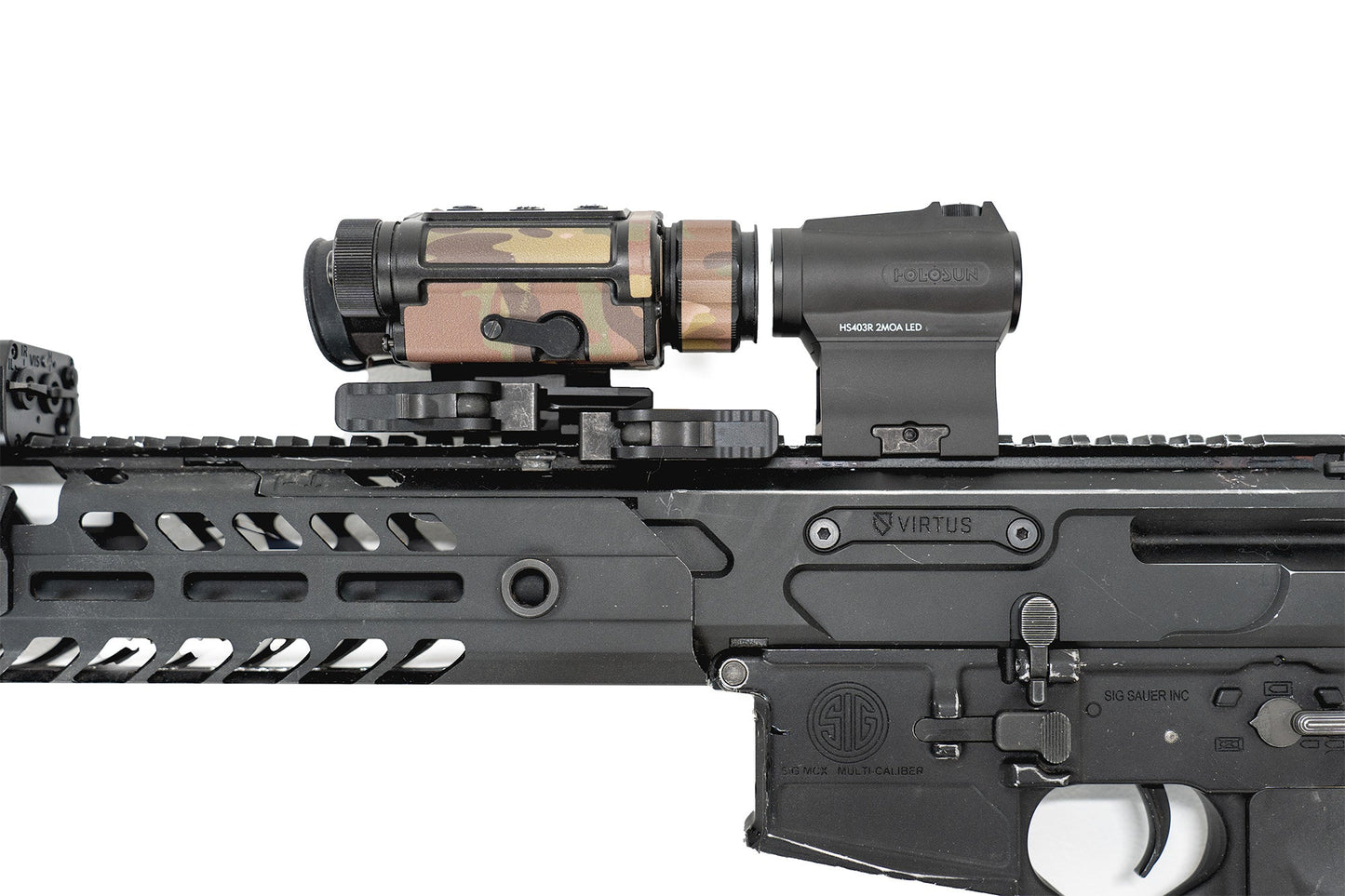

Aftermarket risers may be needed to get your thermal optic to the correct height. The UP-FTS and PDAP combos on the Jerry-YM and Pfalcon 640 are made to line up with standard lower 1/3rd  (1.54") co-witness optics from the centreline of their output screens.
