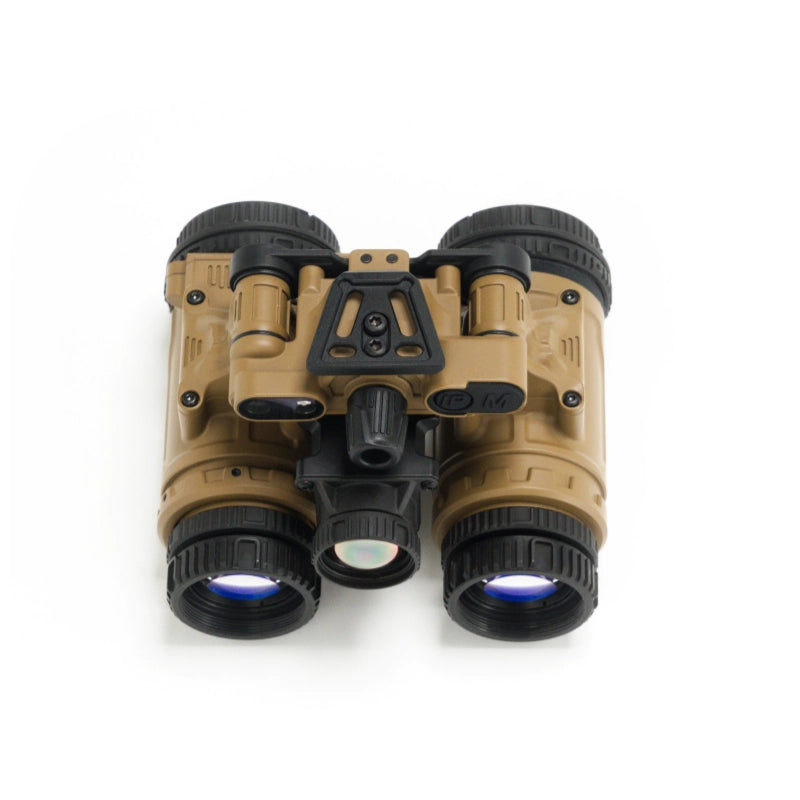

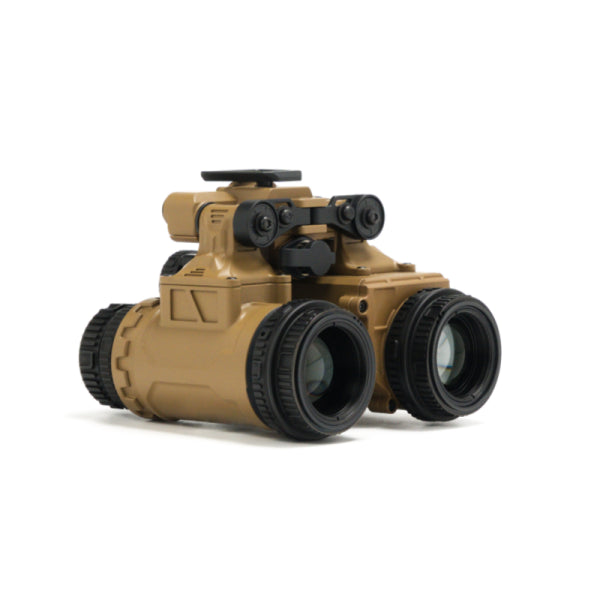

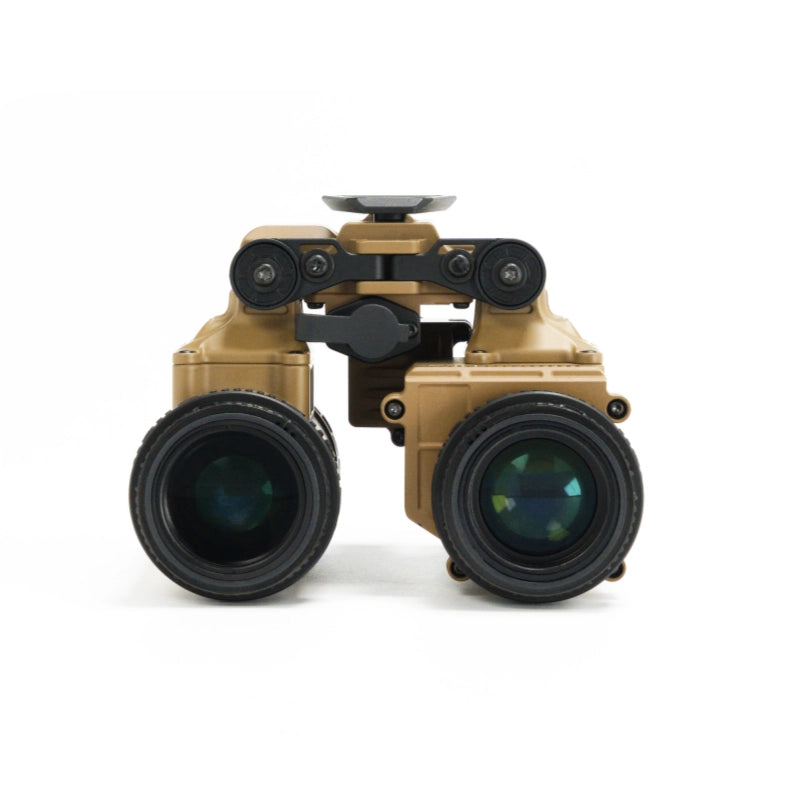

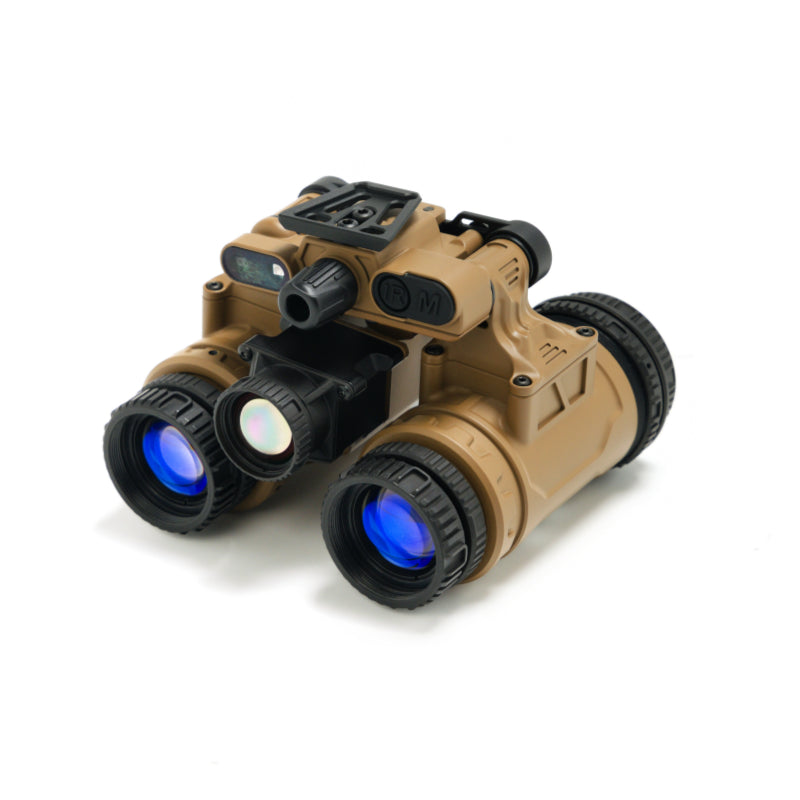

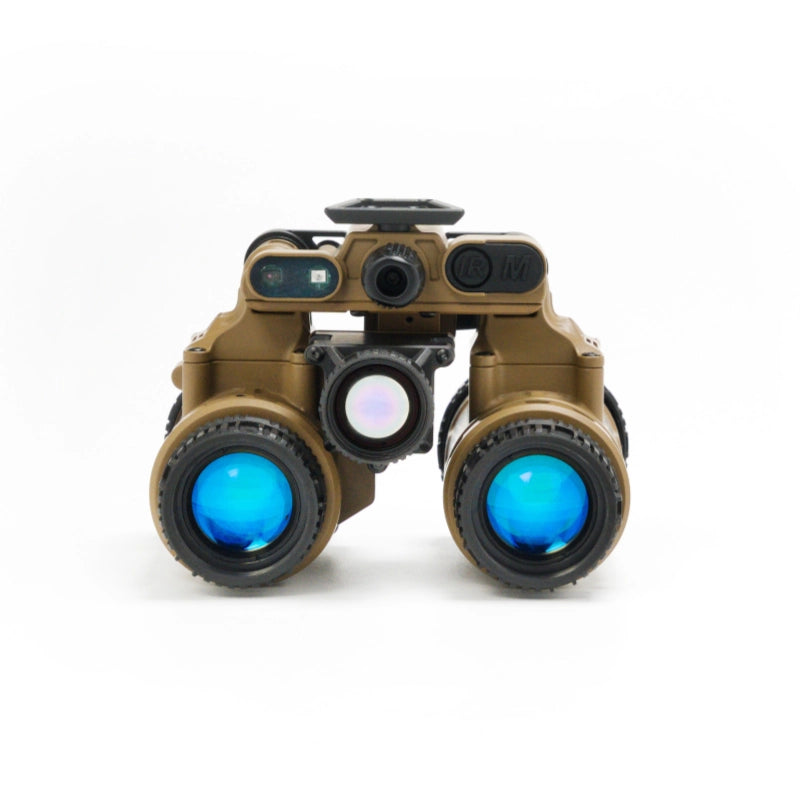

ELF-FB20 / Jerry-FB 2.0 Thermal Fusion Night Vision Binoculars

The ELF-FB20 or commonly referred to as the "Jerry-FB 2.0" is the next iteration of the wildly successful Jerry-FB Thermal Fusion Binocular Night Vision Goggle. Unlike a COTI which projects the thermal image through the front of the goggle and may cause intensifier burn-in from the thermal display, the ELF-FB20 is a true thermal fusion device that overlays the thermal image on output side of the image over the night vision image (also known as "eye-side" fusion).

Another main drawback of COTI-based systems is the thermal signal is projected into the image intensifiers' input side, the thermal image tends to get washed out in bright situations (eg: urban, suburban, or dynamic lighting). In a true fusion system like the ELF-FB20, the thermal is projected and overlaid after the image intensifier tubes' output screen, completely removing any risk of wash-out or image intensifier burn-in.

A major benefit of true fusion systems is the ability to display the fusion in a different colour (eg: red hot mode), further enhancing situational awareness and ability for the operator to distinguish between night vision and thermal images.

Improvements over Jerry-FB Classic

• Improved optical package (virtually eliminated chromatic aberrations/blue fringing)
• Manual-gain capable
• Enhanced eyebox
• Increased resolution thermal screen (1280 x 1024 OLED) @ 60Hz
• NEW Red-Hot mode
• Improved image algorithms (less thermal false-positives)
• Faster start-up time
• Adjustable intensifier gain, thermal overlay and thermal sensitivity
• Adjustable thermal focus
• PVS-14 compatible threads for filters, irises, sacrificial lenses, etc.
• Reduced thermal latency (less thermal image lag) - 60Hz
• Streamlined menu system

Key Features

• High Resolution 640x512, 12um thermal core
• Ultra-fast 60Hz Refresh Rate
• True 1x unity magnification for seamless overlay
• Sharp 1280 x 1024 OLED thermal overlay
• Weight: only 530g for the complete system
• Storage Pouch and Battery Pack included
• Compatible with all PVS-14 objective lens accessories

The ELF-FB20 is assembled with your choice of NNVT 1400+ FOM, 1600+ FOM, Photonis Echo 1800-2200 FOM,  Photonis Echo+ 2200+ FOM, 2200+ FOM, or Photonis 4G 1800-2200+ FOM, or NNVT Gen3 2000+ FOM white phosphor image intensifier tubes. Each ELF-FB20 is cleaned, assembled, purged, and tested in-house in Canada with precision tools using our digital nitrogen purging rig, downdraft table, and clean room. Each device will also be tested and collimated using our in-house Hoffman night vision test set and a full test report will accompany each unit.

Specifications:

INCLUDES:

• ELF-FB2.0 Thermal Fusion Binocular NVG
• Hard Case
• Soft Pouch
• 2x 18650 Battery Pack and Cable
