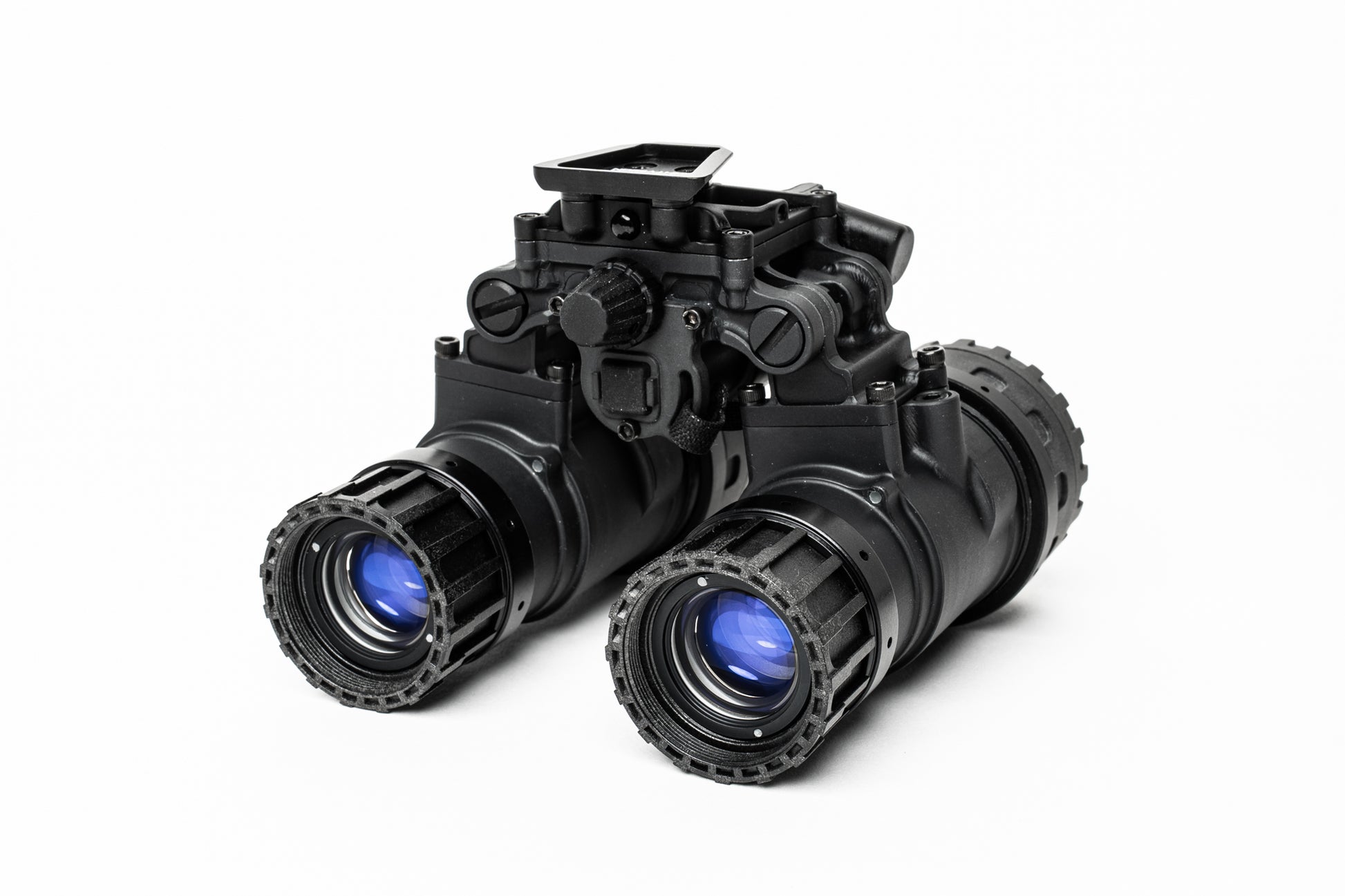

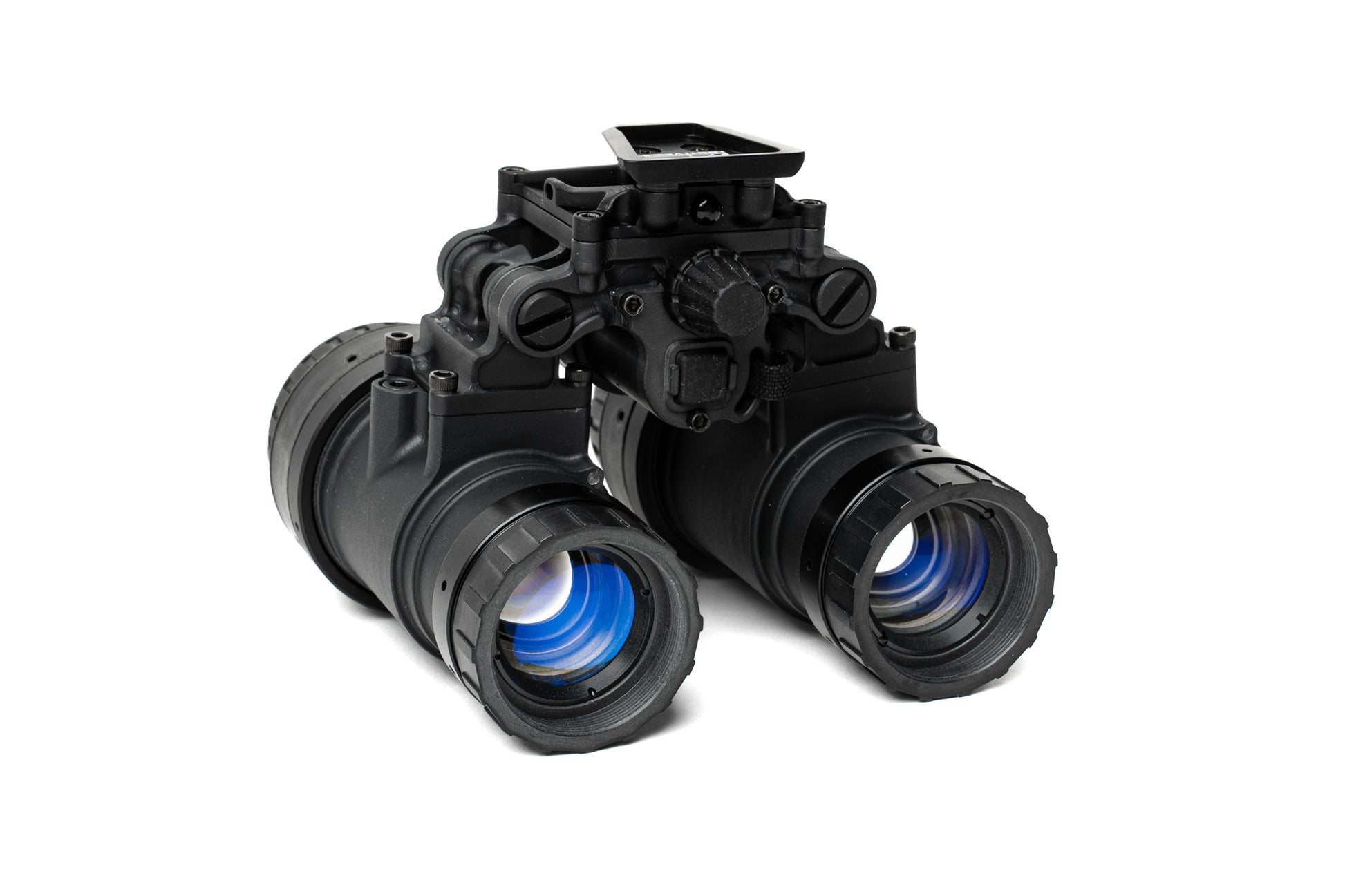

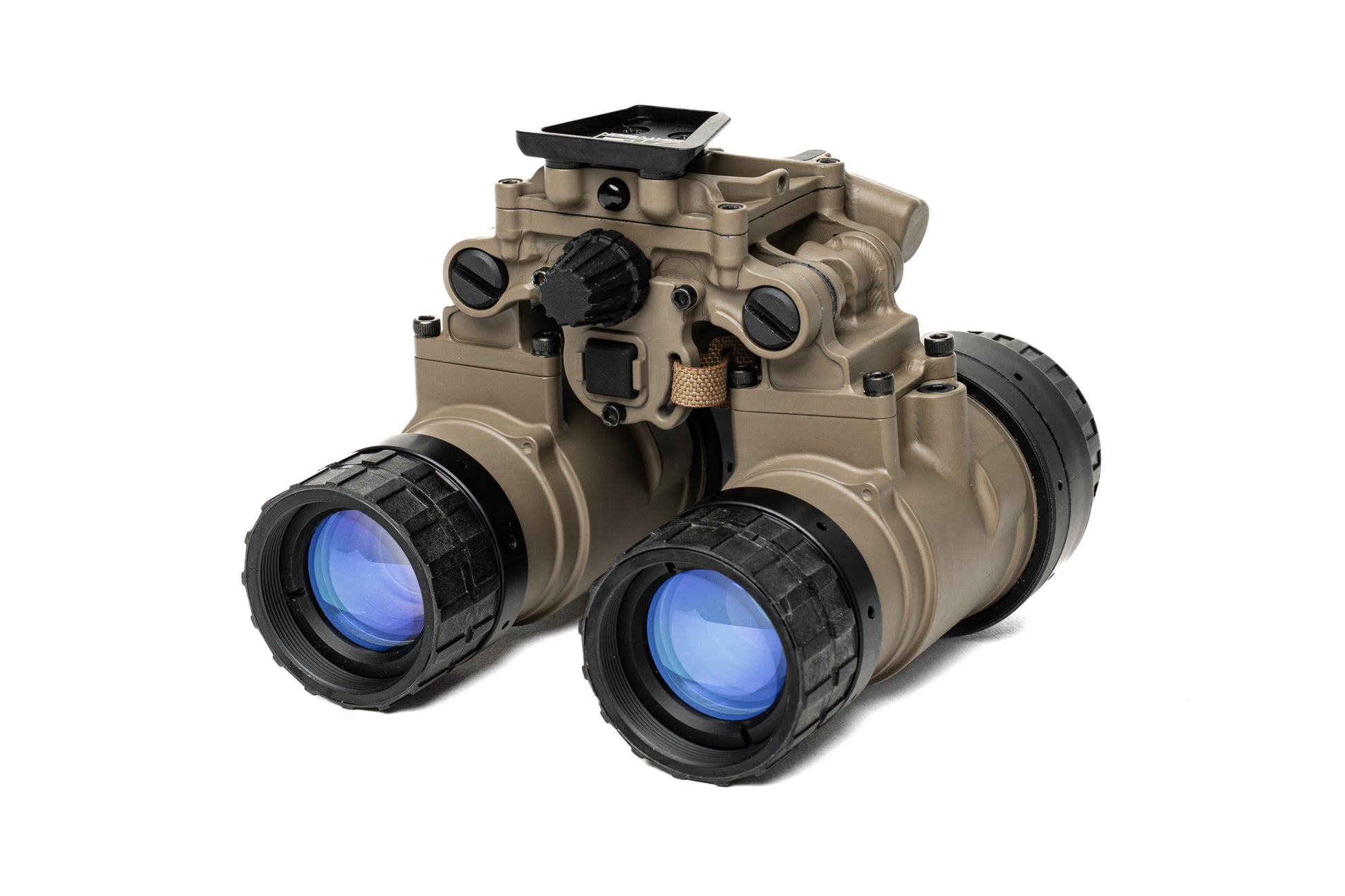

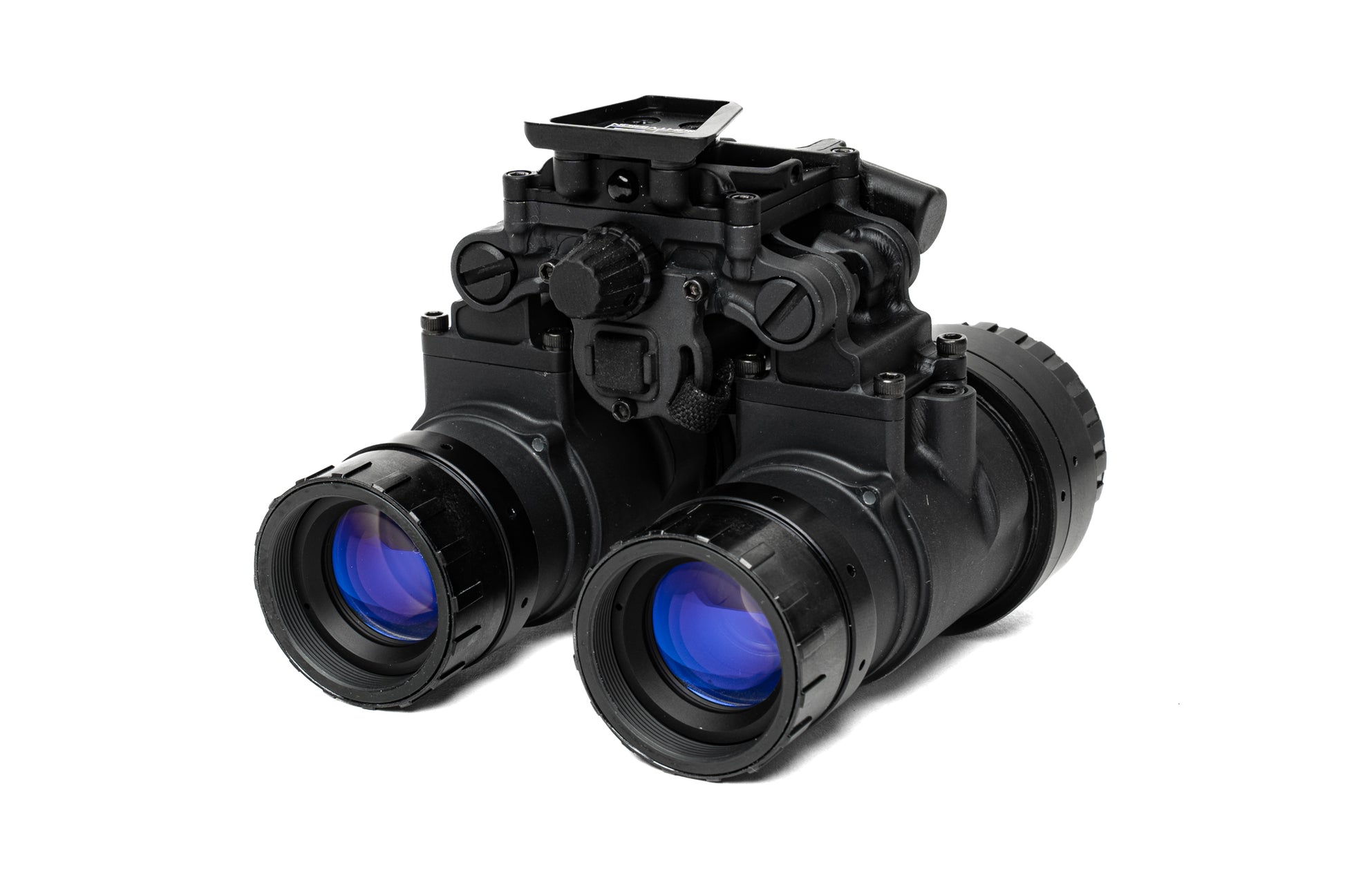

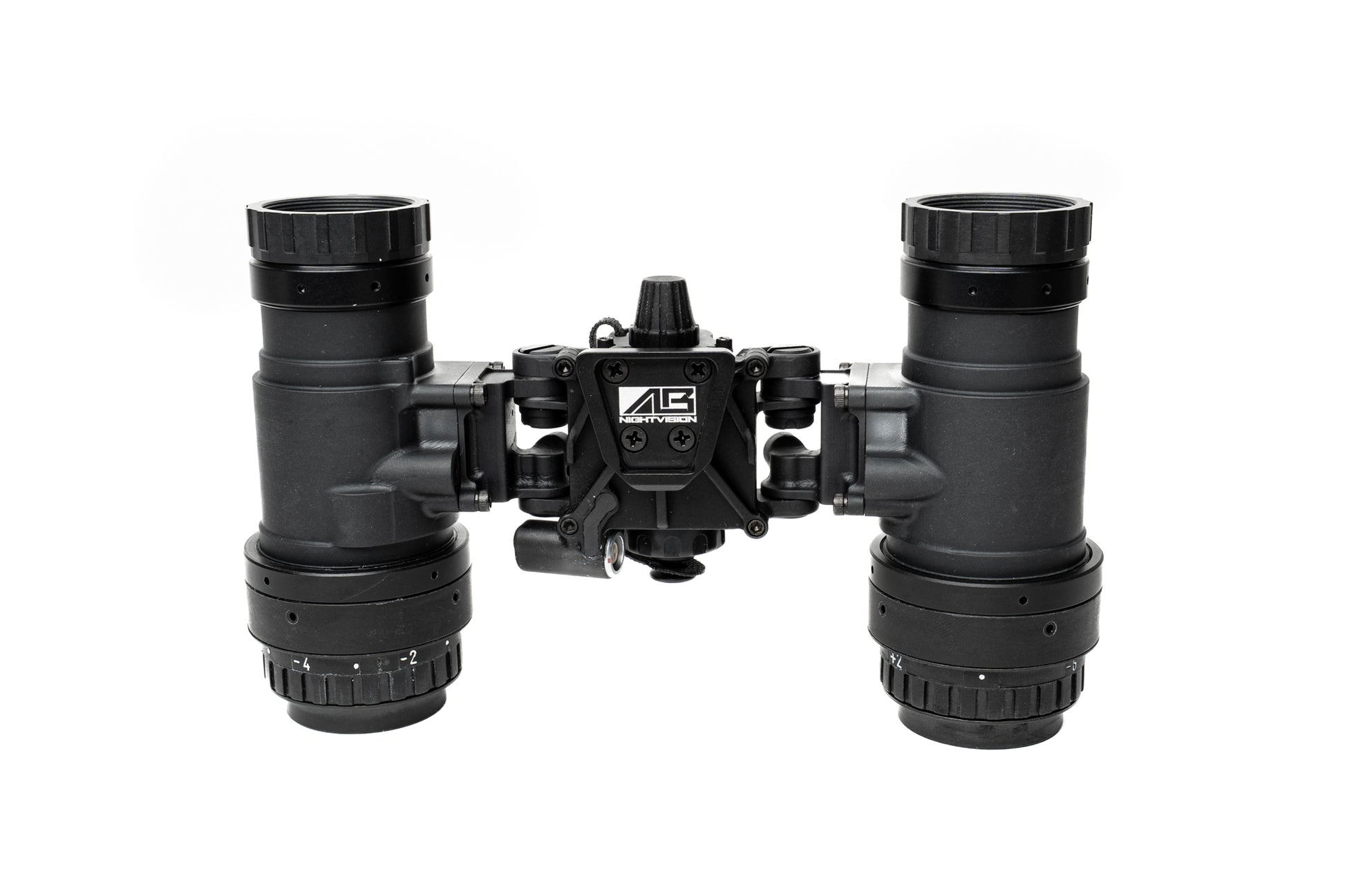

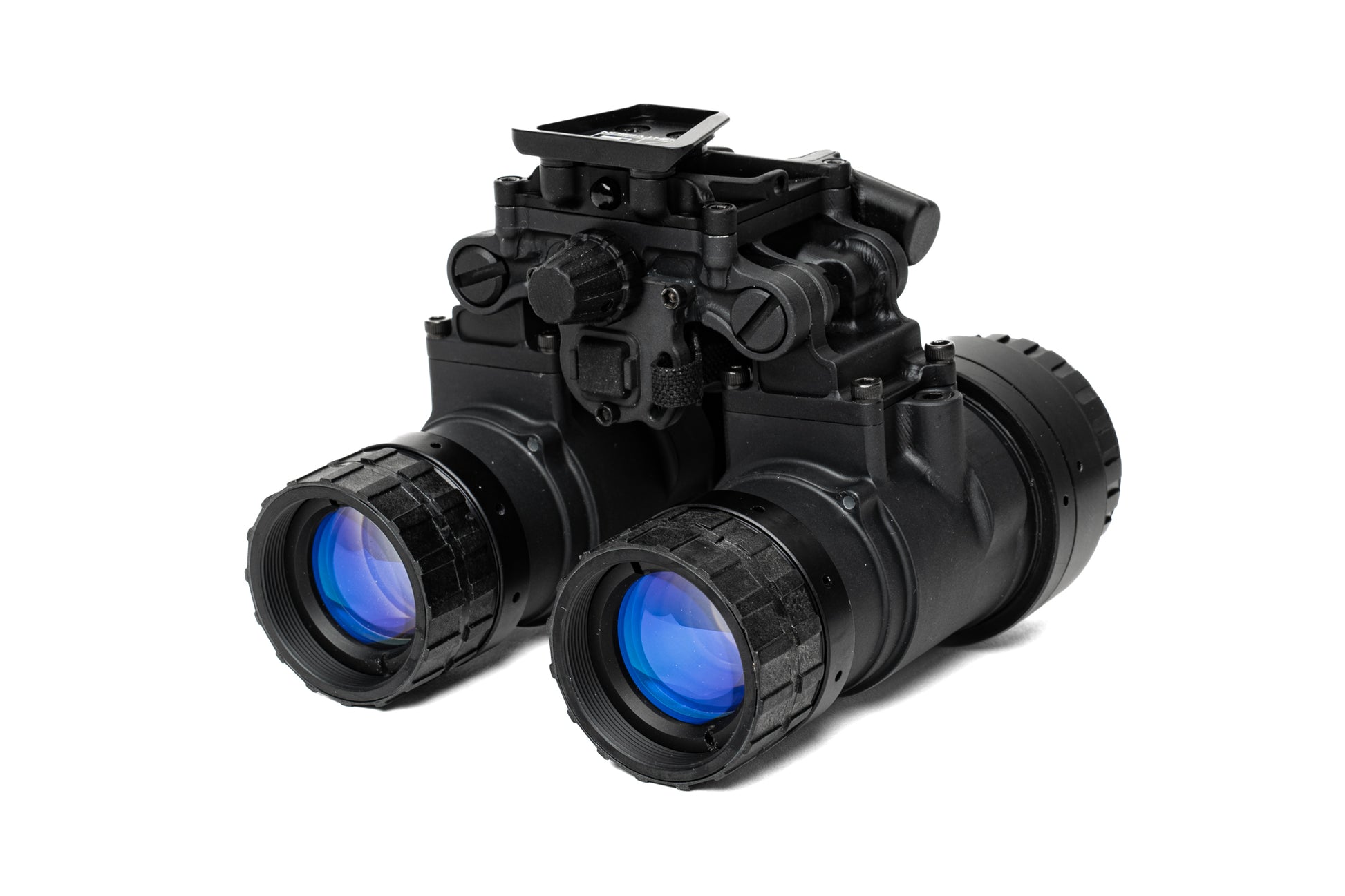

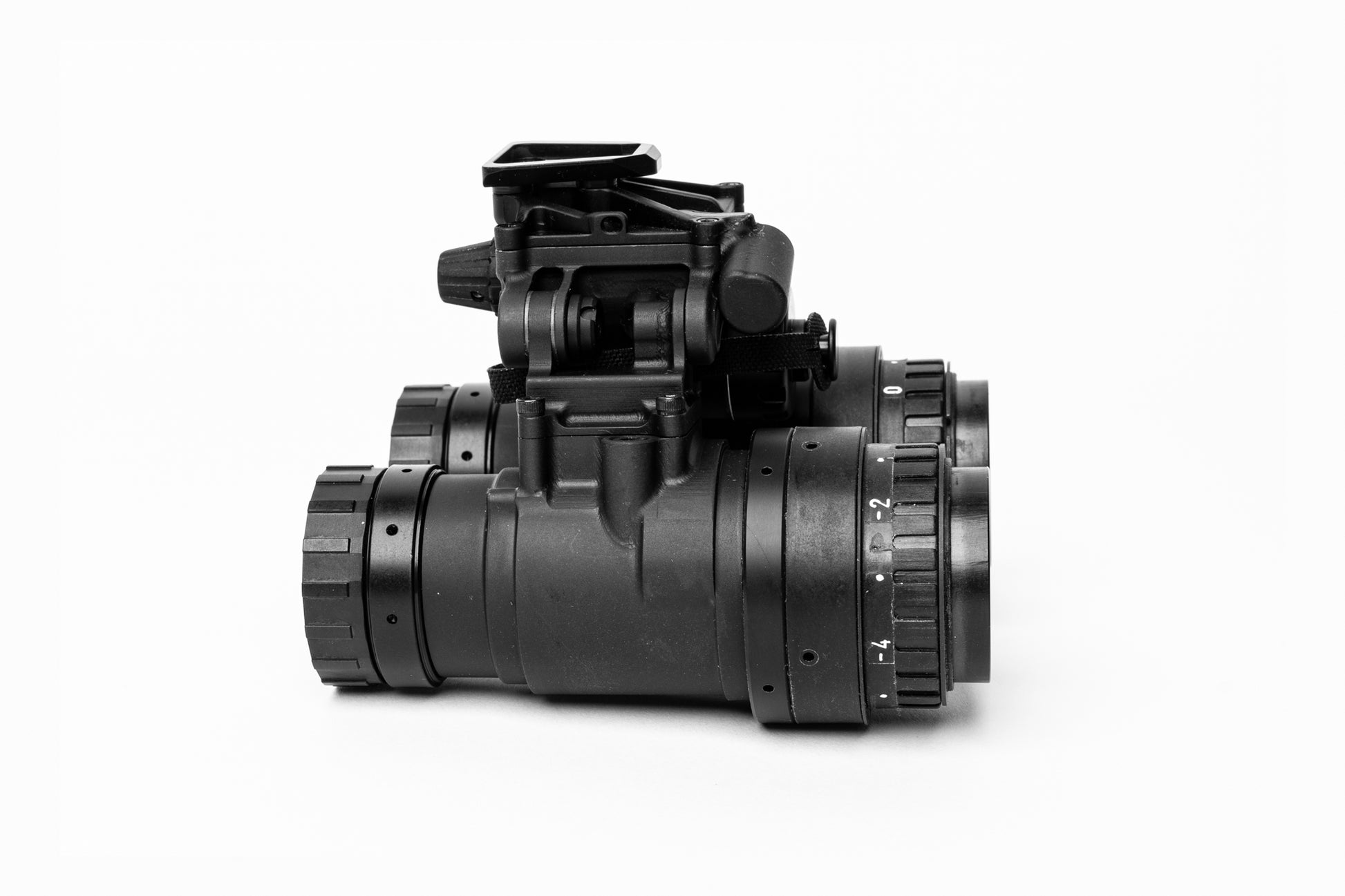

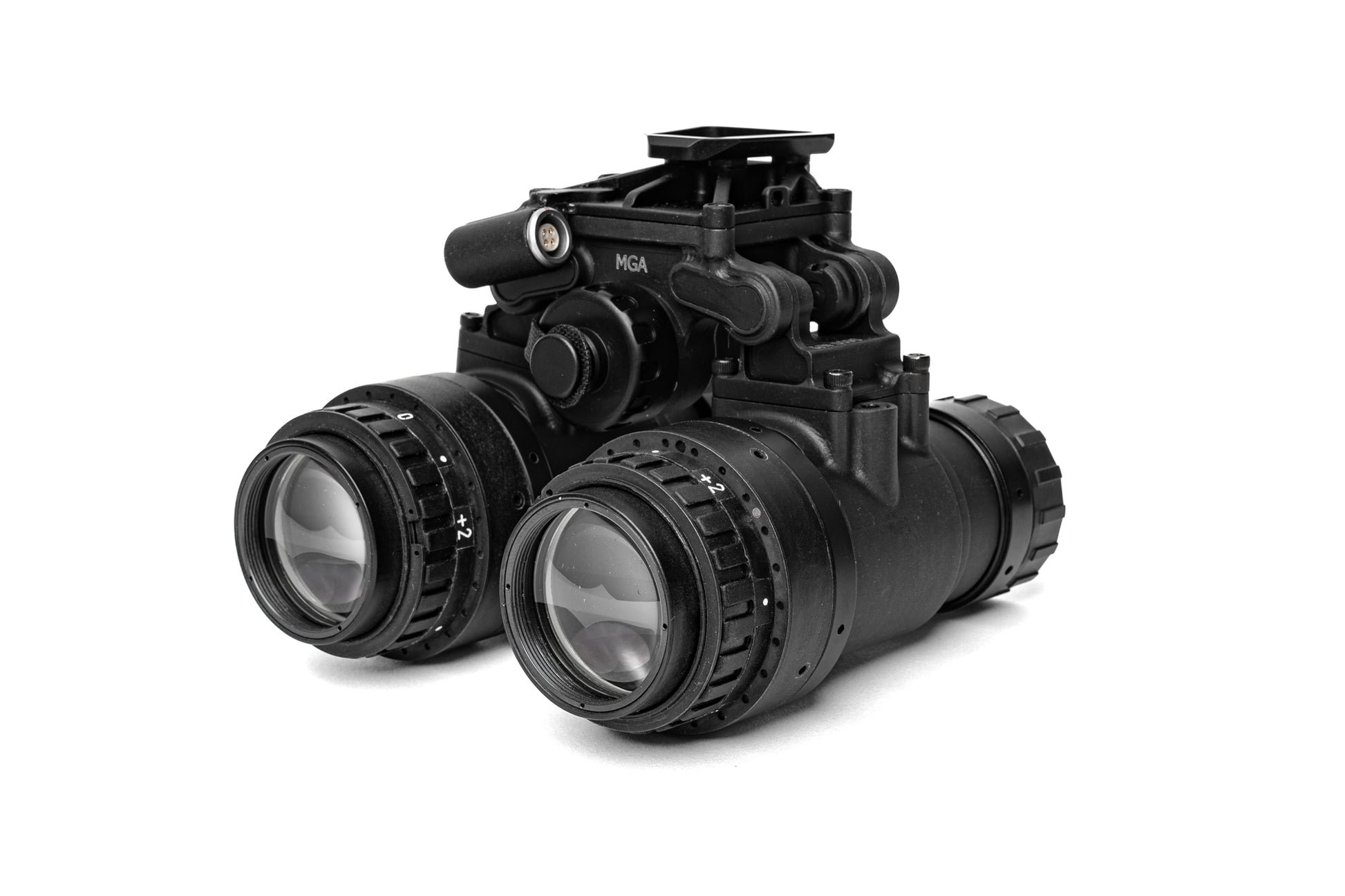

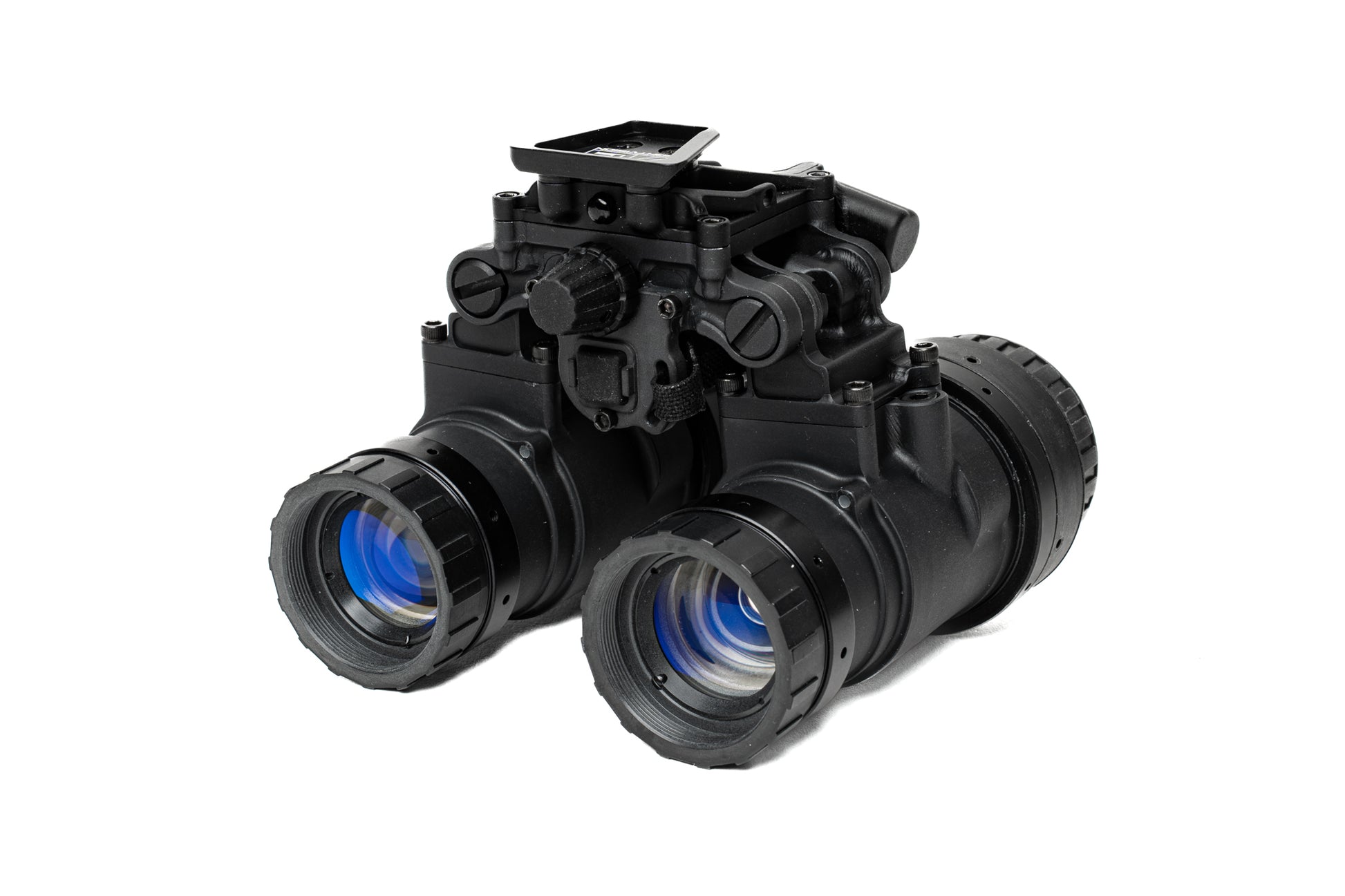

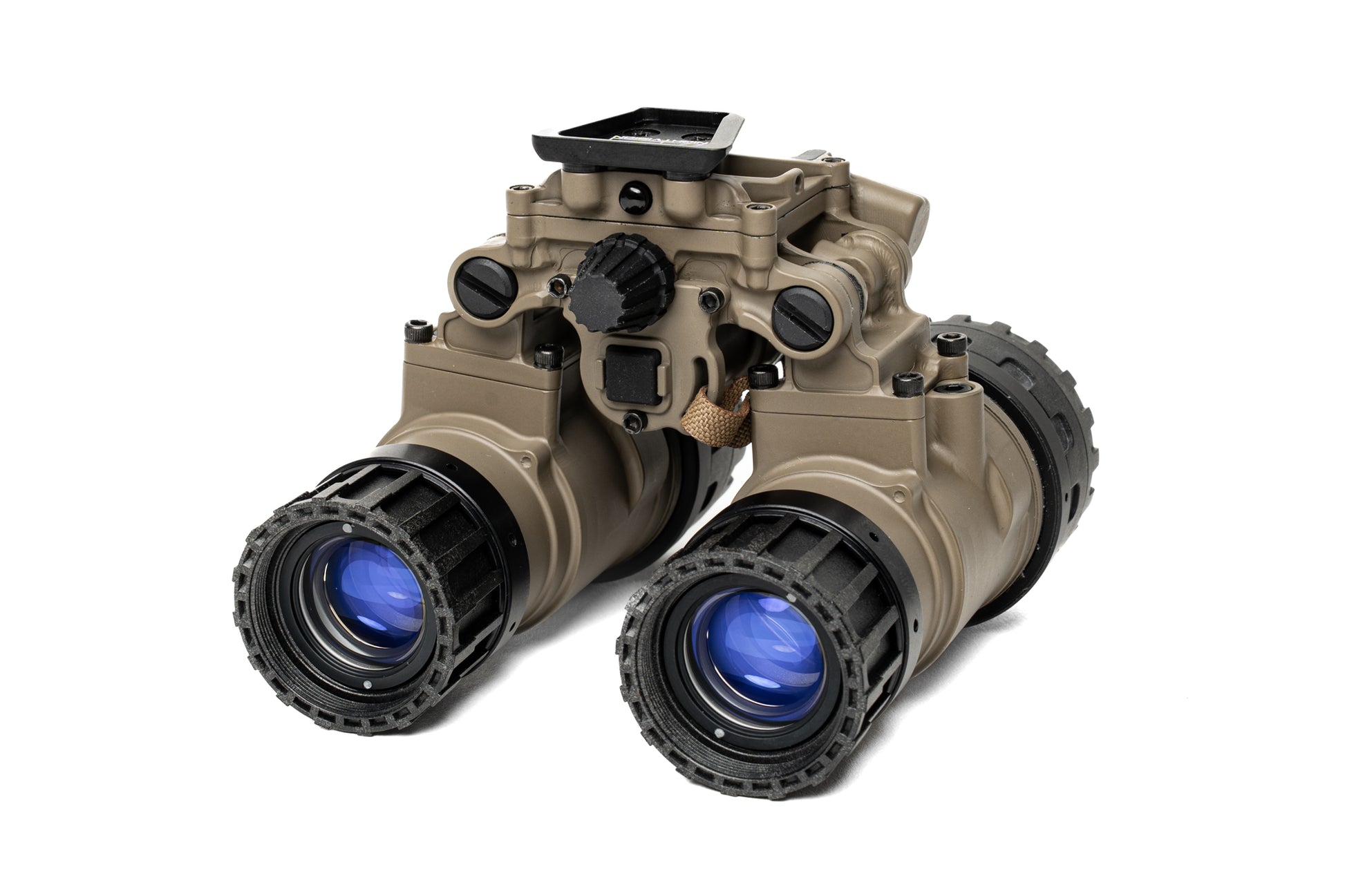

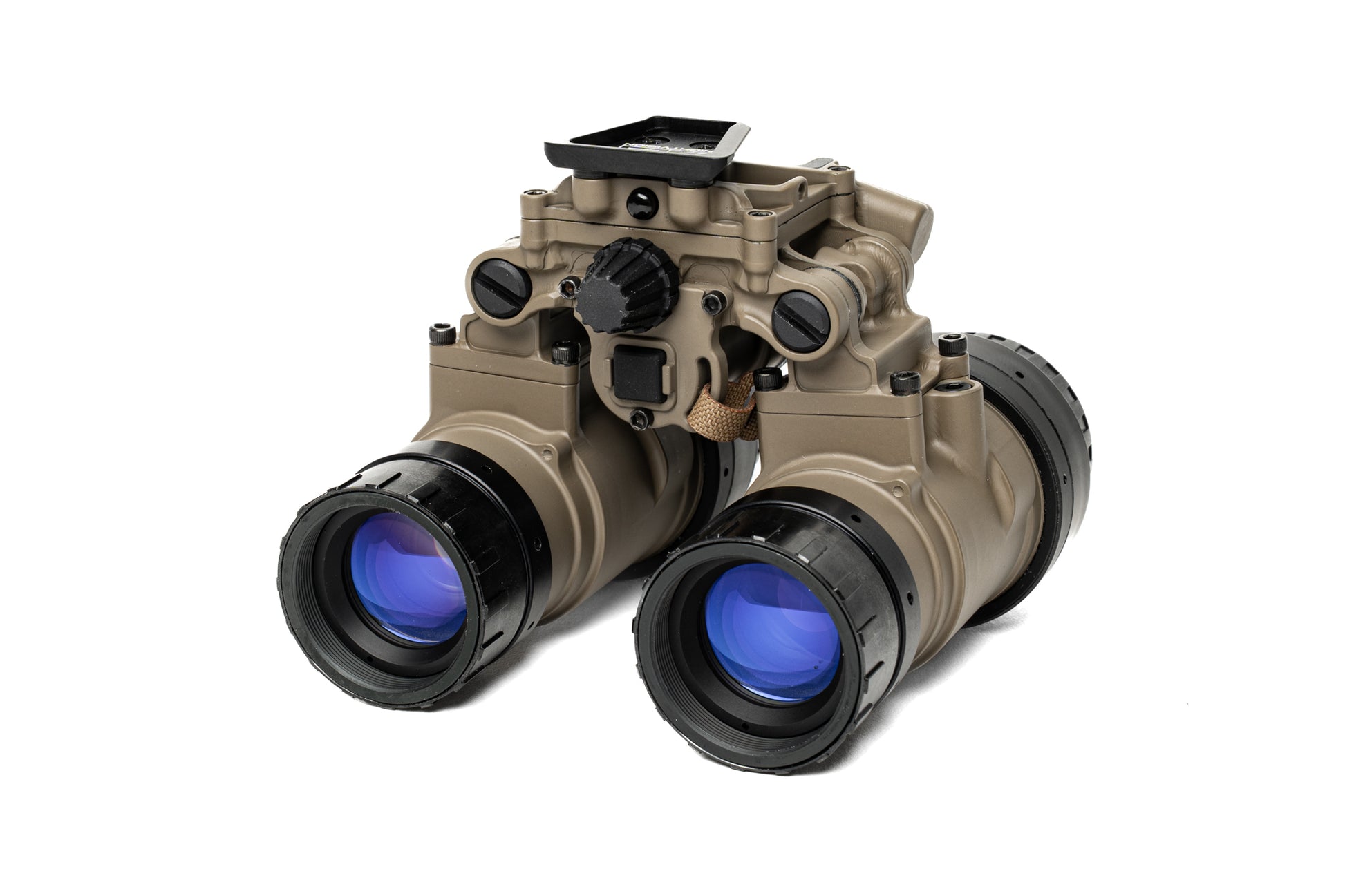

AB Night Vision MGA (Manual Gain - Articulating) Binocular NVG

The MGA is the next iteration of the successful and ultra-rugged RNVG-A from AB Night Vision. Surpassing MIL-STD-810H drop and water-submersion standards, the MGA adds manual gain to the billet-machined 7075T6 aluminum.

The unit features a rotary switch for power that also serves as manual gain adjustment. The IR Illuminator is activated by a push-button switch. Indicators in the viewing area alert the user if the IR illuminator is on or if the unit senses a low battery condition. The unit is powered by an onboard 123 battery or auxiliary power from a battery pack using a 4-pin LEMO-style connector.

The articulating design allows the user to quickly adjust for an Interpupillary Distance from 47mm to over 80mm.  Each optical pod can be rotated up out of the user’s view as desired, freeing one or both eyes for natural sight as conditions demand. When the goggle is helmet mounted and in the stowed position, the optical pods can be folded back flat against the helmet to minimize neck strain and better protect the goggle and the user from impacting overhead objects. The optical pods automatically turn off when articulated up.  This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet.  The force required to swing the optical pods is user adjustable using the included custom Pivot Spanner Tools or a coin.

Lens Options

Here at Cold Harbour Supply, we are happy to offer some of the widest ranges of lenses available to our customers based on their specific operational needs.

PVS-14 Standard Lens Set

• Eyepiece made by Salvo Engineering USA (Torrent Photonics)

• Objective made in Singapore; OEM'd by Steele Industries
• Excellent light transmission, flare suppression and resolution
• Slightly reduced contrast (~5%) compared to Noctis
• Great budget option

Noctis (Formerly Carson) Milspec Lens Set

• US Milspec lens meeting MIL-PRF-A3256342A tests
• Excellent light transmission, leading flare suppression and resolution rendering
• Flat low distortion image
• Diopter markings for easy diopter settings

Photonis Defense Boomslang 50° Wide FOV

• 25% increase of FOV
• 10% increase in light transmission over milspec lenses
• Above  MILSPEC IP68/MILSTD 810 immersion tested

• Lighter than milspec optics


NVD-N Eyepiece + RPO 3.0 Objective Combo

• All of the benefits of the legacy RPO 3.0 lens system but with a widened eyepiece with eye relief and eyebox similar to Noctis Milspec lenses
• Paired with RPO 3.0 objective as recommended by RPO, with superior light transmission, excellent centre resolution
• Ultralight - Up to 30% weight savings on any NVG

Specifications

Includes:

• AB Night Vision MGA Complete Night Vision Binocular
• Cold Harbour Supply Pro Case or Bag (based on availability)

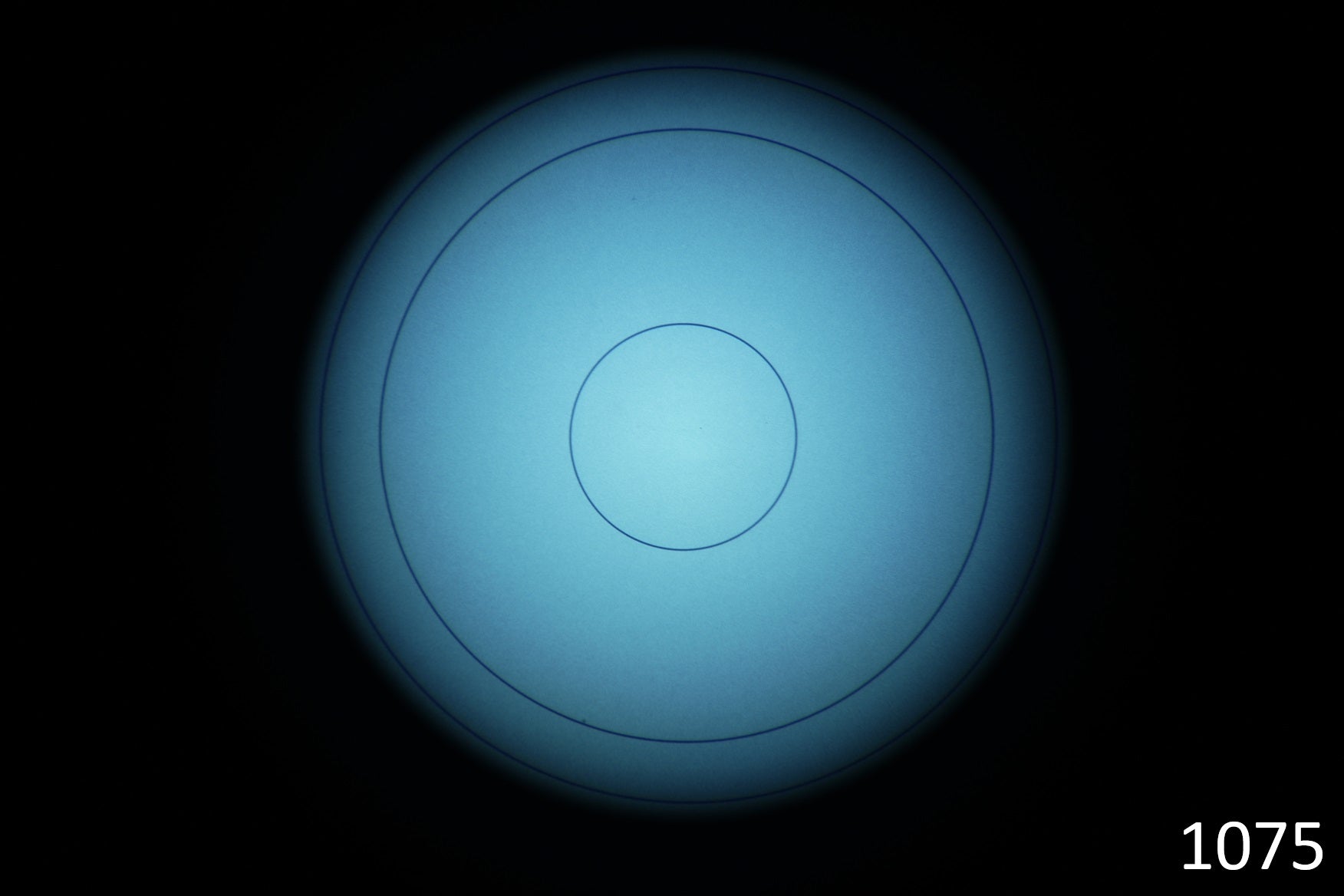

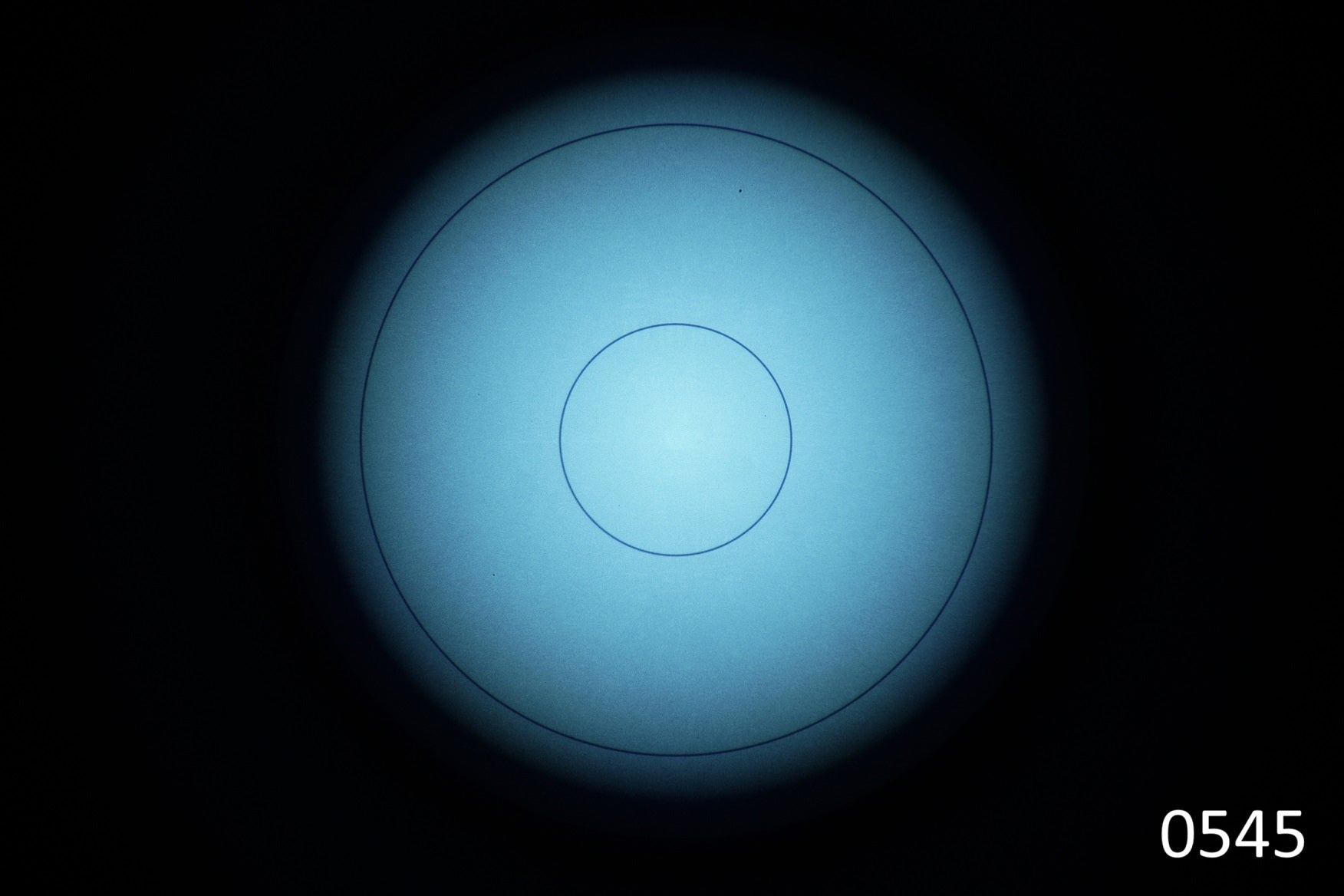

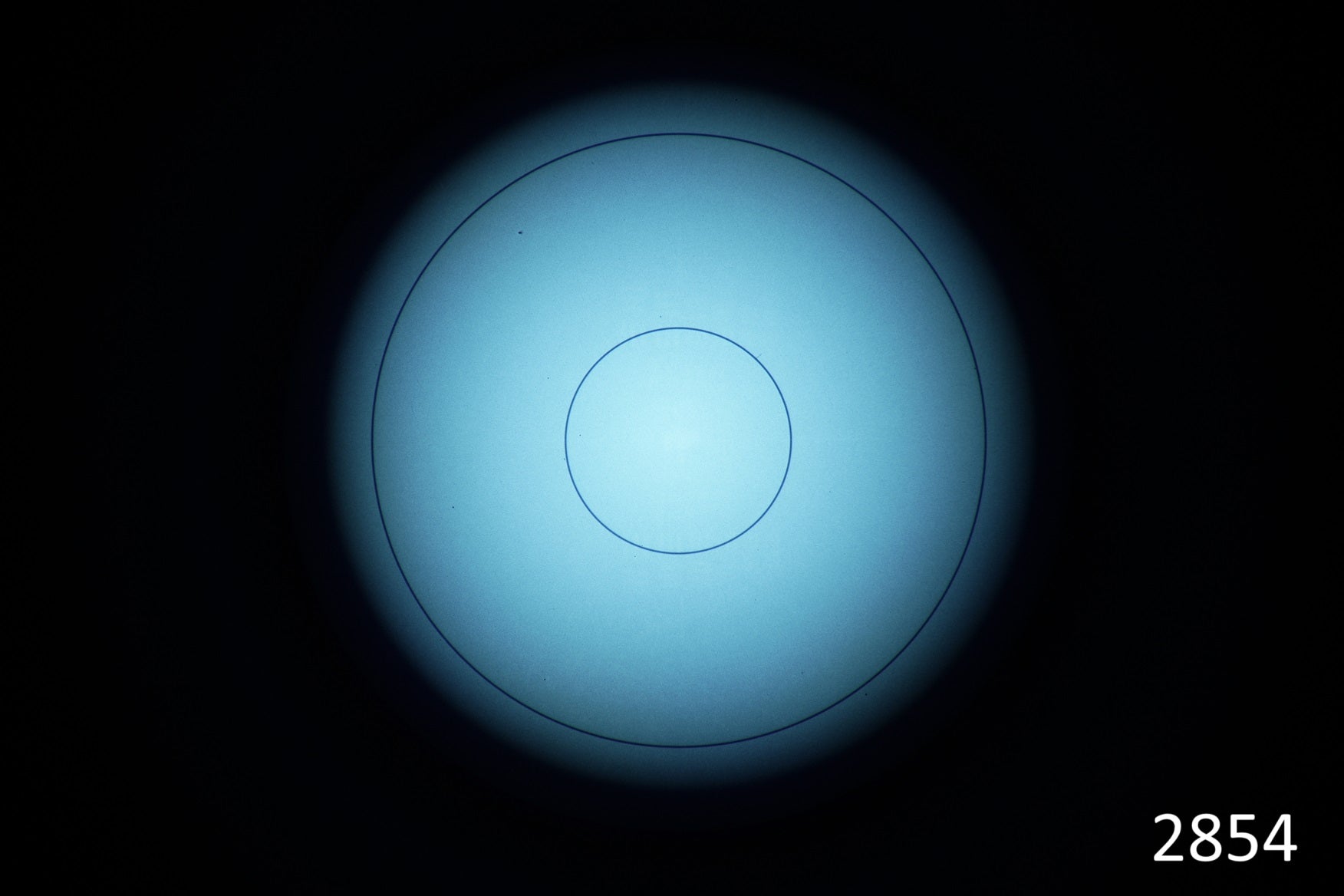

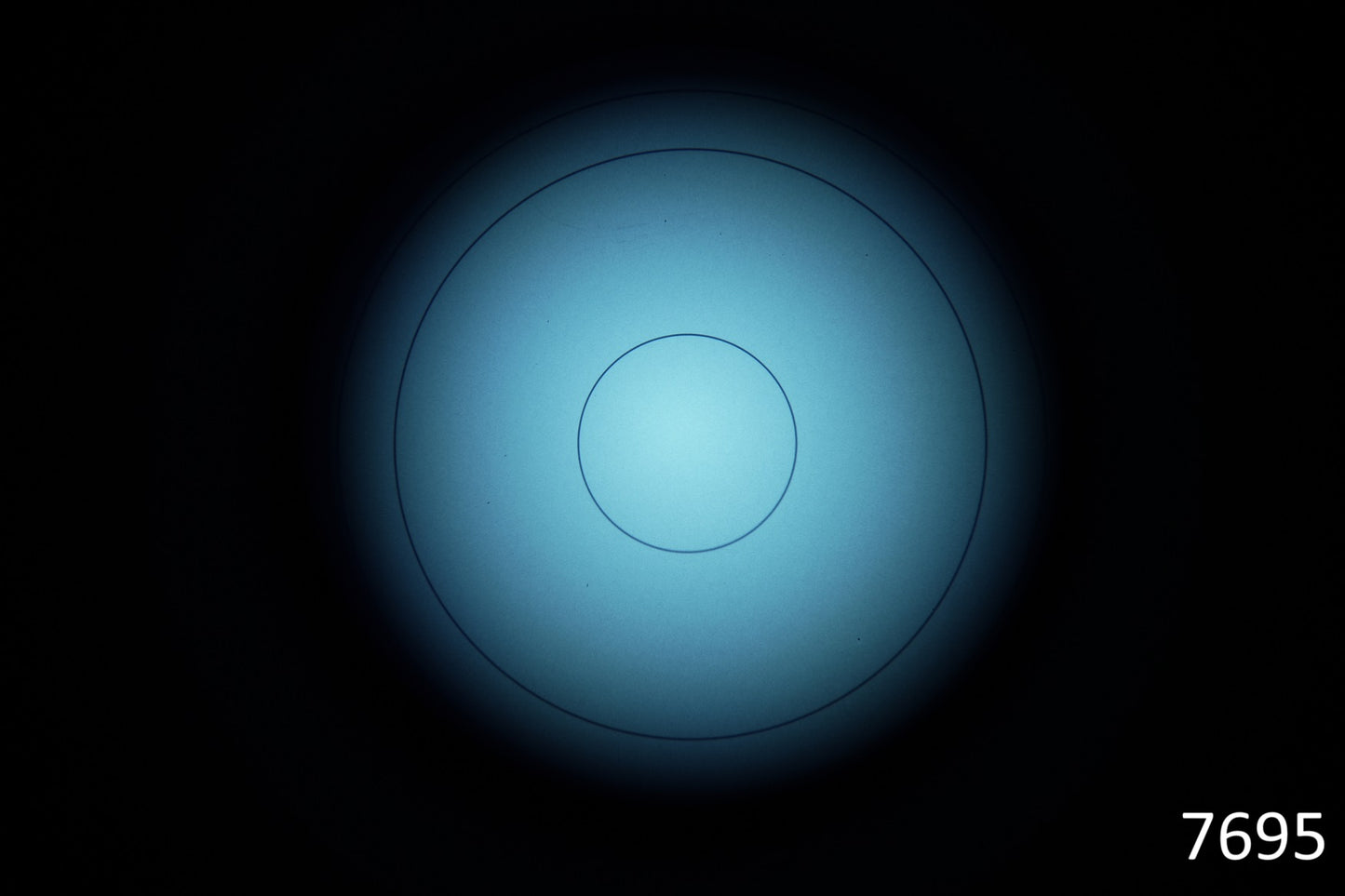

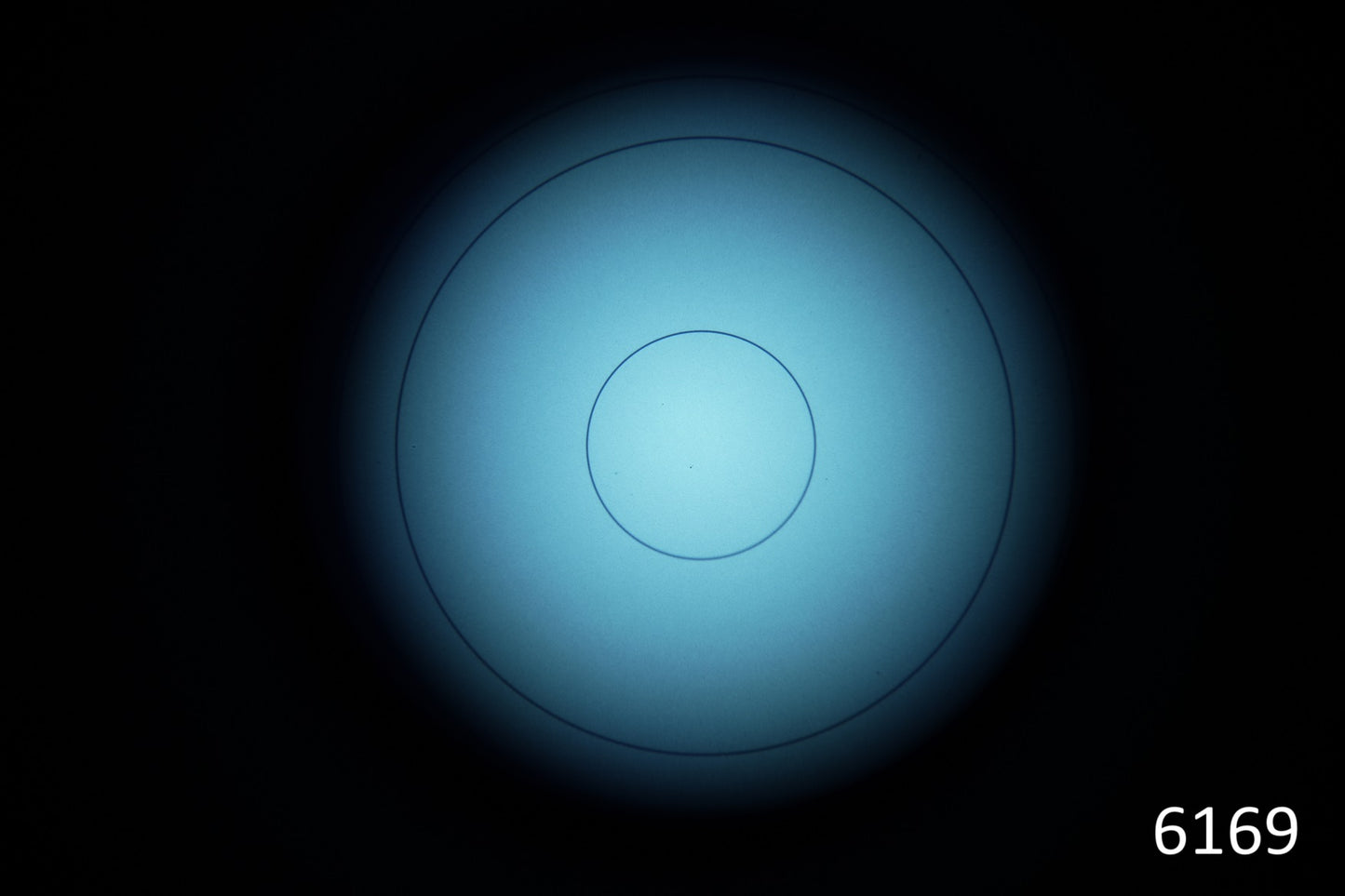

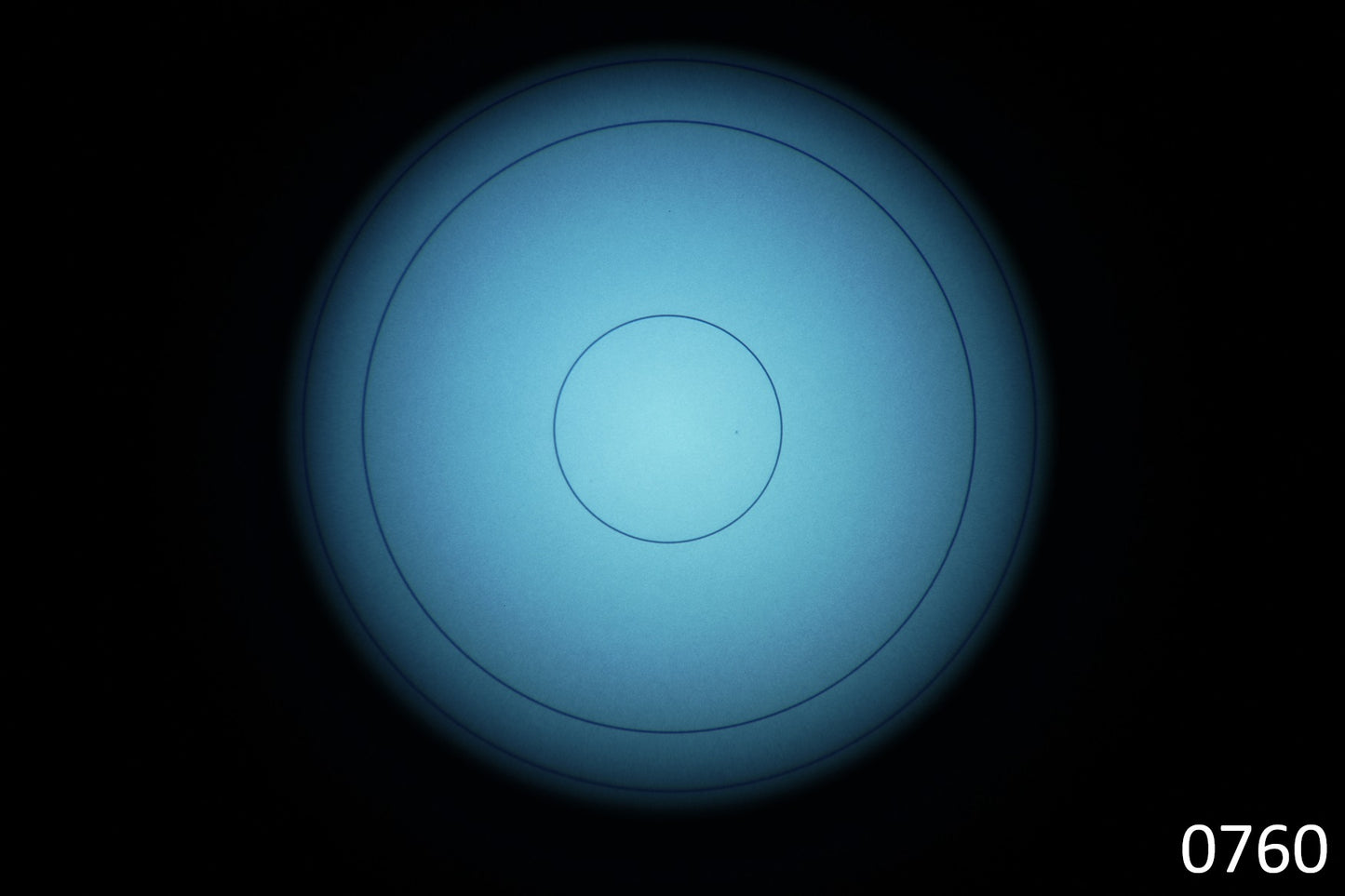

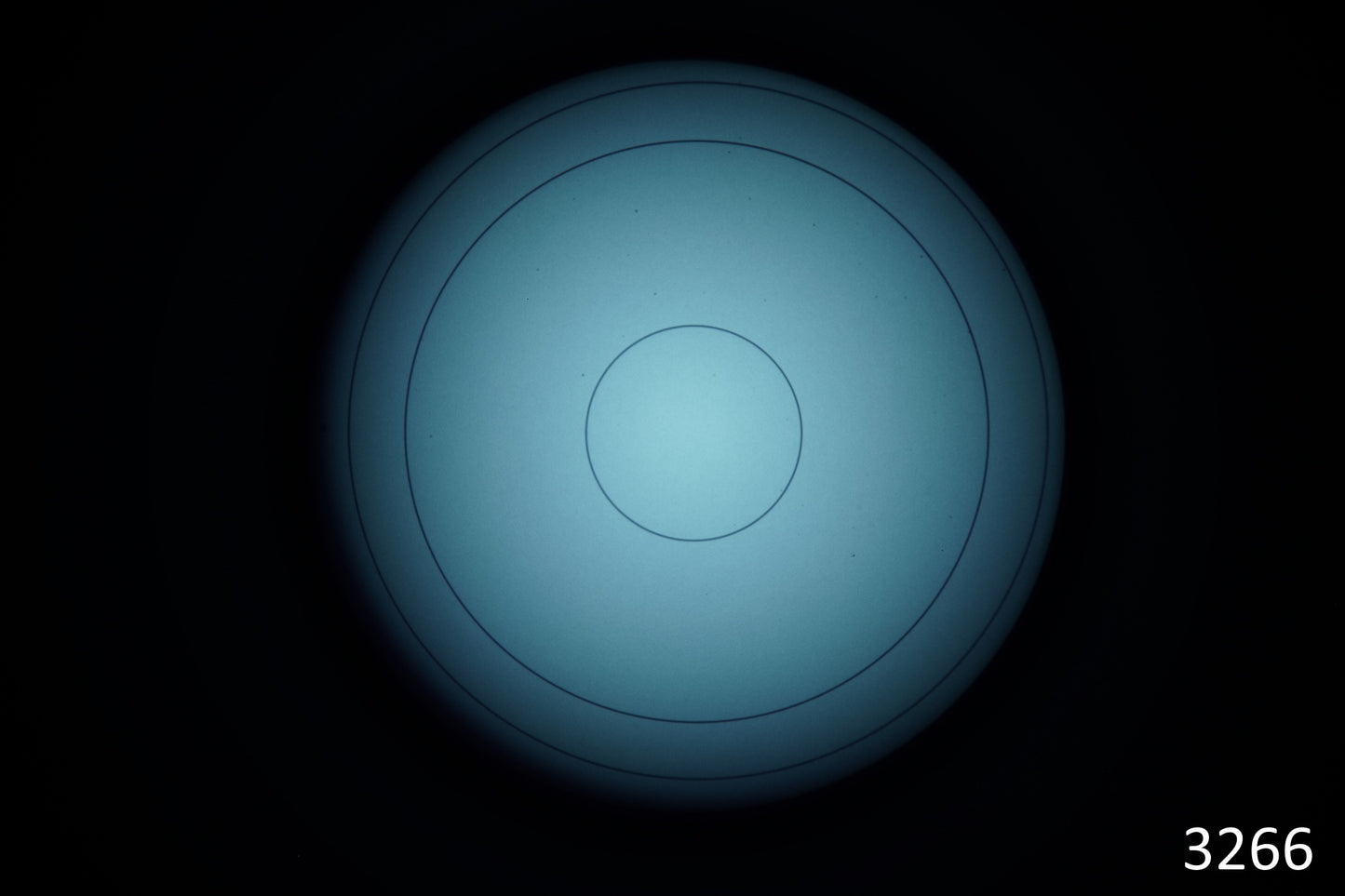

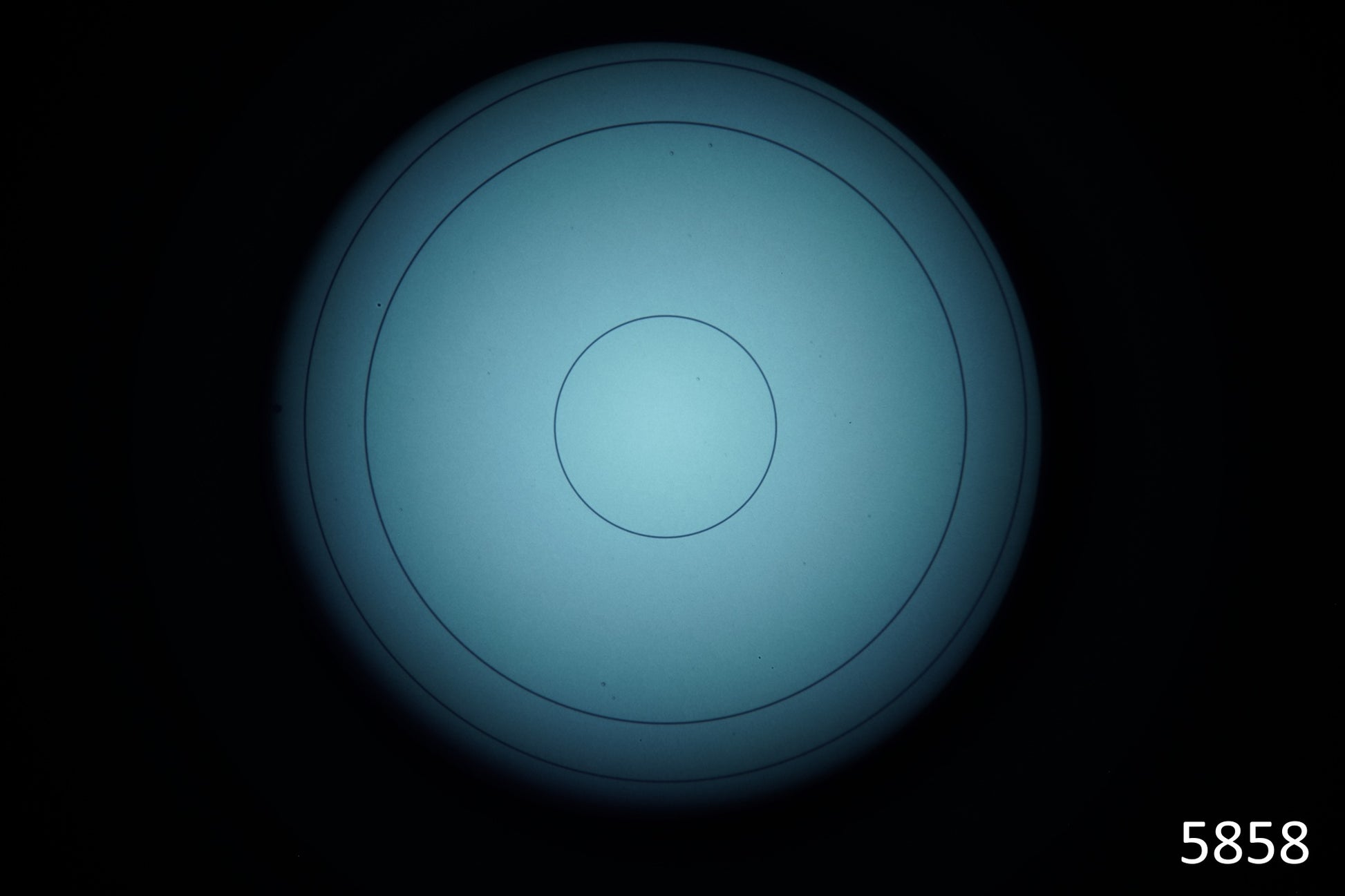

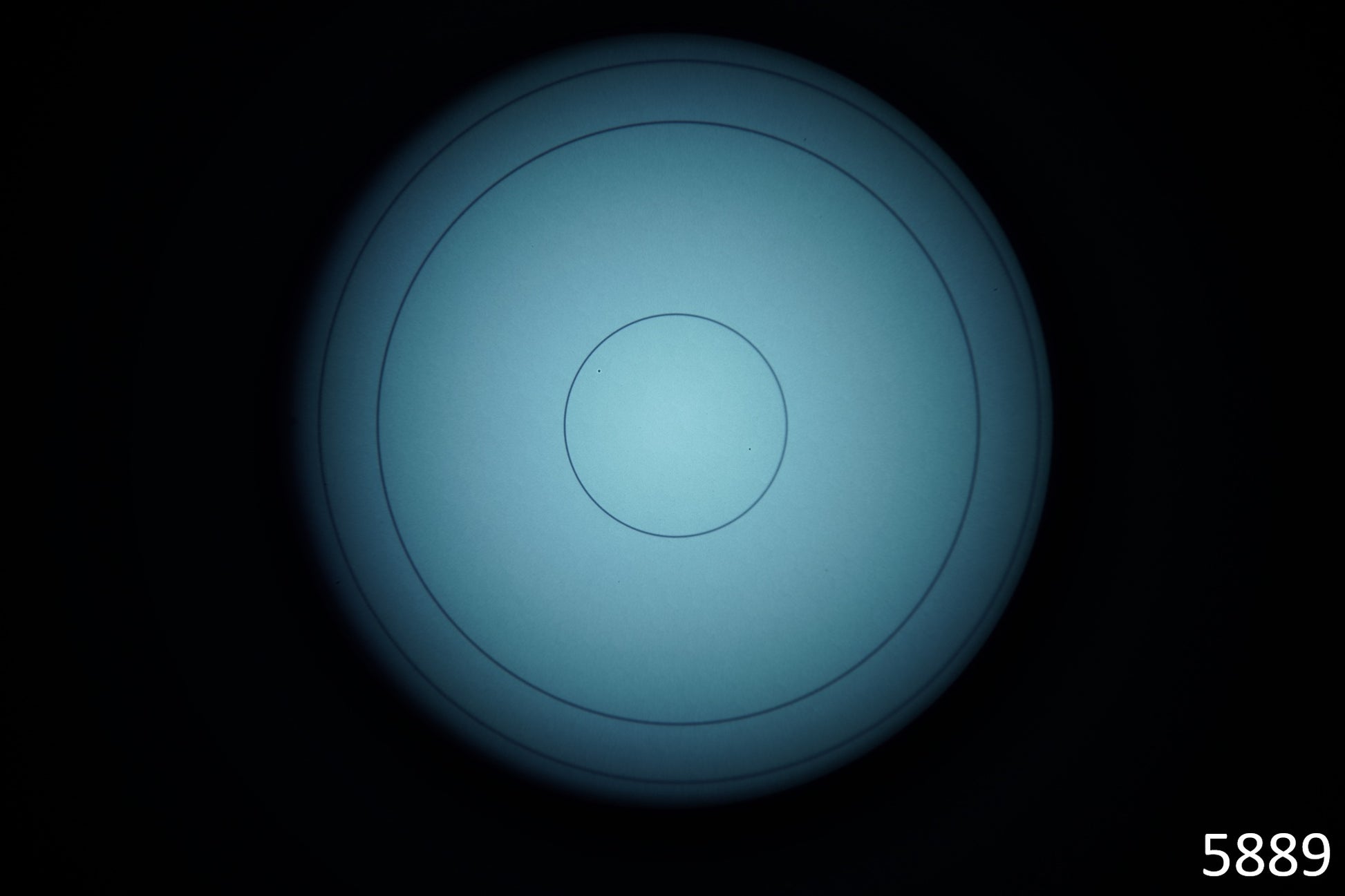

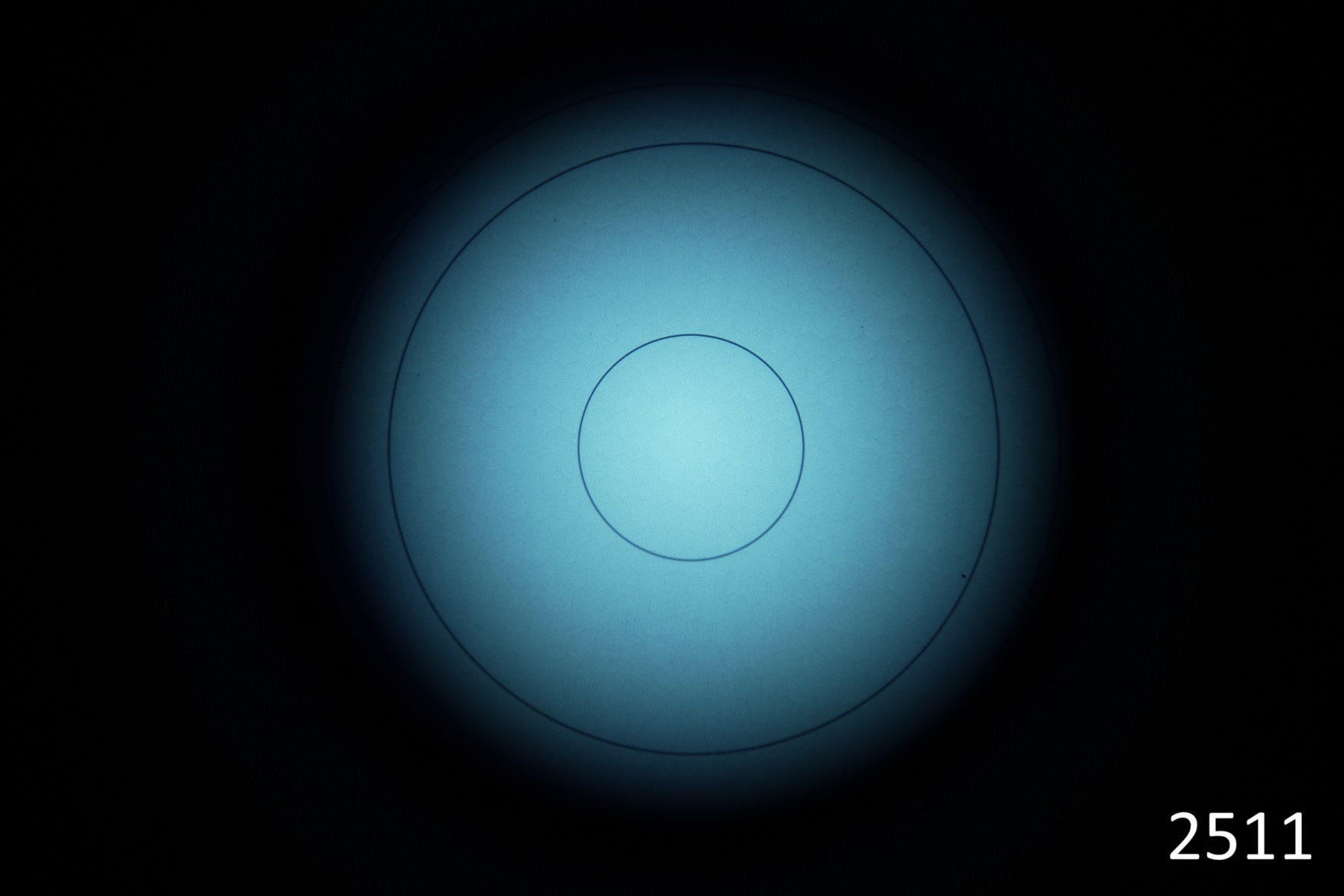

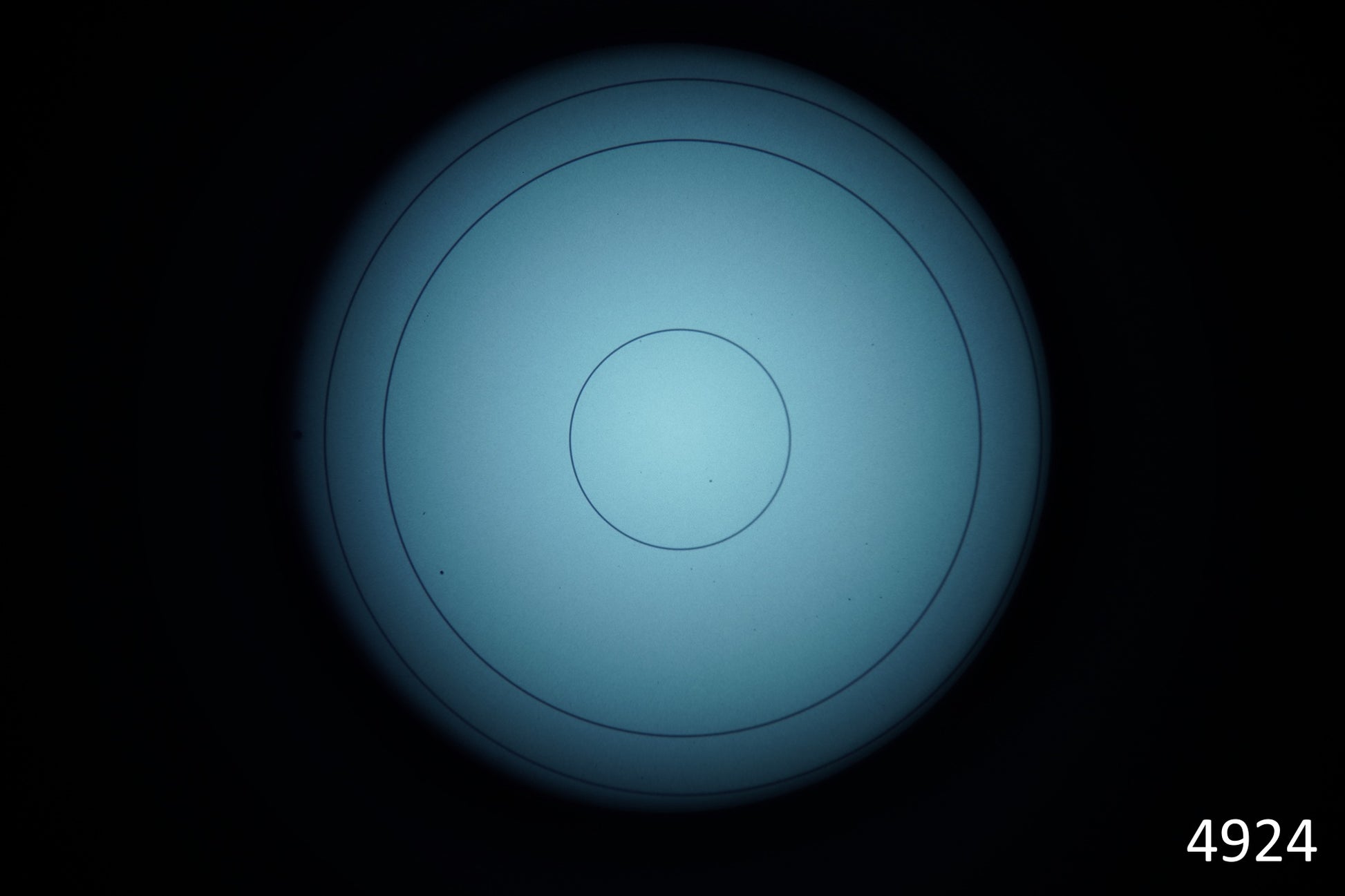

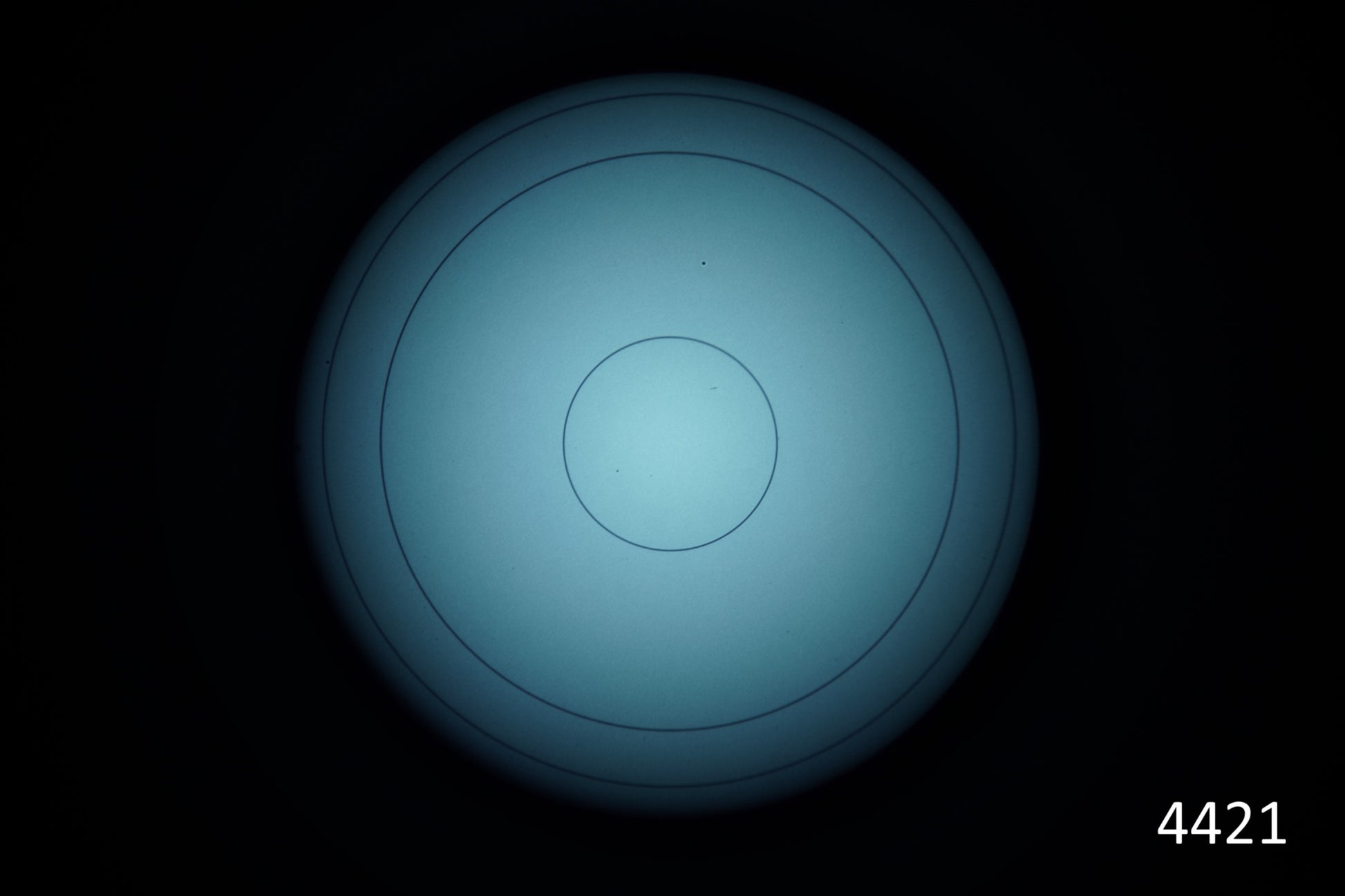

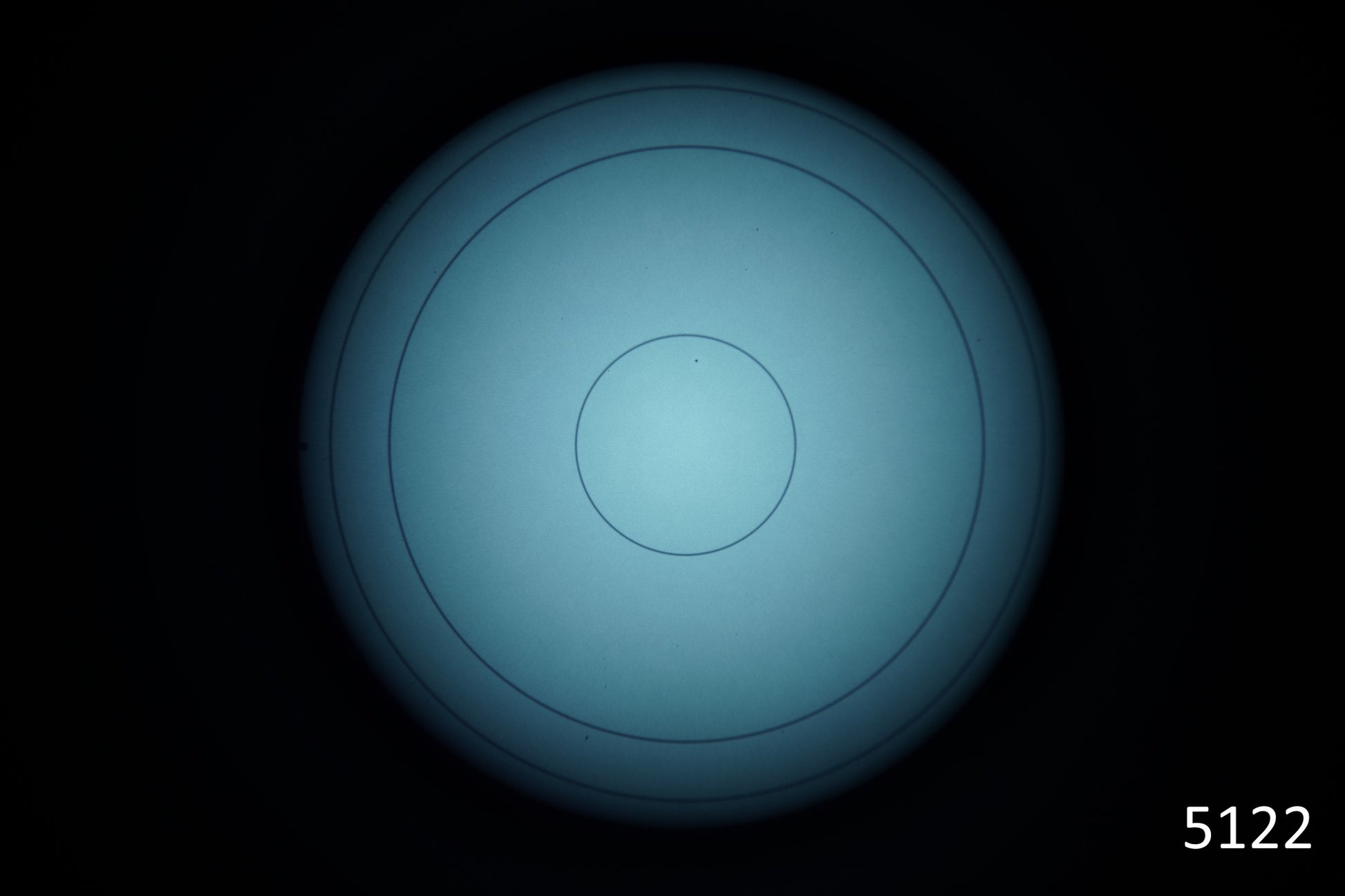

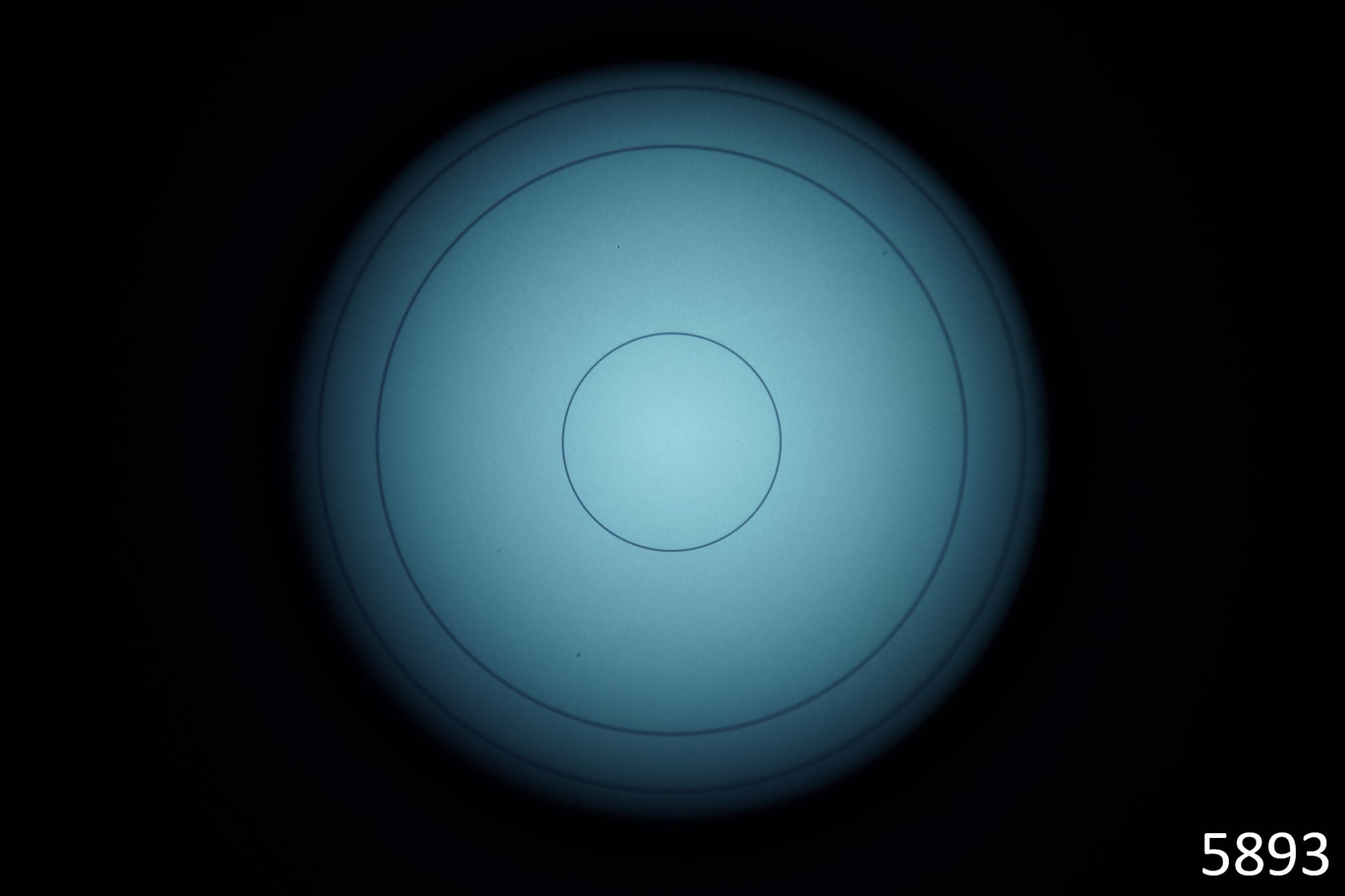

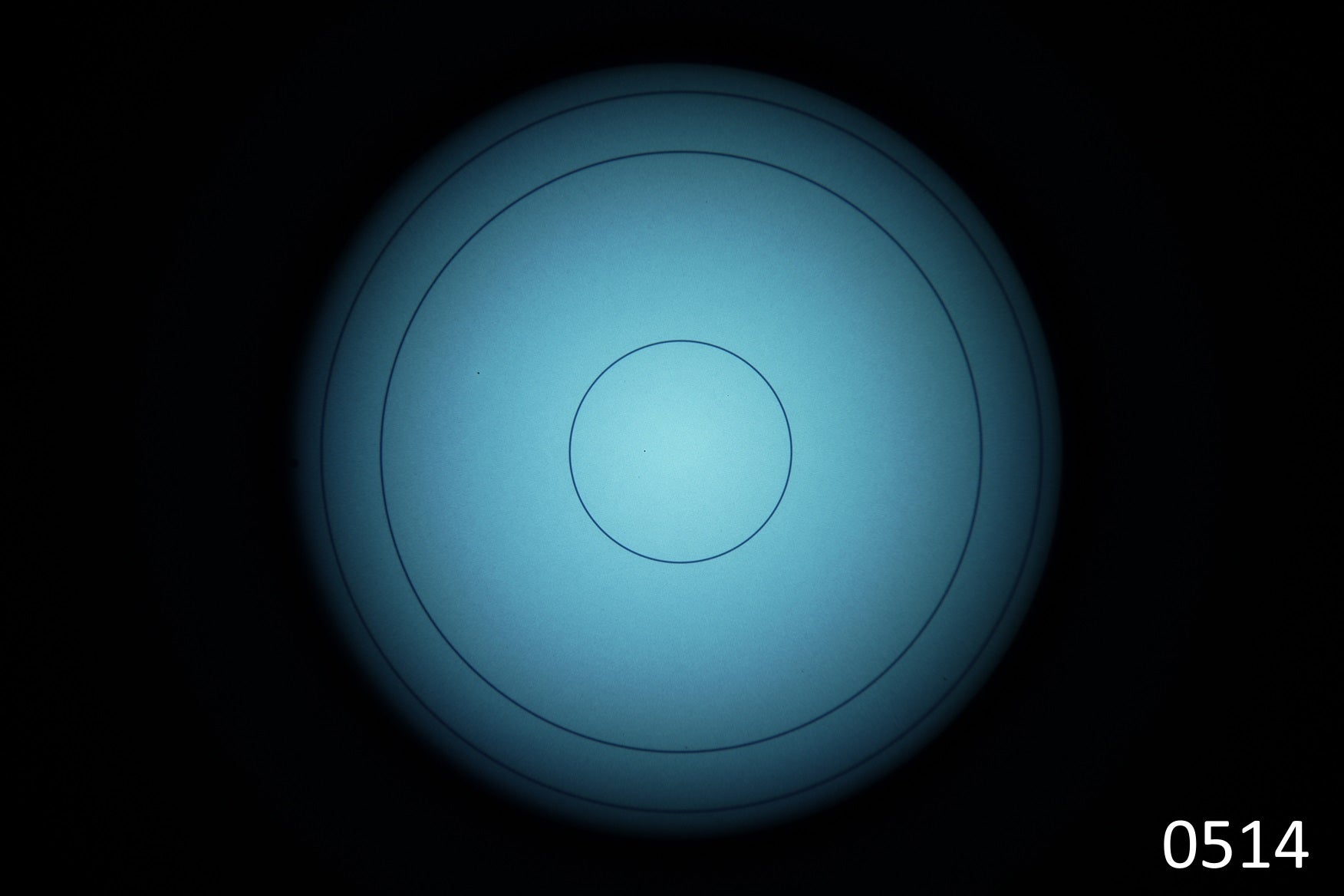

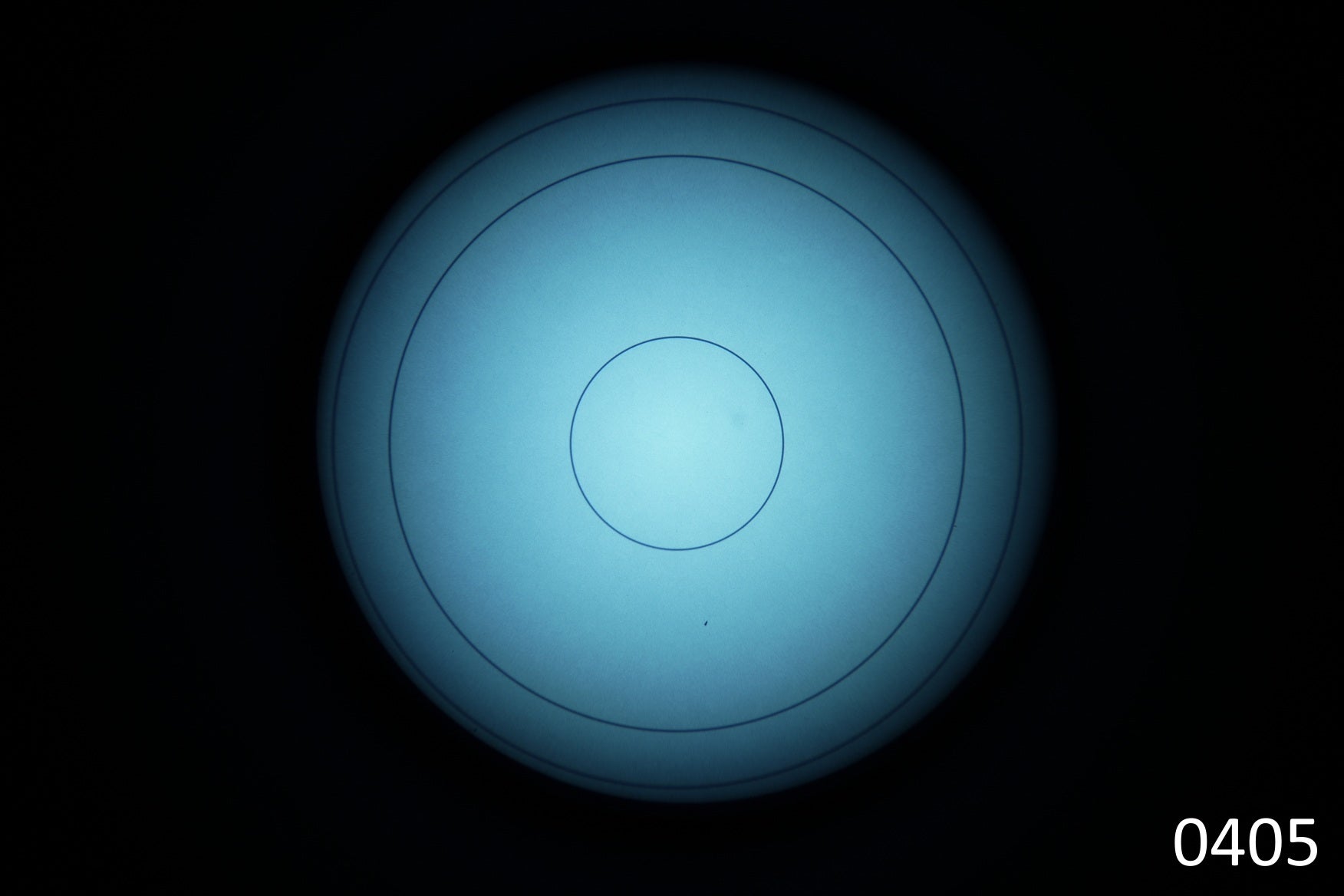

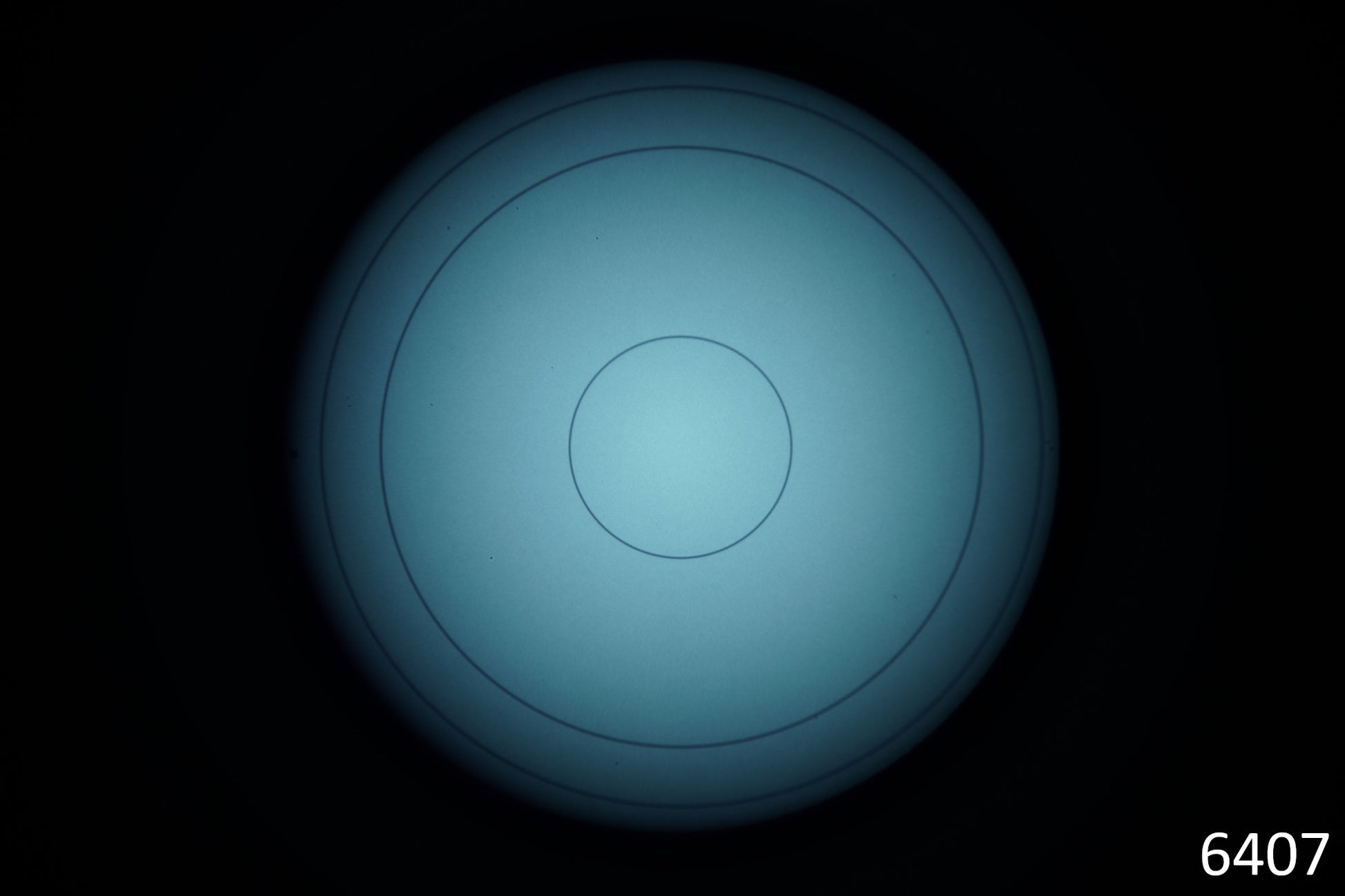

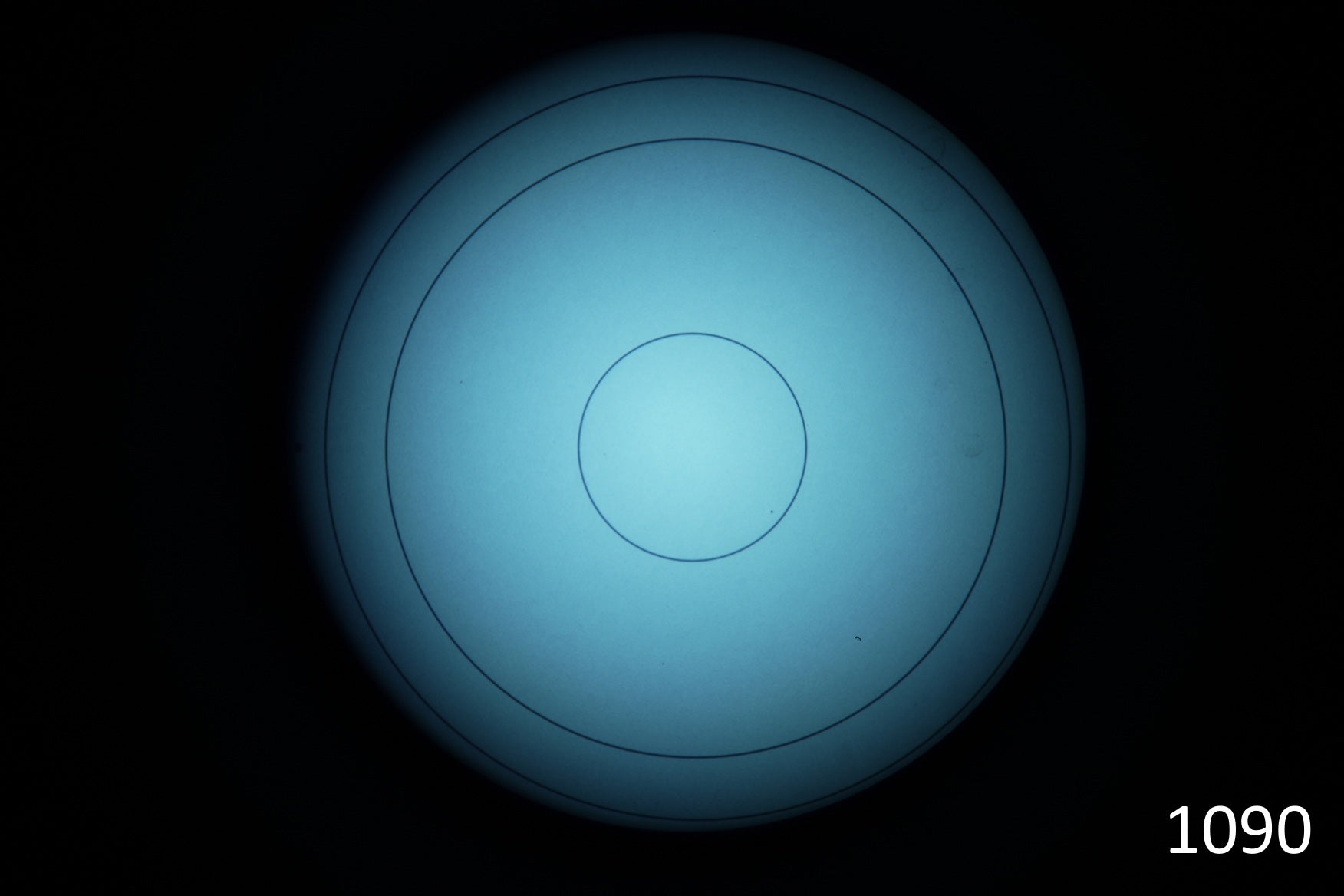

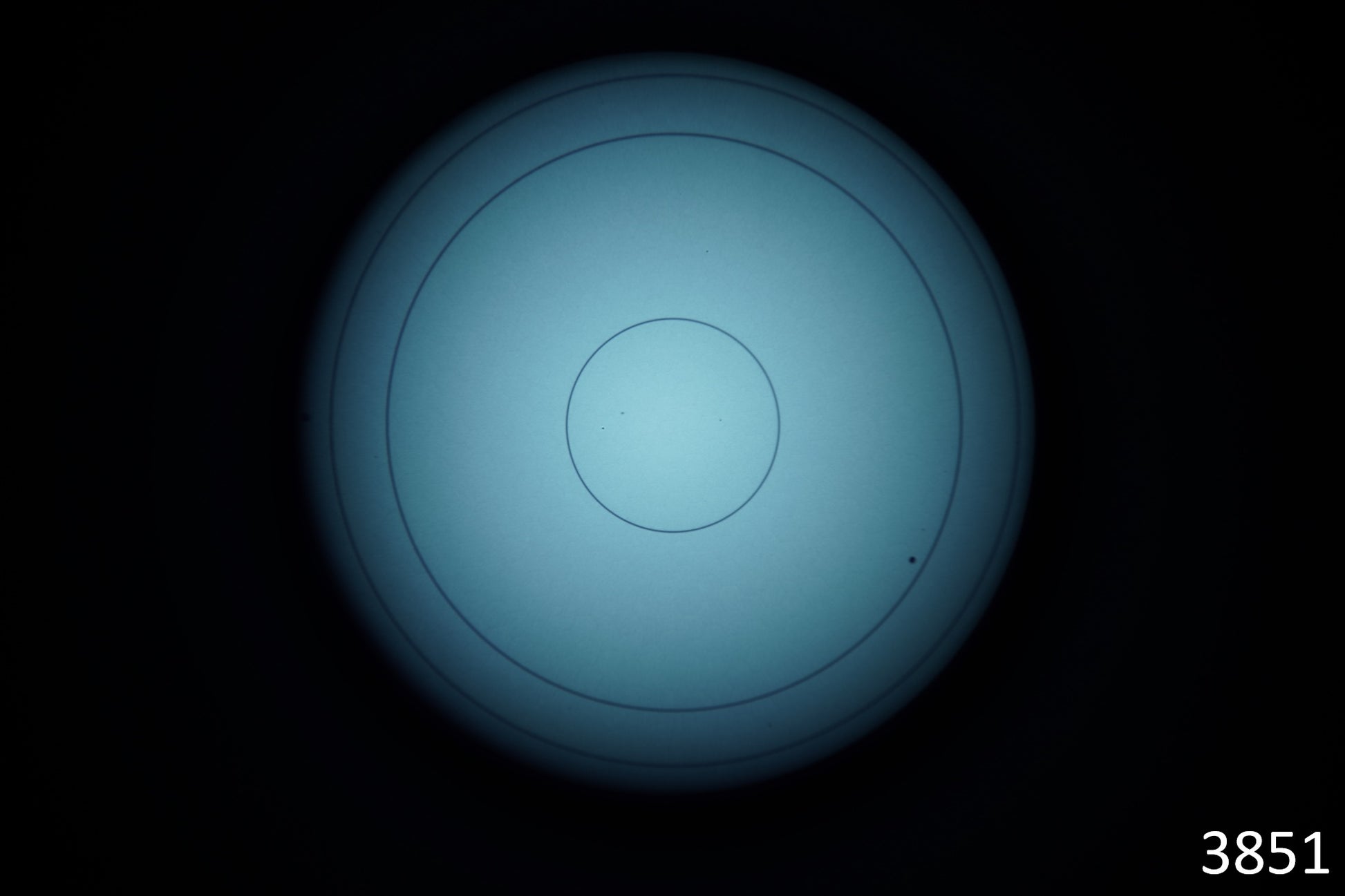

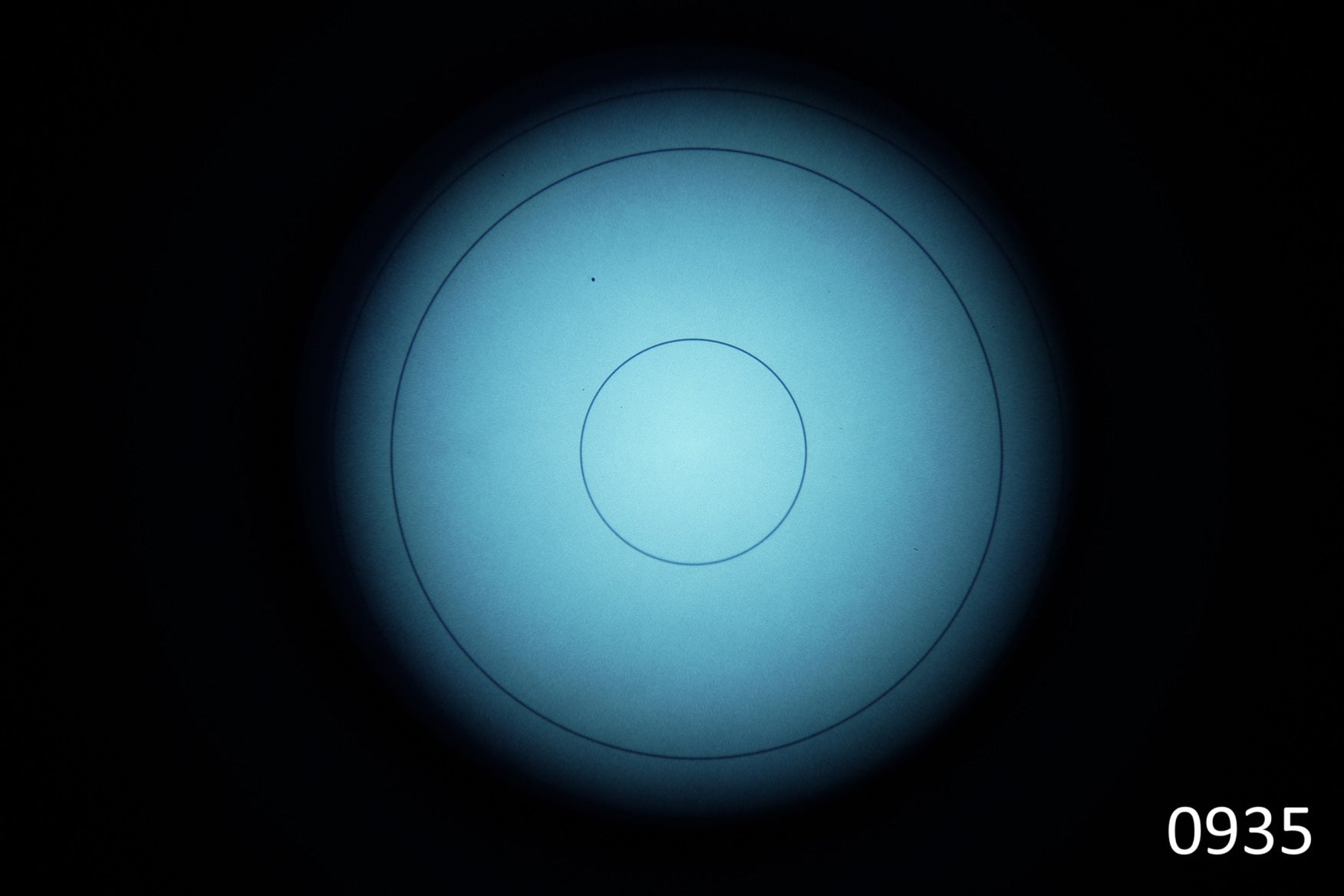

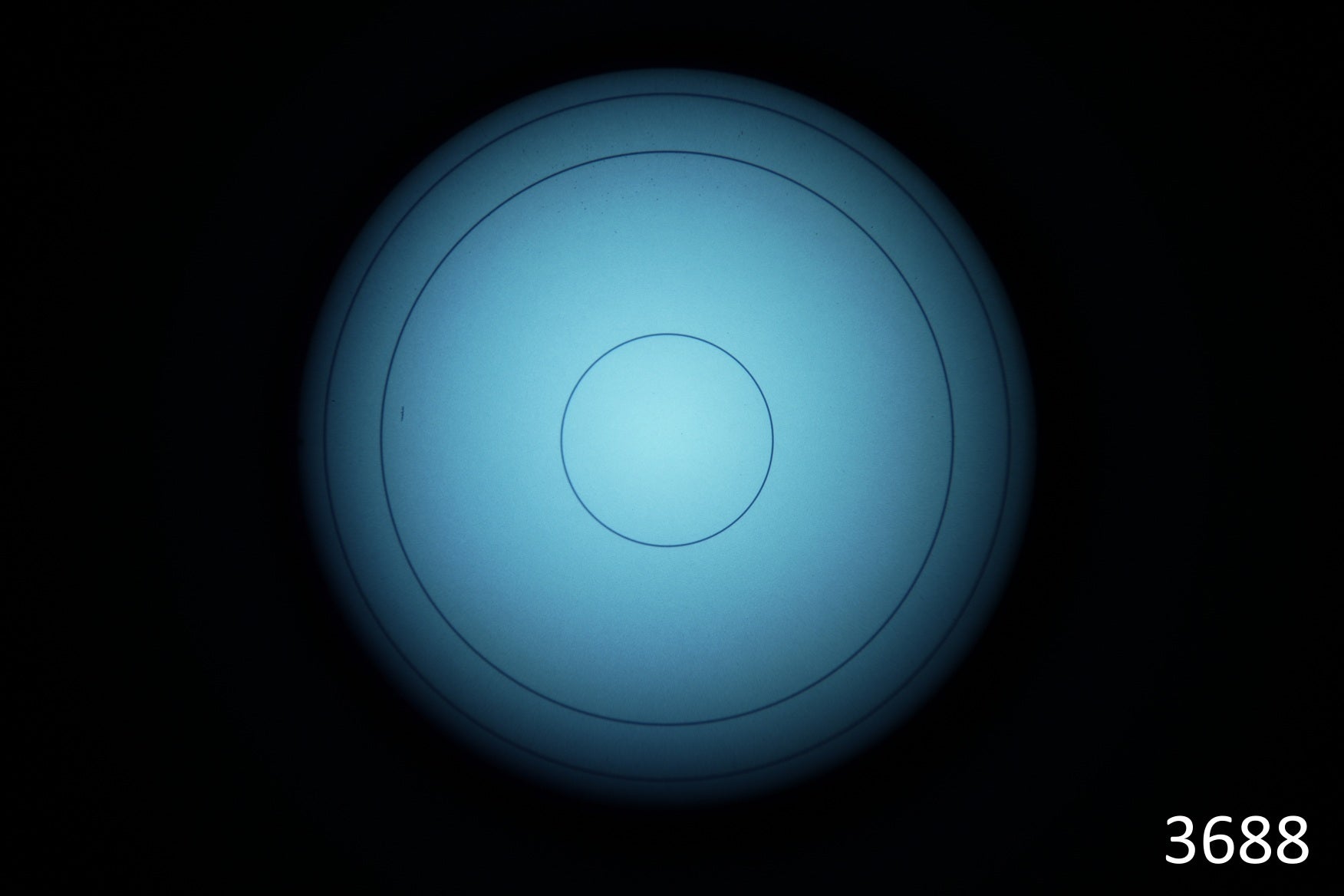

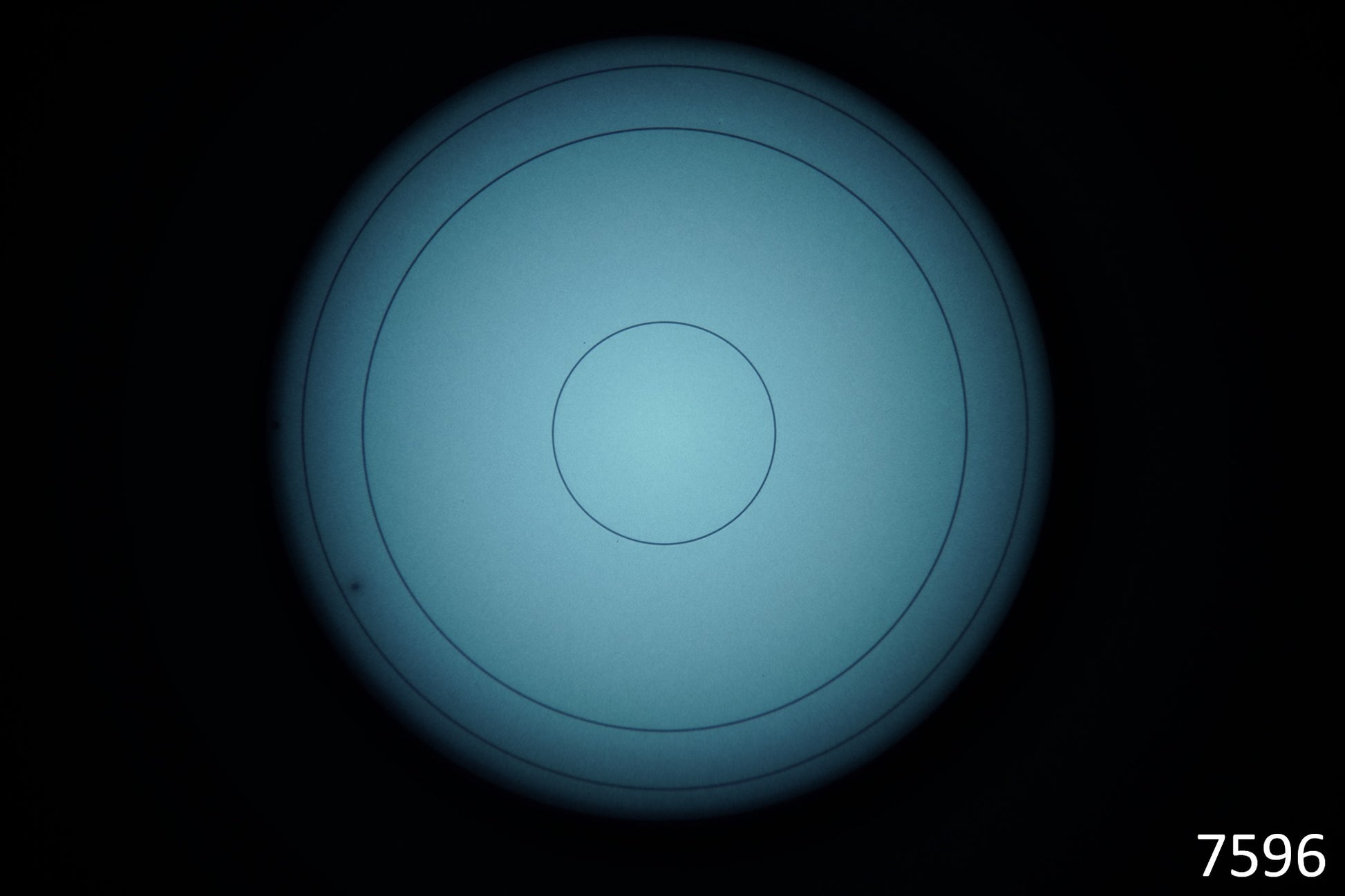

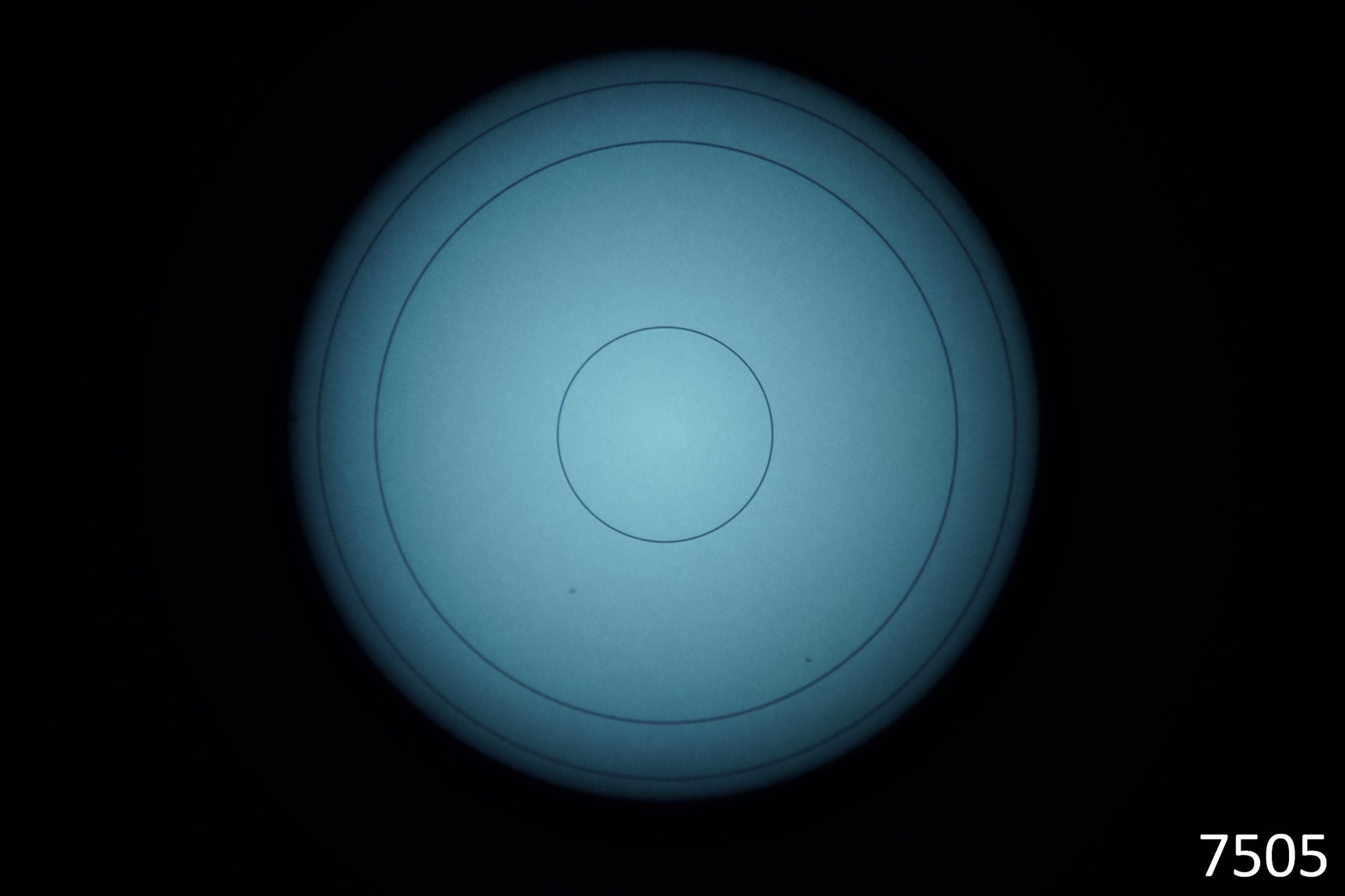

• Hoffman Test Report and individual tube spec sheets
• 10 Year Cold Harbour Supply Warranty
