Cold Harbour Dual PVS-14 Bridge

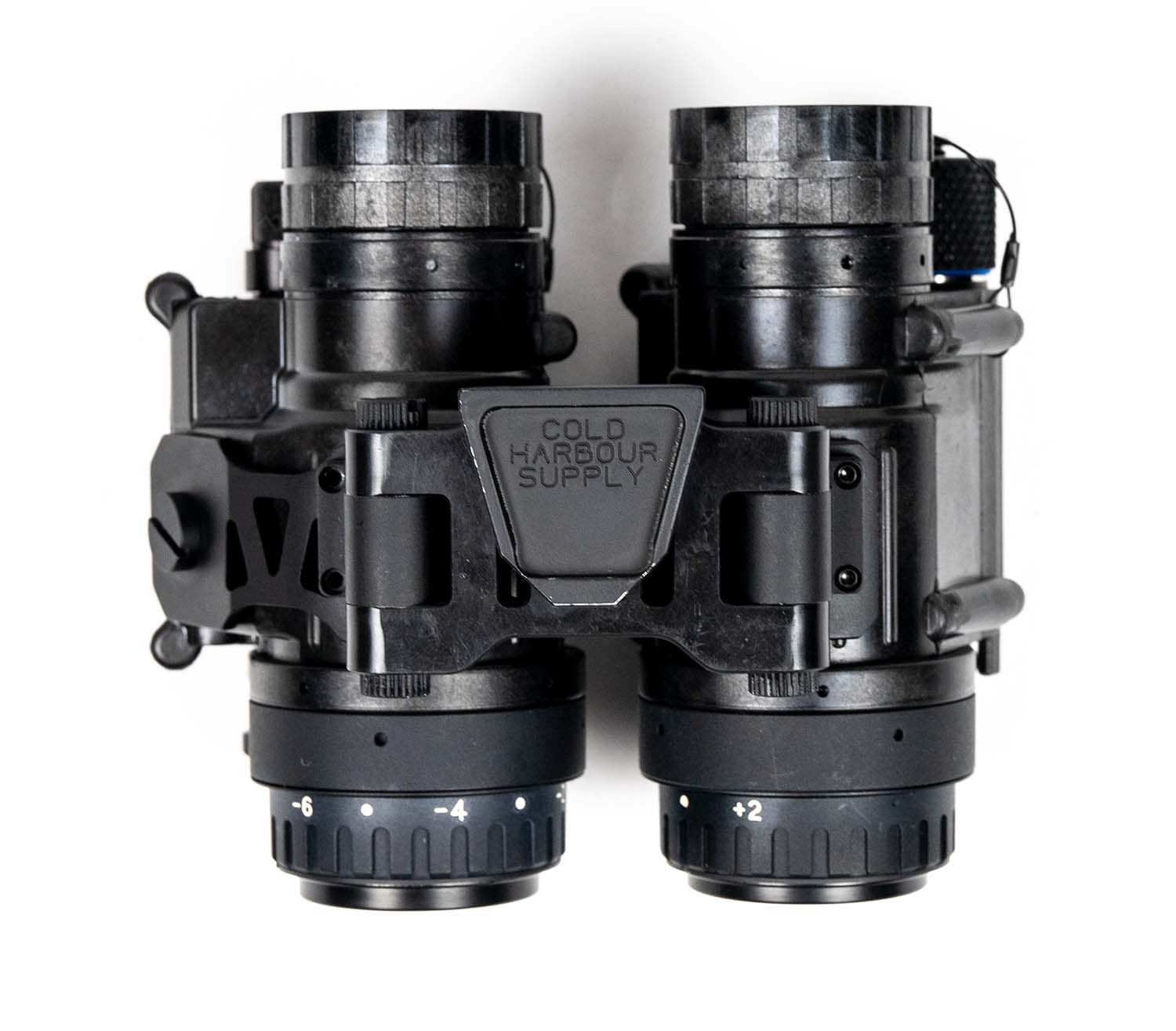

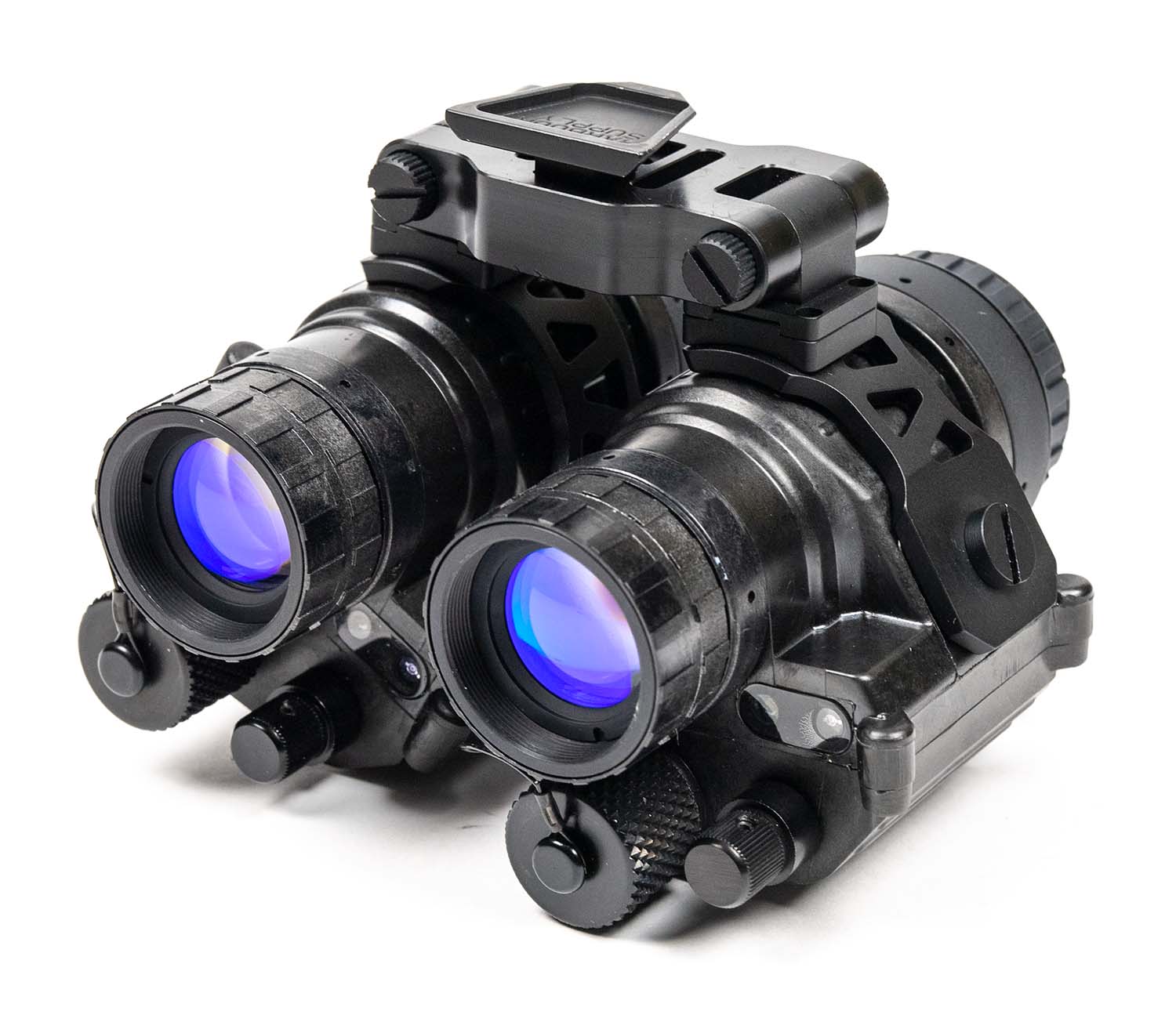

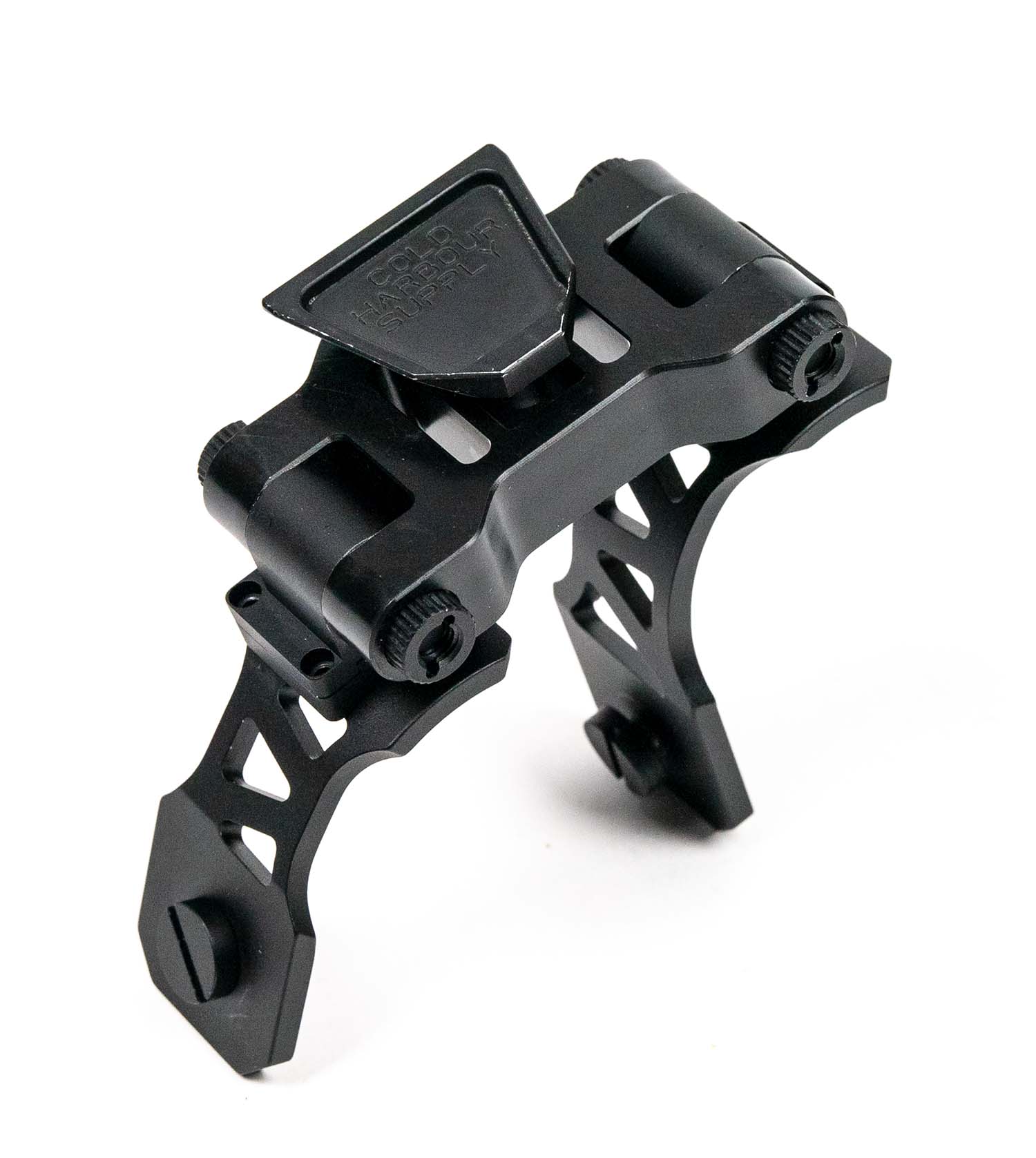

The Cold Harbour MH14 Dual Bridge (MH14DB) is a rugged full-metal bridge system that will allow you to quickly put two PVS-14s together to instantly create a binocular night vision system or one PVS-14 and one iRay MH25 (via the optional MH25 shoe) to create a true hybrid, full-spectrum system. Users will be able to have the flexibility of two independent monoculars, or if one monocular is not used, one of the arms could be removed to create a simple J-arm for one eye. This is perfect for users who own a PVS-14 and are contemplating adding another in the future, but do not want the added hassle of buying and selling a J-arm.

Two indexing protrusions on each arm mate directly with the PVS-14's auto-off contacts to prevent un-wanted rotation of each device. The dovetail is precision-machined to milspec dovetail tolerances and is guaranteed for a solid lockup on milspec night vision mounts.

MH25 usage

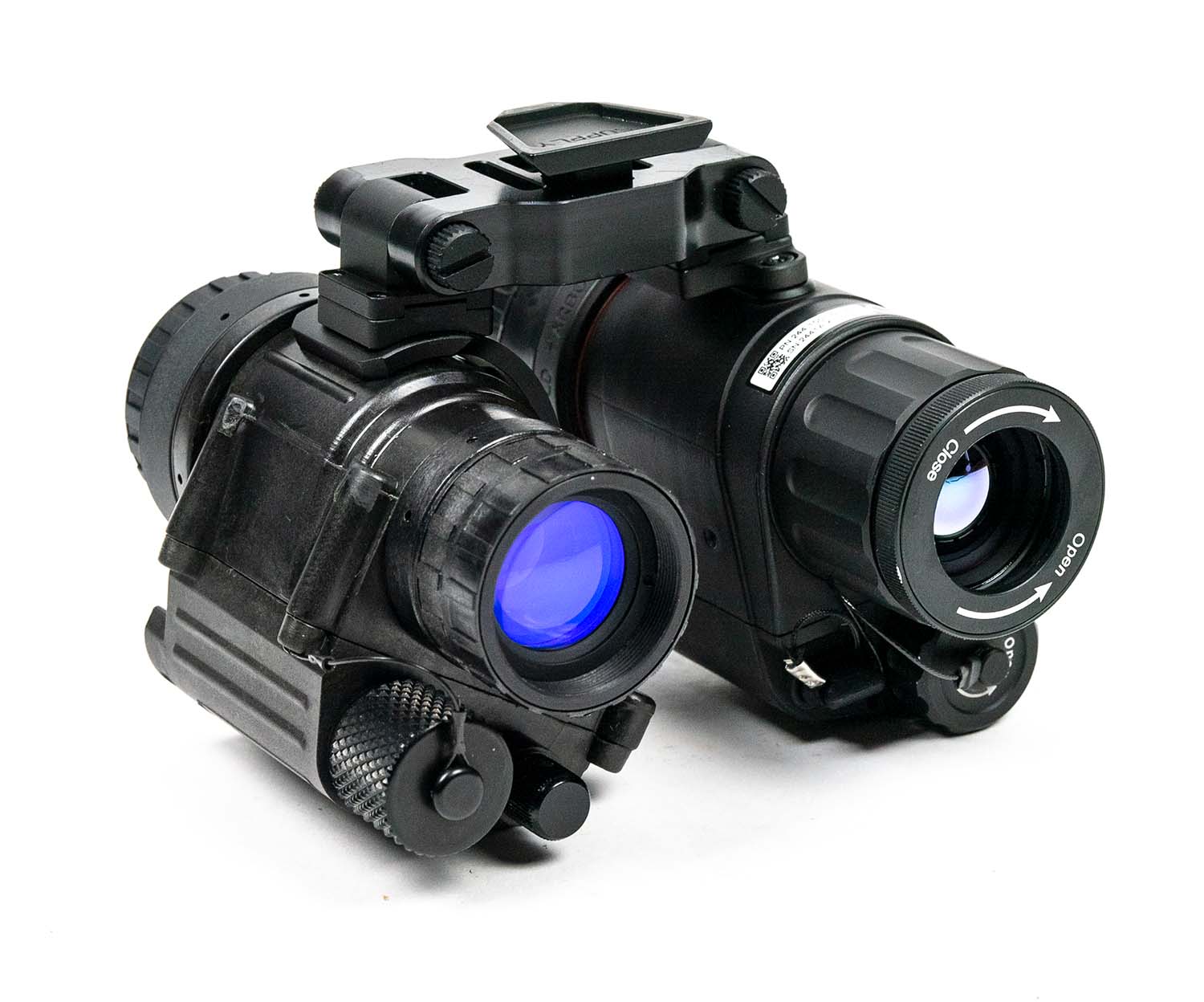

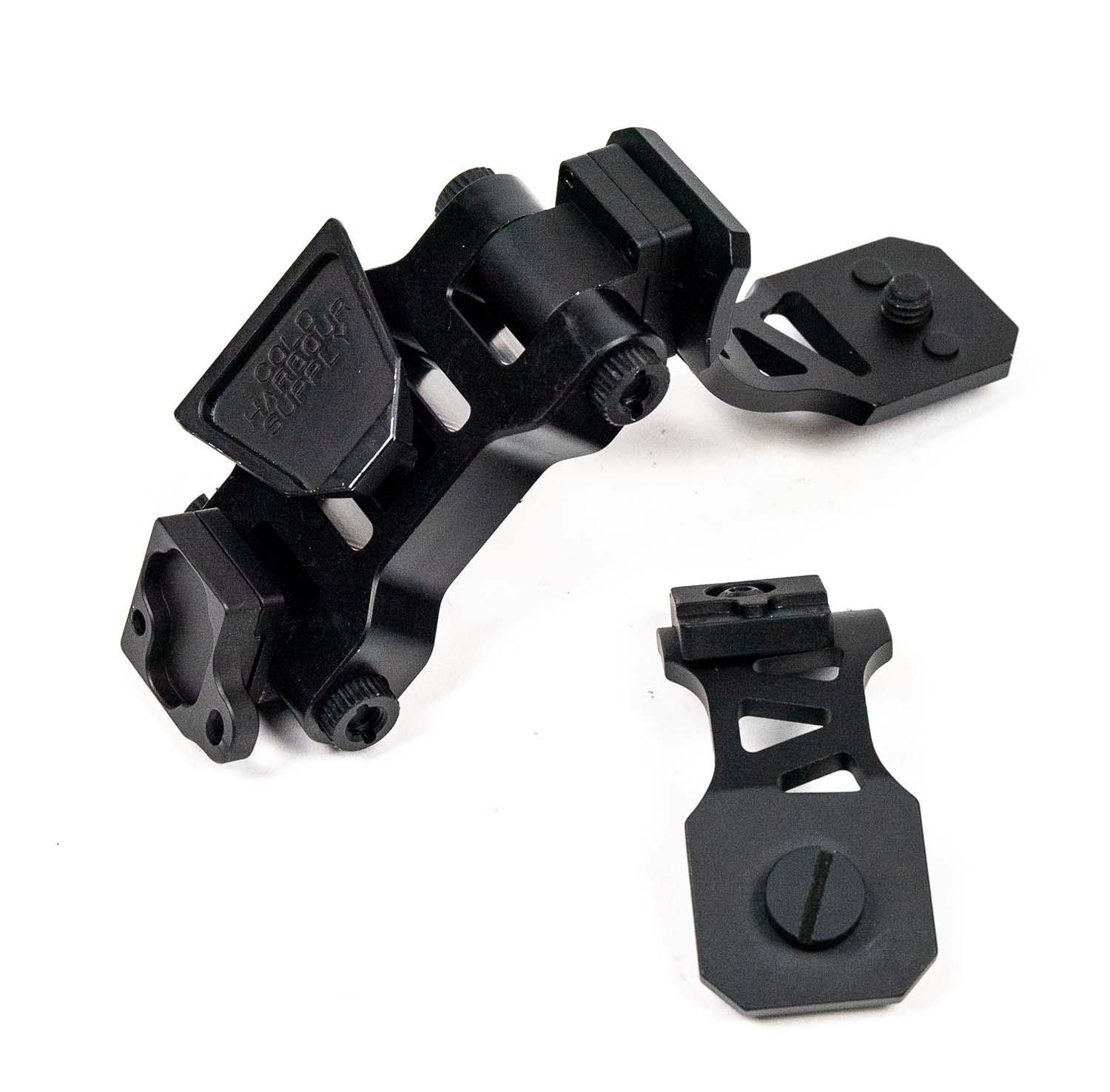

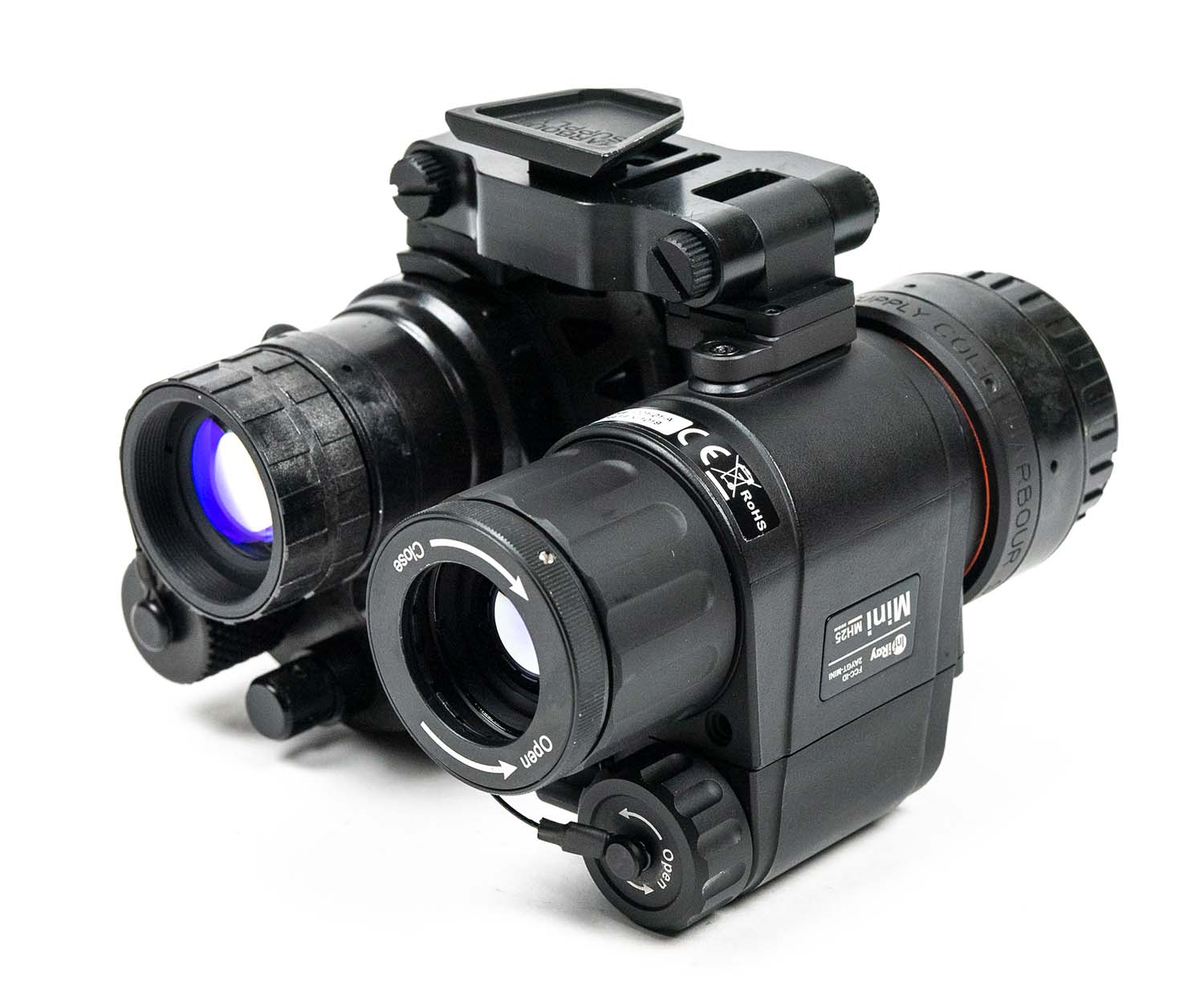

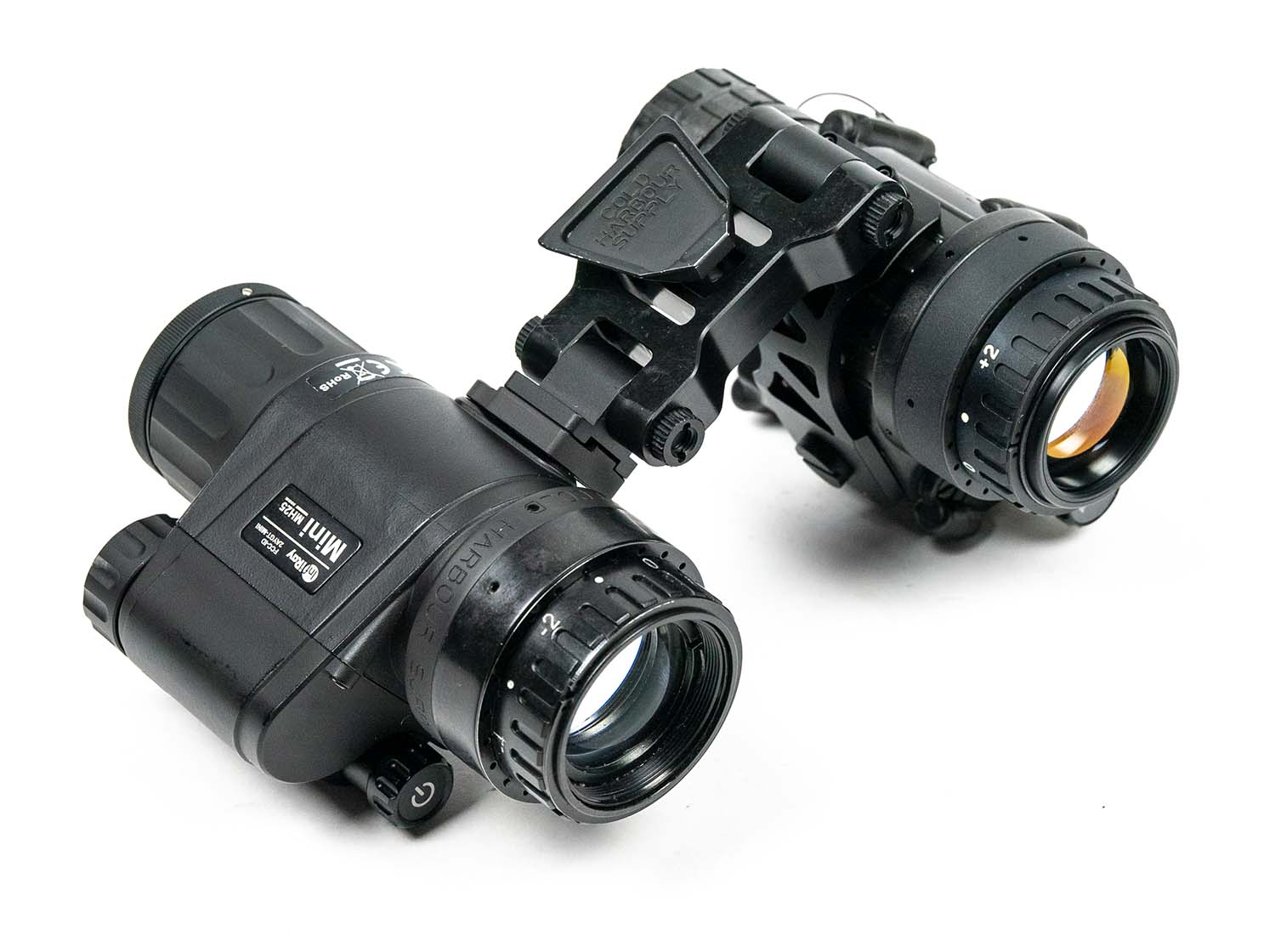

Any one of the PVS-14 arms can be easily removed and replaced with the optional MH25 adapter plate. The adapter plate securely attaches directly to the MH25 and bypasses the mini-rail to provide the most secure mounting platform available. This innovative adapter plate features FOUR mounting choices (fore/aft and left/right) to allow the user to fine-tune the position of the MH25 relative to an accompanying PVS-14. Finally two of the mounting holes are slightly slotted to allow users the ability to pan the MH25 slightly inboard or outboard to line up with the an accompanying PVS-14's image if desired. The completed setup can place an MH25 and PVS-14 at the same parallel eyeline and eye relief and is recommended that MH25s with our MH14 eyepiece be used for this setup for optimum device use.

Note: To reduce weight, all hardware on the MH14 bridge is made of aluminum and is softer than steel hardware. As a result, a small amount of loctite has been applied on all hardware. Caution should be exercised when disassembling the bridge and installing devices and loctite applied again.

If you would like to bridge two MH25s together, you can purchase an additional adapter HERE.

Components made in and assembled in Canada.

Weight: 87g
