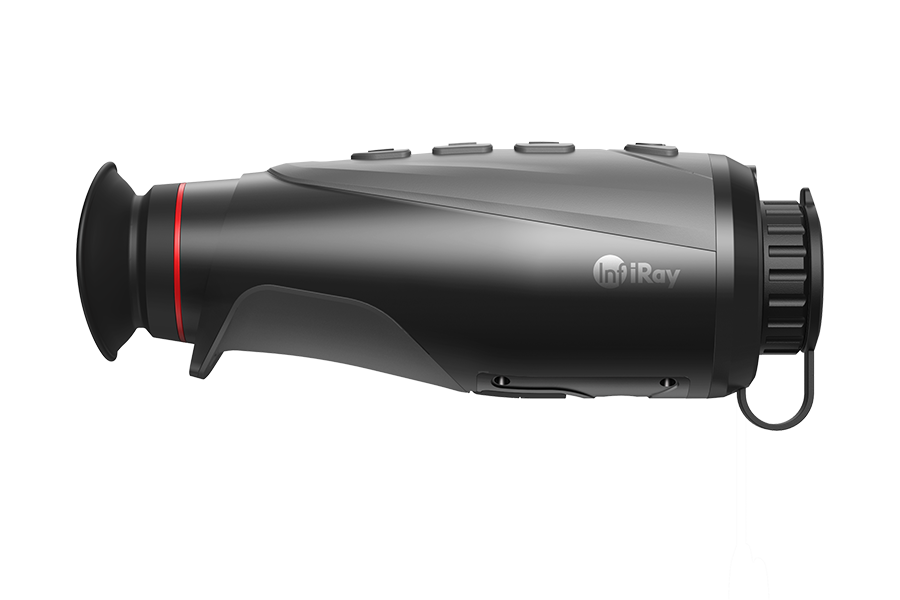

Infiray Affo Series - AP13 / AP19 / AL25
Infiray Affo Series - AP13 / AP19 / AL25
Couldn't load pickup availability
**Special order item; 2 week lead time**
Main Features:
- Compact, rugged, weather-resistant design that's small and easy to use and hold
 - Easy and intuitive controls
 - Multiple colour modes (white hot, black hot, red hot, rainbow)
 - Ultra-long battery life (up to 9.5h)
 - Built-in stadiametric range-finding
 - Picture-in-picture zooming
 - Built-in wifi/app control and 8GB of onboard memory for recording
 - USB-C charging and off-board power supported
 - On-board LED task-light for admin tasks

The InfiRay Outdoor AFFO series is an affordable and compact thermal imager designed for easy one-handed operation. This highly versatile imager is rugged yet lightweight and weatherproof, making it ideal for many applications such as law enforcement, hunting, search and rescue, and security. Powered by a high-performance 12µm sensor, the AFFO series uses next-generation Reality+ image processing to provide a crisp, clear viewing experience that outperforms comparable economy imagers. The user-friendly interface has a built-in stadiametric rangefinder, picture-in-picture function, hotspot tracking, internal recording, and a 9+ hour run-time (7.5 on some models). Capture vivid, realistic photos and videos in any weather or lighting conditions, taking your thermal imaging experience to the next level.
Specifications:
| Model | AP13 | AL19 | AL25 |
| Core Resolution | 256x192 | 384x288 | 384x288 |
| Pixel Size (um) | 12 | 12 | 12 |
| Frame Rate (Hz) | 25 | 50 | 50 |
| Objective Lens Size (mm) | 13 | 19 | 25 |
| Detection Range (m) | 670 | 980 | 1300 |
| Base Magnification | 2x | 2x | 2.5x |
| Digital Zoom | 1-2x | 1-2-4x | 1-2-4x |
| Field of View | 13.5x8.4 | 13.8x8.7 | 10.5x6.6 |
| Adjustable Diopter | -7 to +2 | -7 to +2 | -7 to +2 |
| Internal Display | 640x400 | 640x400 | 640x400 |
| Battery Life (hours) | 9.5 | 7.5 | 7.5 |
| IP Rating | IP67 | IP67 | IP67 |
| On-Board Memory (GB) | 8 | 8 | 8 |
| Wifi & App support? | Yes | Yes | Yes |
| Operating Temperature (C) | -20 to + 50 | -20 to + 50 | -20 to + 50 |
| Weight | 340 | 350 | 350 |
| Dimensions (mm) | 160x60x60 | 169x60x60 | 169x60x60 |
| External Power Supply | USB-C | USB-C | USB-C |
Brochure link HERE
Manual link HERE
