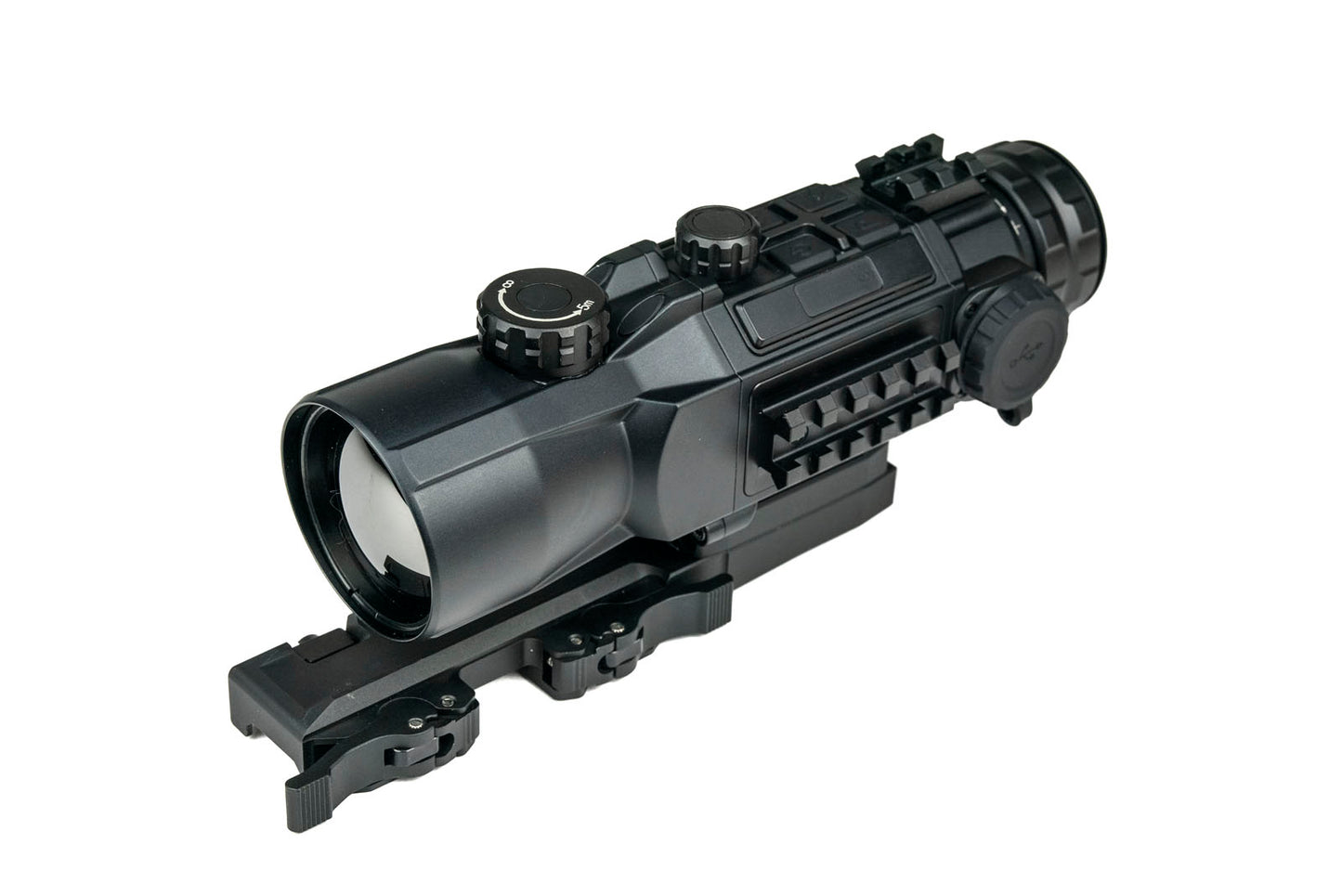

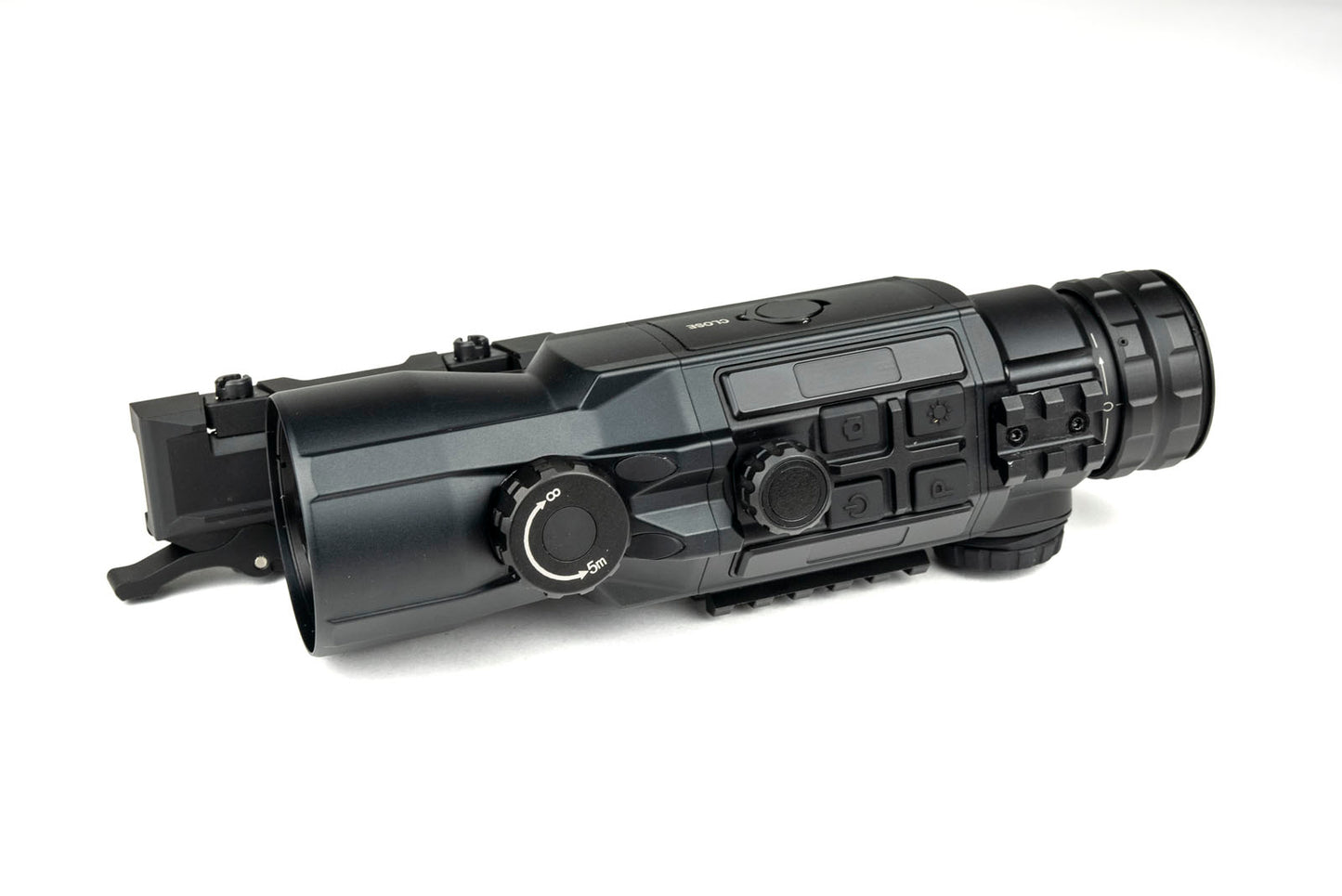

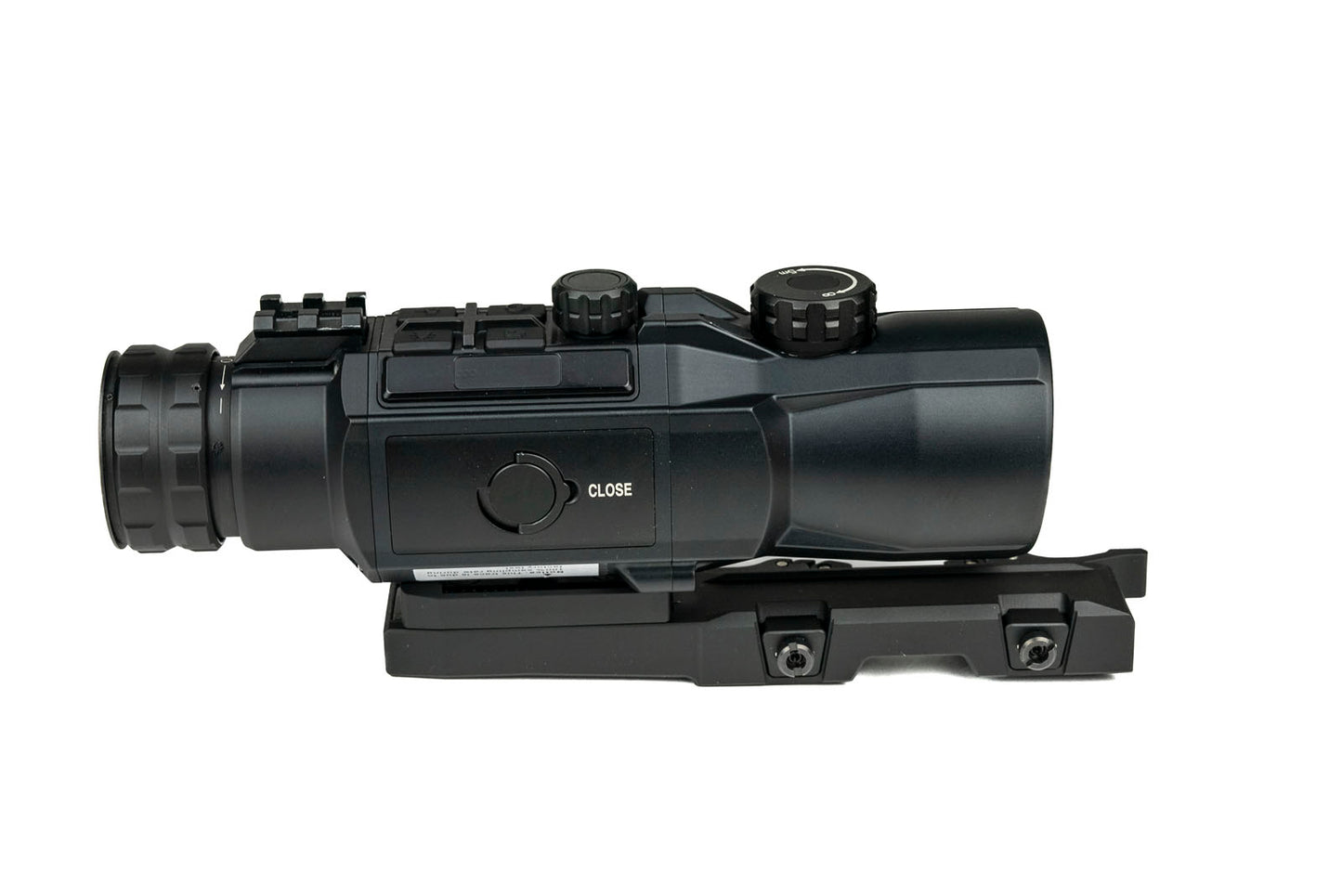

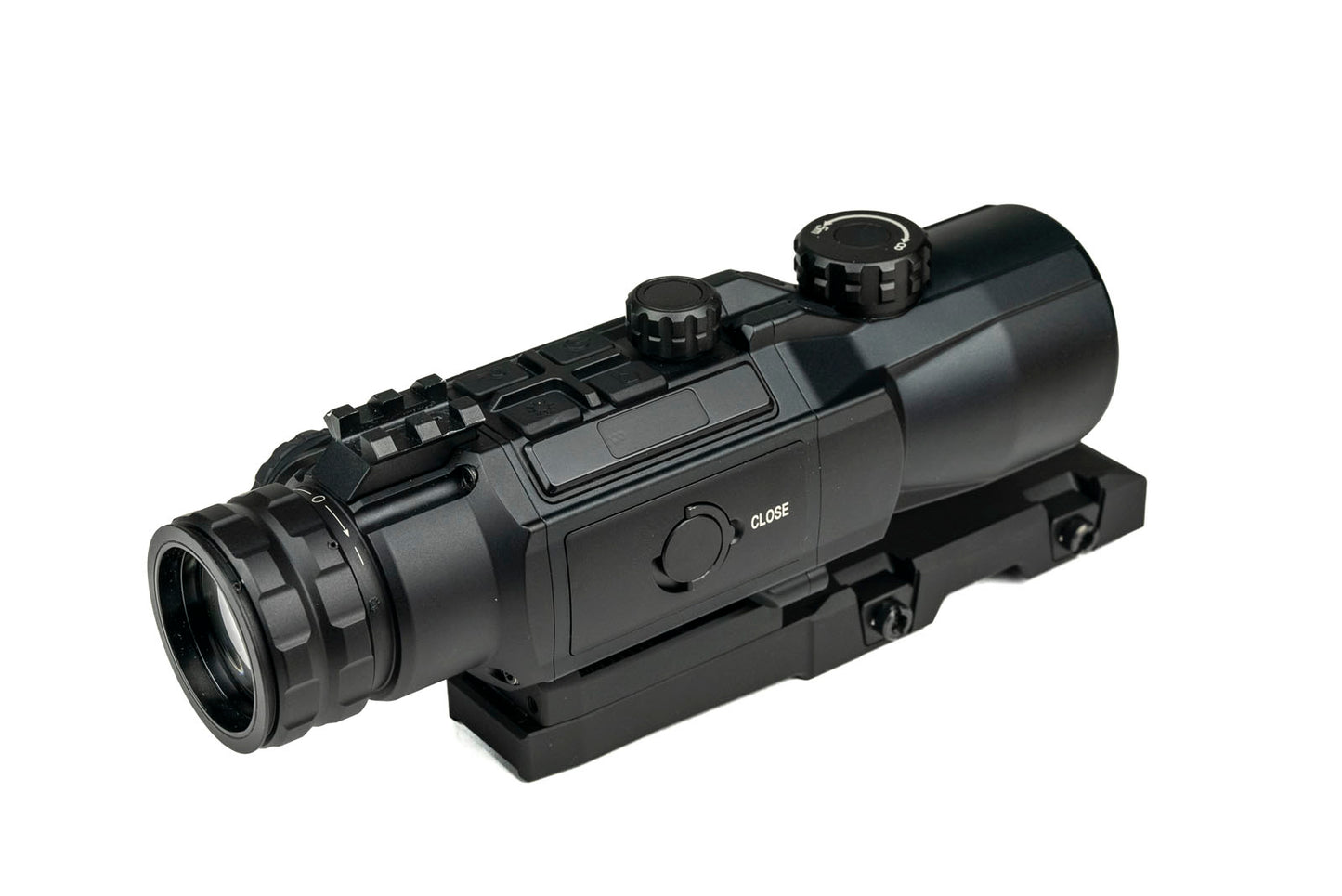

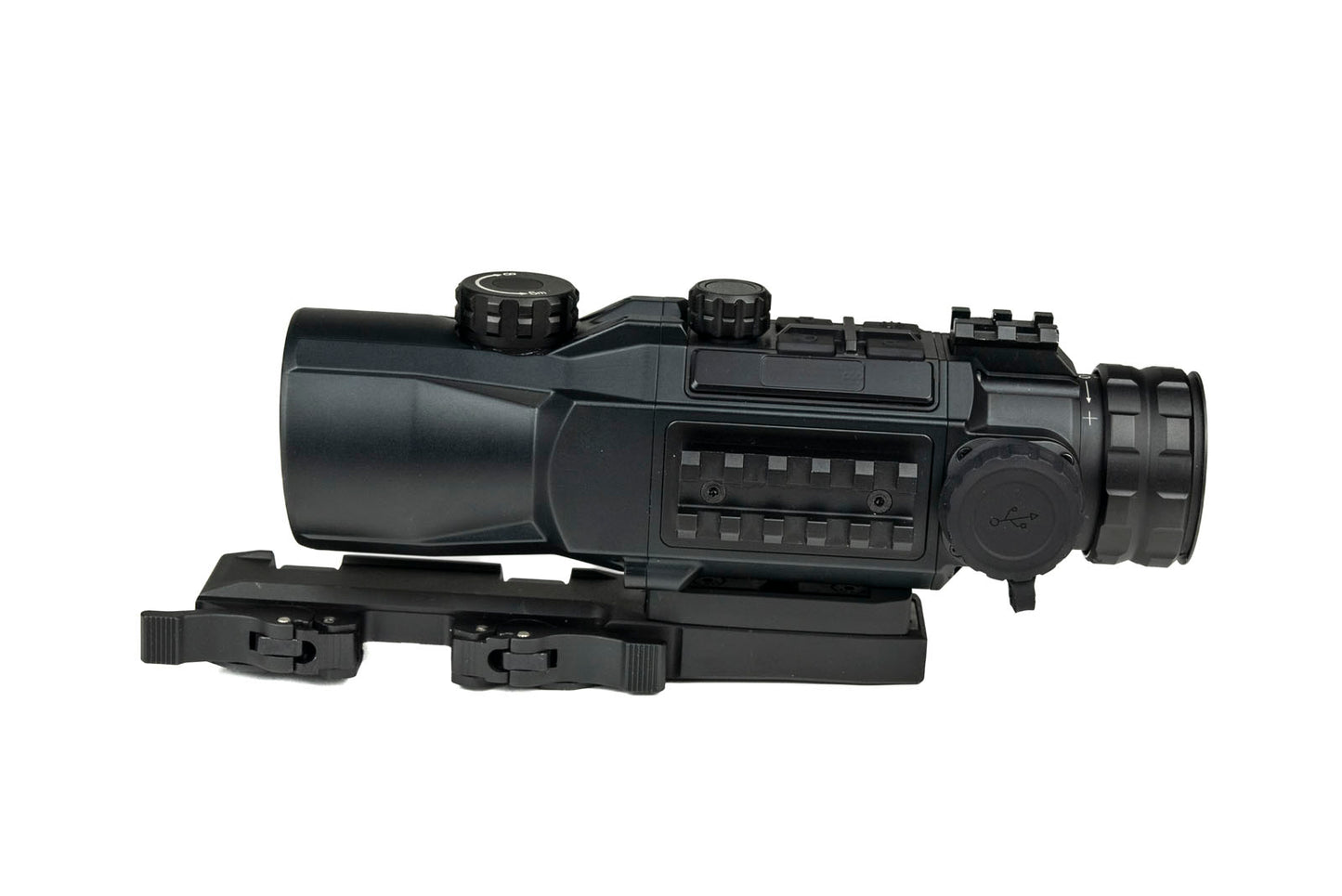

Infiray HYH50W Hybrid Clip-on Thermal Scope

Infiray HYH50W Hybrid Clip-on Thermal Scope

Regular price $5,056.00 USD
Regular price Sale price $5,056.00 USD
Sale Sold out

**Special Order Item; Lead time 2-3 weeks**

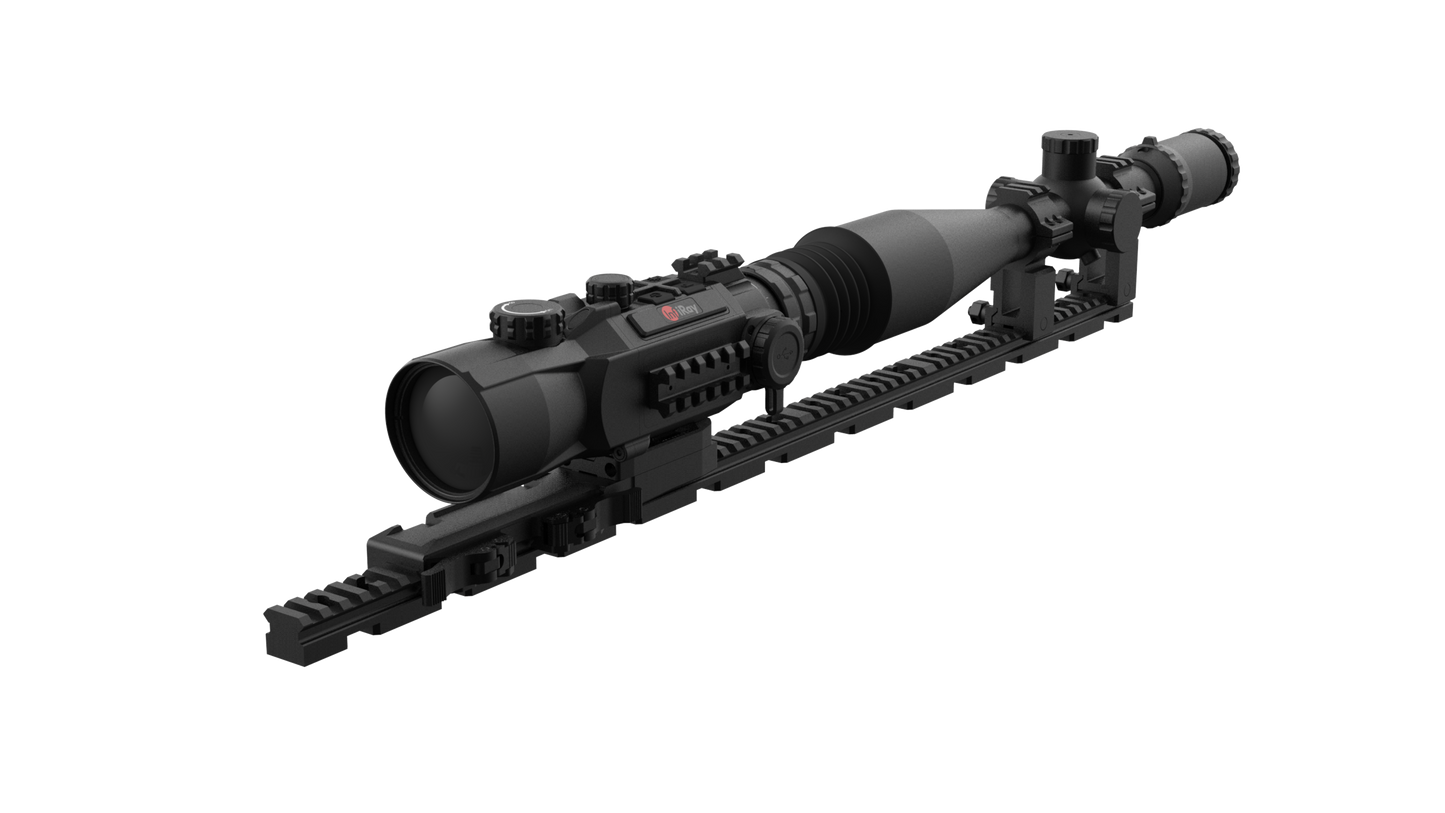

The Infiray HYH50W is a groundbreaking dual-role device featuring an industry first 2K (2560x1920) AMOLED screen and native 2.6x magnification. Leveraging the success of the Rico series of thermal scopes, the HYH50W retains the same industry-leading 12um 640x480 thermal core and provides over 2km of detection. As a dedicated thermal scope, the HYH50W can reach an effective 20x magnification. The HYH50W can instantly add thermal capabilities on a platform that already has a zeroed day optic setup - simply mount the HYH50W in front of the day optic and use the on-board guided menu to line up your reticle.

The HYH50W includes two batteries that provides a total of 12 hours of operation, and can take offboard power via USB-C if desired. The HYH50W comes with an included scope mount and can also accept an optional laser rangefinder that provides accurate ranging data directly on-screen.

Lastly, the HYH50W features on-board photo and video recording with 64GB of on-board battery, and WiFi to connect to your mobile device.

Manual Download HERE

Quick Start Guide HERE

Reticle enable instructions HERE

WARRANTY INFO: Standard 3-year warranty from Infiray Outdoor


Specs:

Resolution 640x480/12um
Frame Rate 40Hz
NETD <= 25 mK
Objective Lens (mm) 50mm F/1.0
Field of View 8.8 x 6.6
Recognition Range (Human) 1180m
Recognition Range (Vehicle) 2130m
Digital Zoom
1x/2x/4x/8x
Recommended Day Optic zoom range 1-9x
Exit Pupil Distance 25-60mm
Colour Palettes White-hot, Black-hot, Red-hot, Iron-Red, Rainbow, Outline
Exit Pupil Diameter 23mm
Diopter Adjustment -4 to +2
Screen 1.03" 2560x1920 AMOLED
Battery 3.7V 4400mah
Max Operating Time @ 22C >6h
External Power Supply 5v via USB-C
Laser Range Finder Maximum 1km range (deer); 2m (vehicle)
Weight (with battery) 890g
Dimensions 220x76x74mm
