Regular price $3,999.00
Unit price  per

** Backordered; ETA December 2 **

The MH25 is the smallest fully multi-functional thermal imaging monocular on the market with an astounding 640x512 sensor resolution, 12um pixel size, and 50Hz refresh rate. Capable of detection ranges up to 1250 metres, it can be used as a handheld monocular or helmet mounted monocular. The MH25 features next-generation MATRIX III processing for unmatched viewing experience through its internal 1280x960 internal display. Standard features include bluetooth, picture-in-picture, video out, stadiametric rangefinder, and compatibility with rechargeable 16650 batteries as well as external power supply.

The MH25 is available from Cold Harbour Supply with the optional MH14 eyepiece upgrade that replaces the factory eyeypiece with a modified milspec PVS-14 eyepiece. This upgrade boosts eyebox forgiveness, eye relief, and resolves magnification back to 1x for a more seamless experience if bridging with a night vision monocular. If choosing this option, please leave a note in the comments to let us know if you'd like us to install the eyepiece, otherwise it will ship uninstalled.


Flexible Mounting Options and Friendly Operation

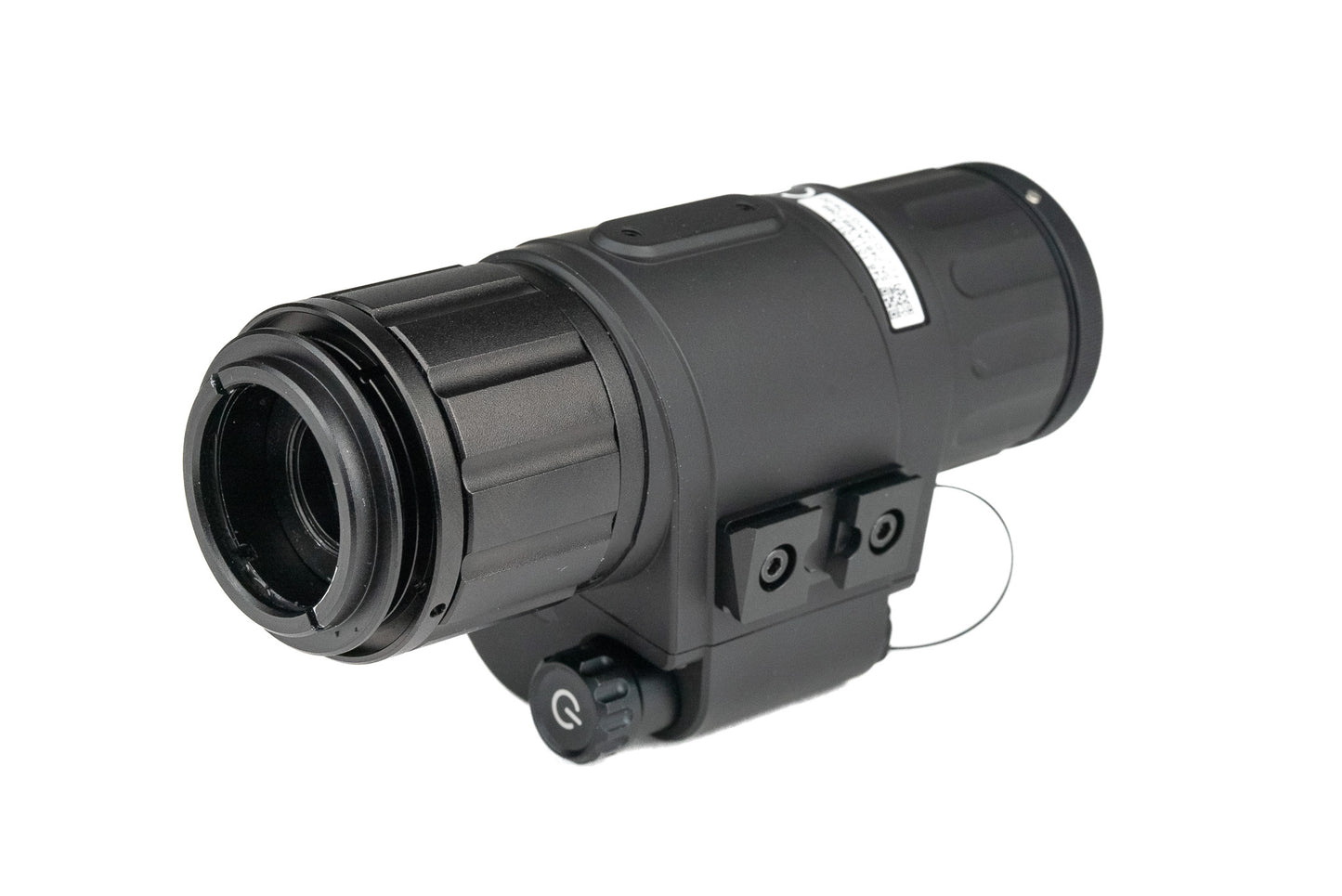

For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The MH25's display icons flip automatically when orientation is flipped.

For mounting solutions, take a look at the Noisefighters Panobridge, or our MH14 Dual Bridge.

The MH25 is operated by an intuitive, clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.

Flexible Display Modes
The MH25 features flexible display modes with white hot, black hot, red hot, and rainbow thermal signatures.

Power Supply Options
Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.

WARRANTY INFO: Standard 2-year warranty from Infiray Canada

Key Product Highlights:

Sensor Resolution 640x512
Sensor Frame Rate 50Hz
Detection Range 1375 Yards
Objective Focal Length 25mm
Optical Magnification 1x
Digital Magnification 8x
Size 5.03" x 2.75" x 1.77"
Weight 8.64oz
Waterproof IP65
Operating Temperature Range -10C to +50C


Full product datasheet HERE.

 What's in the box:

  • MH25 (package photo shows MH14 eyepiece)
  • Soft Carrying Case
  • USB to video out cable
  • USB-C power cable
  • Mini-rail adapter
  • Remote Control
  • Eyecup (with MH25 eyepiece only)
  • Battery extender
  • Neck Cord
