***SPECIAL ORDER ITEM, lead time approximately 3-4 weeks***

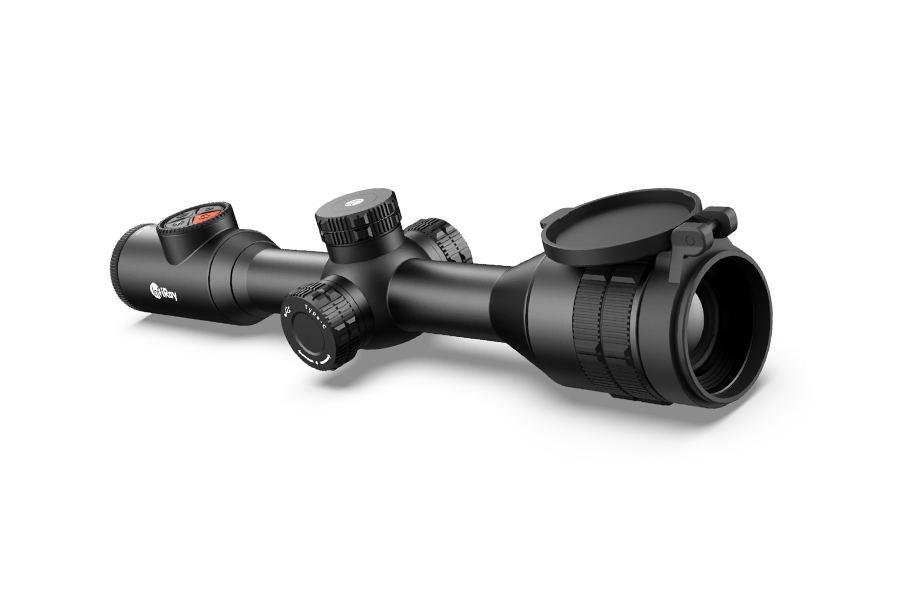

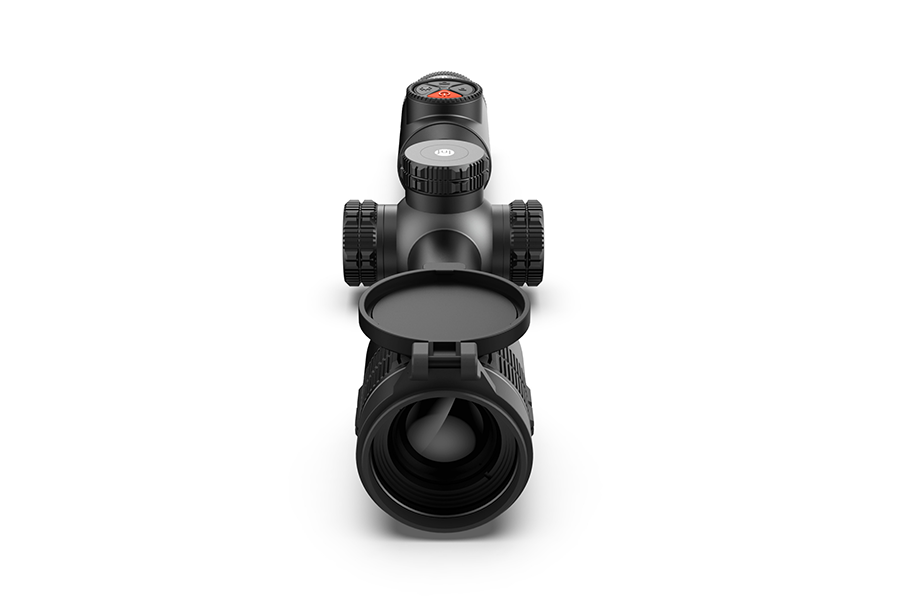

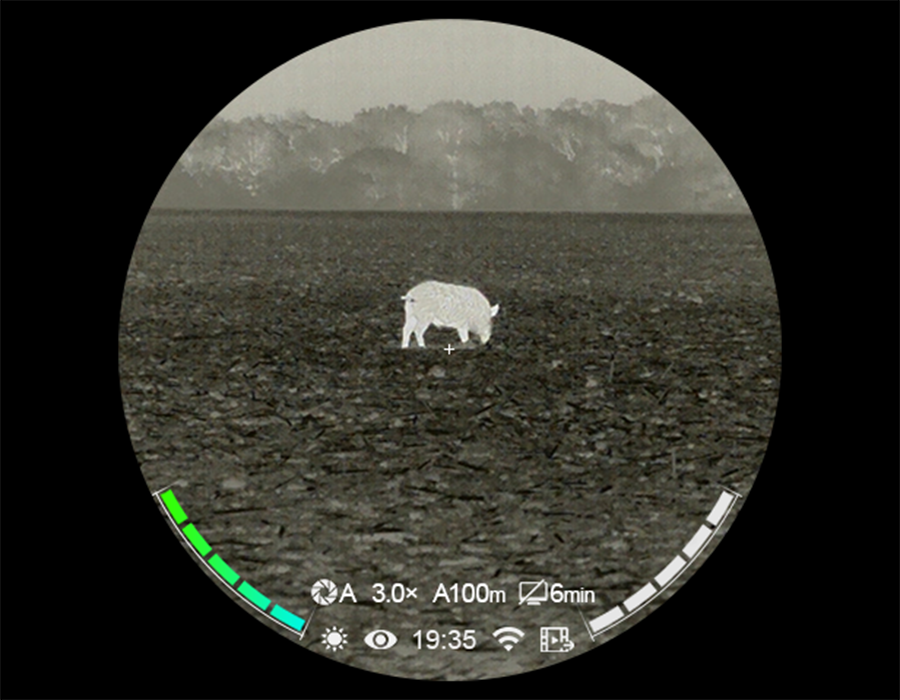

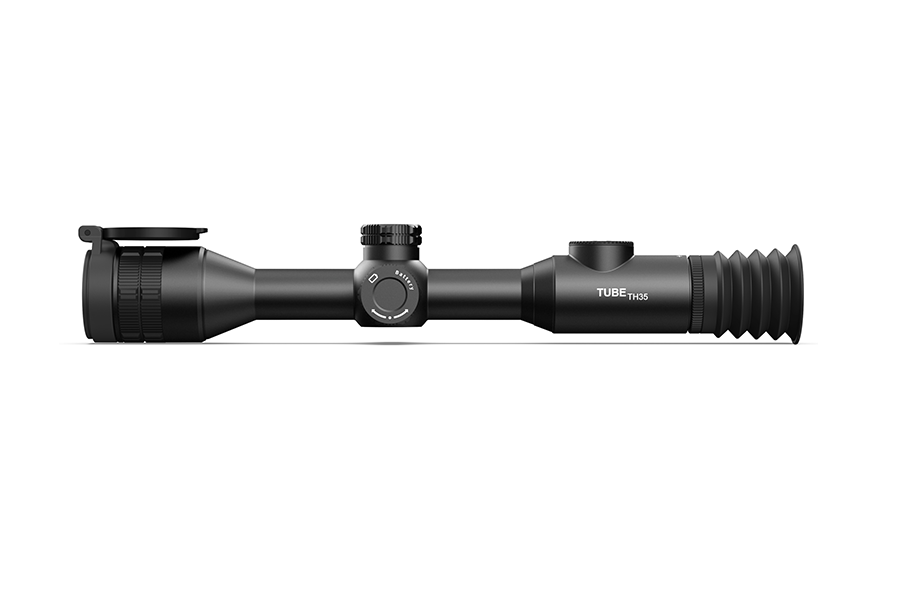

The iRay TH35 thermal scope features an industry-first 1.39" round high-definition OLED screen, 464x464 12um core, and a smooth 50Hz frame rate for lag-free use. The round screen provides substantially more situational awareness over traditional rectangular displays and provides the user with familiar scope ergonomics and viewing experience.

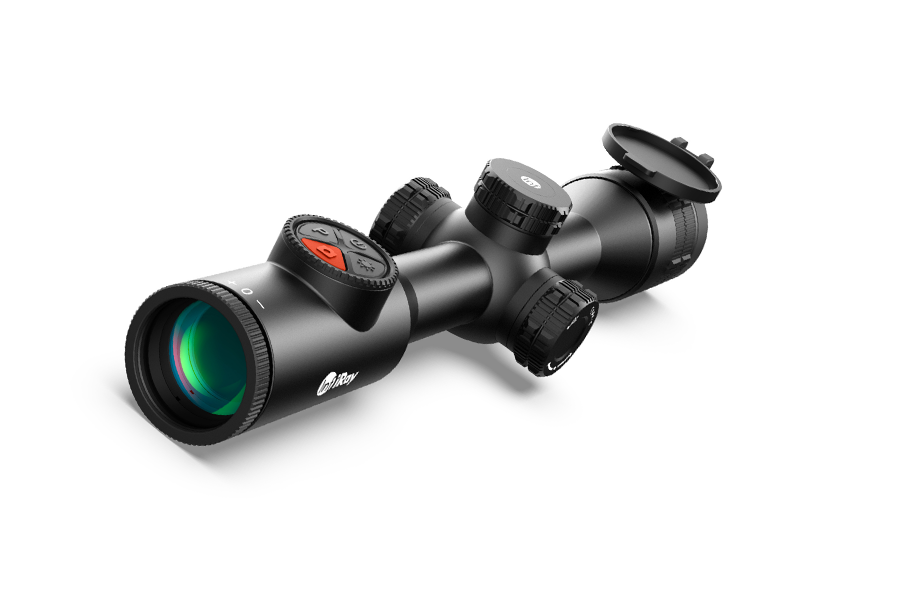

The TH35 features easy to use controls via its top turret that adjusts zoom but also functions as a programming/menu button. Frequently-used functions are housed via 4-buttons conveniently located at the top of the scope that controls power, standby, picture modes, Picture-in-Picture, Video and Photo capture, and brightness adjustment.
To see the iRay TH35 in action, check out our Instagram links here:
https://www.instagram.com/p/CYt4NJMsgt9/
WARRANTY INFO: Standard 2-year warranty from Infiray Canada
Main Features
- 3-9x magnification
- 1000G shock resistance
- Traditional 30mm scope body and includes scope mounting rings
- 8h battery life extendable to 11.5h with optional 18500 battery
- 32GB internal storage with on-board easy-to-use photo and video capture

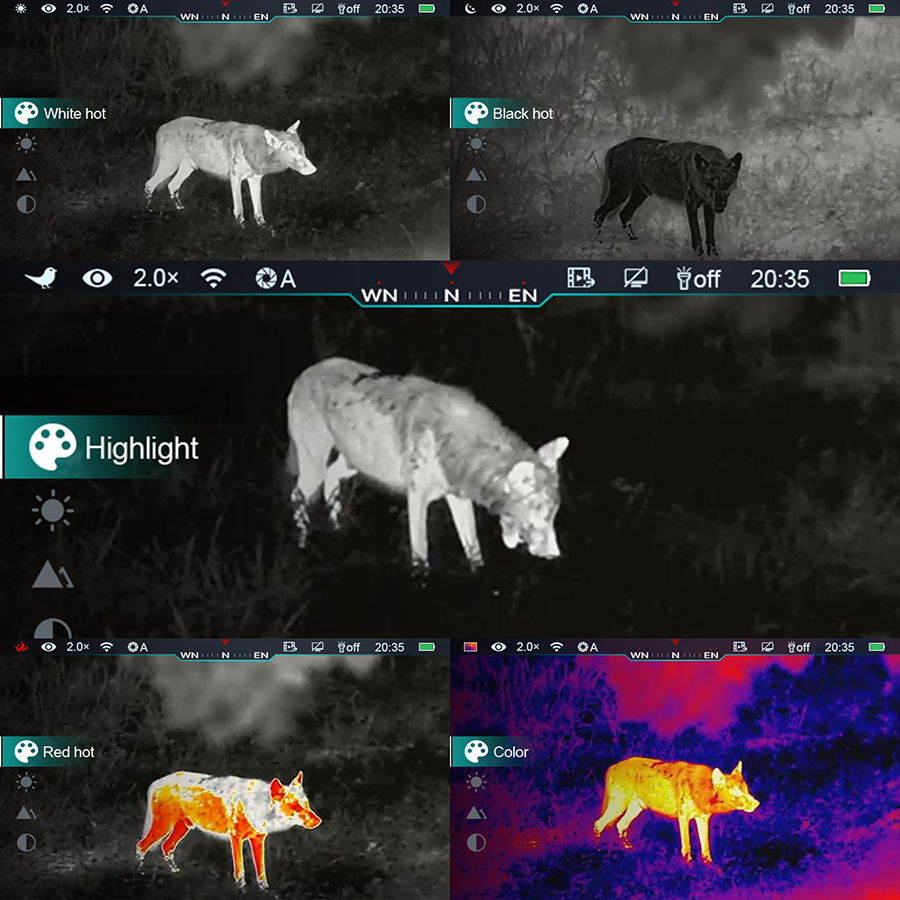

- 5 colour palettes (white hot, black hot, white highlight, red hot, and full colour)
- Diopter-free adjustment but includes multiple user-installed diopter lenses
- Easy charging and data download via USB-C
- Built-In Stadiametric rangefinder
- On-board digital compass
- On-board WIFI
Specs
Detector Resolution |
464x464 |
Pixel Pitch |
12um |
NETD, mK |
<=40 |
Frame Rate |
50Hz |
Objective Lens Diameter |
35mm |
FOV |
8.8 |
Magnification |
3-9x |
Eye Relief |
50mm |
Detection range |
1816m |
Display |
1.39" OLED |
Battery |
2x 18650 (built-in) |
Optional Battery |
18500 |
Battery Life |
11.5h |
Weight |
<850g |
Dimensions |
375x85x75mm |
USB interface |
USB-C |
Internal Storage |
32GB |
Full Manual HERE.
What's in the box:
- TH35 Thermal Scope
- Ballistic Nylon carrying case
- Diopter lens assembly with 0/+1/+2/+3 diopter lenses
- USB power adapter
- USB-C video cable
- 30mm medium-height scope rings
- Rubber eyecup
- Thermal targets
- Cleaning cloth
