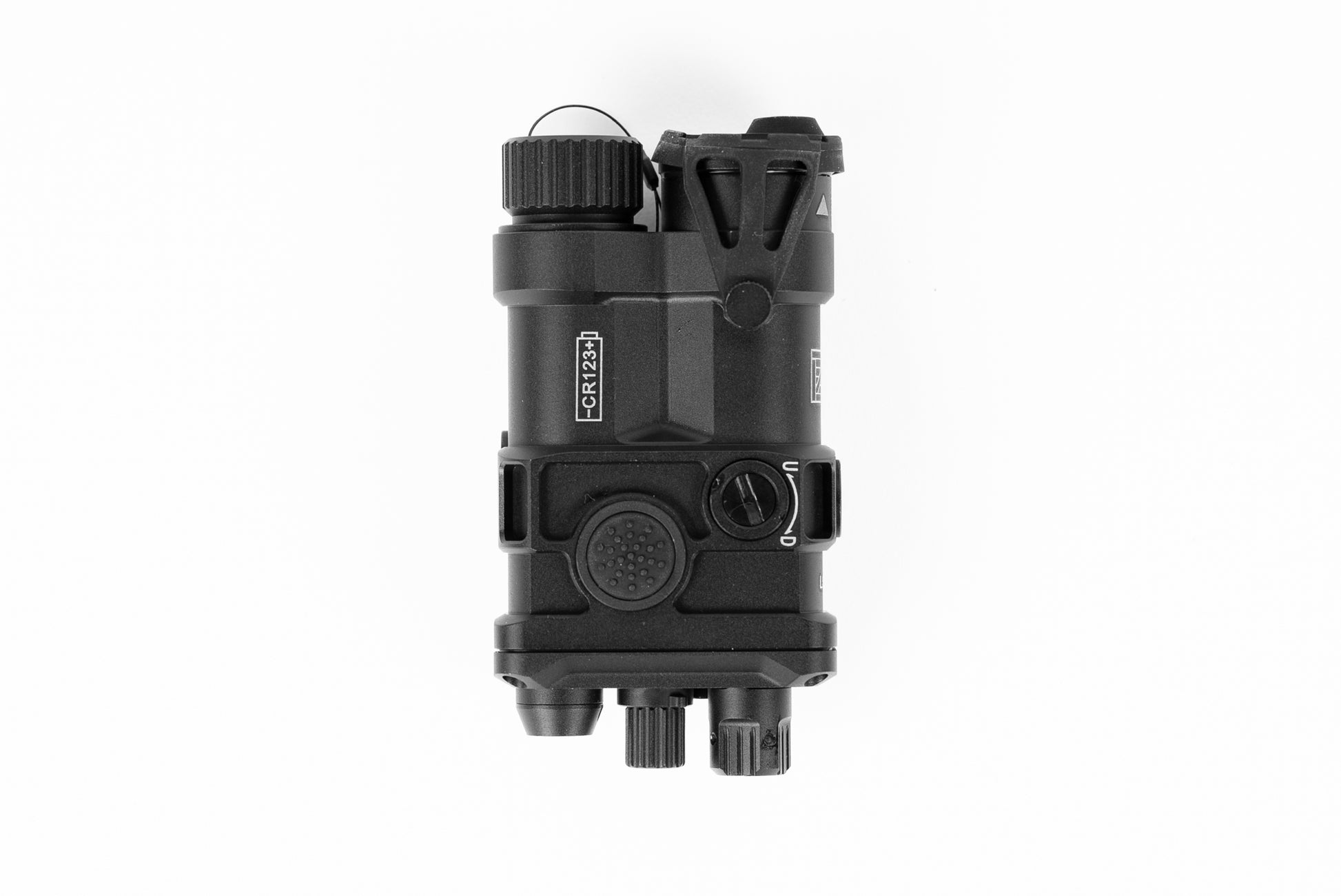

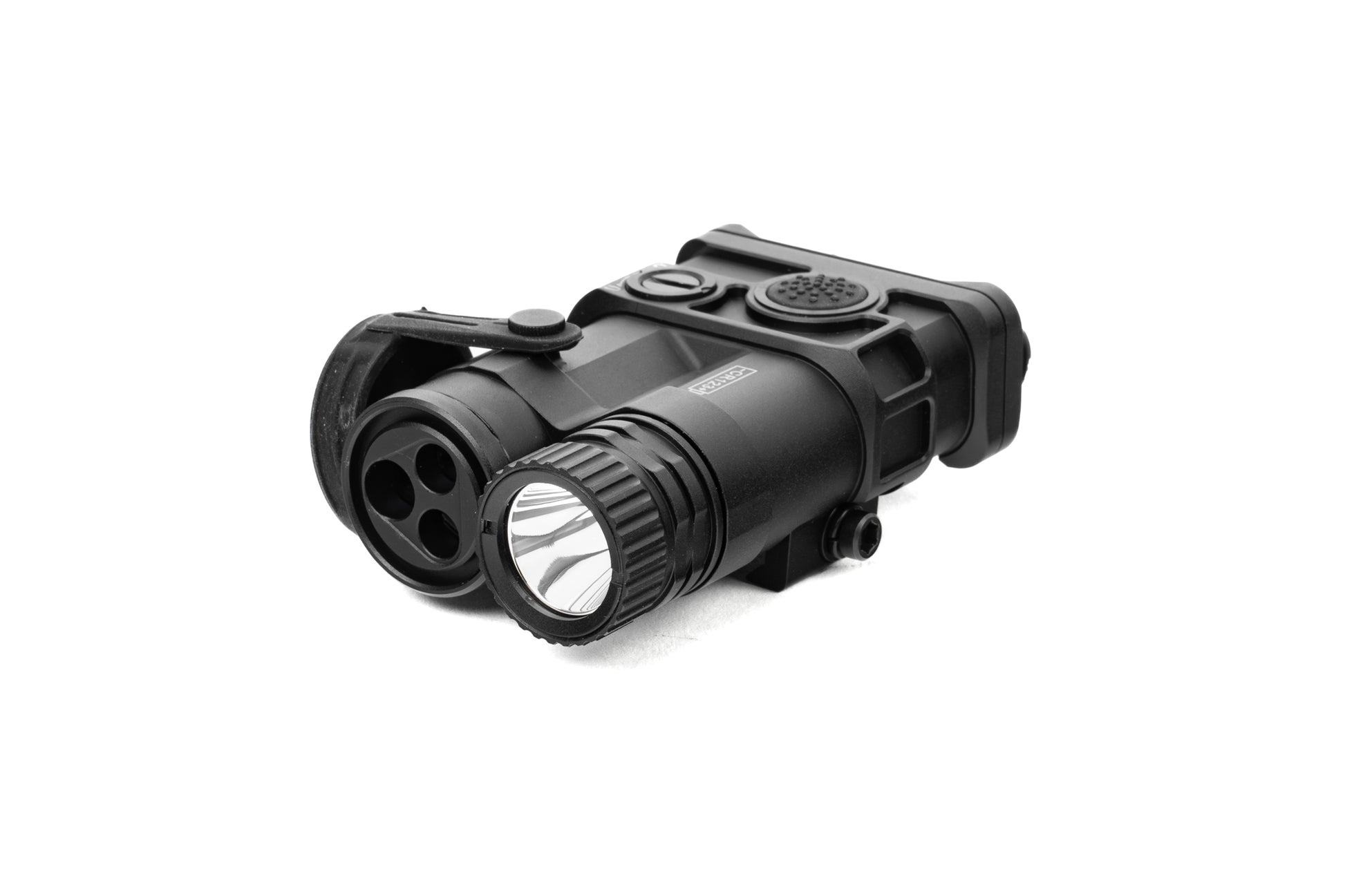

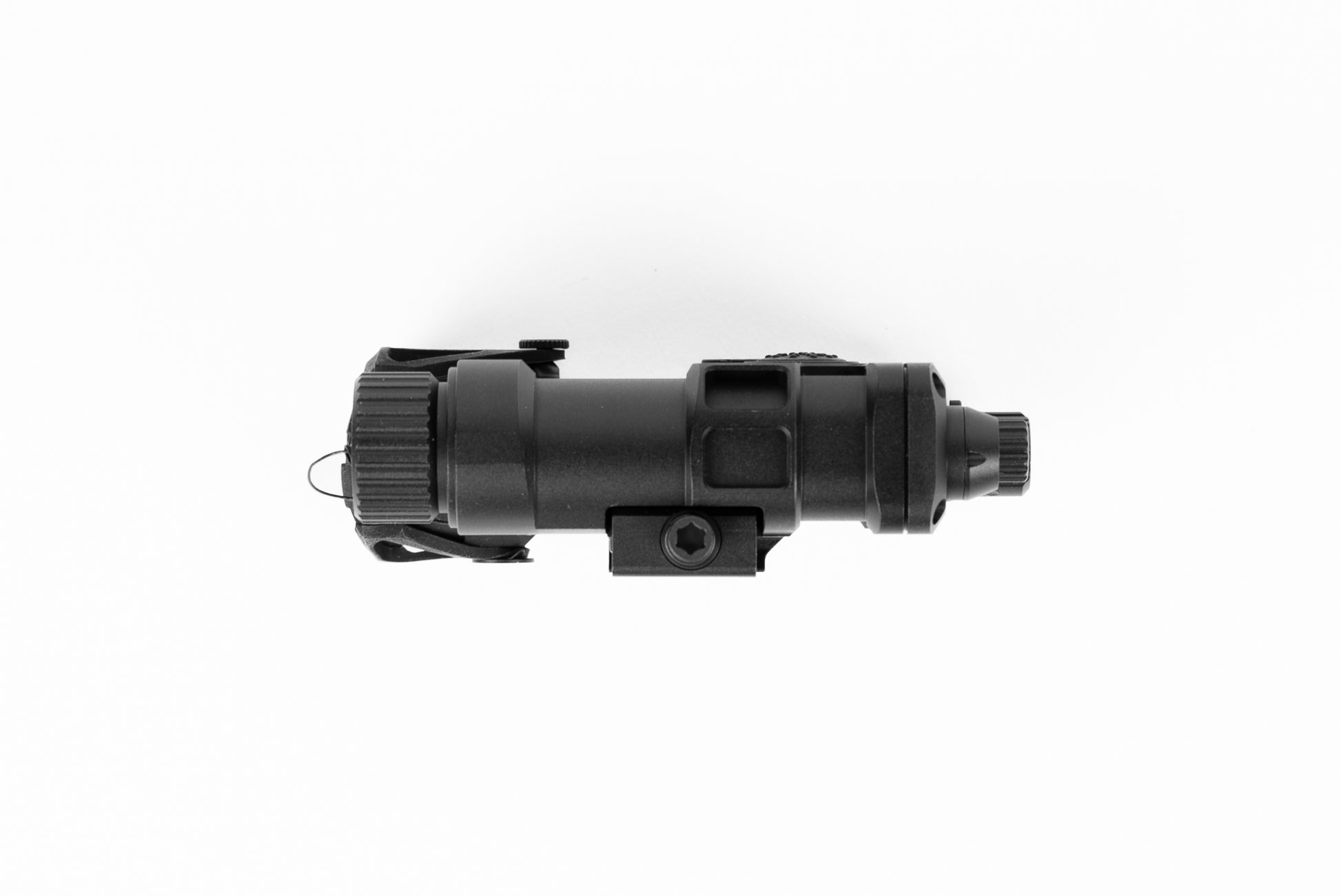

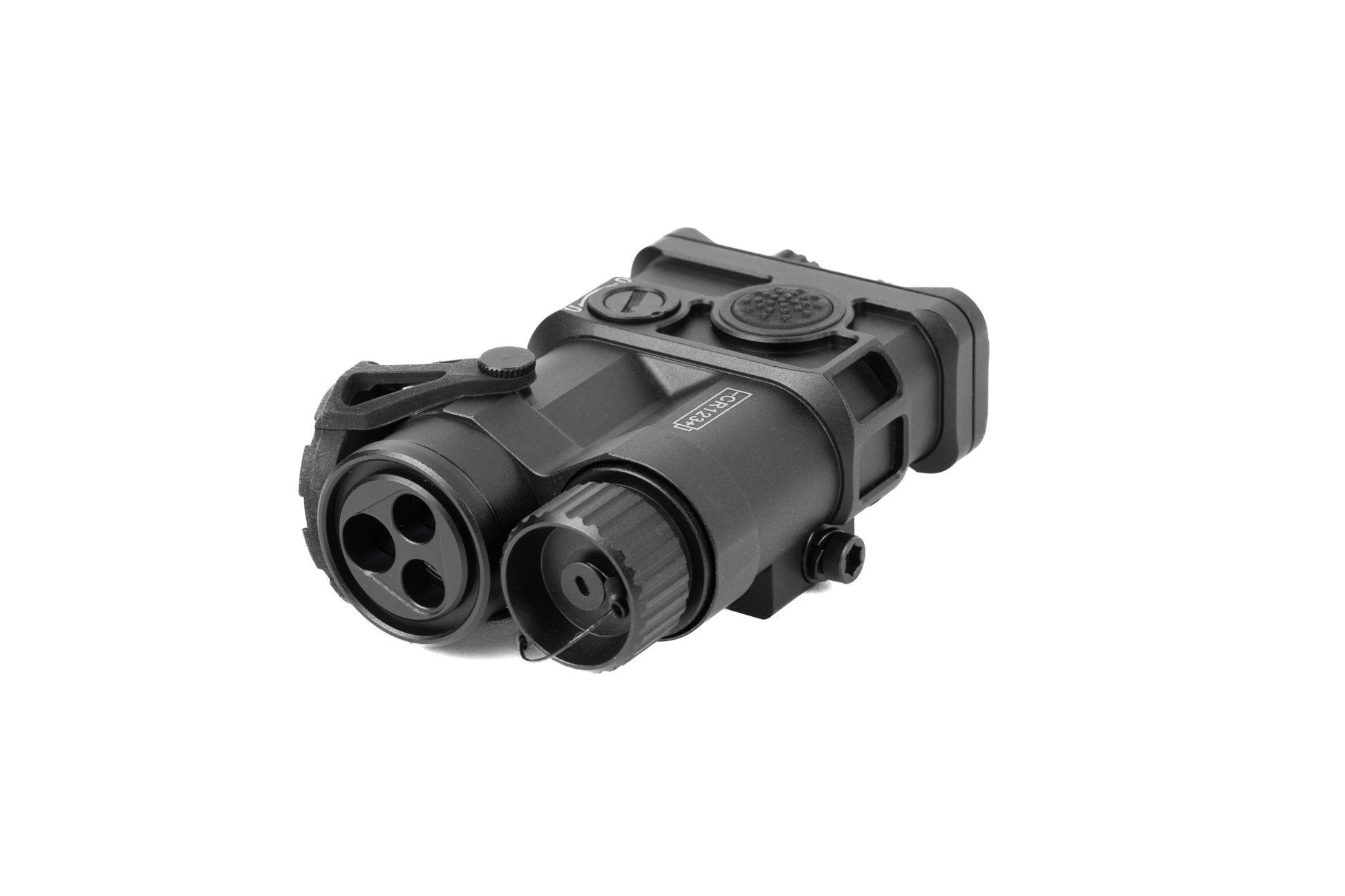

Laserspeed LS-M6TRV Multi-Function VCSEL Laser Module CHS Edition

Black colour lasers are expected to ship Feb 28, 2025

This is an exclusive CHS-version of the LS-M6TRV and features the following improvements over the standard M6TR:

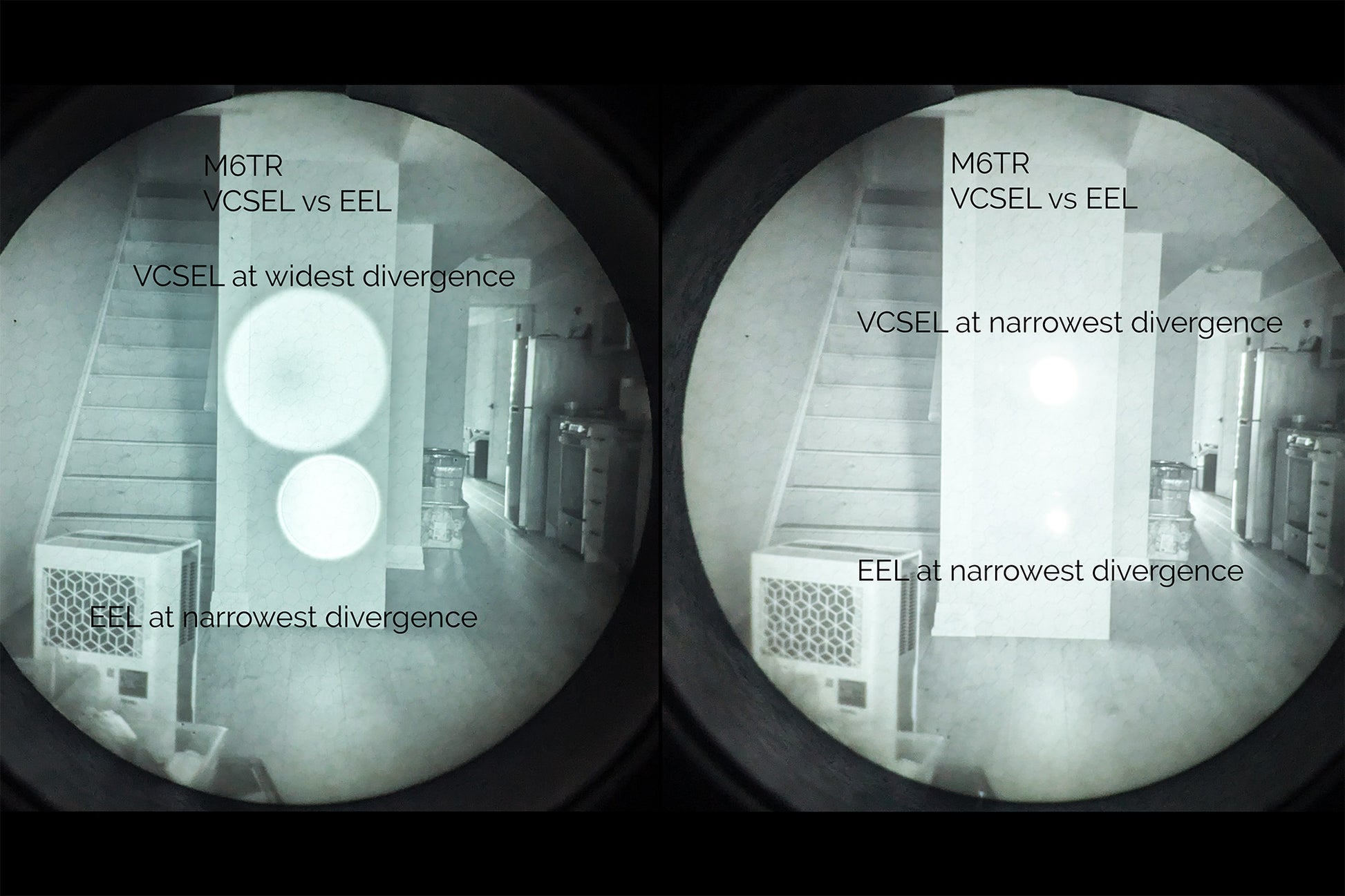

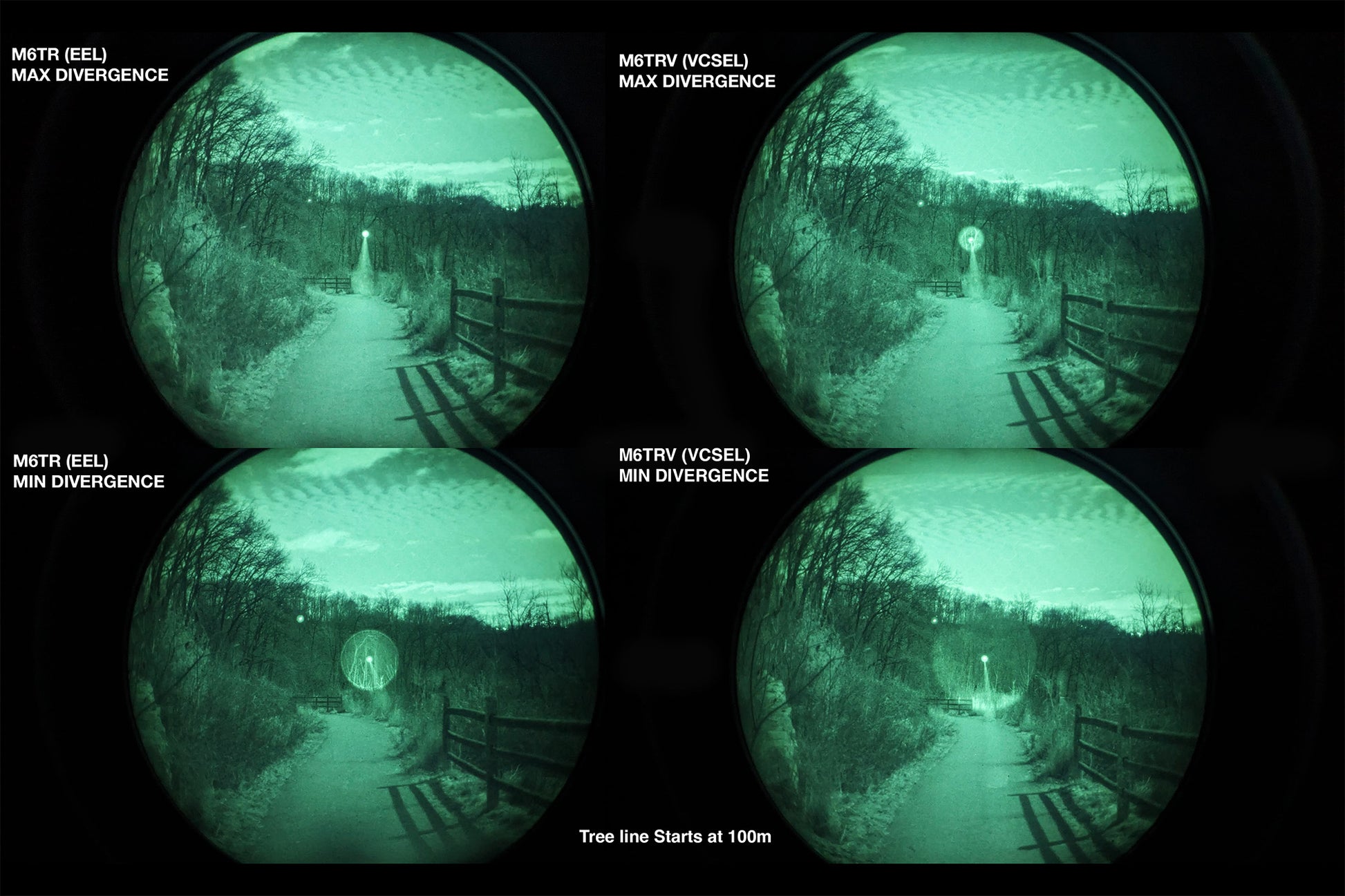

• VCSEL-based IR illuminator with a wider divergence (more suited for sub-100 yard distances but still effective past 600 yards). IR illuminator beam pattern is more uniform and does not have any "petri-dish" artifacts common with EEL illuminators
• Reduced-power IR laser (0.7mW on low: 5mW on high) to reduce target blooming and wash-out
• More intuitive mode markings
• Enhanced battery cap tether

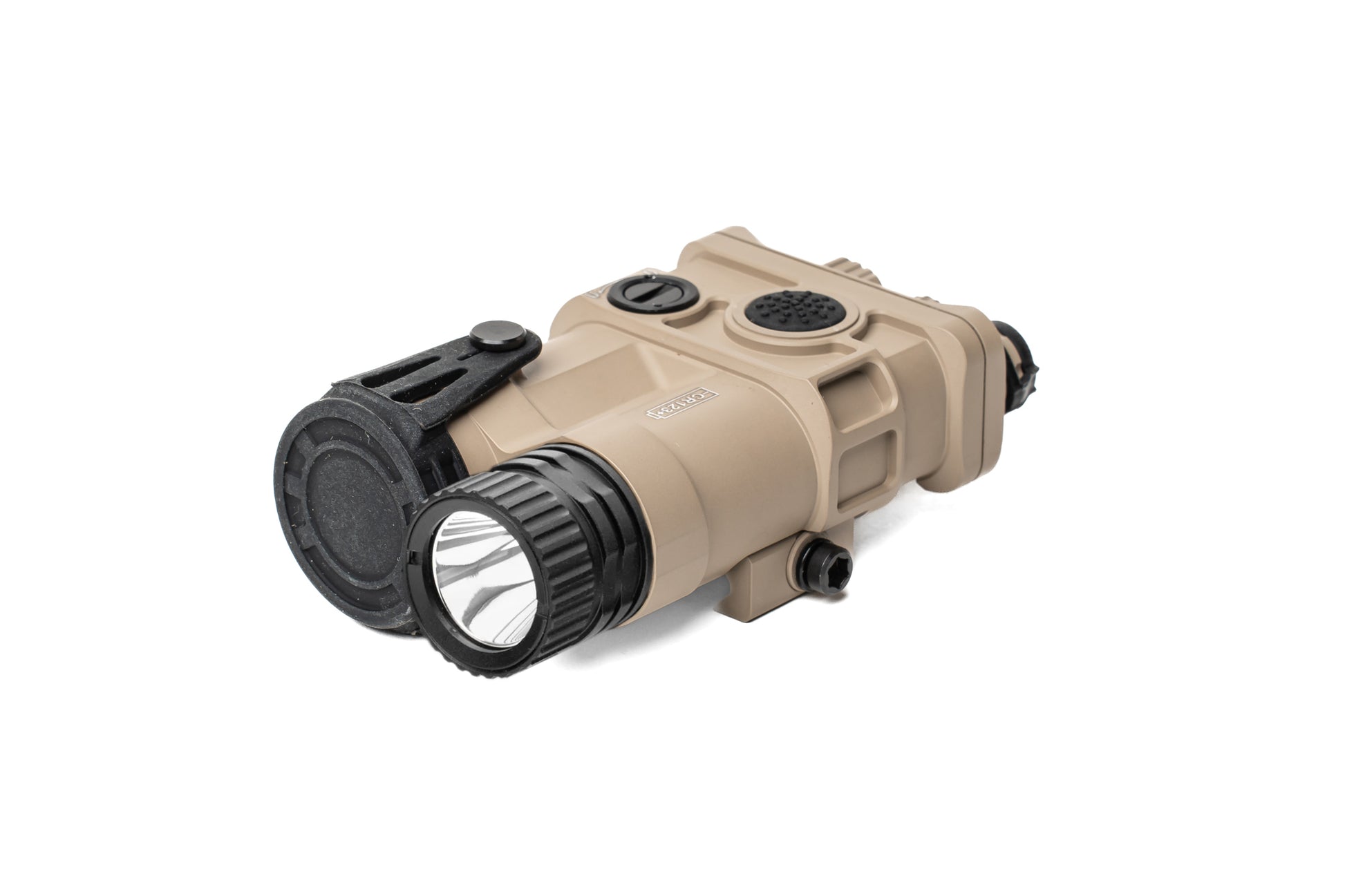

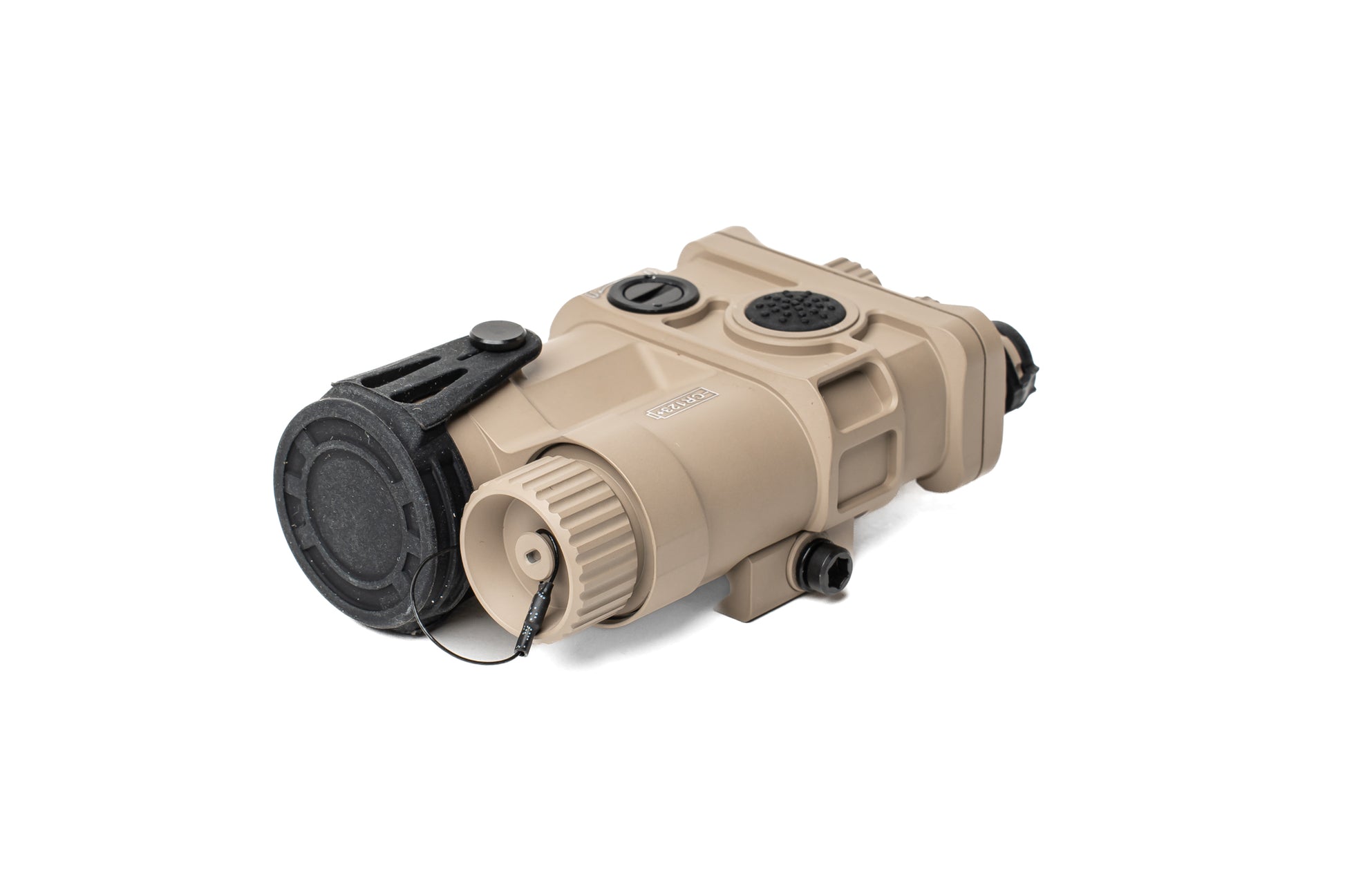

The LS-M6TRV is a three-in-one laser aiming module that has:

• Visible green laser
• Invisible IR laser
• Invisible IR illuminator with adjustable beam width

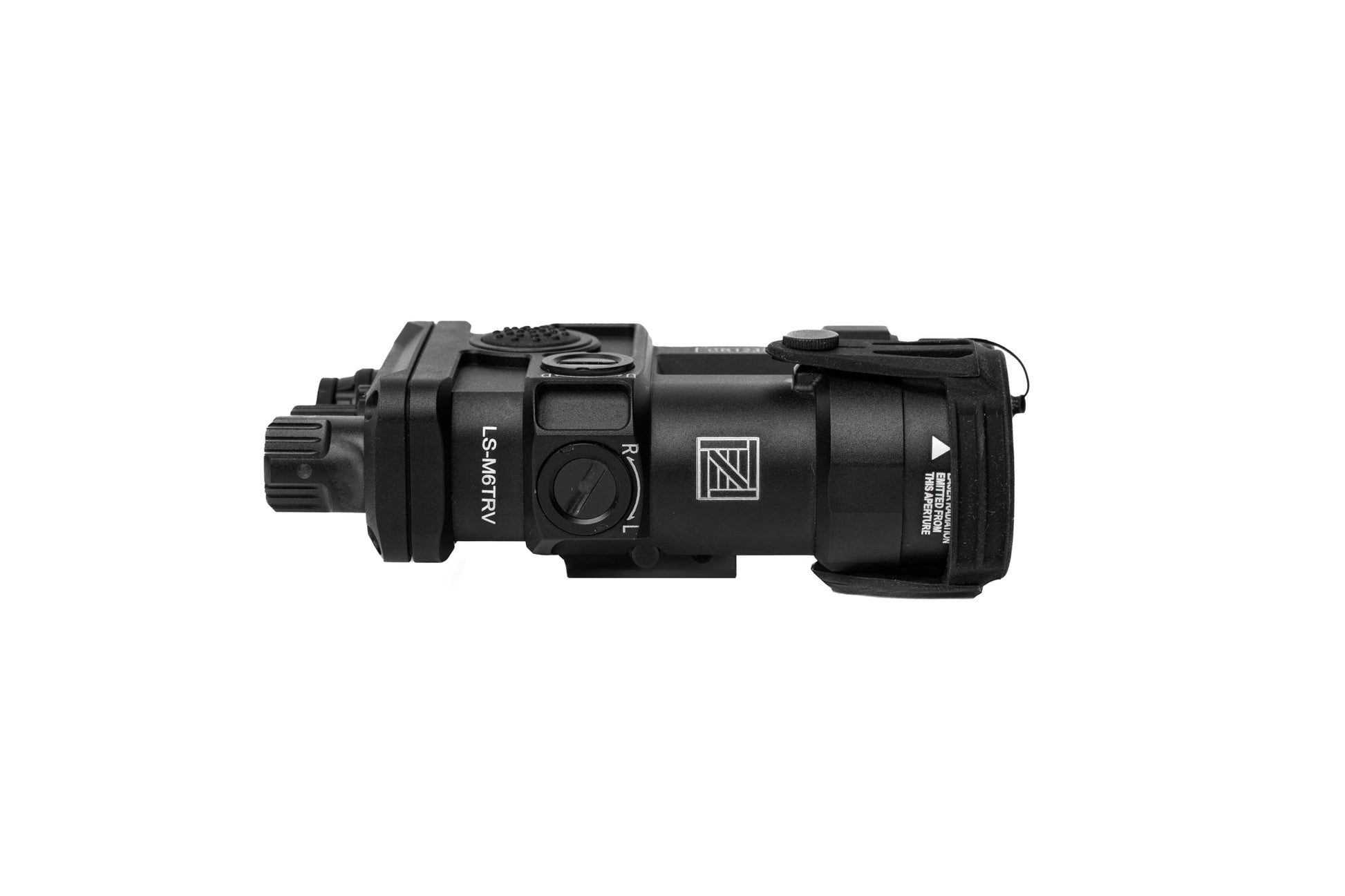

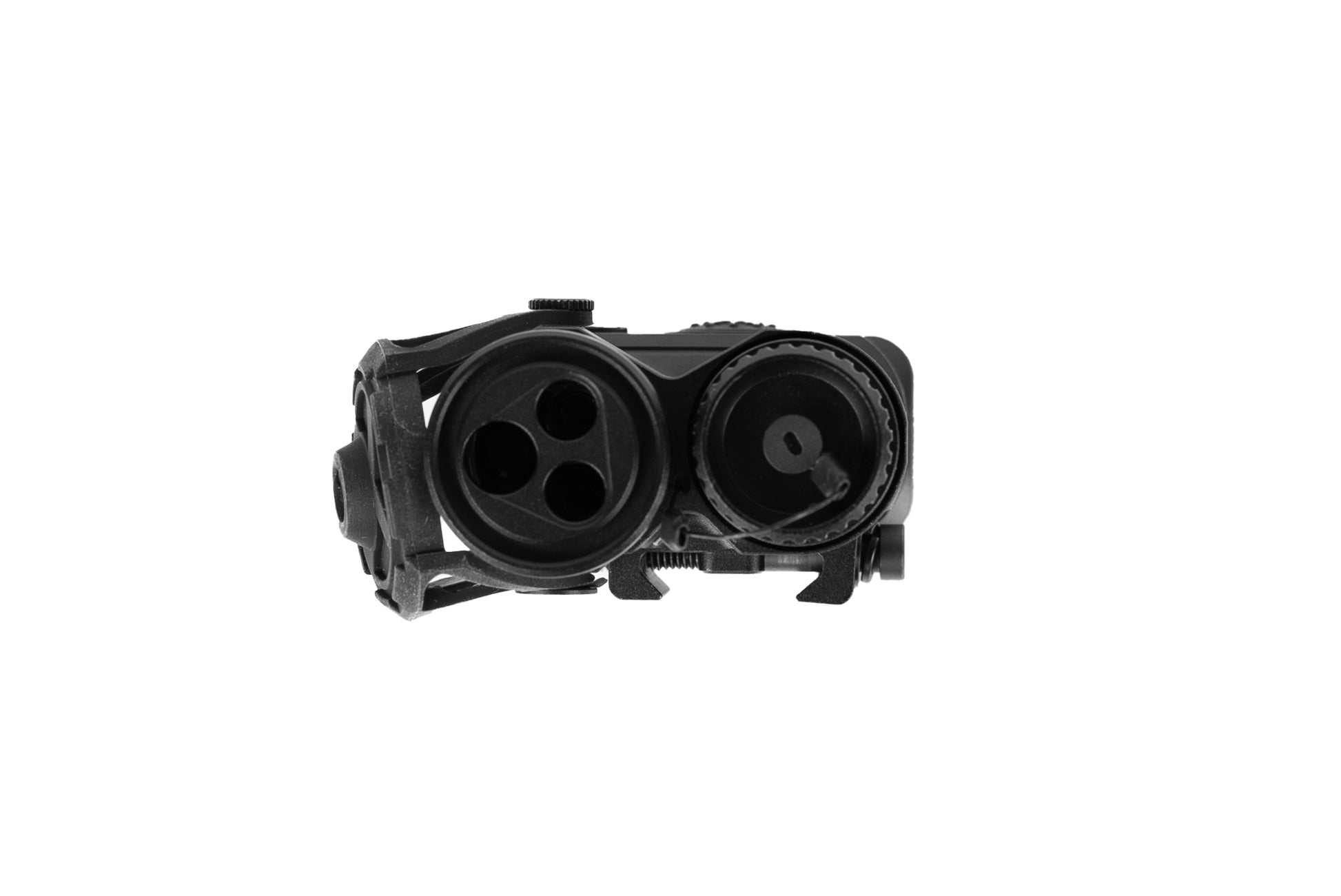

The LS-M6TRV is an improved version of the LS-M6 that has a more convenient activation button, Crane plug compatibility, smaller size, and lower weight. The visible laser, IR laser and IR illuminators are all co-aligned, making zeroing easy. The IR illuminator features a perfectly circular and uniform beam pattern that is VCSEL-based and is adjustable for beam width to suit a wide variety of engagement distances, visible out to 2000m+.

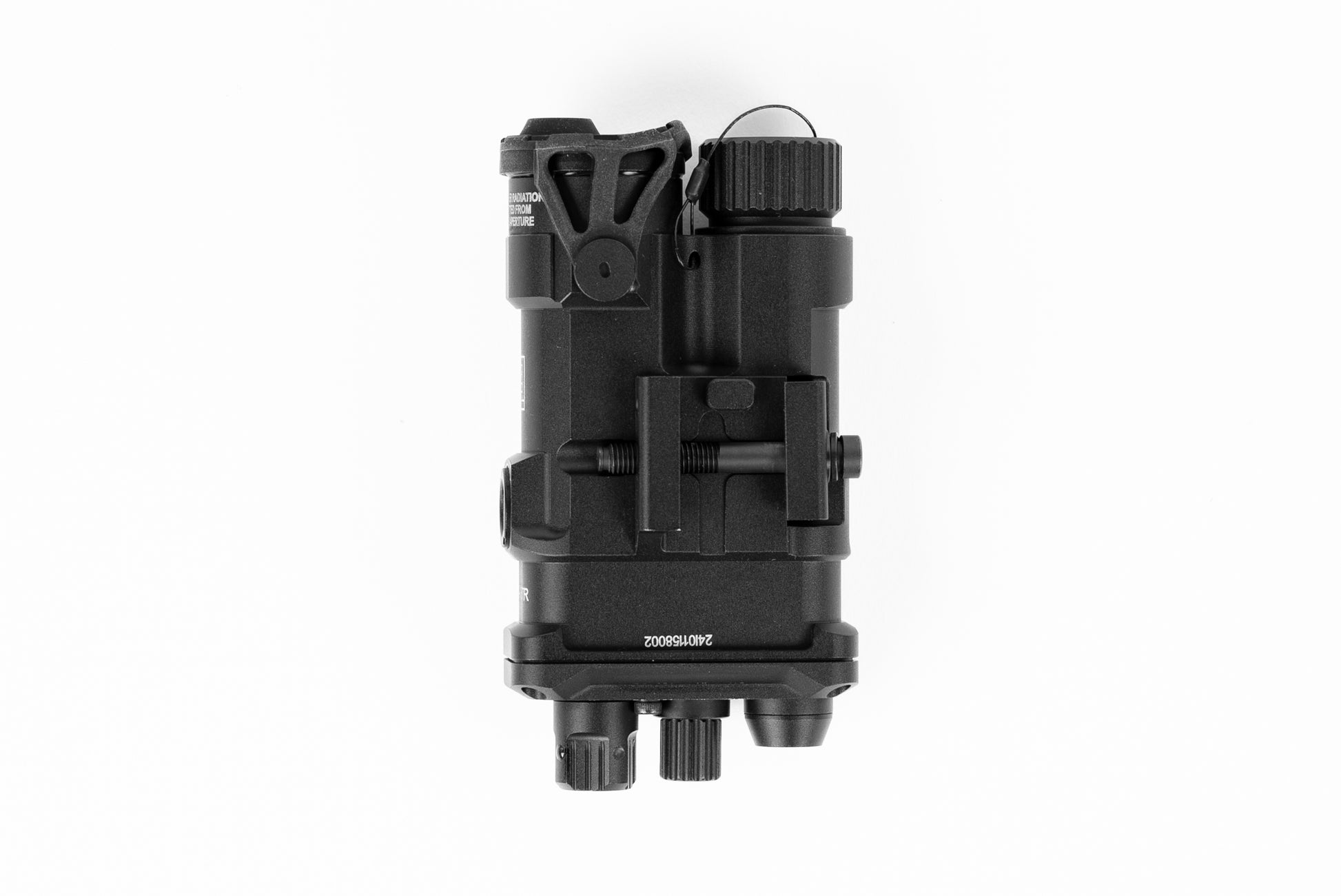

The LS-M6TRV is full aluminum, hard-coat anodized, features an integral recoil lug, is tightened by a robust clamp with a Torx head, and is rated for recoil up to 1200G.

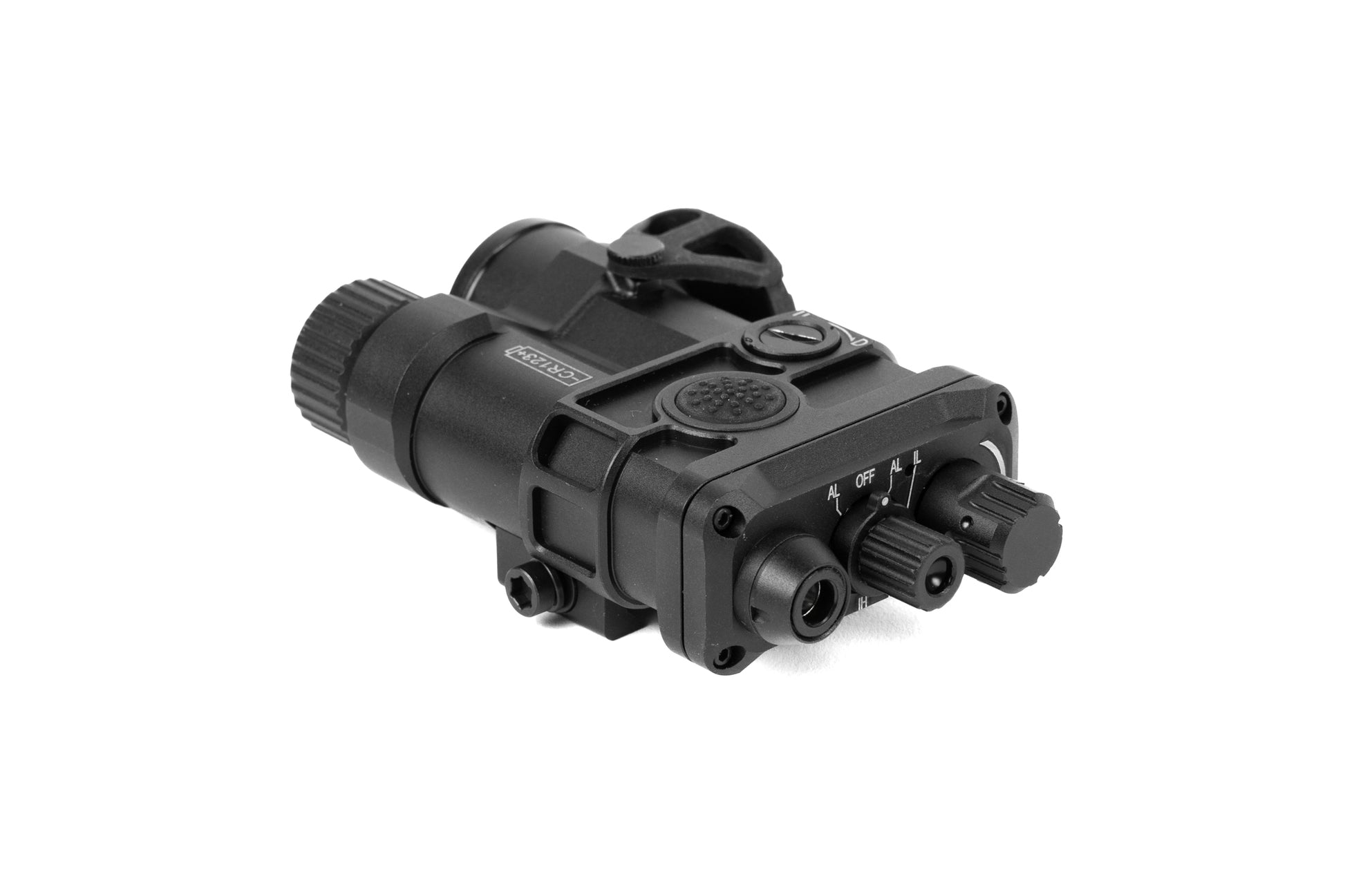

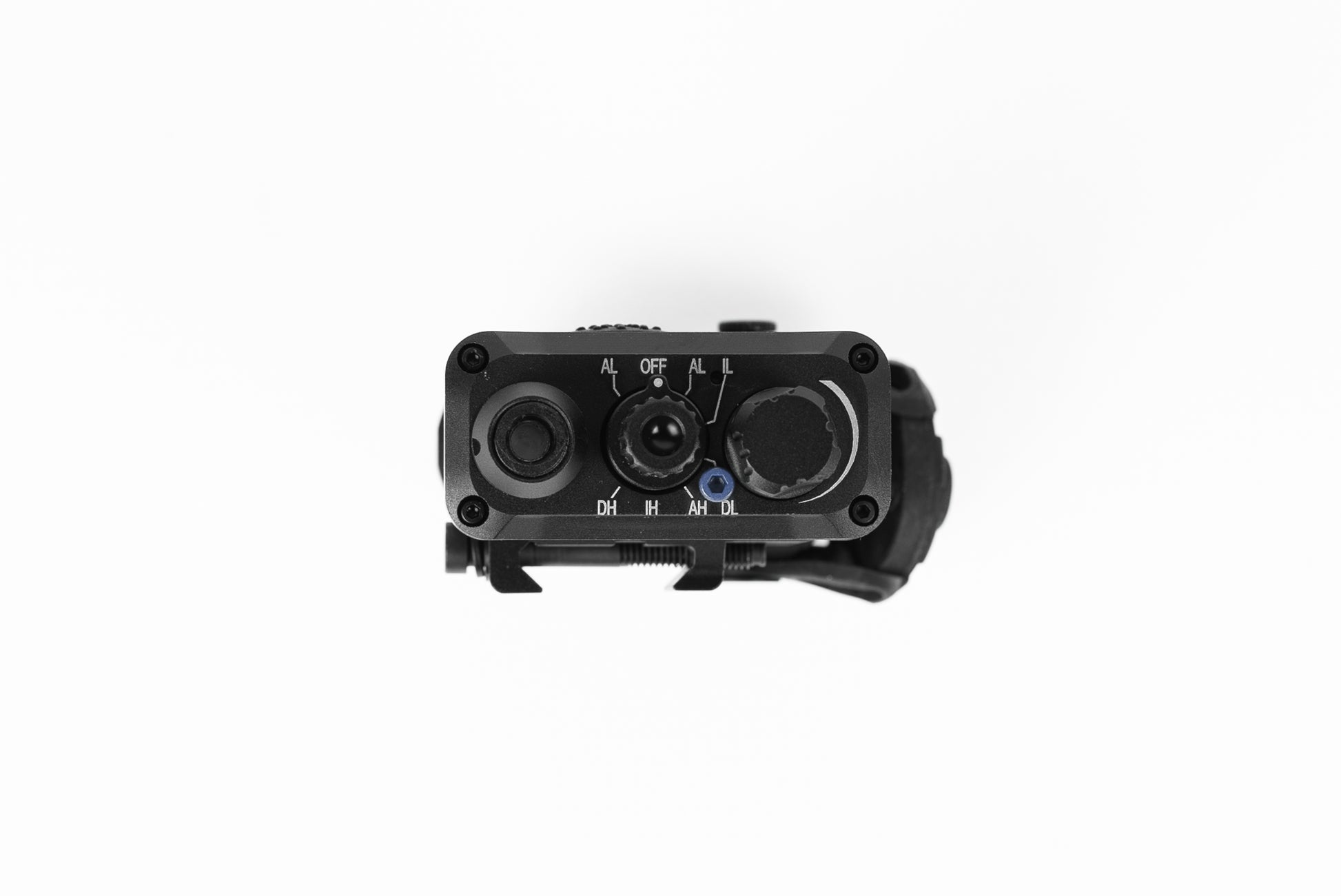

Our version features more intuitive US-Style Markings:

AL - Aim Low (Low Power Vis Laser) (activate High-Power visible laser by triple-tapping the fire button)
IL - IR Illuminator Low
DL - Dual Low (Low Power IR Laser & Illuminator)
AH - Aim High (Hi-Power IR Laser)
IH - IR Illuminator High
DH - Dual High (Hi-Power IR Laser & Illuminator)

Output Specifications:

Specifications:

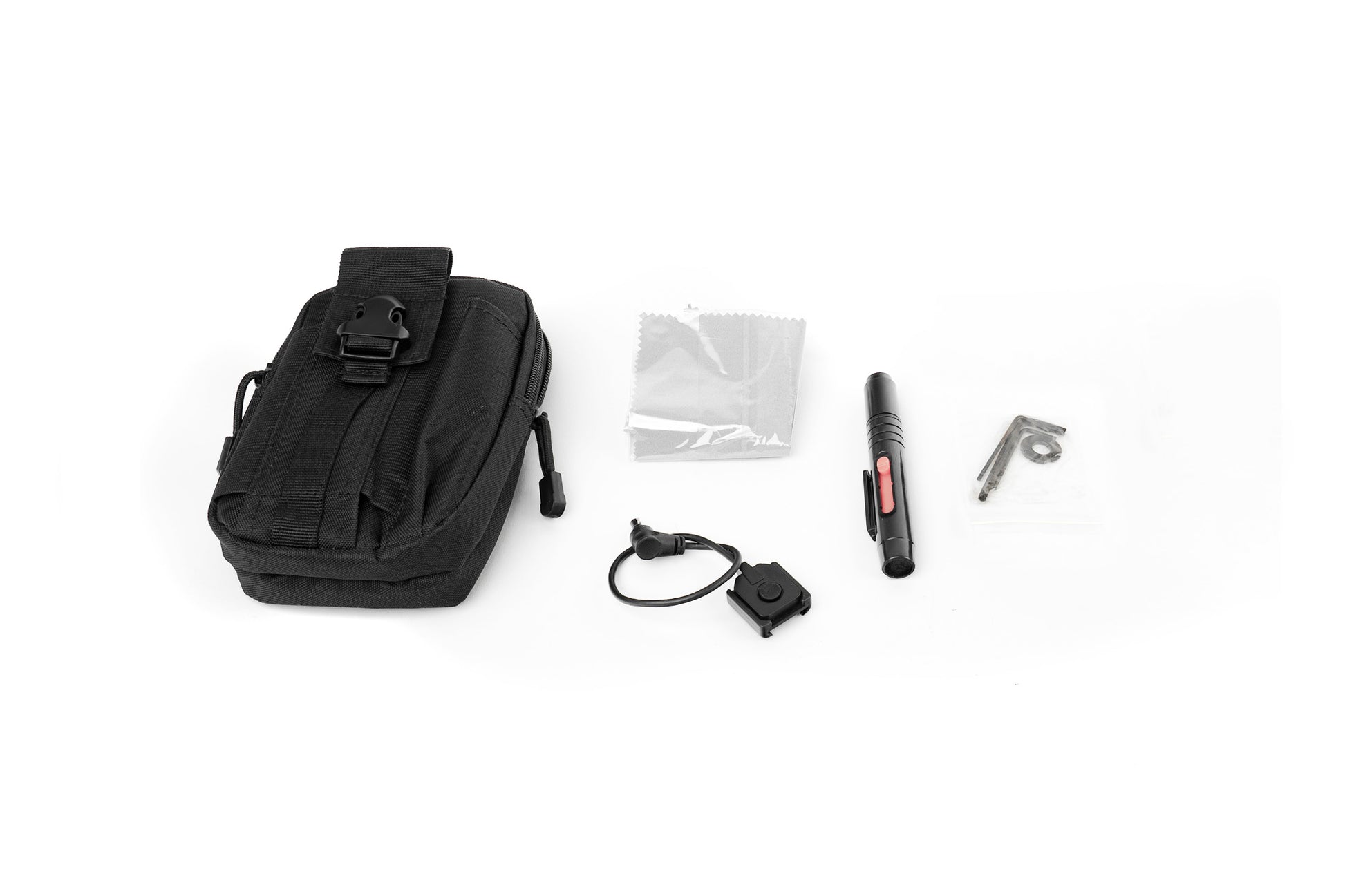

Box Contents:

• LS-M6TRV
• Remote Switch with Crane plug (Picatinny mount)
• Lens pen
• Black carrying bag
• Lens cleaning cloth
• Tools & manual
