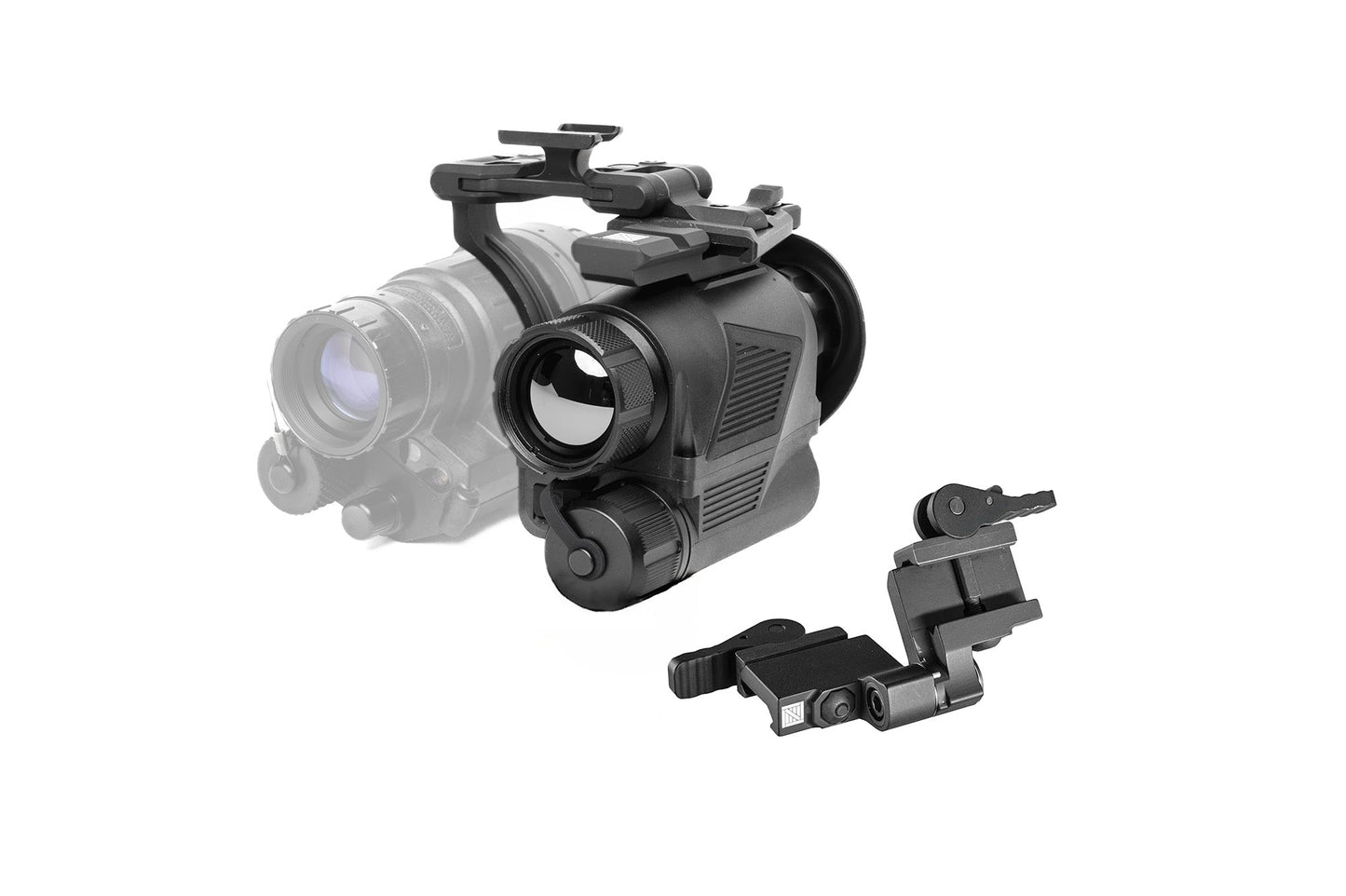

Jerry YM 2.0 Multi-Function Thermal Imager (CHS Edition)
Jerry YM 2.0 Multi-Function Thermal Imager (CHS Edition)
Replacing the popular MH25 and the Jerry-YM 1.0, the latest version of the Jerry-YM 2.0 offers true 4-in-1 capability in an impossibly-small and lightweight package that comes with all of the mounts and accessories to fulfill these multiple roles. This thermal device can be used in the following configurations:
- Handheld
- Helmet-mounted (dovetail helmet arm and G24-style dovetail mount included!)
- Stand-alone thermal weapon sight / scope (1913 Picatinny mount included! At lower 1/3 height 1.54")
- Clip-on, in front of a day optic such as a Low Power Variable Optic (eg: 1-6x or 1-8x scopes) - includes in-menu screen off-set adjustments to collimate with your day optic
While other devices require you to purchase additional mounts and accessories to fulfill these multiple roles, the Jerry-YM 2.0 package is complete right out of the box, saving the end-user hundreds of dollars in accessories.
The Jerry-YM 2.0 weighs less than 7 ounces/200 grams and includes additional features like a digital compass, inclinometer, up to 8x digital zoom and the ability to be powered by 3.7V 18650 batteries as well as off-board power via USB-C.
New Features for 2024 (2.0 CHS Edition)
New for 2024, the in-menu screen offset adjustments allow users to adjust the screen position to line up their already-zeroed day optic. This adjustment also helps users to align the image for use beside a night vision monocular for hybrid-thermal helmet setups.
Red hot mode is also enhanced to provide a hybrid rainbow gradient to help with target differentiation.
Box Contents:
- Thermal Monocular
- Dovetail monocular arm (allows switching from left to right eye)
- G24-style dovetail NVG mount
- 1.54" height (lower 1/3) Picatinny mount
- Carrying Case
- User Manual
- Cleaning Clothes
- USB-C cable
For a limited time, add an American Defense Manufacturing Flip-to-Side mount for a discounted bundle price!
Specifications:
Detector Type |
12µm Uncooled VoX Microbolometer |
Core Resolution |
640x480 |
NETD |
<= 25mK |
Refresh Rate |
50Hz |
Lens System |
27mm, F/1.1 |
FOV |
16.3° x 12.3° |
Magnification |
1-8x |
Detection Range |
1200m or yards |
Exit Pupil Distance |
20mm |
Diopter Adjustment |
-5 to +5 |
Digital Zoom |
1,2,4,8x |
Rear Display |
1024x768 OLED |
Palettes |
White-hot, Black-hot, Orange-hot, Rainbow |
Temperature Modes |
Default, Outdoor, Arctic, Rainforest |
Auto-NUC |
Yes; manual also |
Digital Compass |
Yes |
Picture in Picture |
Yes |
Crosshair |
Display on/off; Position Adjustment; White, Black or Green colour |
Digital Inclinometer |
Yes (roll and pitch) |
Analog Video Output |
PAL via USB port |
Battery Type |
|
Battery Operating Time |
|
USB-C interface | Power Input/ USB-RS232/PAL video output |
External Power | 5VDC/2A; 1.5W |
Working Temperature | -20C to 50C |
Protection Level | IP67 Waterproof |
Dimensions | 140x70x50mm |
Weight | 220g |
3-Year Manufacturer's Warranty included.
User manual HERE.
