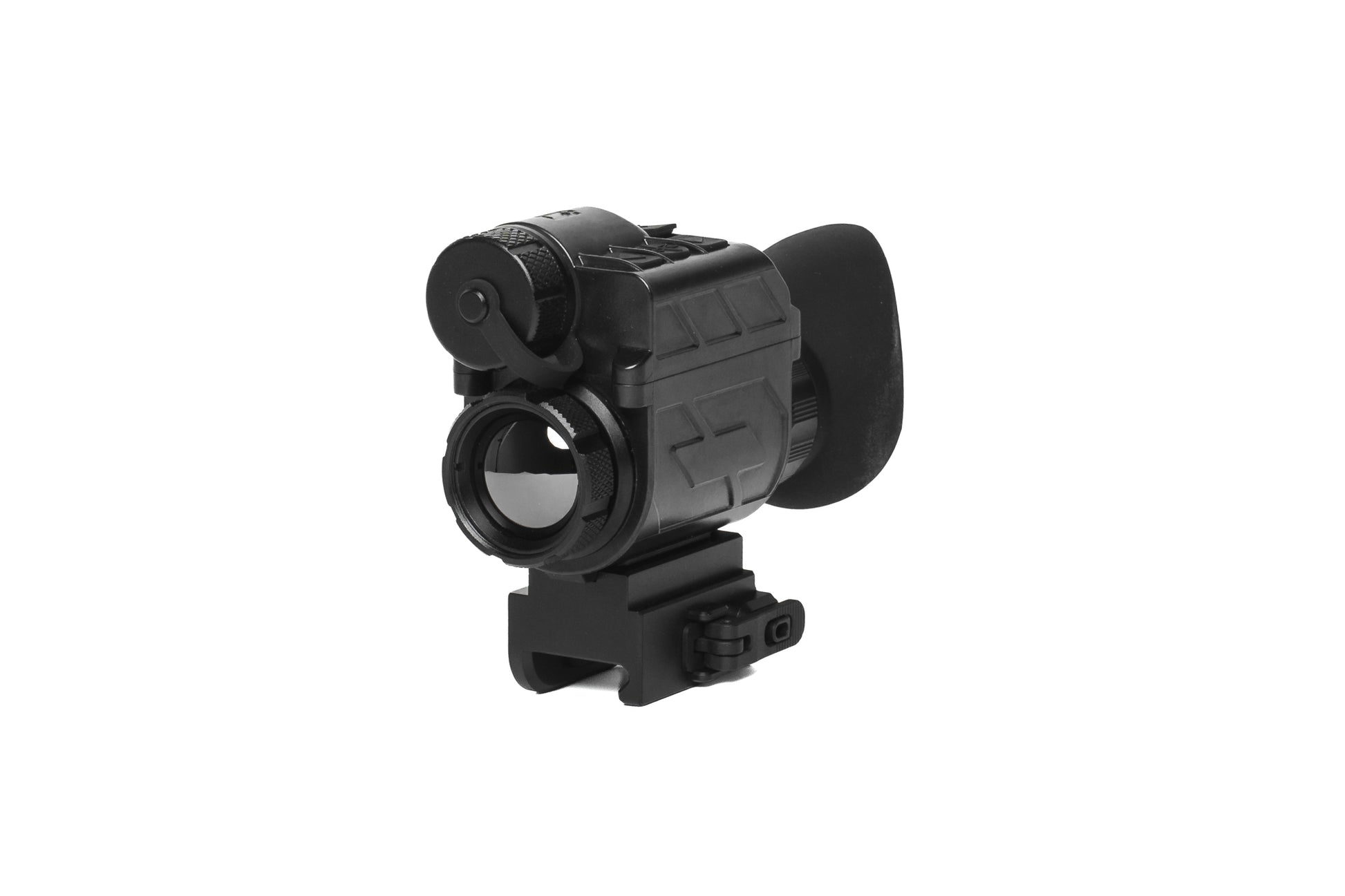

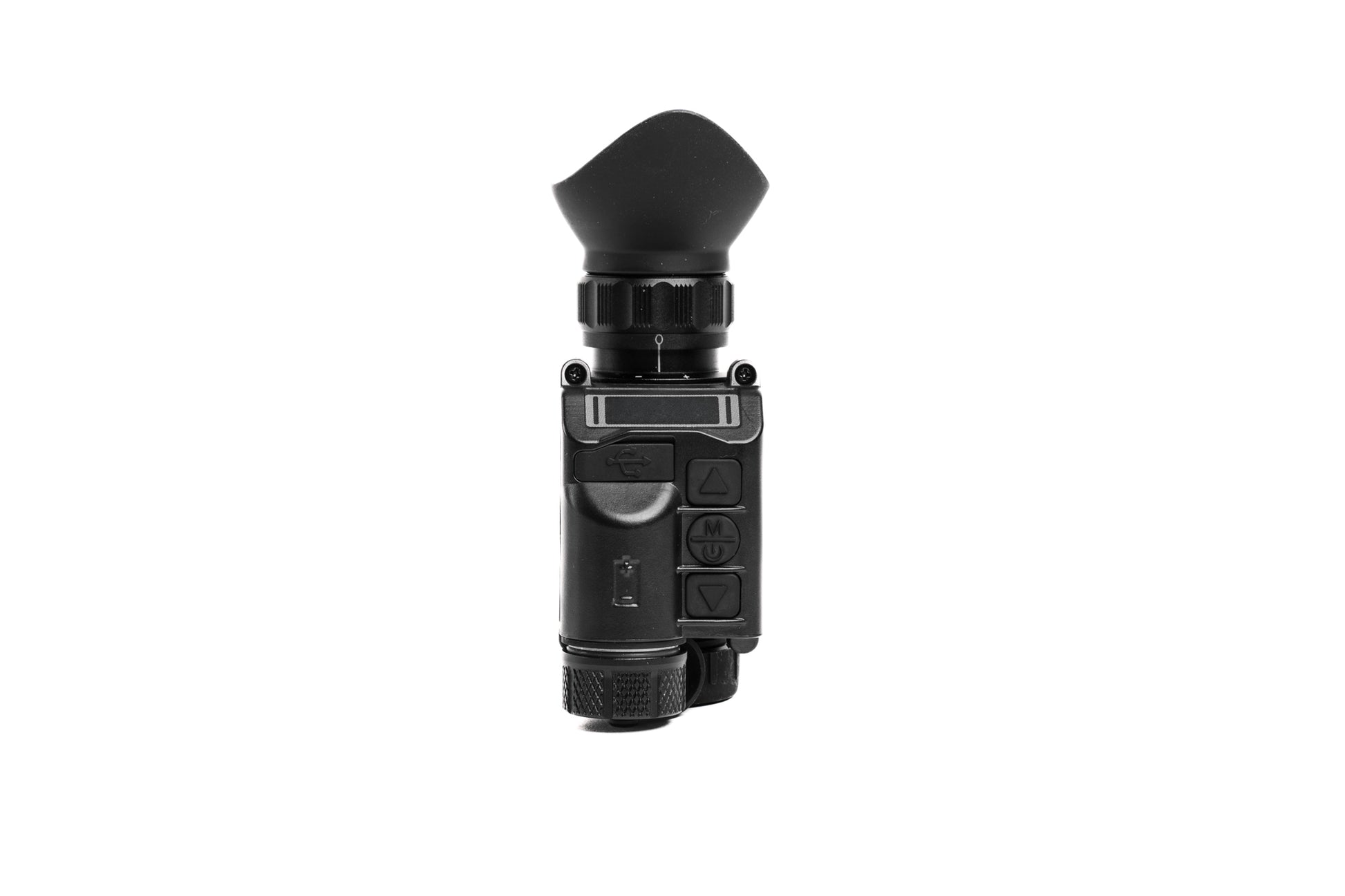

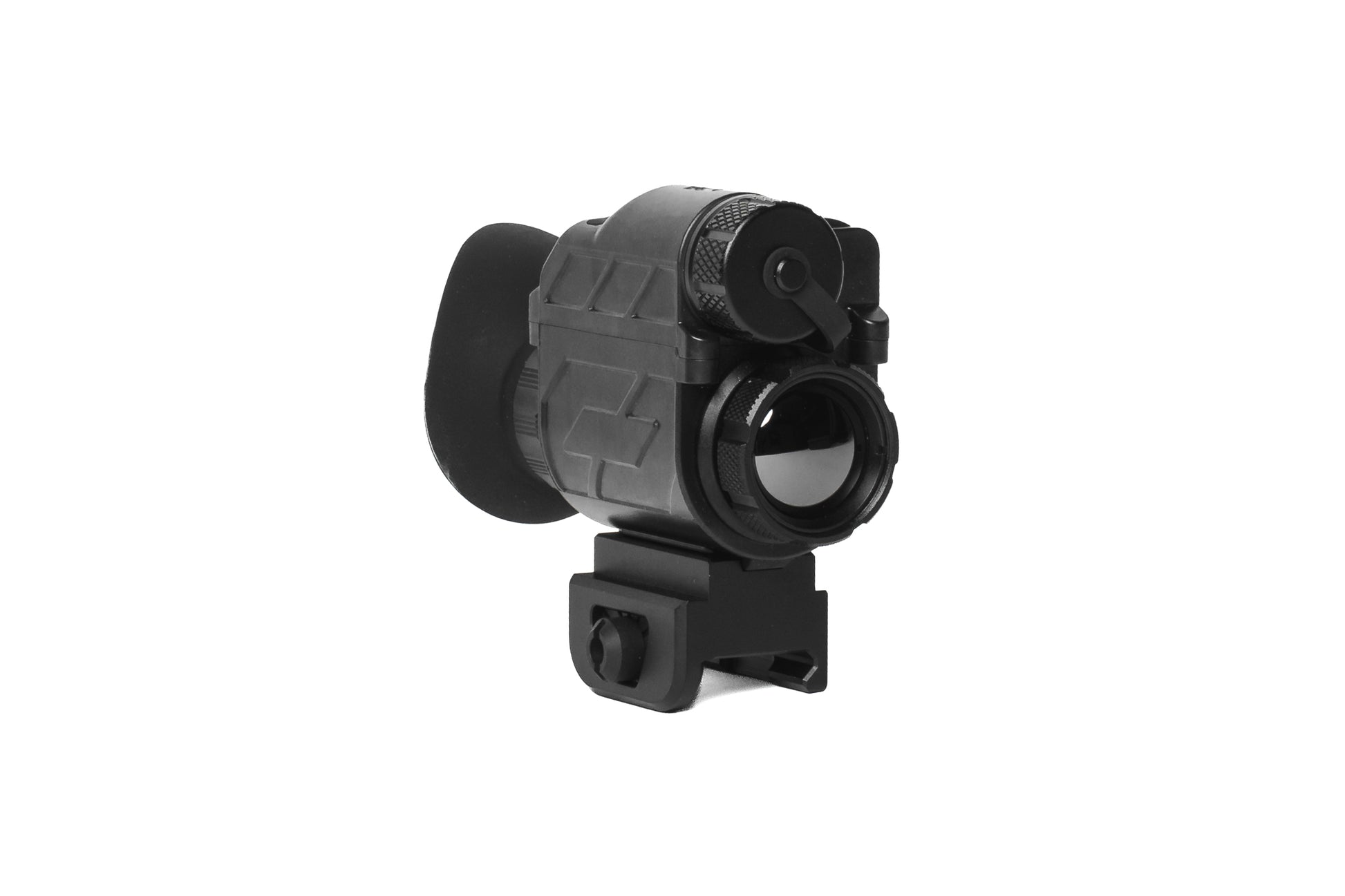

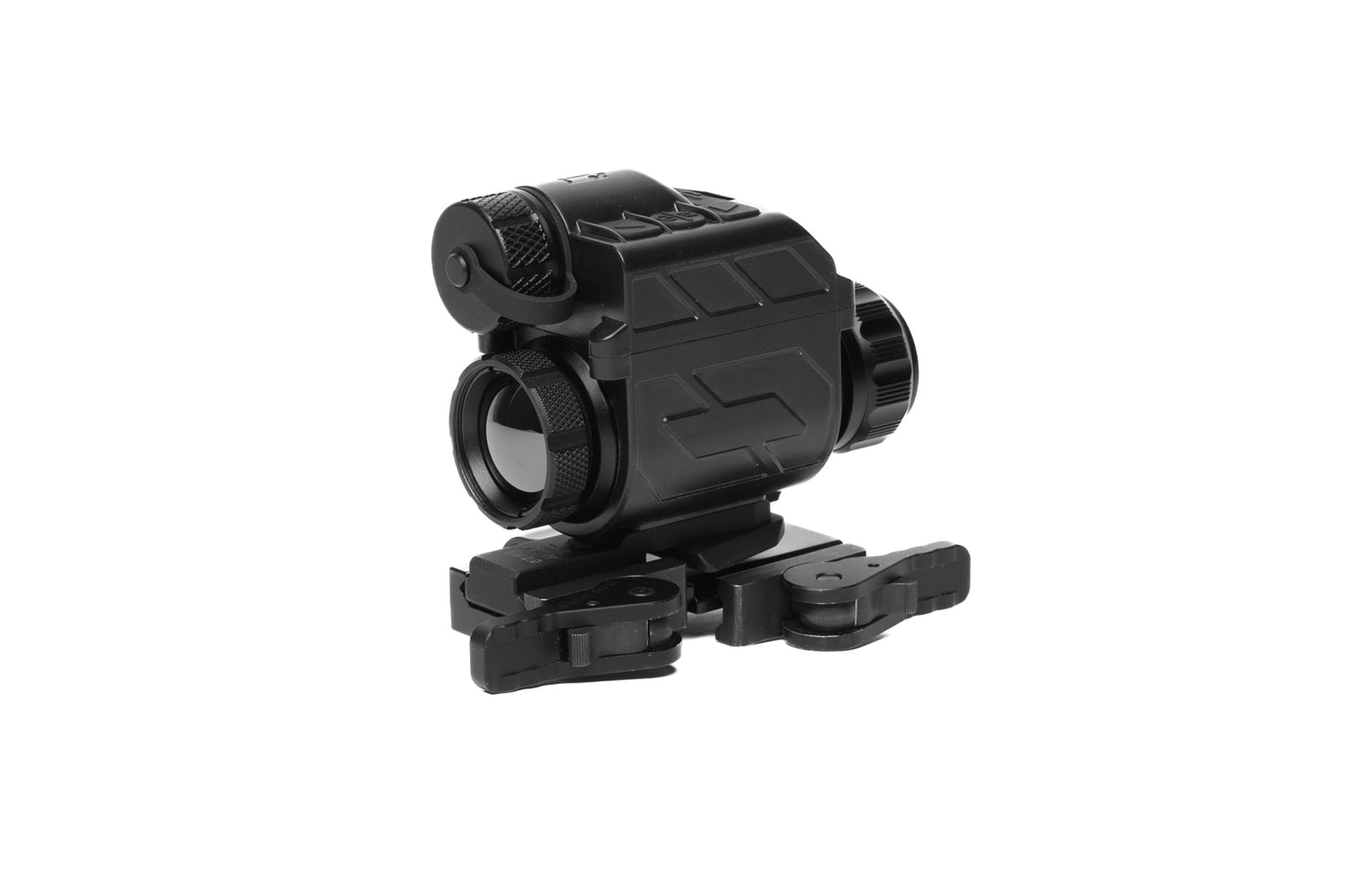

Jerry-YM Mini Multi-Purpose Thermal Monocular

**This EXCLUSIVE VERSION of the Jerry-YM Mini includes the screen off-set menu, that is critical for both helmet-mounted and clip-on use. See details below. Beware of imitation devices on the market without this feature.

The Jerry-YM Mini is the re-release of the wildly popular AGM STINGIR640 - a lightweight thermal monocular perfect for handheld, helmet, and even rifle-mounted applications.

Key Features

• 640x512 high-resolution, 12µm sub-25mK NETD thermal core
• 1200m detection range
• Fast 50Hz Refresh Rate
• True 4-in-1 device (standalone thermal, clip-on, helmet-mount, handheld)
• Includes all accessories for roles above (quick-release Pictainny mount, dovetail helmet rail, and adjustable scope end-bell mount for clip-on applications)
• Small size and weight (220 grams!)
• Quad-fuel - multiple power ptions (CR123A, 18650 flat-top and button-top, offboard power via USB-C)
• Battery compartment is in a vertical orientation and does not impinge on a night vision monocular in dual-band configurations
• Digital compass and inclinometer
• Built-in 8x digital zoom

Screen Offset Adjustment

This exclusive edition of the Jerry-YM Mini features a built-in screen offset adjustment menu that allows users to move the position of the screen inside the eyepiece digitally. This allows users to properly collimate this device for use in front of a day scope such as an LPVO, or a red dot/magnifier mount combo to ensure proper point-of-aim/point-of-impact. The screen offset menu is also useful when running in Dual Band/Hybrid configuration side-by-side with a night vision monocular and allows users to adjust the position of the thermal screen to better line up with the night vision image for improved fusion experience.

For a limited time, select from our available kit bundles that allow you to quickly transition between the various different configurations). Specify optic height in your order notes. 1.54" and 1.93" heights available.

• Rifle Kit - PDAP (Picatinny Dovetail Adapter Plate) + UP-FTS (Universal Picatinny Flip to Side)

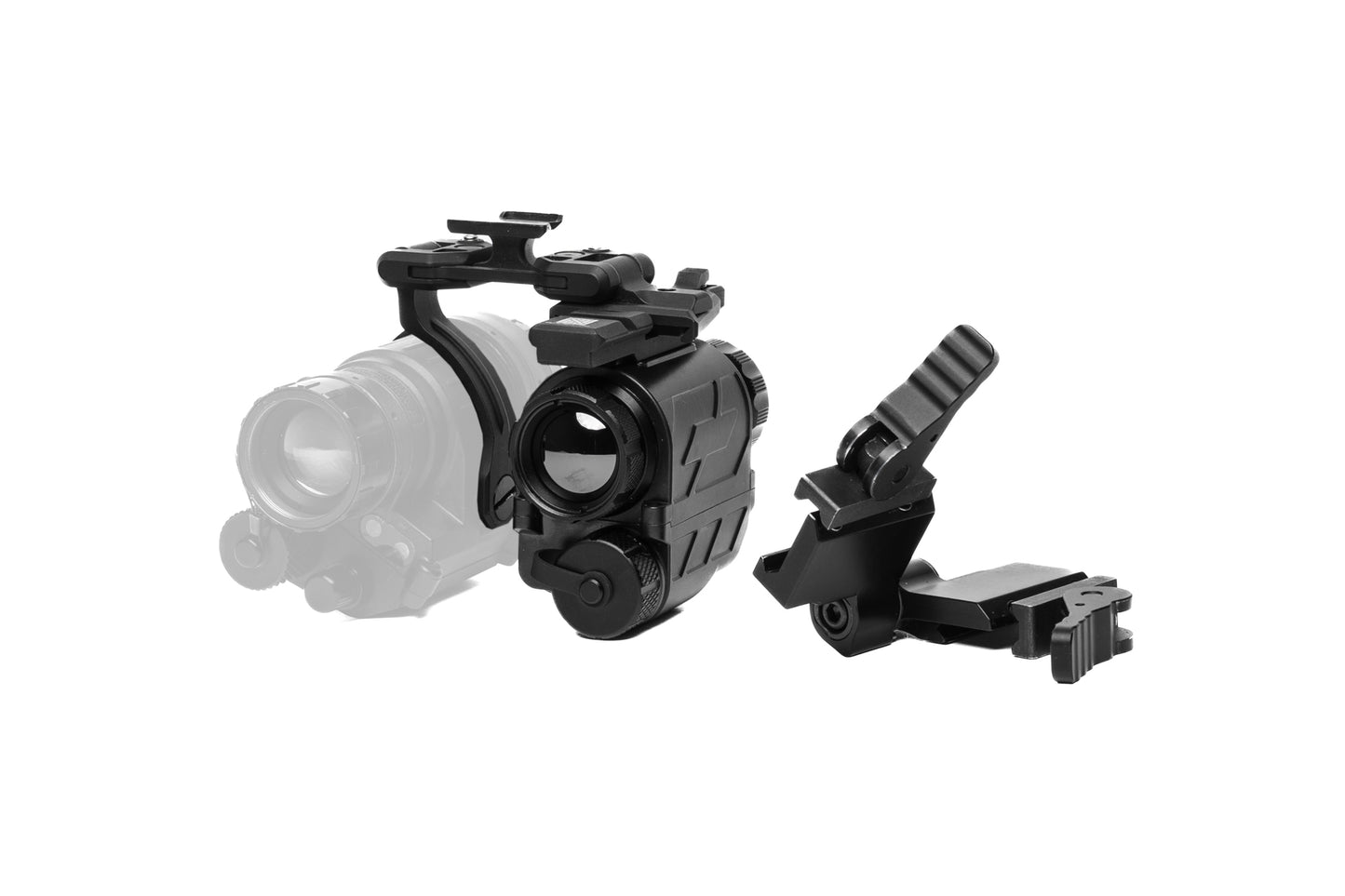

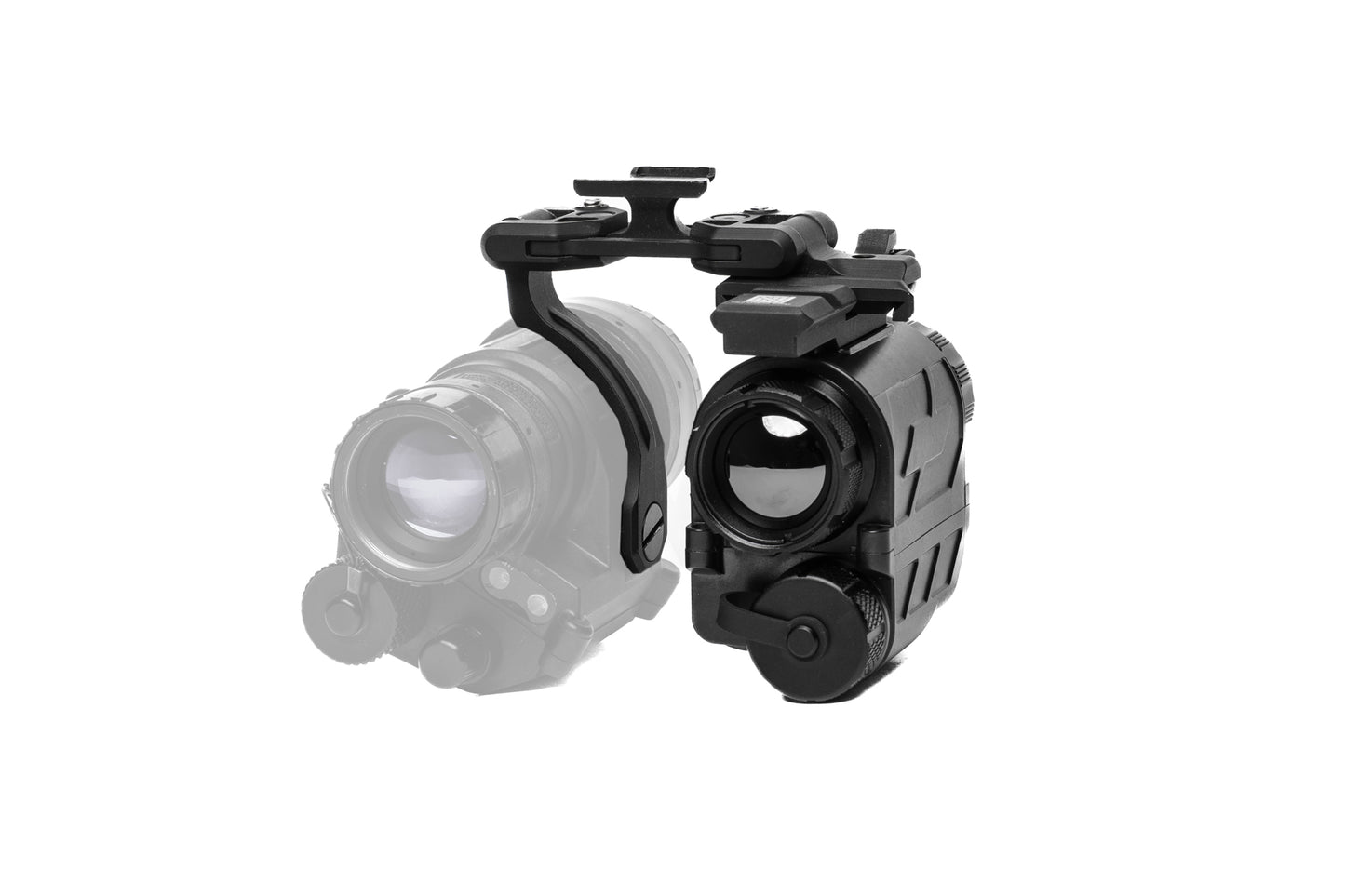

• Dual-Band Kit - PDAP (Picatinny Dovetail Adapter Plate) + Panobridge FX1 + Panobridge MQD
• Full Kit - PDAP (Picatinny Dovetail Adapter Plate) + Panobridge FX1 + Panobridge MQD + UP-FTS (Universal Picatinny Flip to Side)

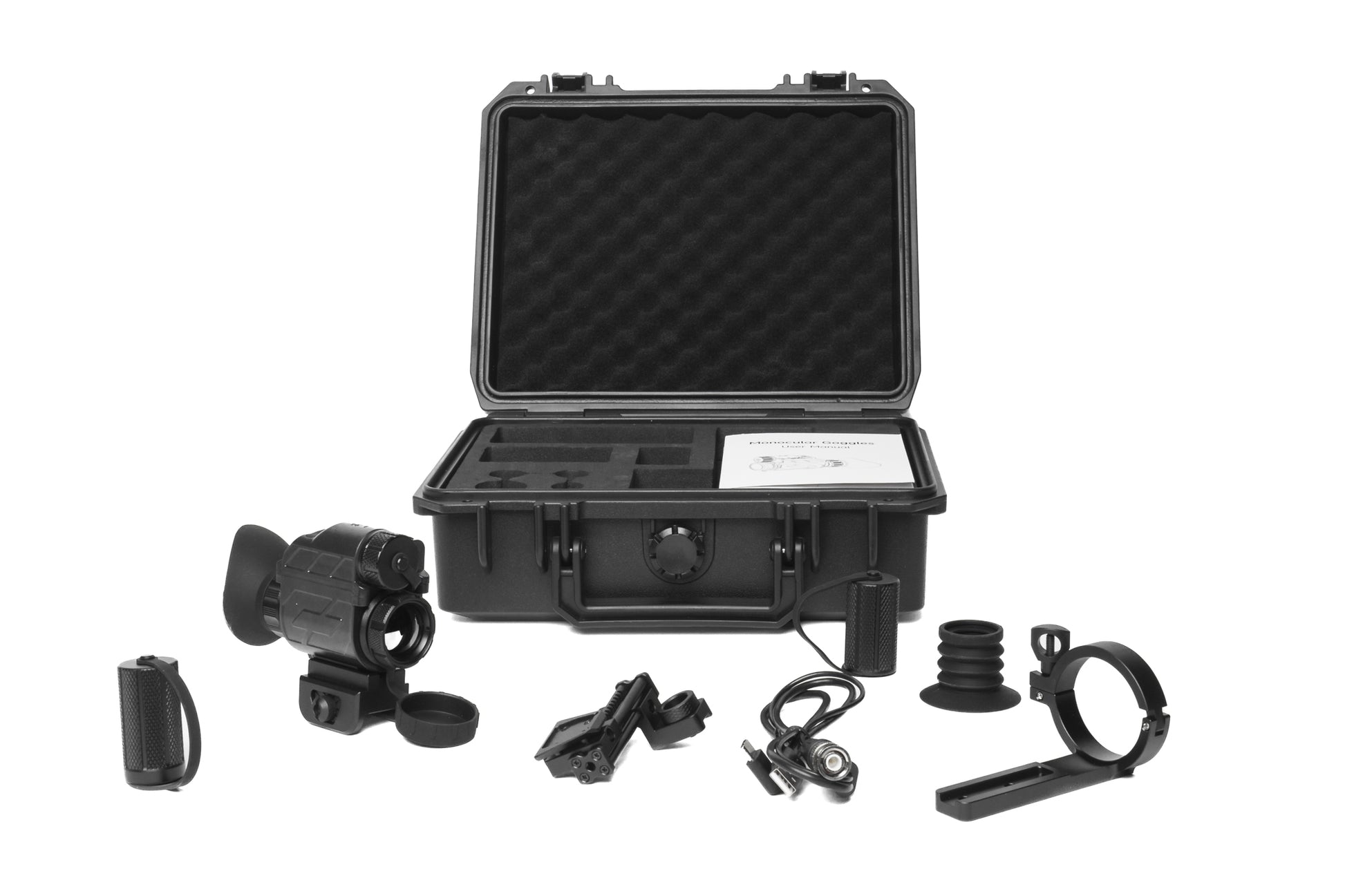

Complete factory-default package includes:

• Jerry-YM Mini Monocular
• Helmet Adapter Bracket (allows left- or right-eye use; requires dovetail NVG mount)
• Picatinny Quick Release Mount
• Adjustable Clip-On Scope Mount
• Lens Cap
• Eye Cup
• Microfibre cloth
• 18650 Battery Cap (button cell)
• 18650 Battery Cap (flat-top cell)
• USB-C & Video Out Cable
• Manual & Product Certificate
• Hard Case

Specifications:

User Manual HERE

Product Data Sheet HERE
