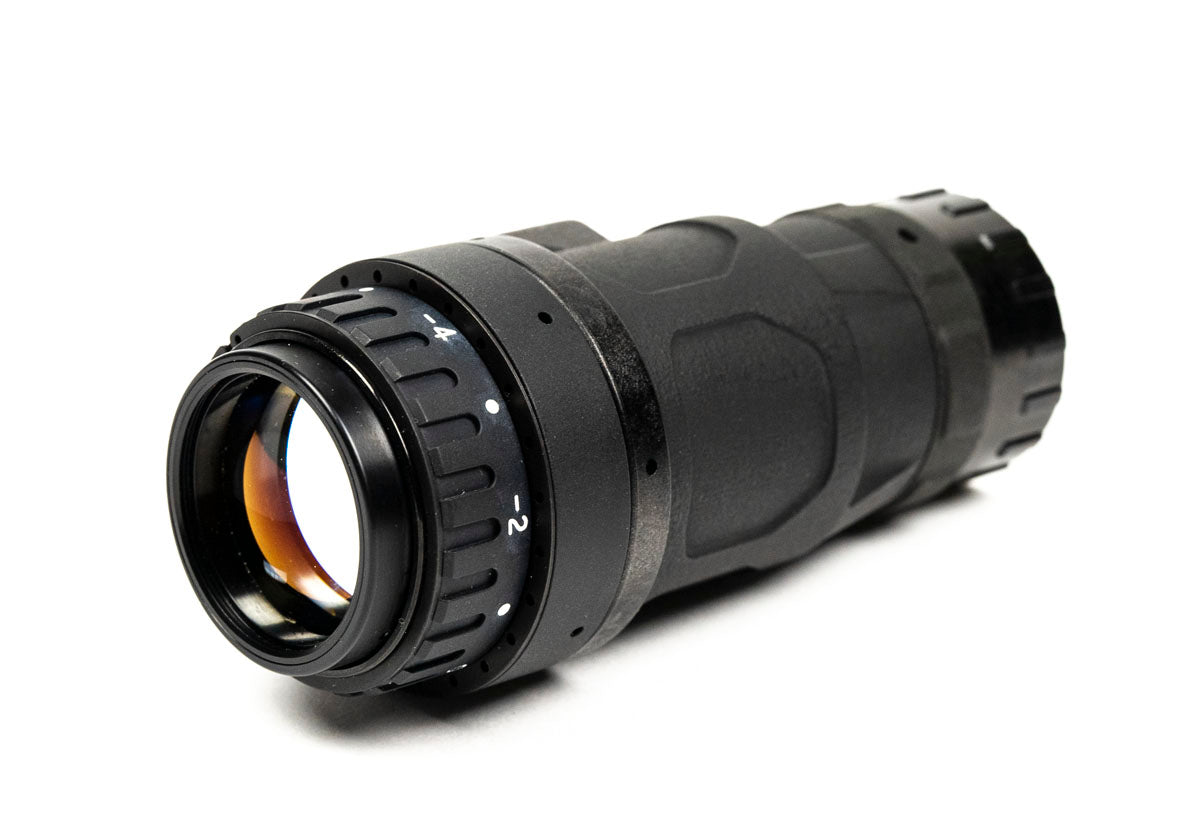

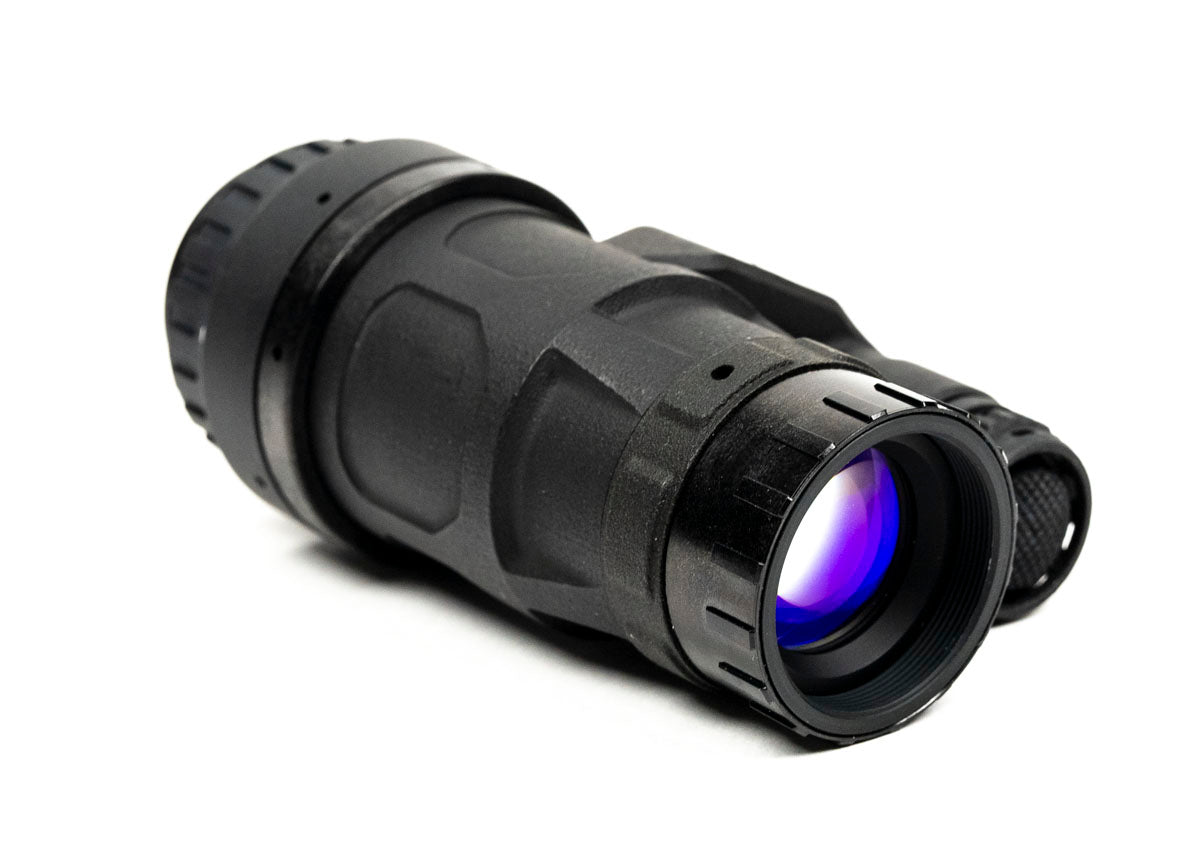

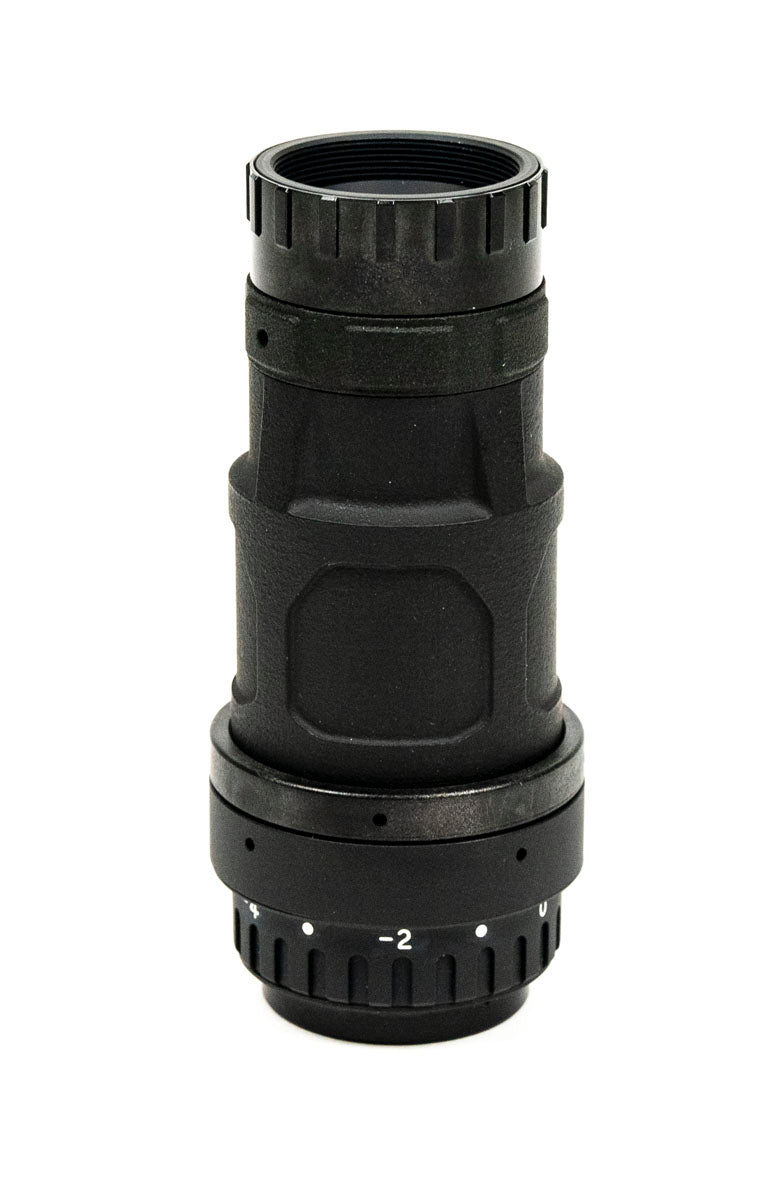

Custom Built Nocturn Industries Tanto Monocular

Custom Built Nocturn Industries Tanto Monocular

Regular price $2,905.00 USD
Regular price Sale price $2,905.00 USD
Sale Sold out

**For the most up-to-date lead times, please see this page HERE**

The Nocturn Industries Tanto is the first step in a paradigm shift in convertible and scalable night vision systems. When paired with another Tanto and the Daisho articulating bridge, the system is transformed into a single-power, articulating bridge that weighs similar to dedicated binocular systems. No longer do users have to purchase a PVS-14 and then sell it if they want to move into a binocular system, they now simply have to additively scale the system as required.

The Cold Harbour Supply Tanto Complete Monocular system is assembled with your choice of the following intensifiers (in order of performance):

  • NNVT NVT4-AG (1600+ FOM autogated)
  • Photonis Echo (1600-2000FOM autogated)
  • Photonis Echo+ (2000+ FOM autogated)
  • Photonis Echo++ (2200+ FOM autogated)
  • Photonis 4G High Gain (1800-2200+ FOM autogated)

and US Milspec Noctis Technologies (formerly Carson Industries) US Milspec lenses for the highest optical quality available in the areas of contrast, rectilinear distortion, light transmission, lack of chromatic aberrations, and off-axis flare reduction and artifacting.

This build utilizes US Milspec Noctis Technologies (formerly Carson Industries) or Edmund optics for the highest levels of performance with no optical trade-offs such as reduced eyebox viewing window, excessive lens flaring, oddly-shaped flare artifacts, or distracting rings of light as seen on lightweight lens systems. Click HERE for an analysis on lightweight lens systems.

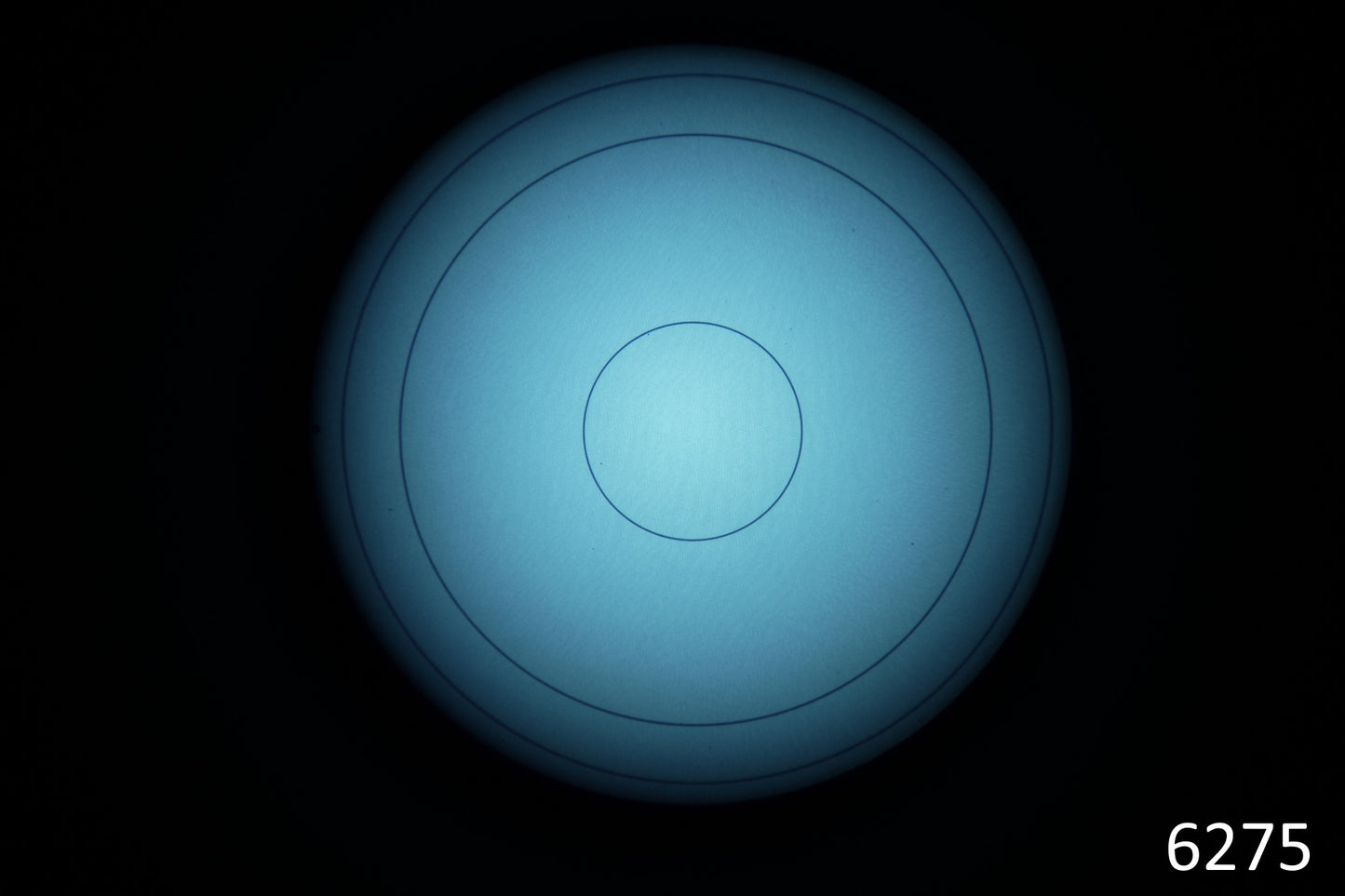

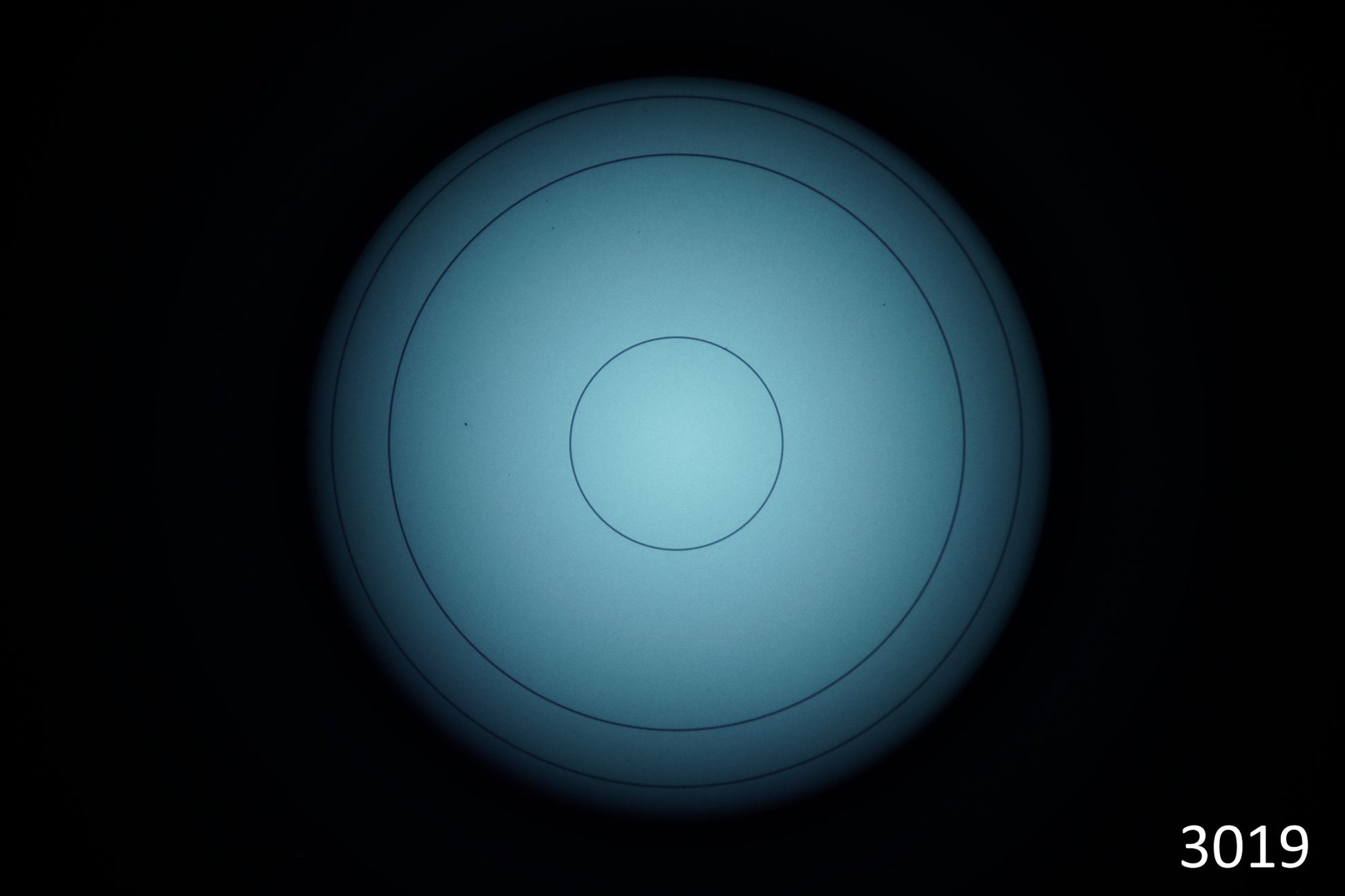

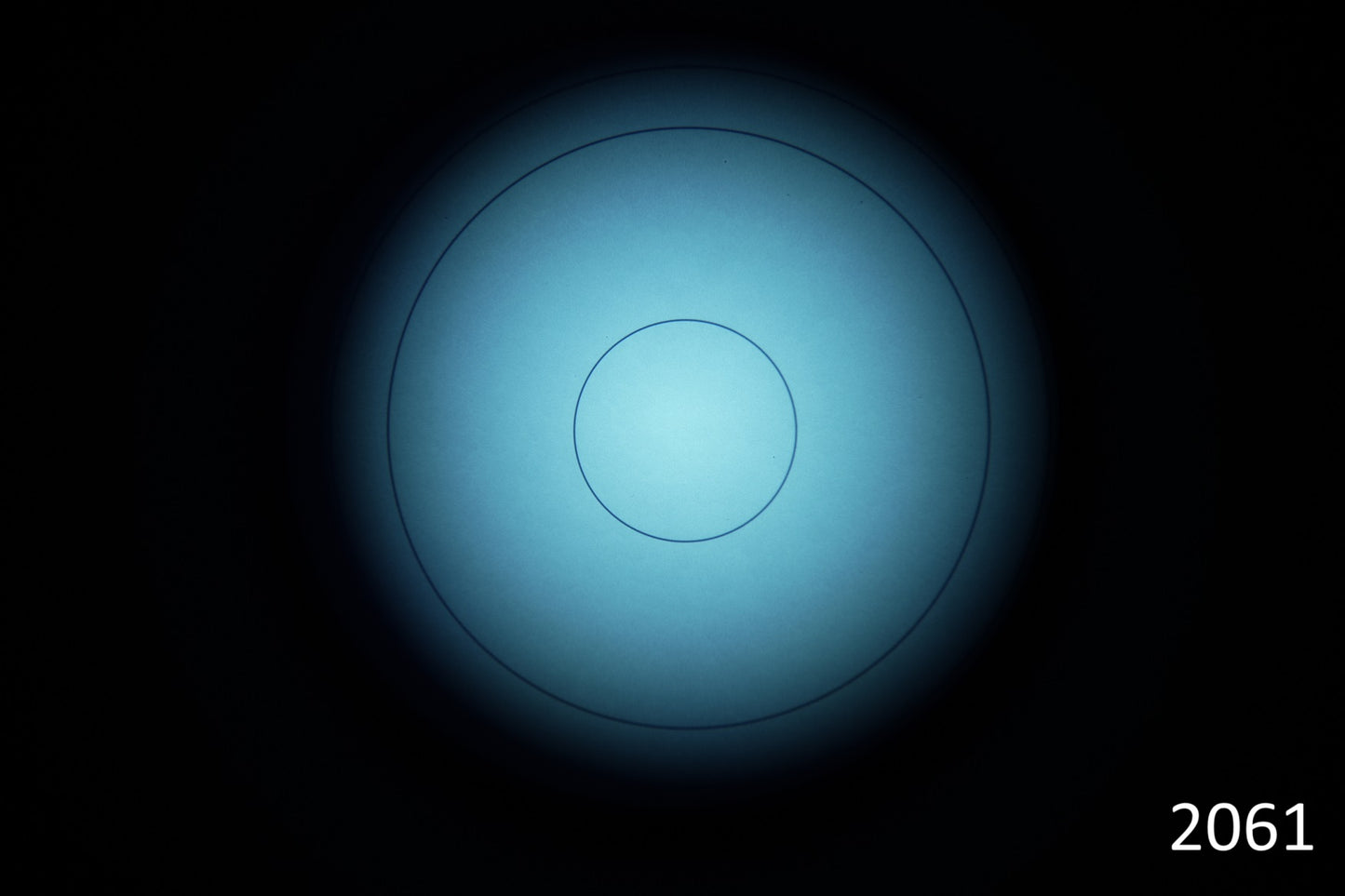

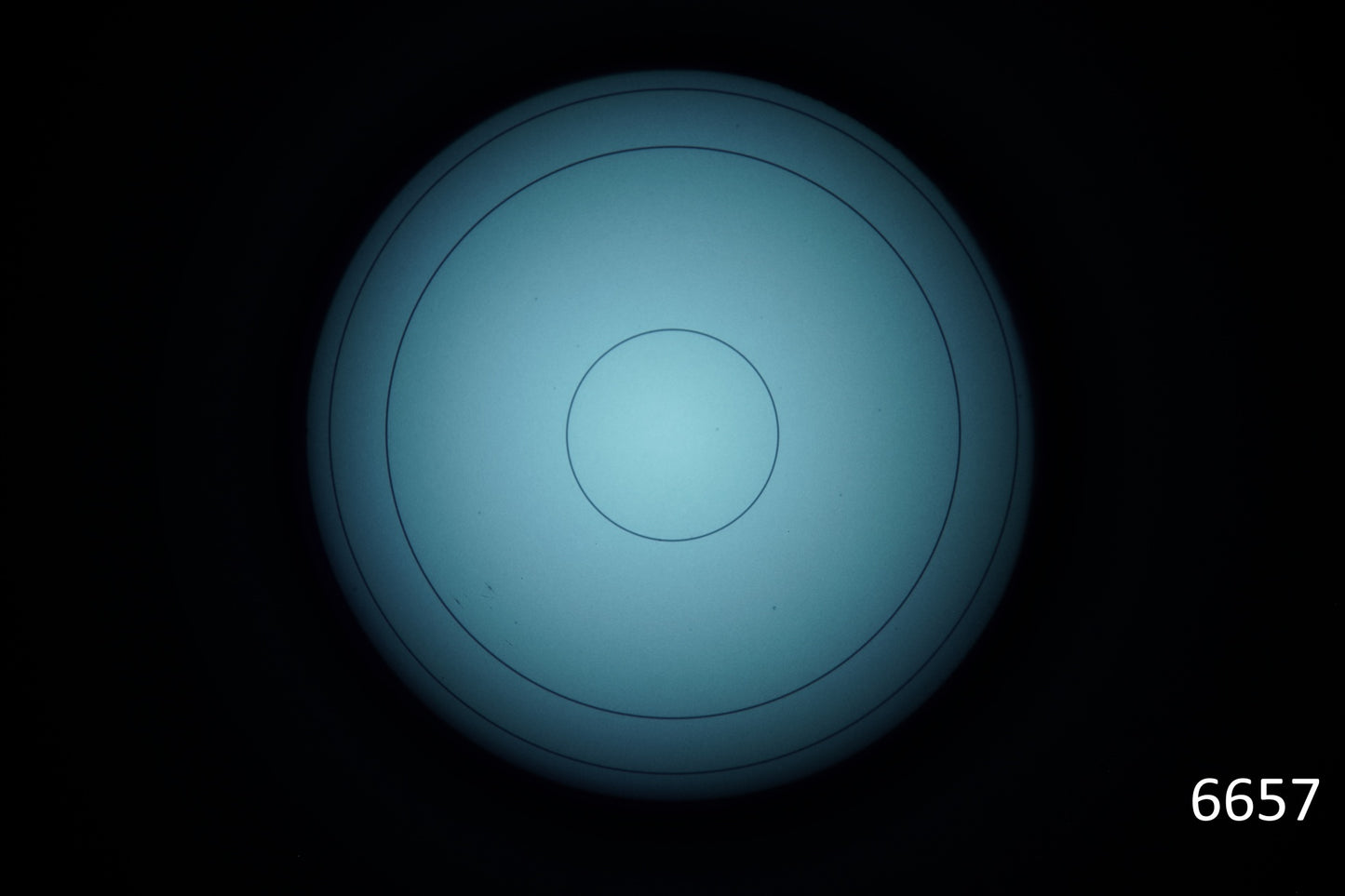

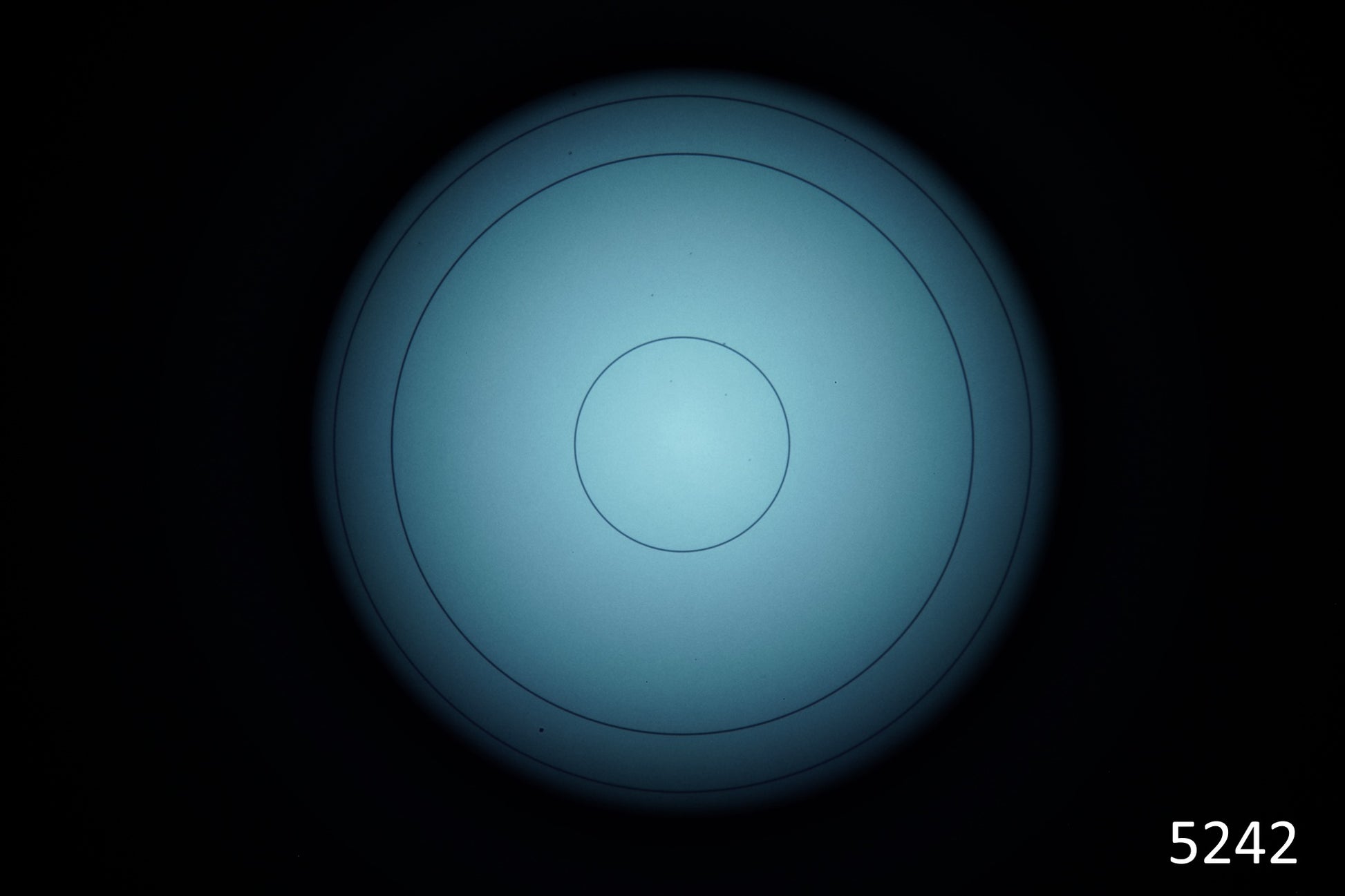

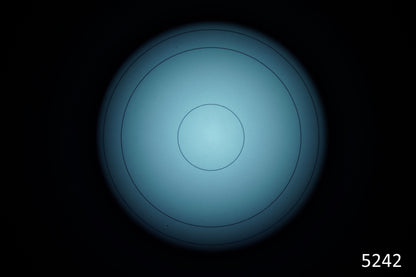

Each device will also be tested using our in-house Hoffman night vision test set and a full test report will accompany each unit.

The Tanto, in its monocular configuration, shares the same J-arm footprint as the PVS-14, but is substantially lighter. To transform into a binocular, users simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”.

Push button on/off in the cap reduces weight and complexity, and reduces the footprint of the monocular. When assembled to the TAB “Daisho” bridge, extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

The Tanto is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.

Specifications
Material Polymer
Tube Type 18mm MX-10160 style or MX11769 style with EGAC pigtail removed.
Figure of Merit (FOM) SNR x LP/mm NNVT (1700+ FOM)
Photonis Echo (1600-2000 FOM)
Photonis Echo+ (2000+ FOM)
Photonis Echo++ (2200+ FOM)
Weight 248g with standard optics and a battery
Power Supply CR123 onboard
Runtime 40+ hours
Field of View 40º
Diopter Adjustable +2 to -6
Submersion and Dust Rating IP68 equivalent
Mount Style PVS-14 J-arm style mount

Includes:

  • Nocturn Industries Tanto Monocular Complete
  • Hoffman Test and Tube Spec Sheets
  • 10 Year CHS Warranty
