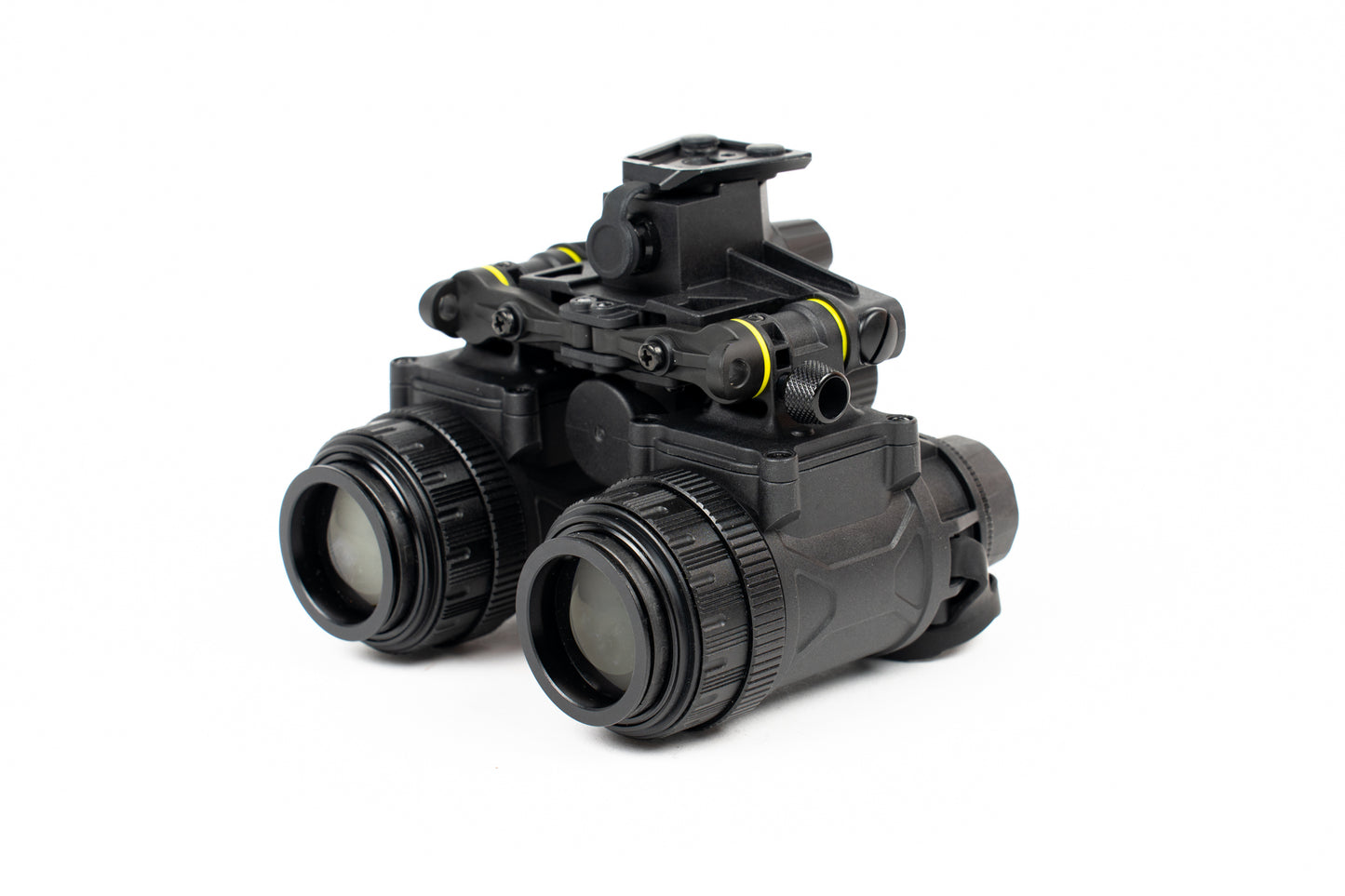

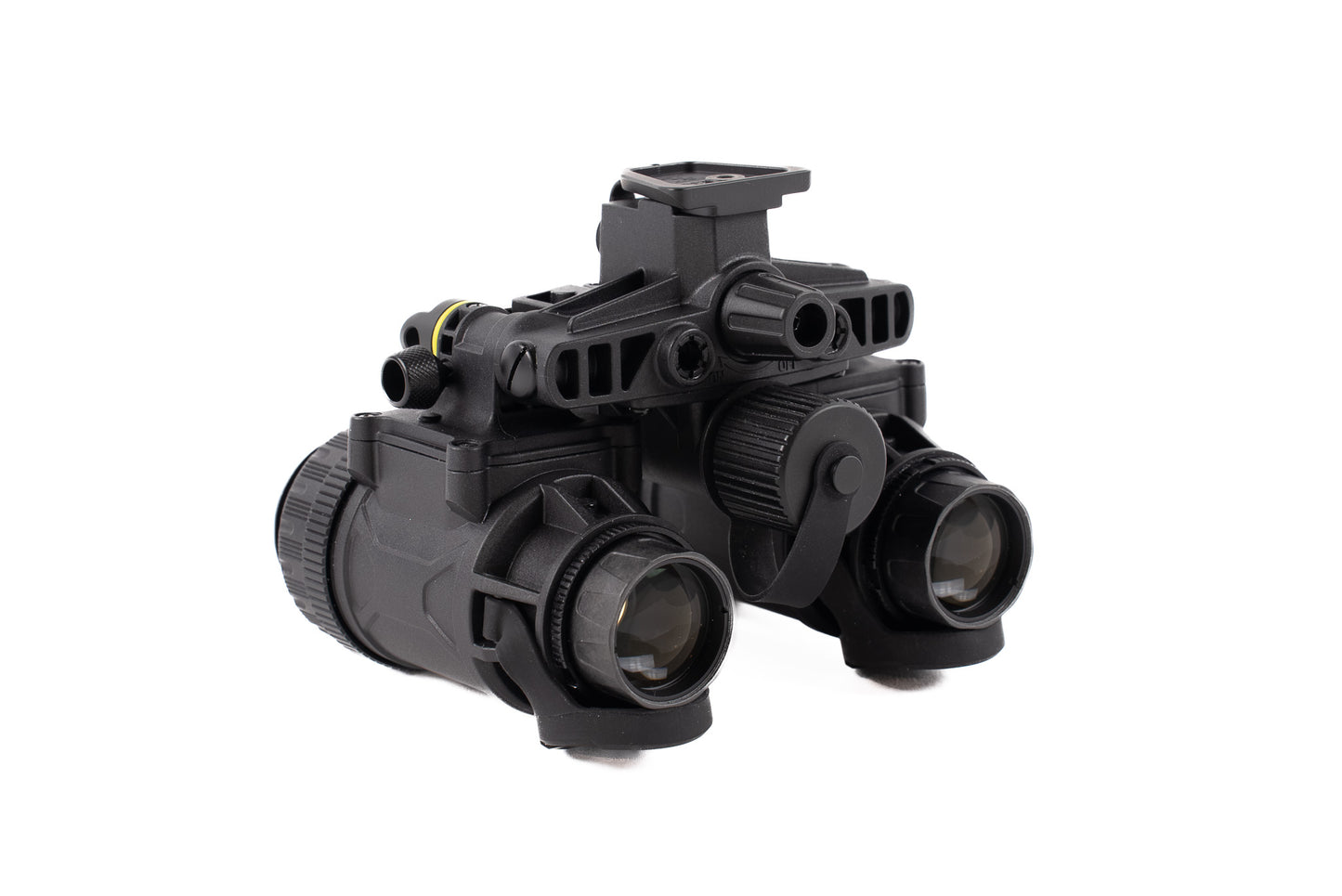

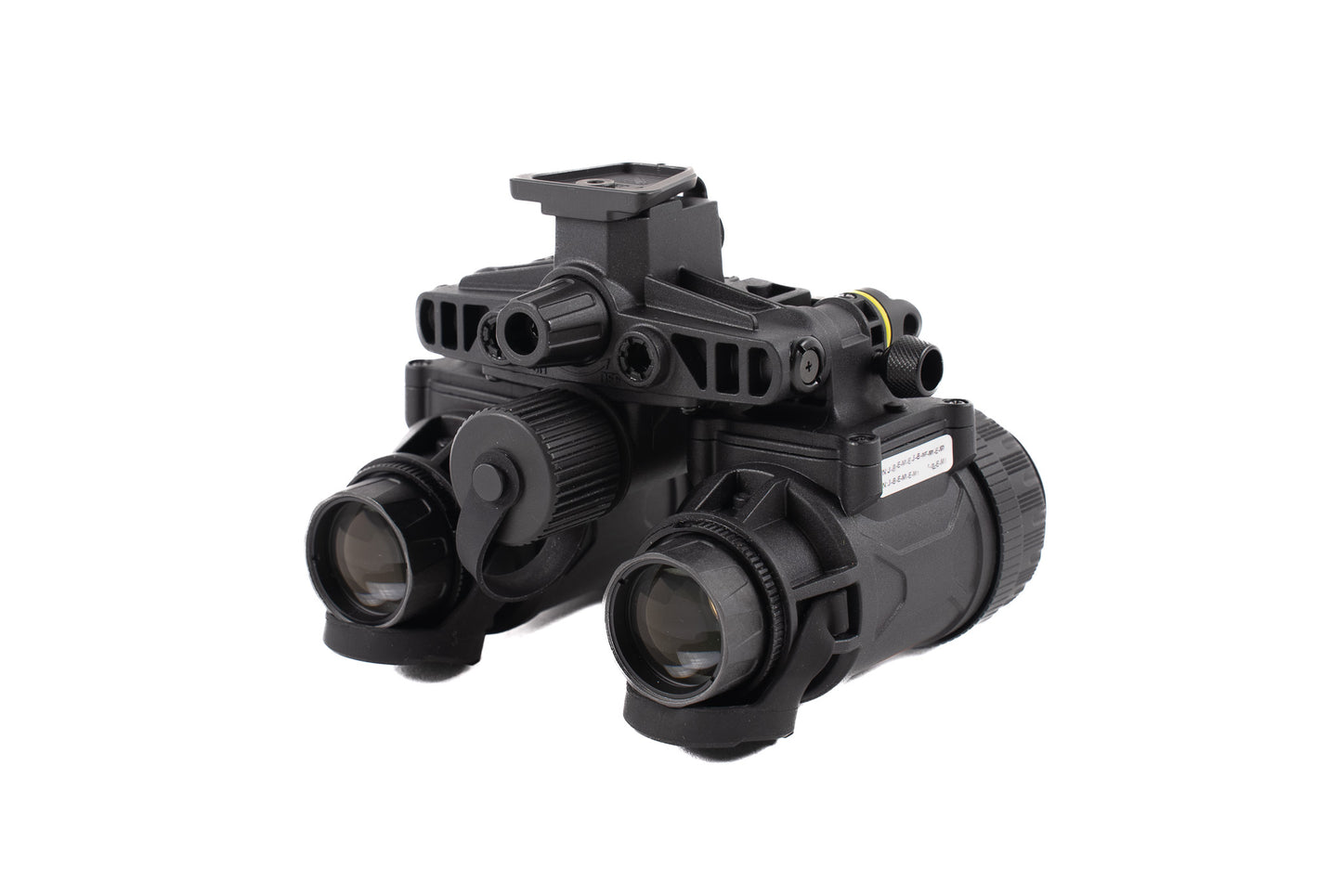

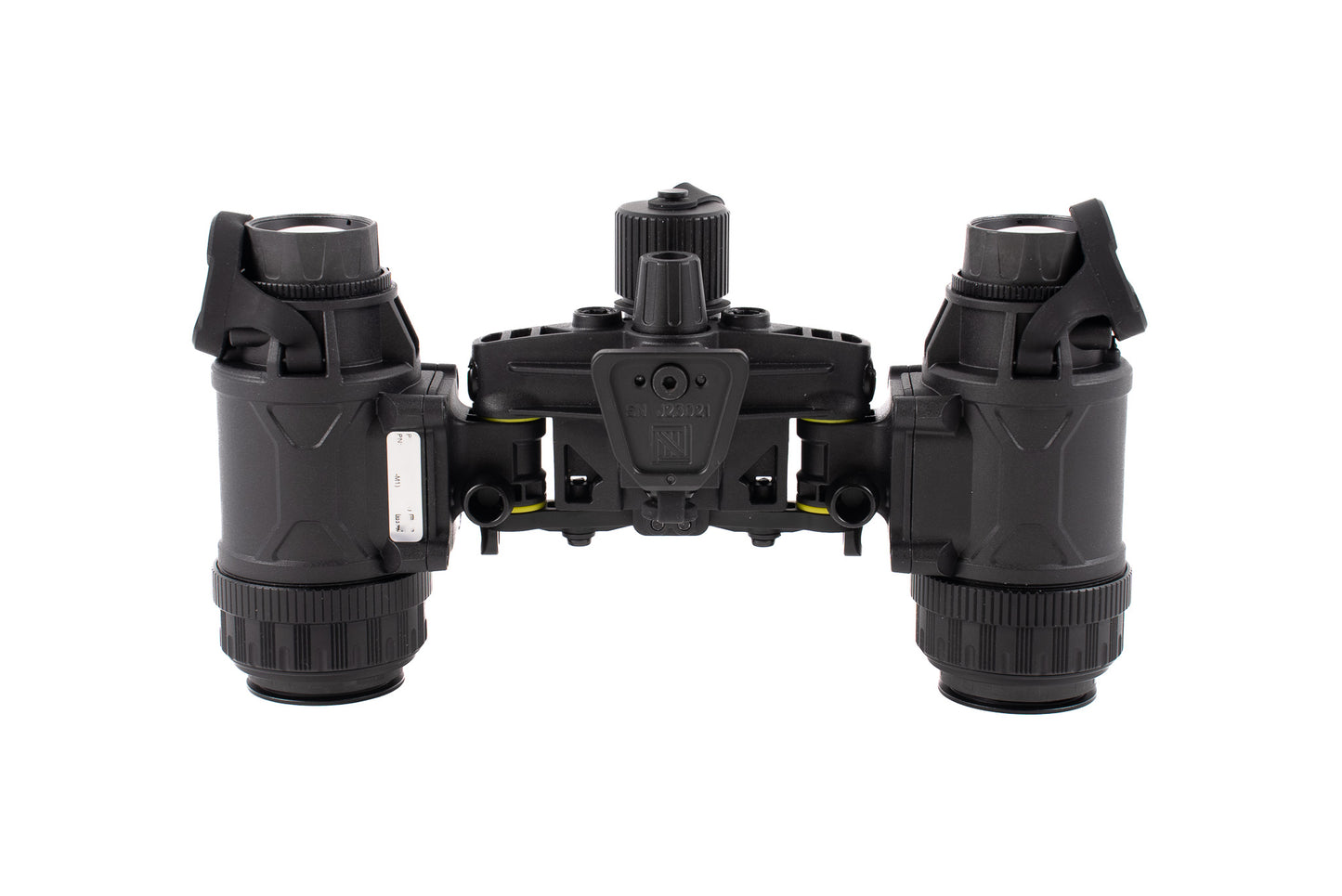

Infiray Jerry-31 Night Vision Binocular

Infiray Jerry-31 Night Vision Binocular

Regular price $4,699.00 USD
Regular price $4,699.00 USD Sale price $4,699.00 USD
Sale Sold out

*Temporarily sold out. Backorders open. ETA July 19*

The Infiray Jerry-31 Night Vision Monocular is an ultra-lightweight, full-featured night vision binocular that features NNVT NVT4 1400-1600 FOM manual gain, non-autogated, white phosphor image intensifiers.

The NNVT intensifiers for the Jerry-31 are premium, hand-selected for the best screen cosmetics and performance. Weighing in at only 481g without battery, the Jerry-31 comes with a LOT of features you would expect from higher-priced, heavier offerings. The Jerry-31 is also extremely low-profile and significantly shorter than most other NVG binoculars on the market today - reducing the operator's overall head profile.

For a limited time, we are offering to install our Cold Harbour Converter Rings which will allow you to use any PVS-14 lens accessory such as our NV Defender or CHADs. Simply leave a note in the order comments! This allows you to Add front (objective) lens protection via our NV Defender lenses or CHAD iris devices.

Features

  • 1400-1600 FOM White Phosphor Intensifiers
  • Manual Gain

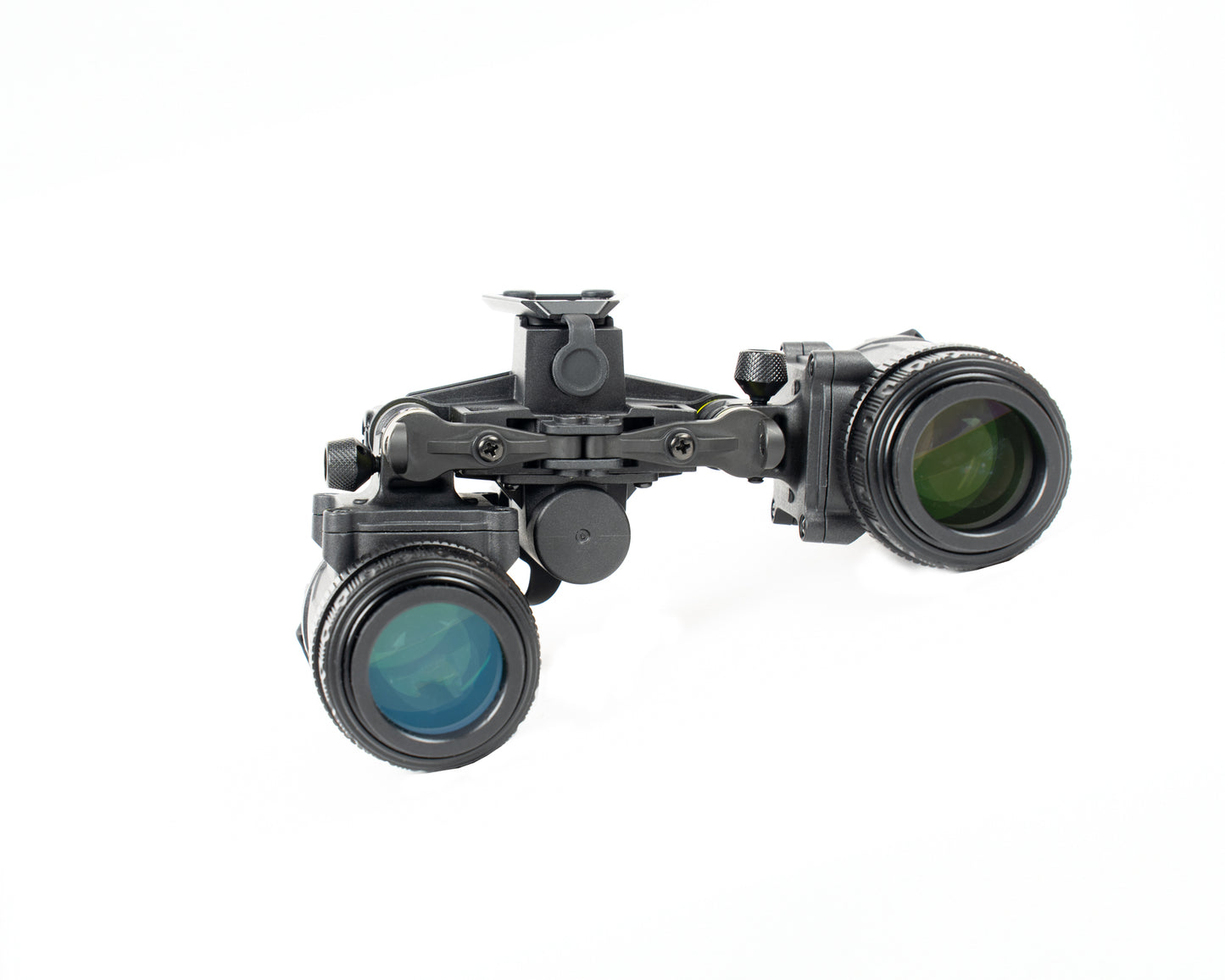

  • Individual pod shut-off when rolled out of view (can be disabled)
  • Unit auto-off when stowed vertically (can be disabled)
  • Built-in IR illuminator and low battery indicator
  • User-adjustable pod tension via two Philips #1 screws on rear of unit
  • Interpupillary Distance (IPD) stops

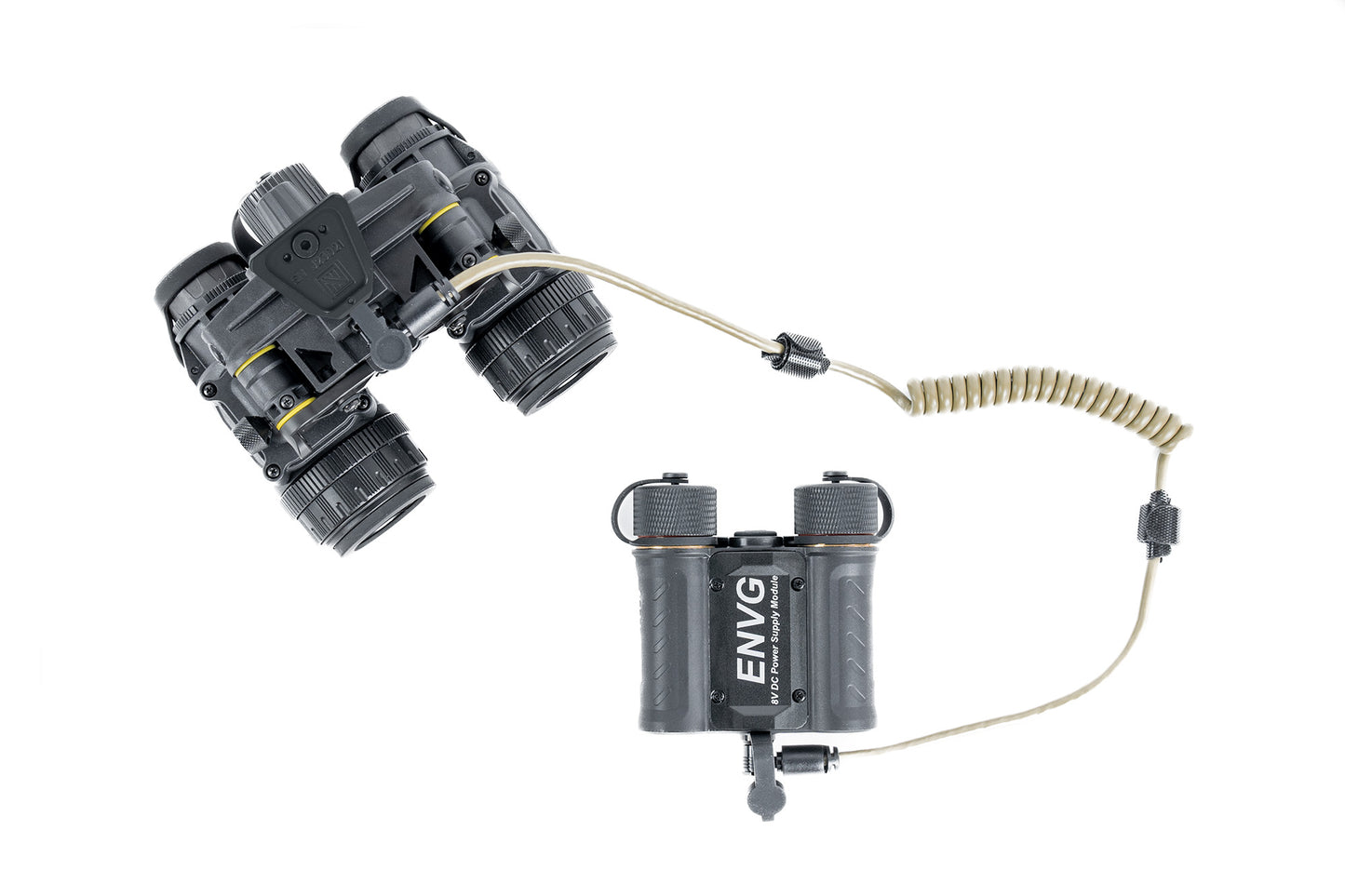

  • Remote battery capable with Jerry battery pack (sold separately)
  • Adjustable focus and eyepiece diopters

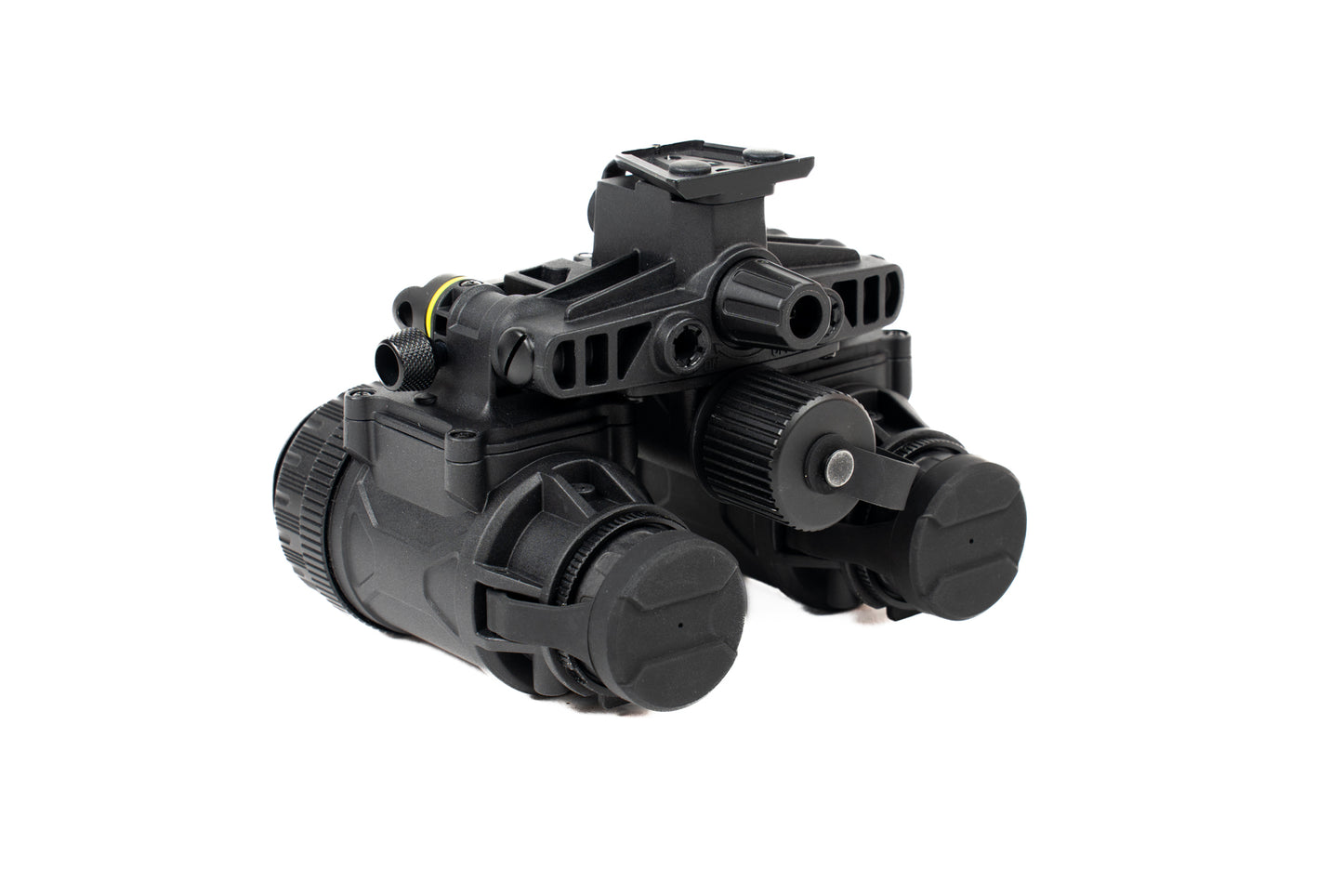

  • Built-in rubber day/dust lens covers
  • Uses common AA batteries
  • Waterproof to 1 metre
  • Comes with padded carry case

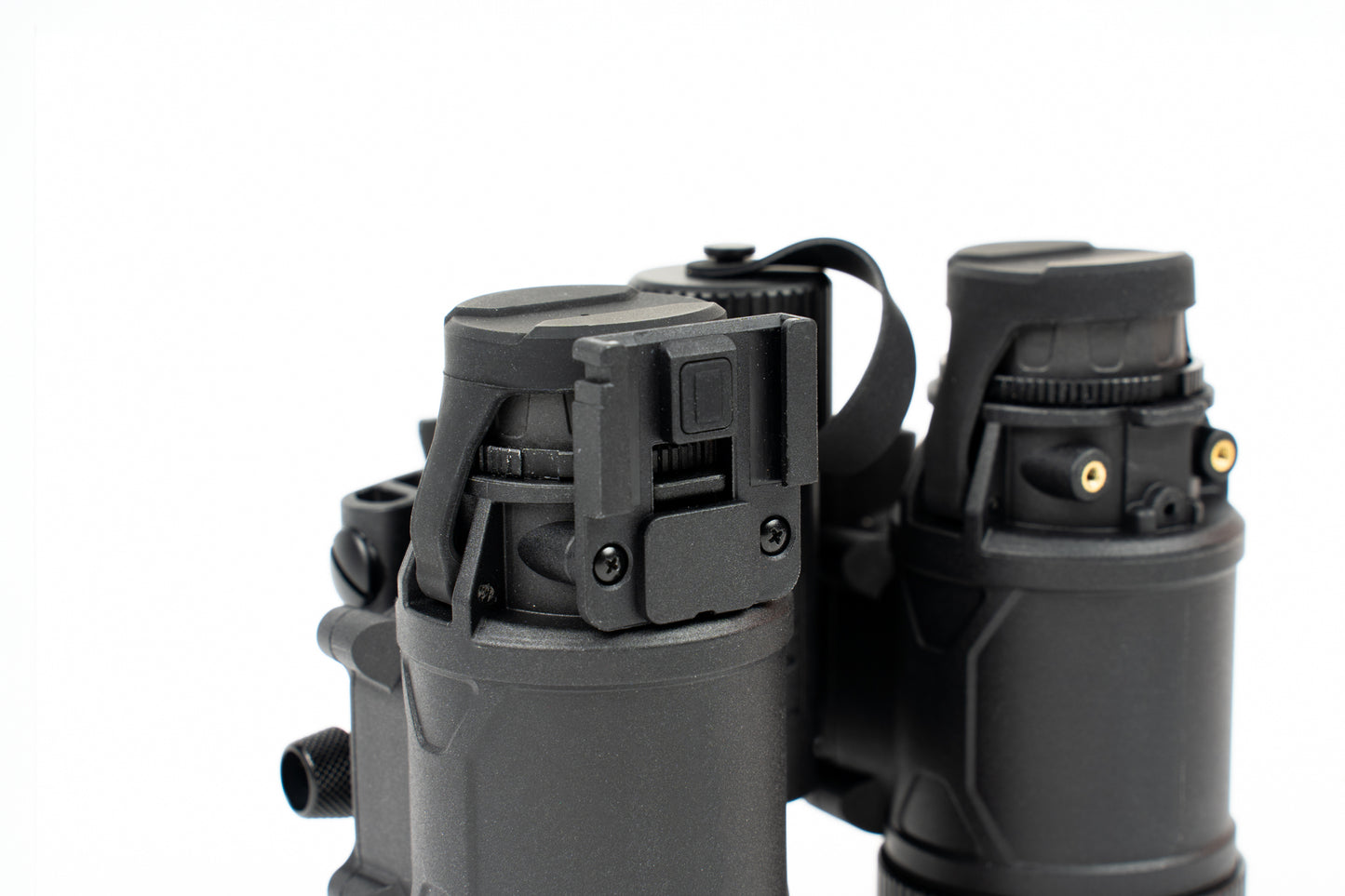

  • Built-in brackets for JerryC Clip-On Thermal Imagers

Each Infiray Jerry-31 sold by Cold Harbour Supply is disassembled and has the following steps performed in-house to guarantee longevity and reliability:

  • Lens Adapter Ring installed (optional - leave a note in the order comments)
  • O-rings replaced with Milspec versions
  • All optical surfaces cleaned
  • Pressure-tested
  • Retrofitted with a Milspec dovetail shoe (factory dovetail shoe is off-spec)
  • Collimated on our Hoffman nightvision test set using custom J-31 specific tools and collimation plate

Controls are simple - to turn on the device, rotate the main dial until it clicks, then simply continue turning to increase gain. To decrease gain, turn the knob counter-clockwise. To turn on the IR illuminator, simple press and hold the knob.



Specifications
Material Polymer Housing with Aluminum Dovetail
Tube Type NNVT MX-10160 White Phosphor 3-Pin Tube (Manual Gain)
Figure of Merit (FOM) SNR x LP/mm

NNVT-4 (1400-1600 FOM)

Weight

481g

Power Supply AA Onboard power, optional external battery via 7-pin Fischer port
Runtime 20 hours, up to 80 hours with offboard battery
Lenses InfiRay Ultra Low Profile Lenses
Field of View 40º
Individual Pod Power Off Programmable, Yes when rotated to side and when unit is rotated up
Diopter Adjustable +2 to -6
Water and Dust Rating IP67
Mount Style Custom CHS Dovetail
Onboard IR Illuminator Yes

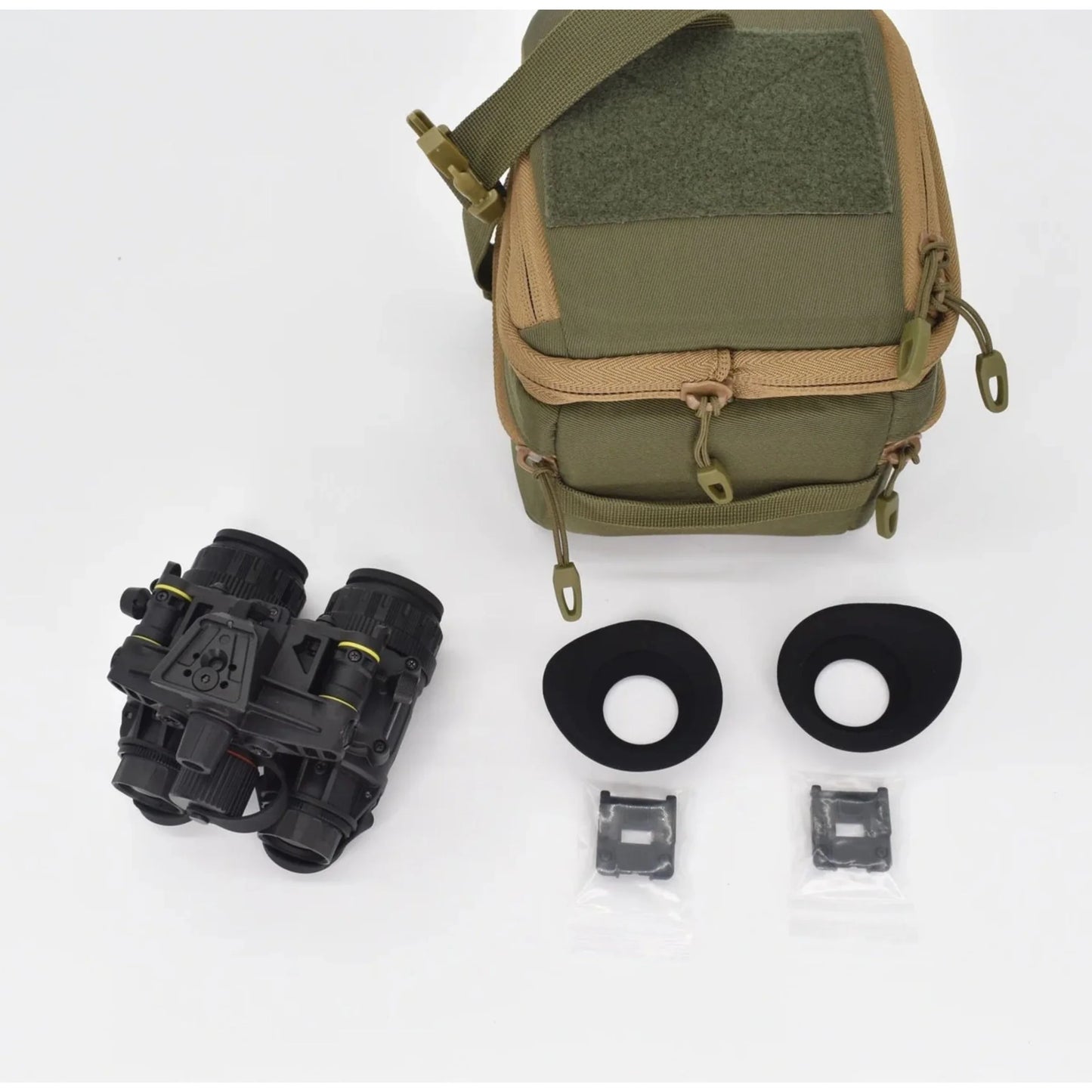

Package includes:

  • Jerry-31 night vision binocular
  • CHS Improved Cerakote Aluminum Dovetail (stock dovetail in box)
  • Eye cups and eye protection bumper rings
  • Deluxe storage case (Ranger Green with Coyote accents)
  • 2x JerryC COTI bracket (detachable)
  • Unique intensifier spec sheets
  • Product manual

Scalability:

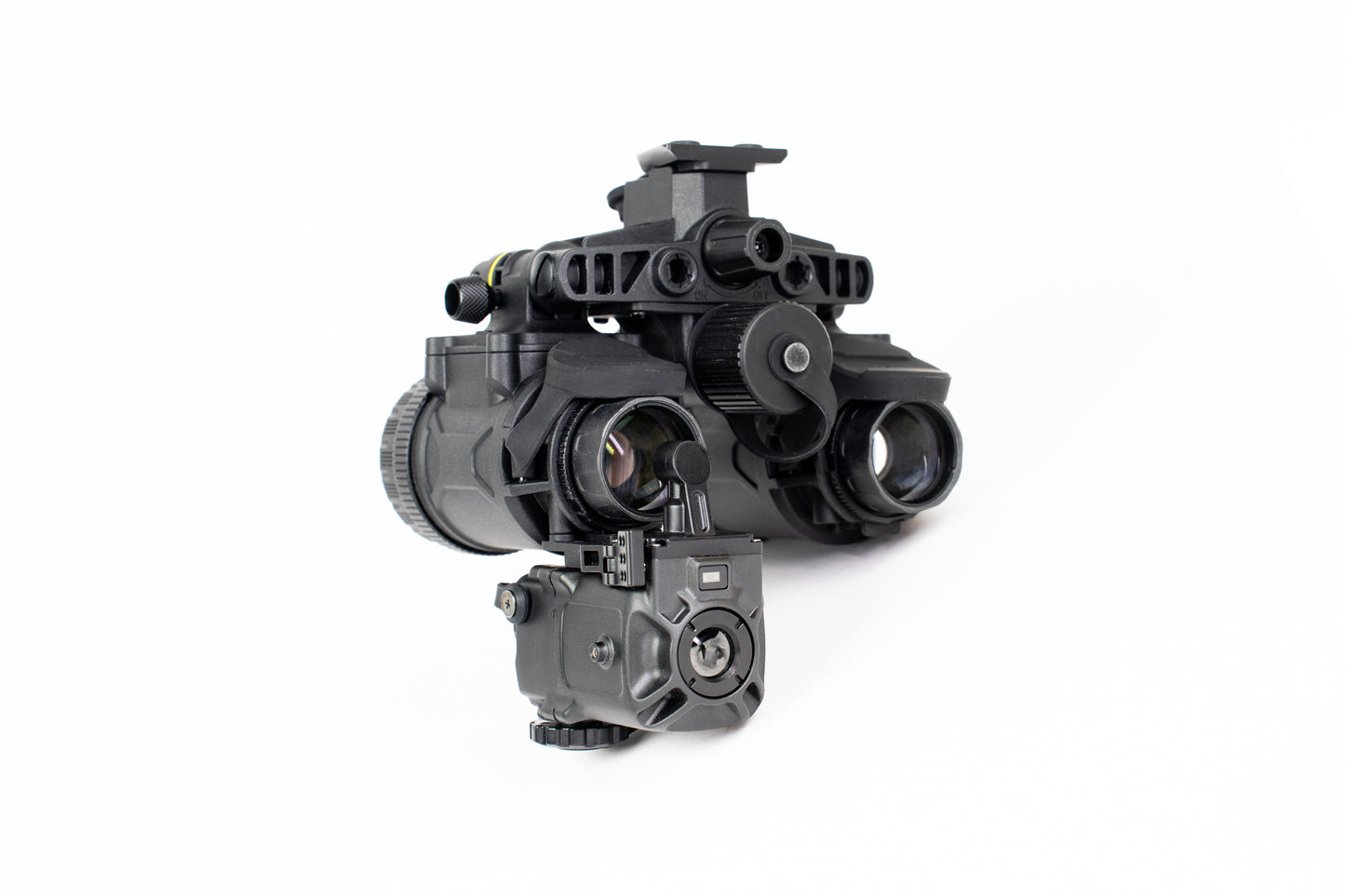

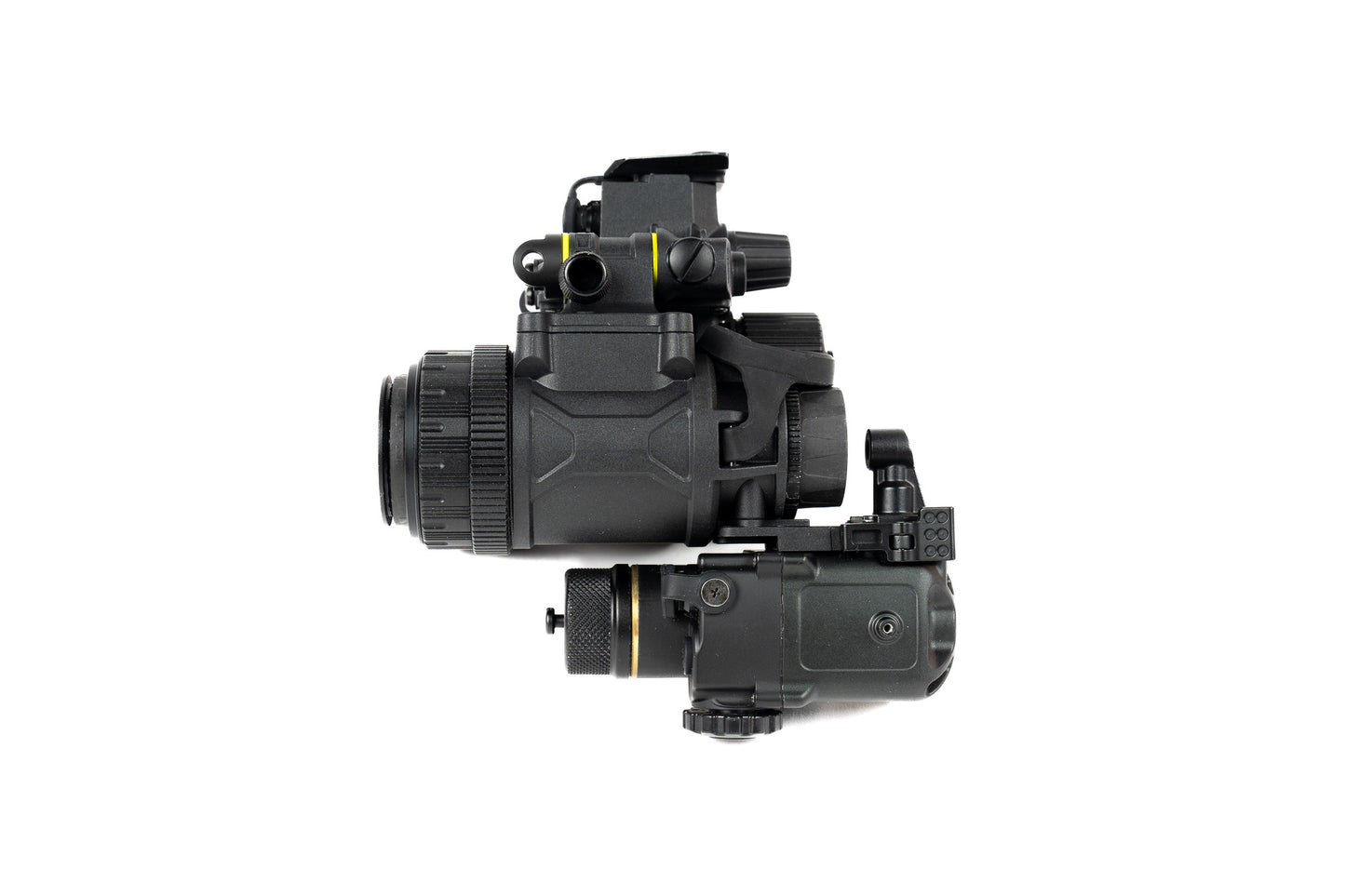

As a bonus, the Jerry-31 comes out of the box with an integrated JerryC COTI mounting bracket. For a limited time, add a JerryC C2 or CE2 COTI for the ultimate multi-spectral setup.

WARRANTY INFO: Standard 3-year warranty from Infiray Outdoor
